This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.75 inches by 40 inches and an array layout of 14 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

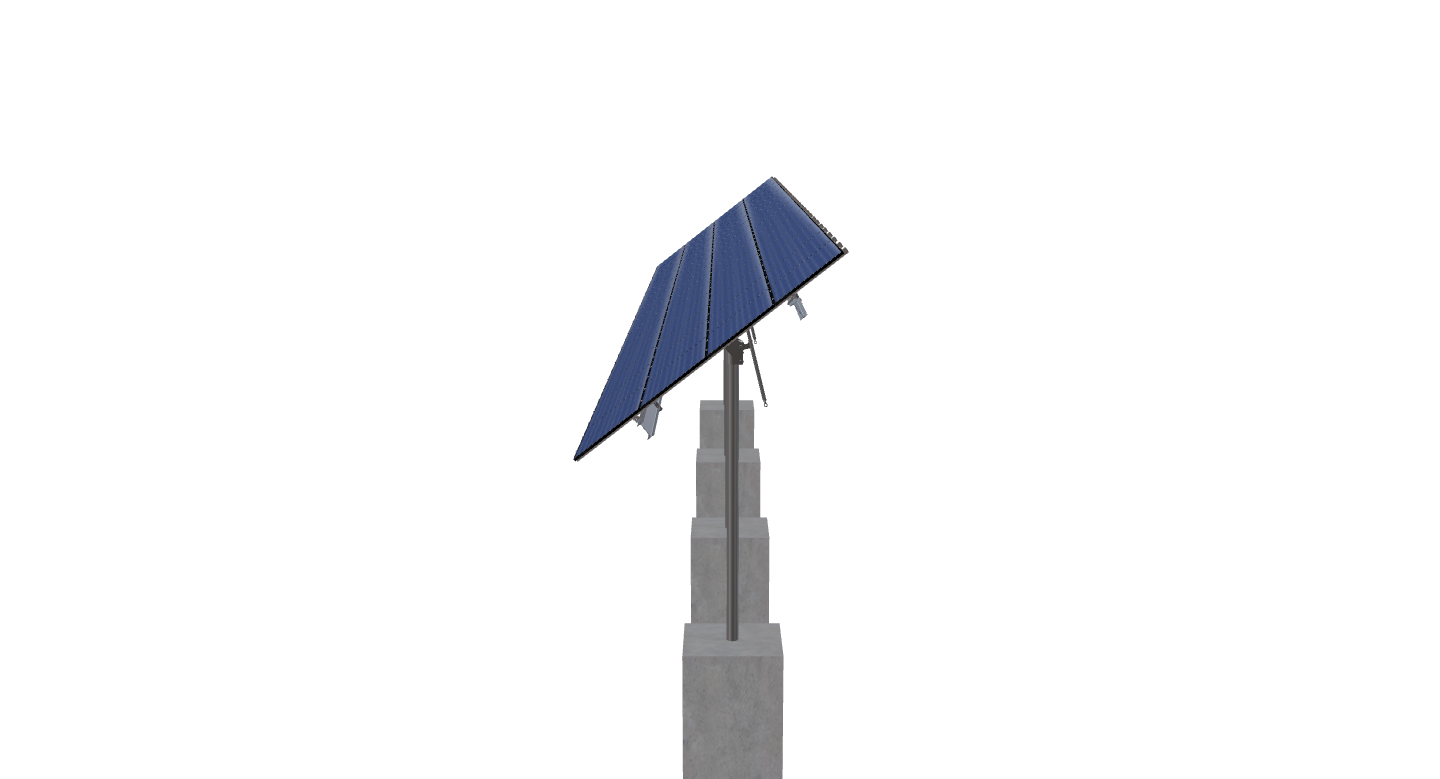

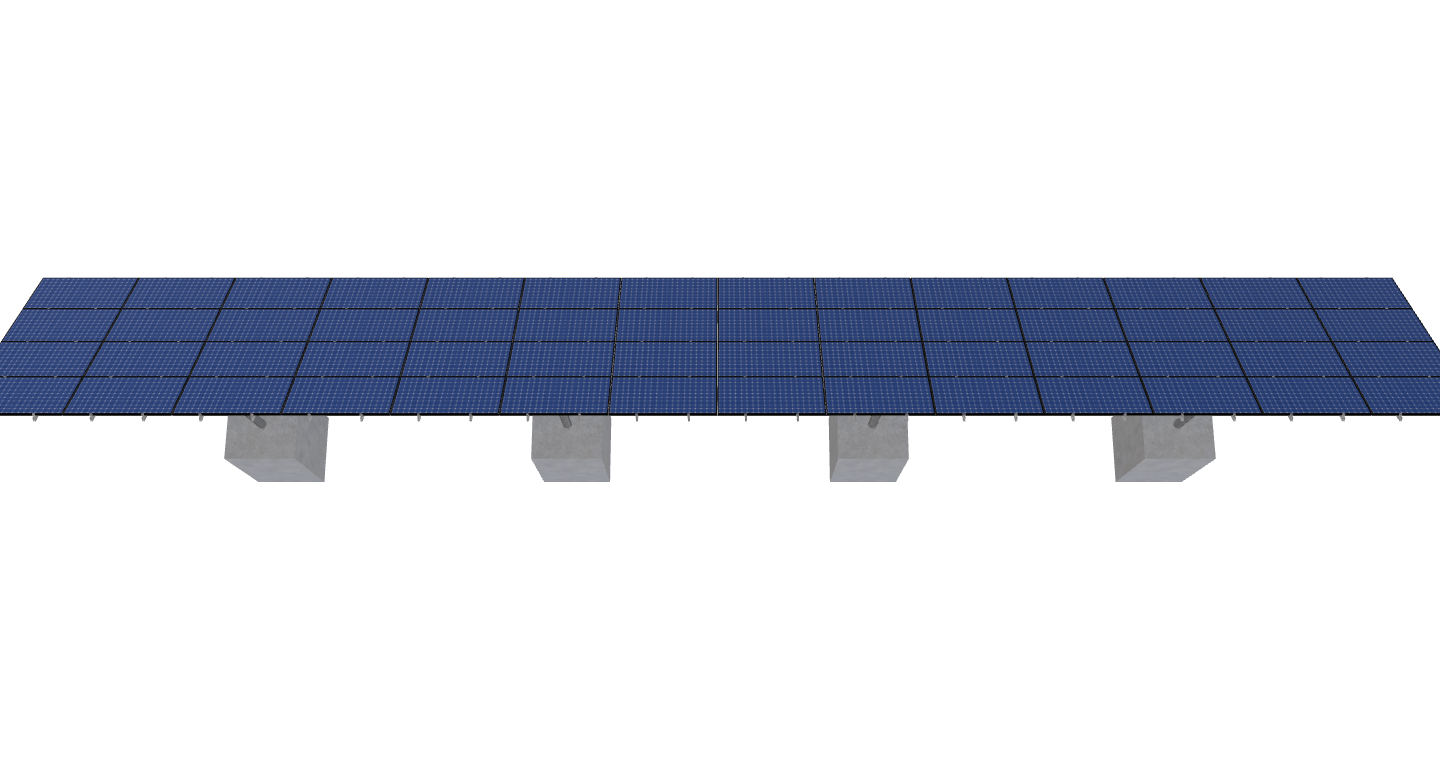

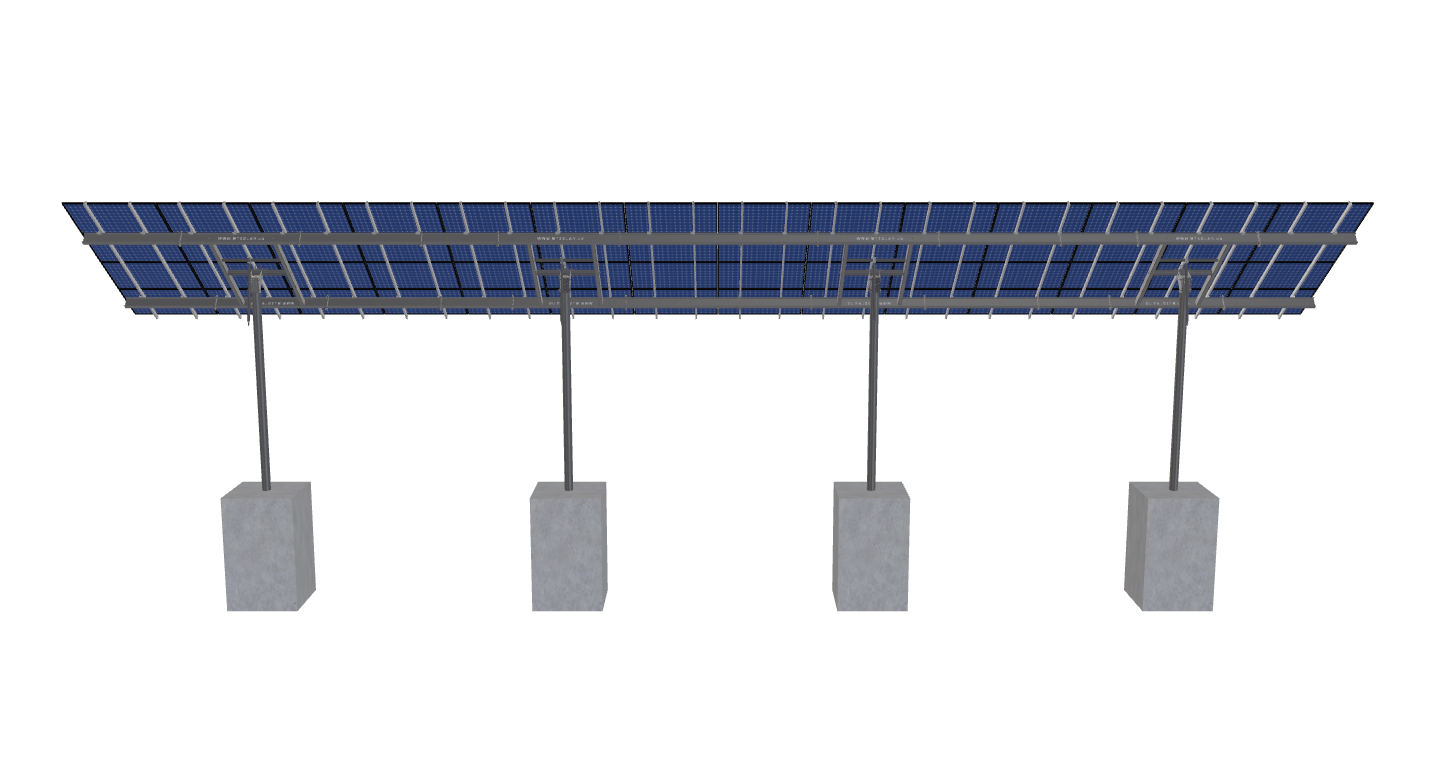

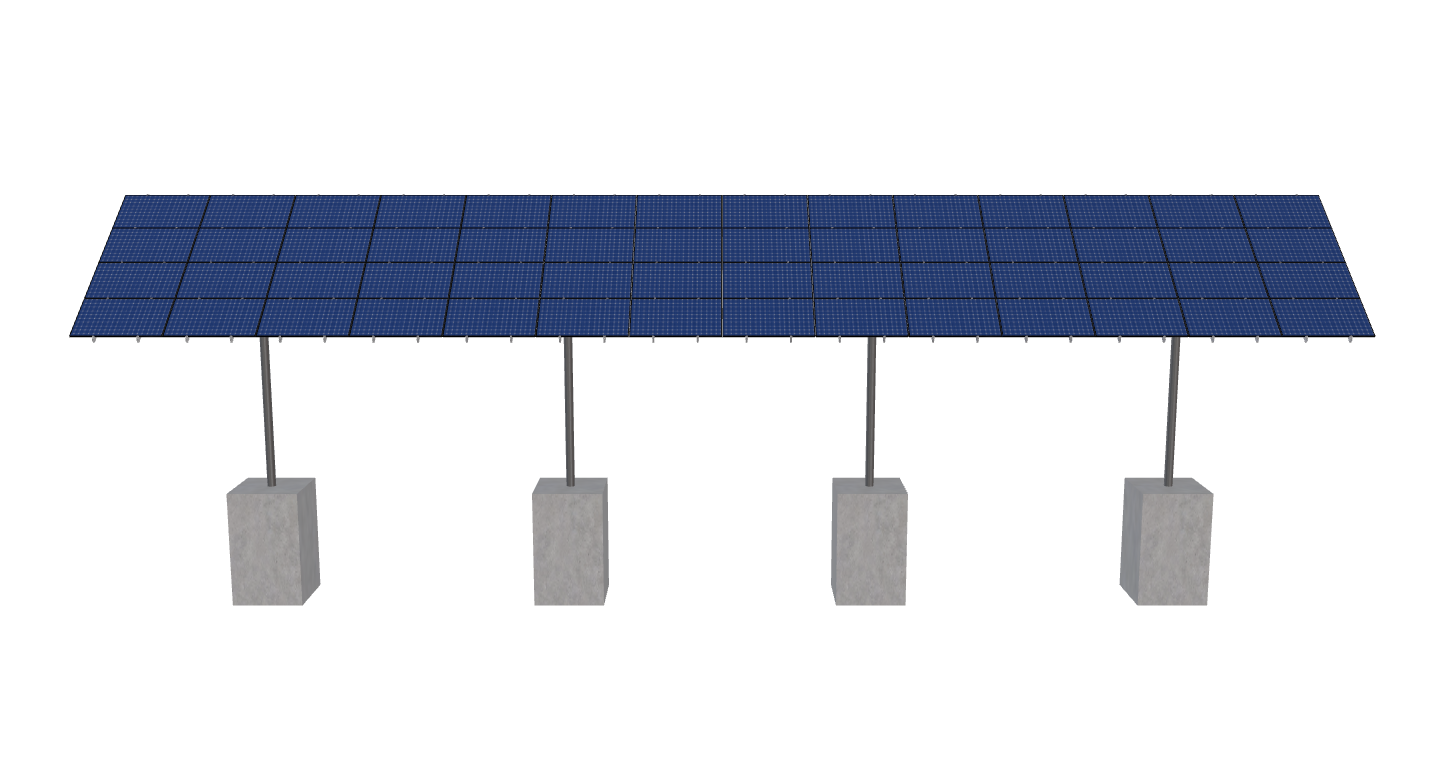

See 3D Model Here
Matt Blackburn – V1Jb
$23,630.18
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.75 inches by 40 inches and an array layout of 14 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4198.08 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-8TOP-XD-72-L-4HX14W-3H8A |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |

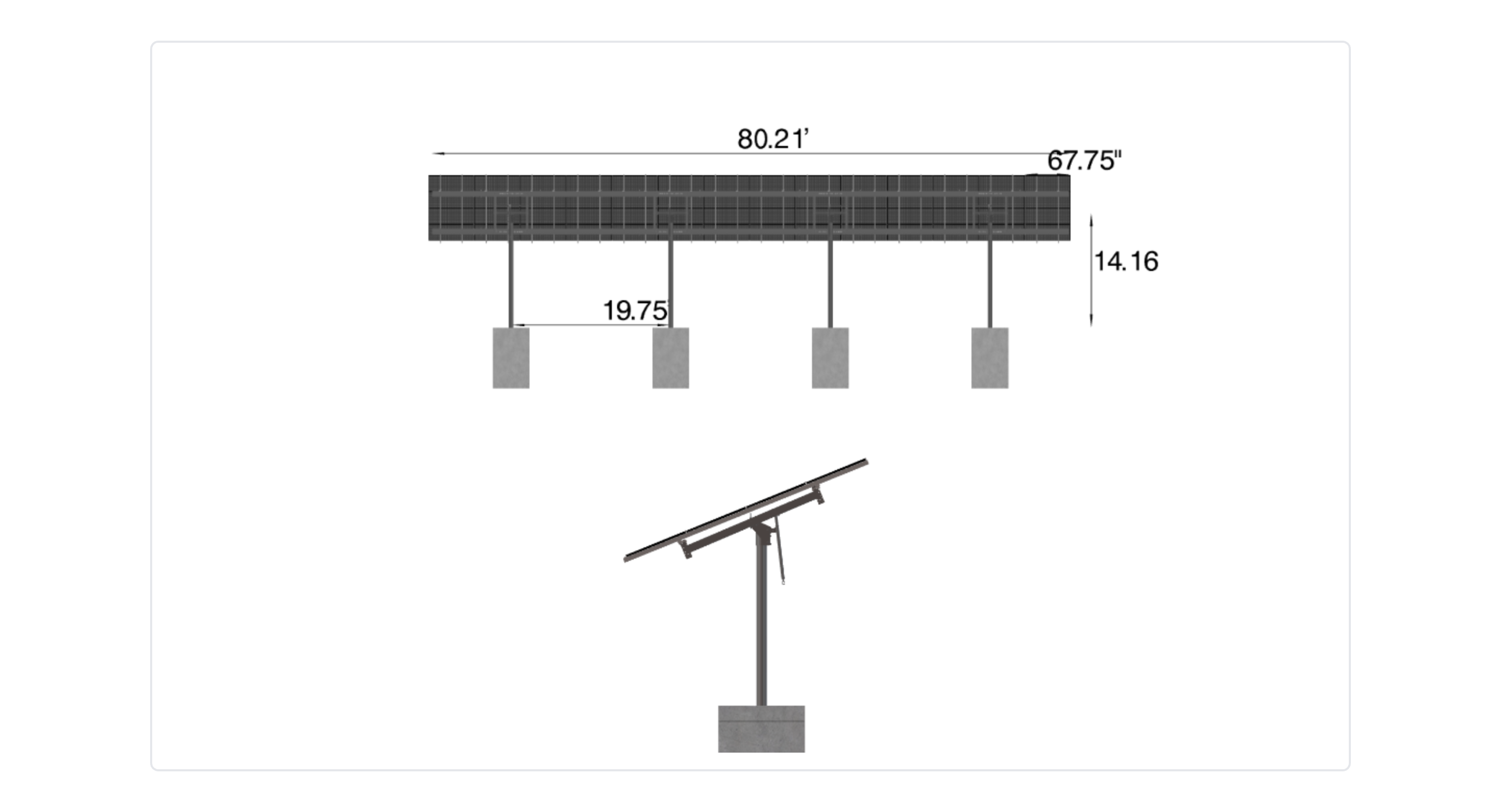

| POLE SPACING | 19.75 |
| POLE HEIGHT | 14.16 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 7.50 |
| TILT ANGLE | 38.00 |
| CANTILEVER | 945.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1082.81 |
| ARRAY WIDTH | 80.21 |
| ARRAY HEIGHT | 13.50 |
| RAIL LENGTH | 162.00 |
| MODULE LENGTH | 67.75 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 78.75 |
| GROUND TO TOP | 18.26 |
| PROJECTED PANEL HEIGHT | 8.21 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | MATT, BLACKBURN, -, V1JB |
| SITE ADDRESS | RUBY, CREEK, RD, IDAHO, 83847, USA |
| MODULE WIDTH | 40.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 14.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 22504.93 |
| TOTAL WEIGHT | 4198.08 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/0a3b0c70-63f0-465c-bfe0-afbaff597613.pdf |
|
| ID | 7244.00 |
| 3D Solar link |
