Mazie Wild

$3,706.01

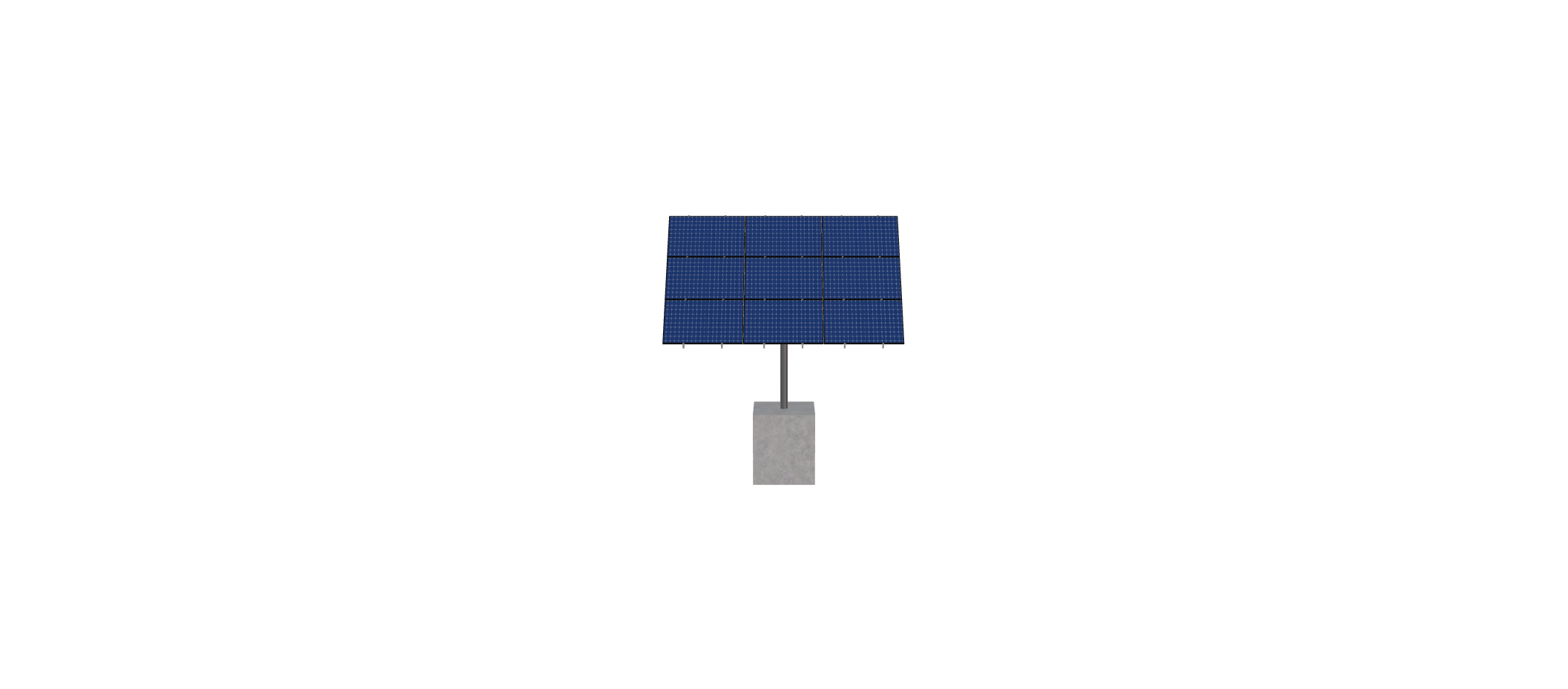

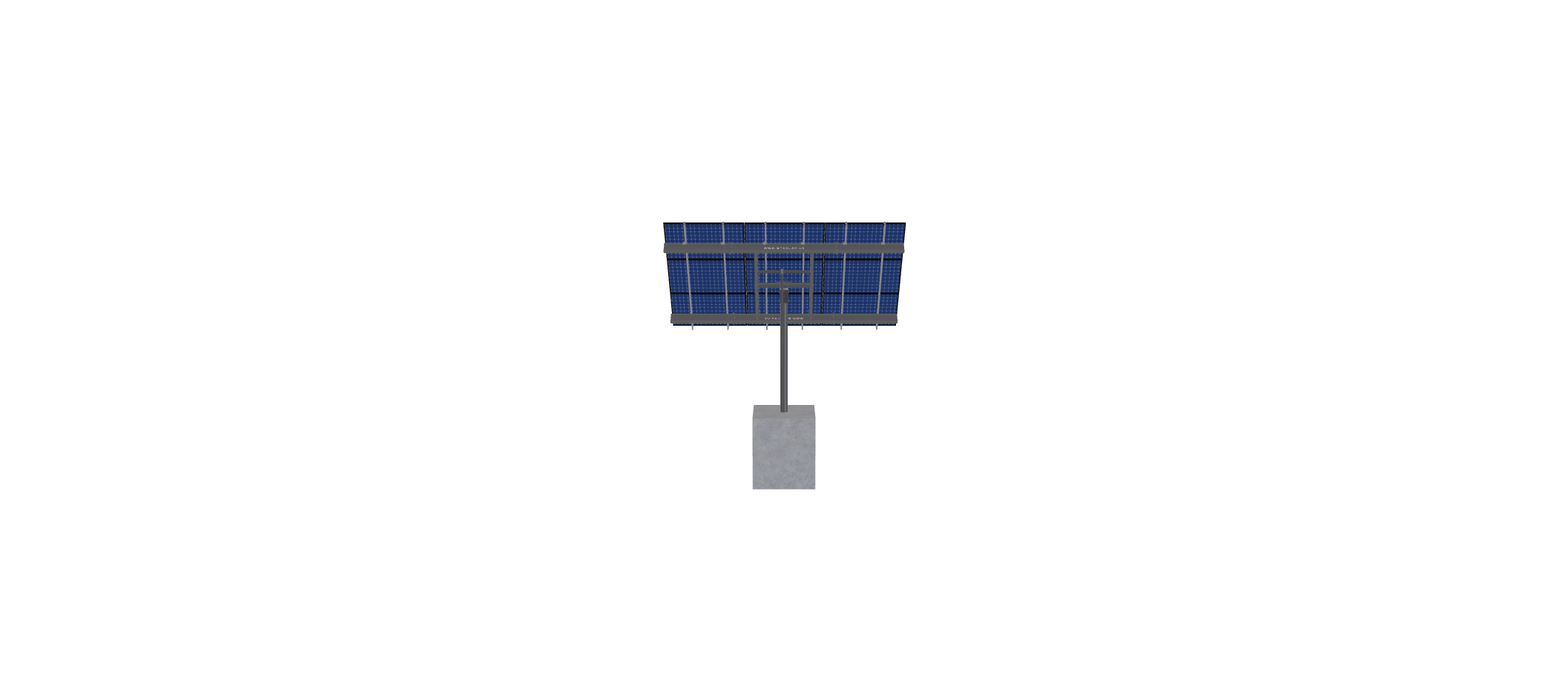

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

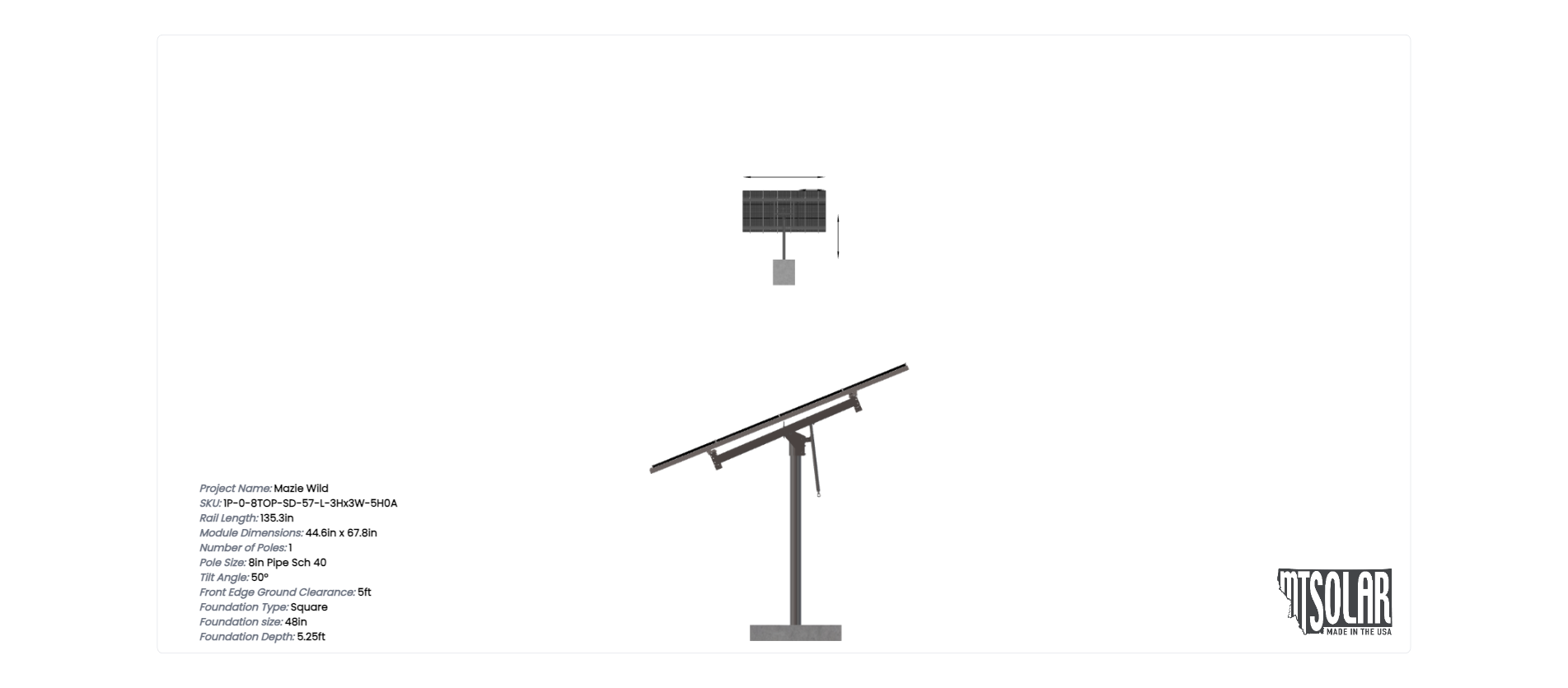

See 3D Model Here

SKU: 1P-0-8TOP-SD-57-L-3Hx3W-5H0A Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 664.38 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-8TOP-SD-57-L-3HX3W-5H0A

DUTY SIZE

SD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

9.32

WING SPAN

57.00

MAX FOUNDATION DEPTH

5.25

TILT ANGLE

50.00

CANTILEVER

204.00

GROUND CLEARANCE

5.00

NO POLES

1.00

MODULE AREA

193.93

ARRAY WIDTH

17.20

ARRAY HEIGHT

11.28

RAIL LENGTH

135.30

MODULE LENGTH

67.80

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

17.00

GROUND TO TOP

13.59

PROJECTED PANEL HEIGHT

8.54

DESIGNER NAME

TIM, NELSON

DESIGNER EMAIL

TIM@FMSOLAR.COM

DESIGNER PHONE

360-422-5610

PROJECT ID

MAZIE, WILD

SITE ADDRESS

629, VICTORIA, CREEK, RD, LEAVENWORTH, WA, 98826, USA

MODULE WIDTH

44.60

NUMBER ROWS

3.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

8, 40

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

90.00

SNOW LOAD OVERRIDE

50.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

3706.01

TOTAL WEIGHT

664.38

TOTAL PALLETS

1.00
