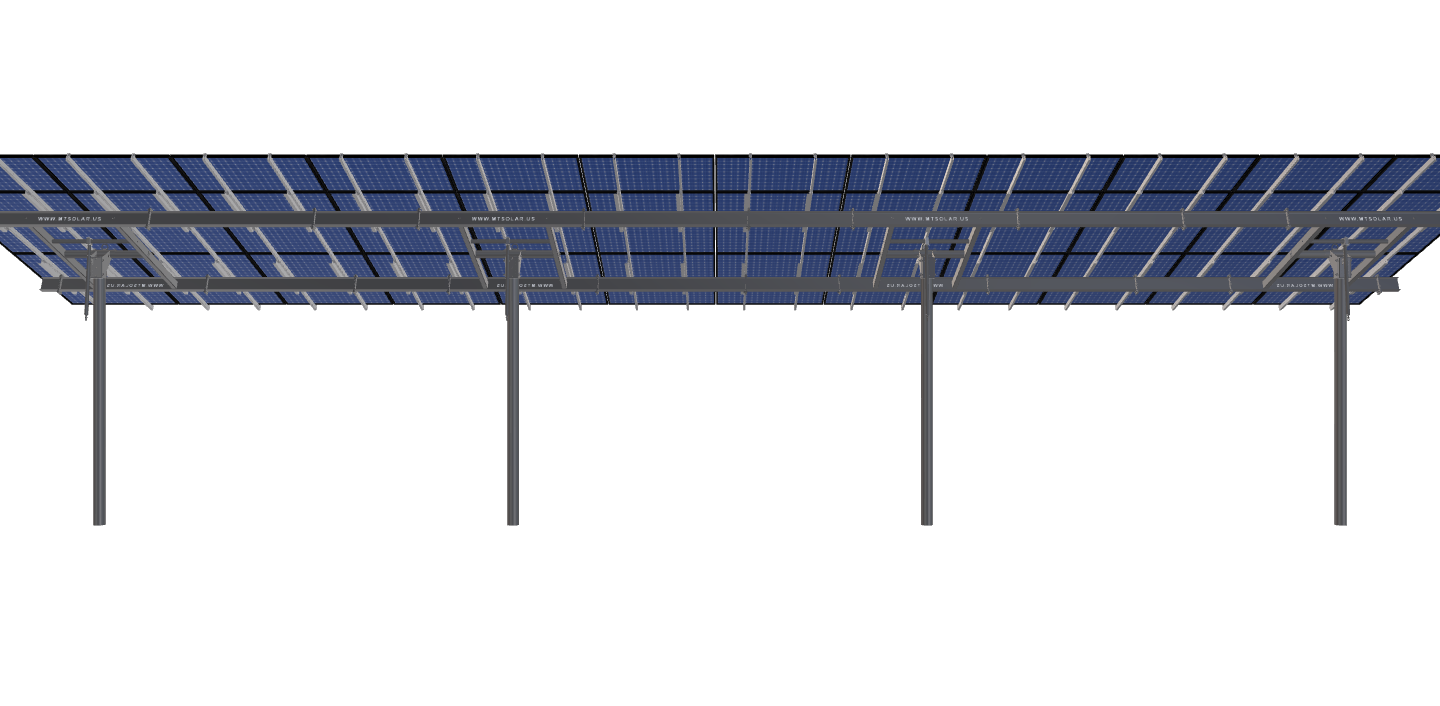

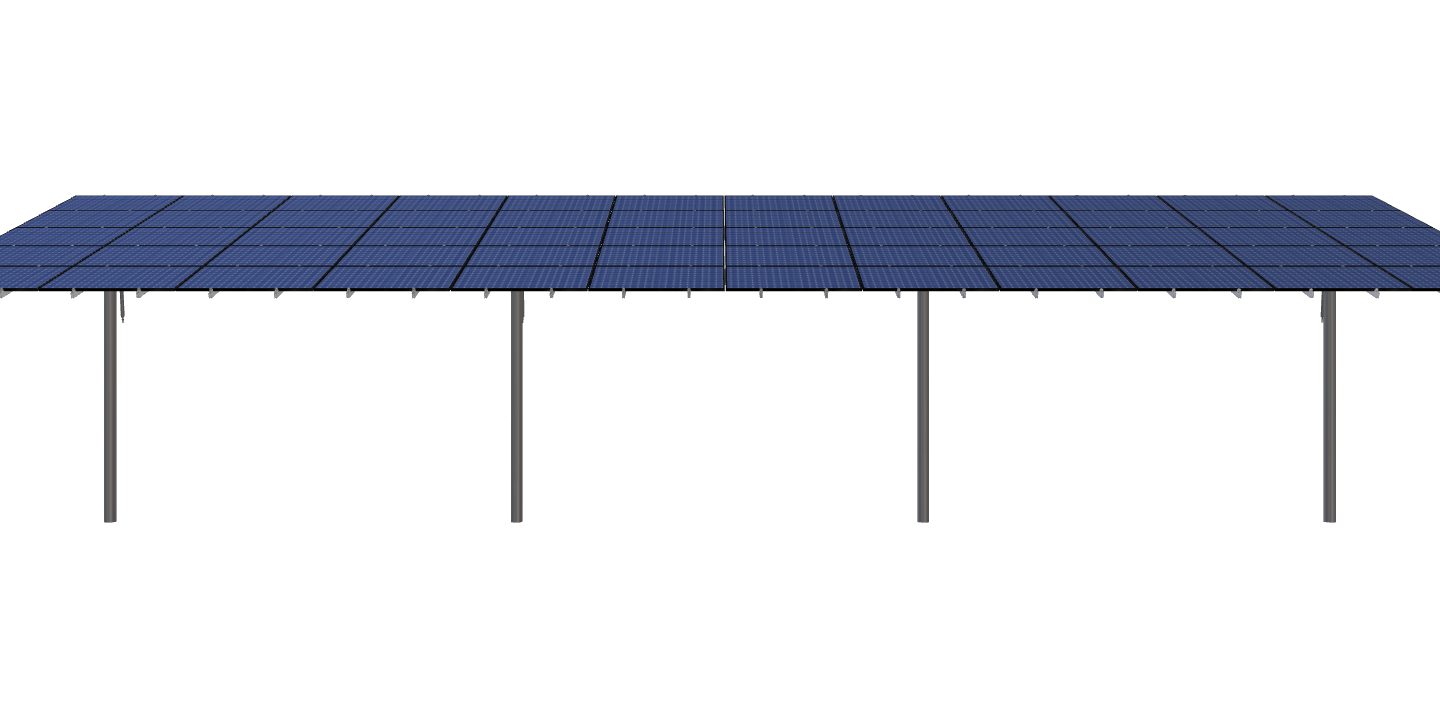

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.09 inches by 40.86 inches and an array layout of 12 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Mechanicsville VFD 5×12 A
$22,862.84
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.09 inches by 40.86 inches and an array layout of 12 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4594.28 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-6TOP-XD-12-L-5HX12W-9IIA |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 12.95 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 9.50 |
| TILT ANGLE | 20.00 |
| CANTILEVER | 825.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1207.88 |
| ARRAY WIDTH | 70.09 |
| ARRAY HEIGHT | 17.23 |
| RAIL LENGTH | 206.80 |
| MODULE LENGTH | 69.09 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 68.75 |
| GROUND TO TOP | 15.86 |
| PROJECTED PANEL HEIGHT | 5.82 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | MECHANICSVILLE, VFD, 5X12, A |
| SITE ADDRESS | 28165, HILLS, CLUB, RD, MECHANICSVILLE, MD, 20659, USA |
| MODULE WIDTH | 40.86 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 12.00 |
| RISK CATEGORY | IV |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 22862.84 |
| TOTAL WEIGHT | 4594.28 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/74041370-6735-4f30-a6f4-7681396f25e4.pdf |
|
| ID | 1512.00 |
| 3D Solar link |
