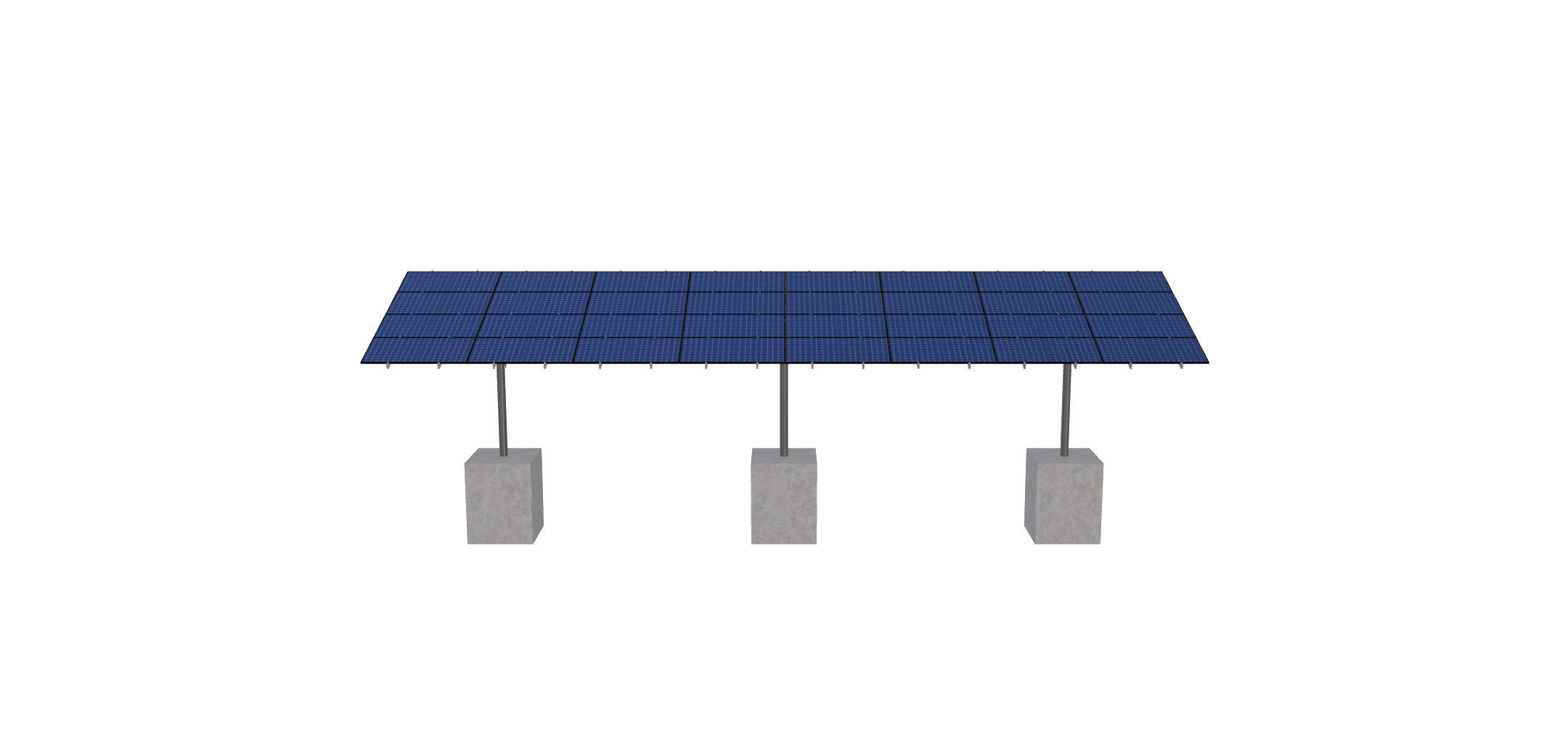

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 81.9 inches by 40.6 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MillnerWinery-JB-RevC
$15,429.06
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 81.9 inches by 40.6 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2892.6099999999997 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-6TOP-XD-45-L-4HX8W-8JBJ |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 9.34 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 5.75 |
| TILT ANGLE | 20.00 |
| CANTILEVER | 654.00 |
| GROUND CLEARANCE | 7.00 |
| NO POLES | 3.00 |
| MODULE AREA | 757.15 |
| ARRAY WIDTH | 55.27 |
| ARRAY HEIGHT | 13.70 |
| RAIL LENGTH | 164.40 |
| MODULE LENGTH | 81.90 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 54.50 |
| GROUND TO TOP | 11.66 |
| PROJECTED PANEL HEIGHT | 4.63 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | MILLNERWINERY-JB-REVC |
| SITE ADDRESS | MN-15, KIMBALL, MN, USA |
| MODULE WIDTH | 40.60 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 15429.06 |
| TOTAL WEIGHT | 2892.61 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/3428c727-27fa-4b03-ba35-31cada8b19e4.pdf |
|
| ID | 2205.00 |
| 3D Solar link |
