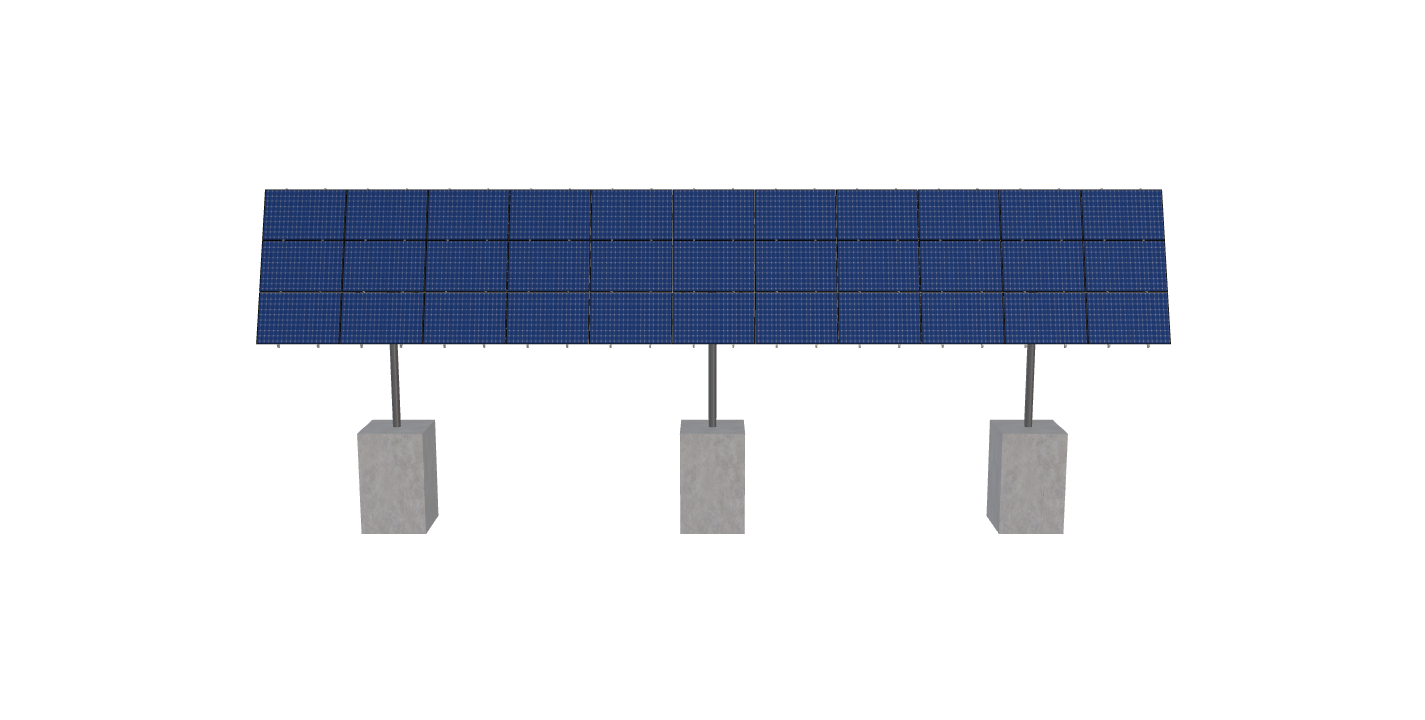

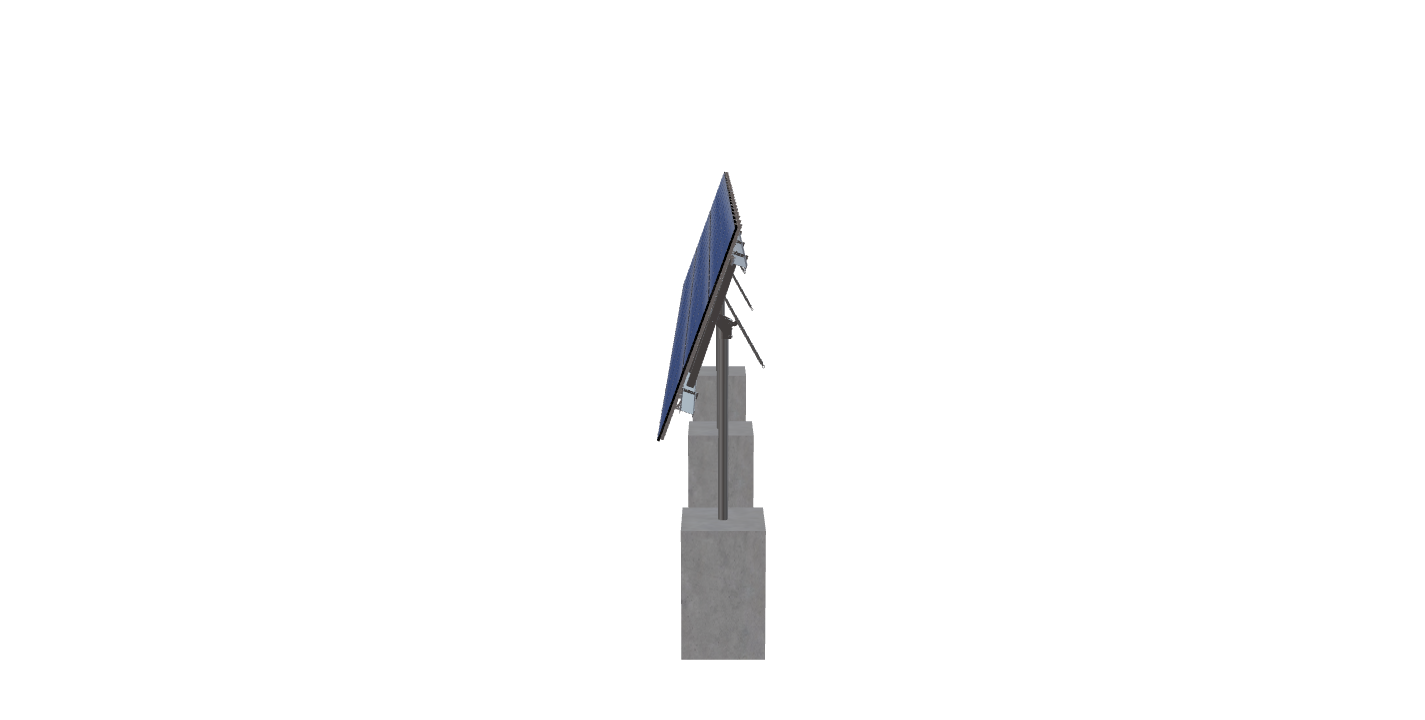

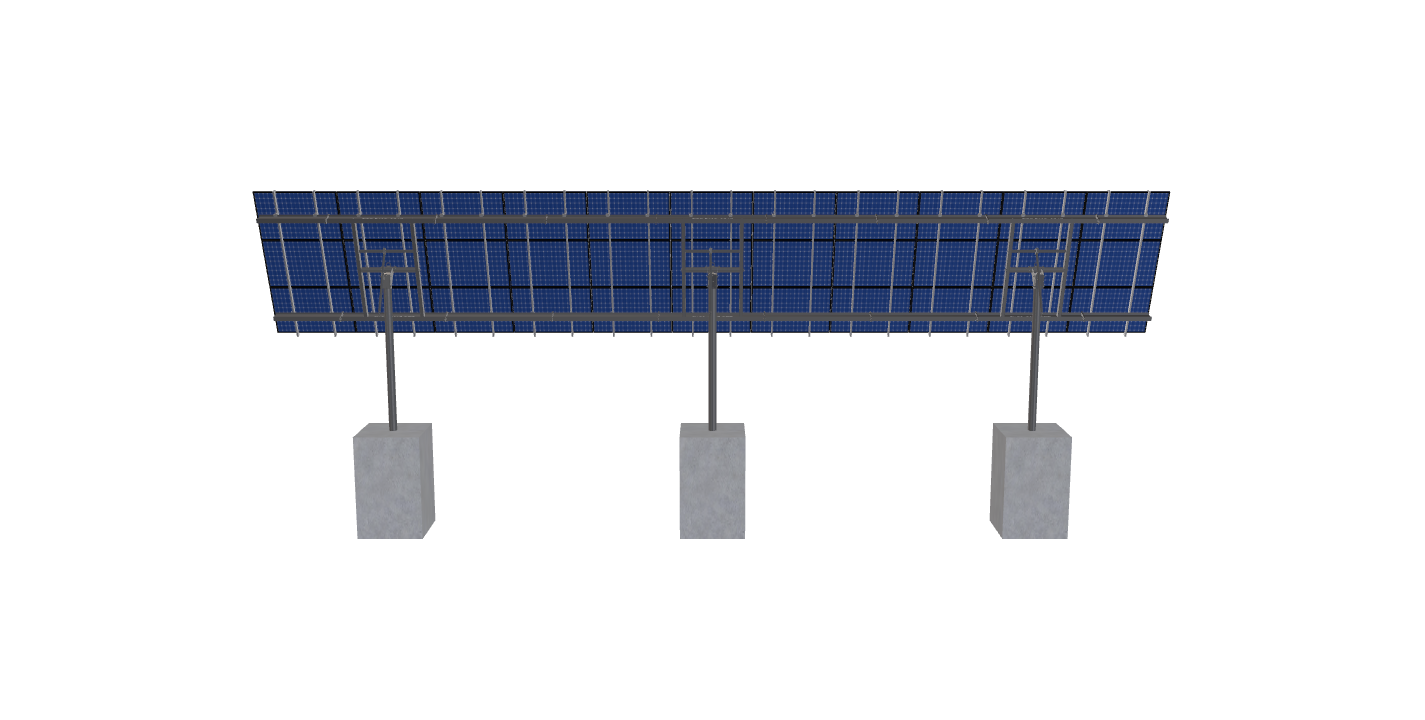

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 11 wide by 3 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MT33a
$13,820.78
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 11 wide by 3 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2384.12 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-8TOP-SD-57-L-3HX11W-877H |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 11.30 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 7.25 |
| TILT ANGLE | 70.00 |
| CANTILEVER | 744.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 3.00 |
| MODULE AREA | 711.08 |
| ARRAY WIDTH | 63.07 |
| ARRAY HEIGHT | 11.28 |
| RAIL LENGTH | 135.30 |
| MODULE LENGTH | 67.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 62.00 |
| GROUND TO TOP | 16.60 |
| PROJECTED PANEL HEIGHT | 10.60 |
| DESIGNER NAME | ALAN, METNI |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 512-415-3313 |
| PROJECT ID | MT33A |
| SITE ADDRESS | W, WHITE, PNE, CYN, RD, PARK, CITY, UT, 84098, USA |
| MODULE INFO | HYUNDAI, 435W, BI-FACIAL |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 11.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 178.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 13820.78 |
| TOTAL WEIGHT | 2384.12 |
| TOTAL PALLETS | 3.00 |
