This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 44 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

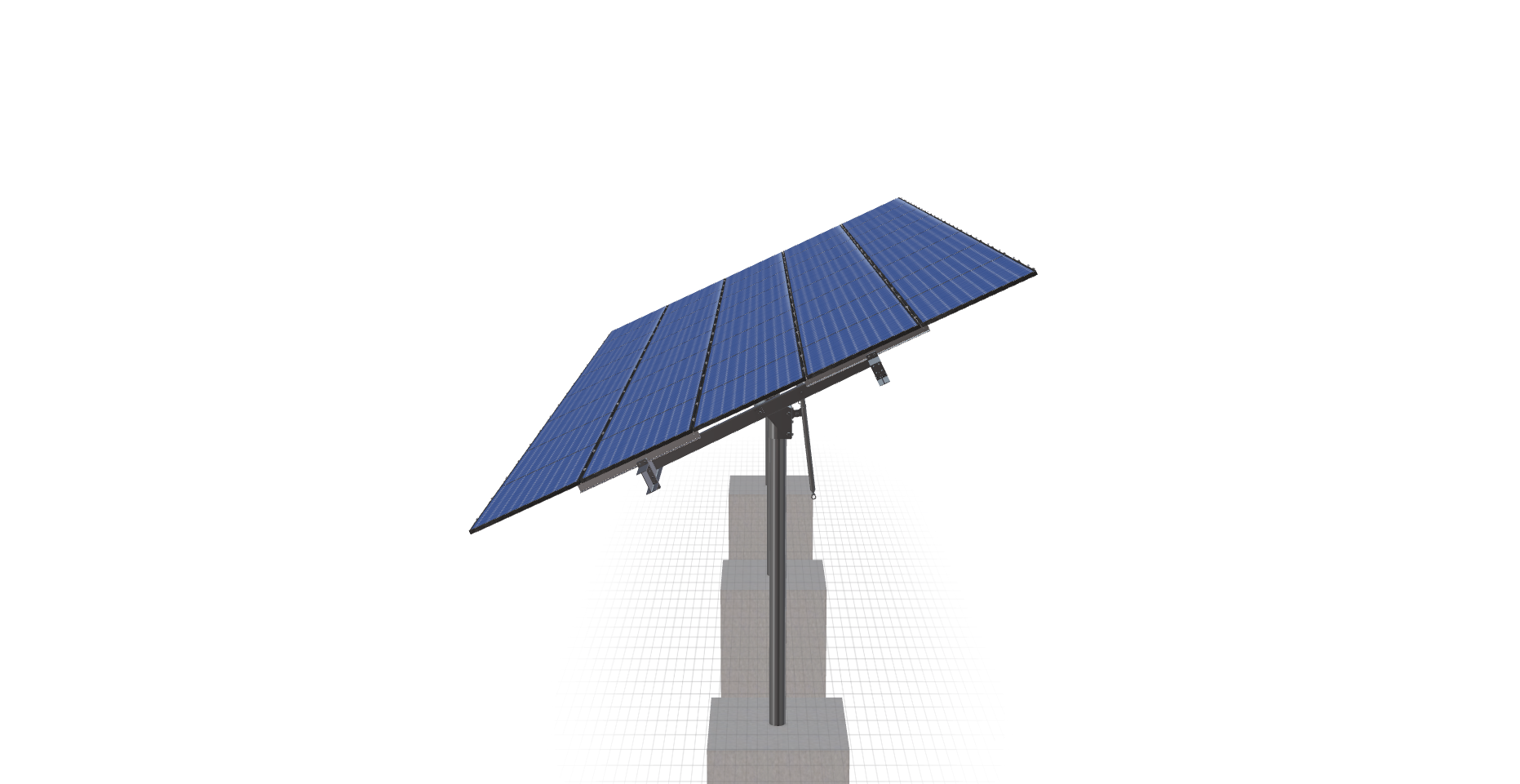

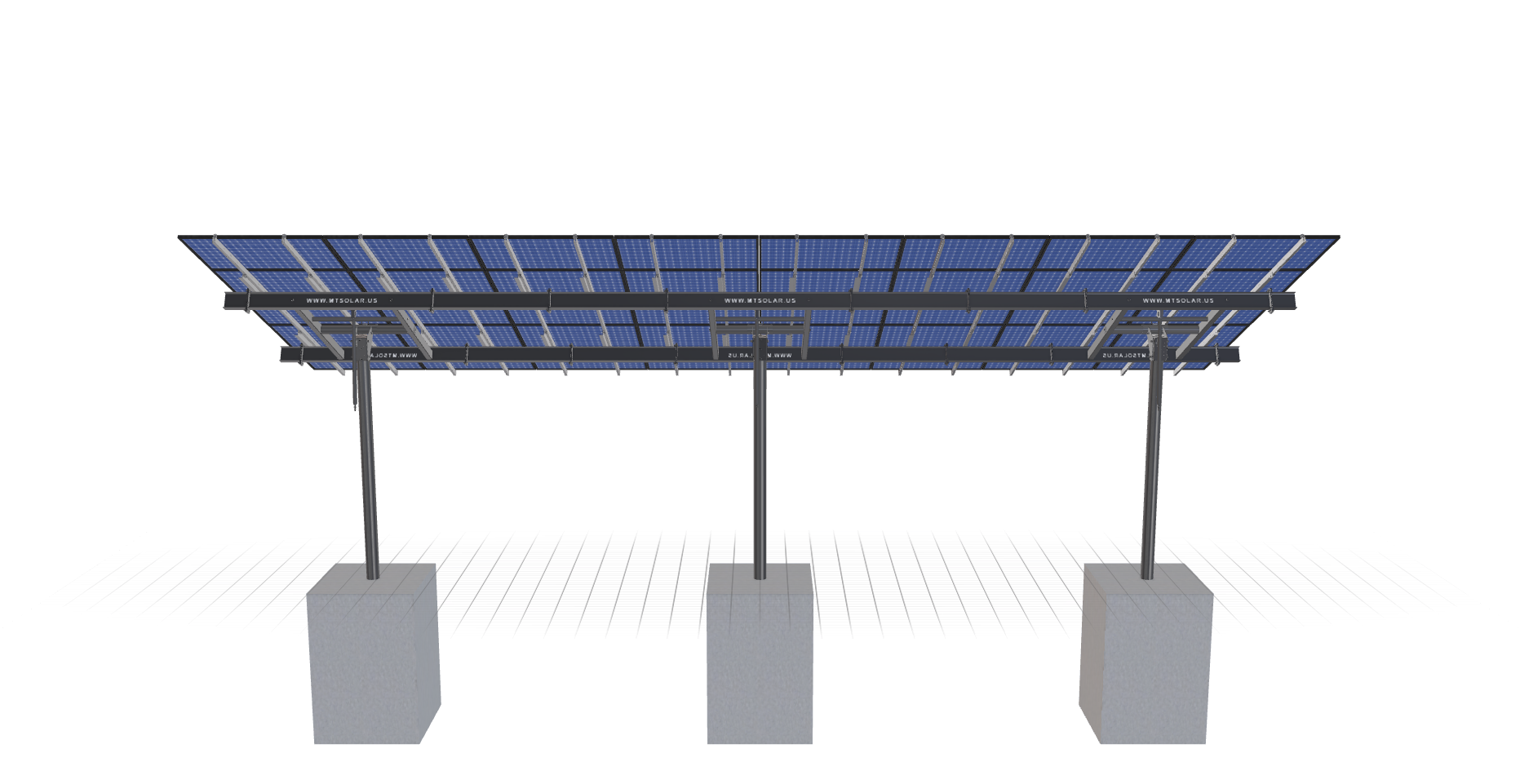

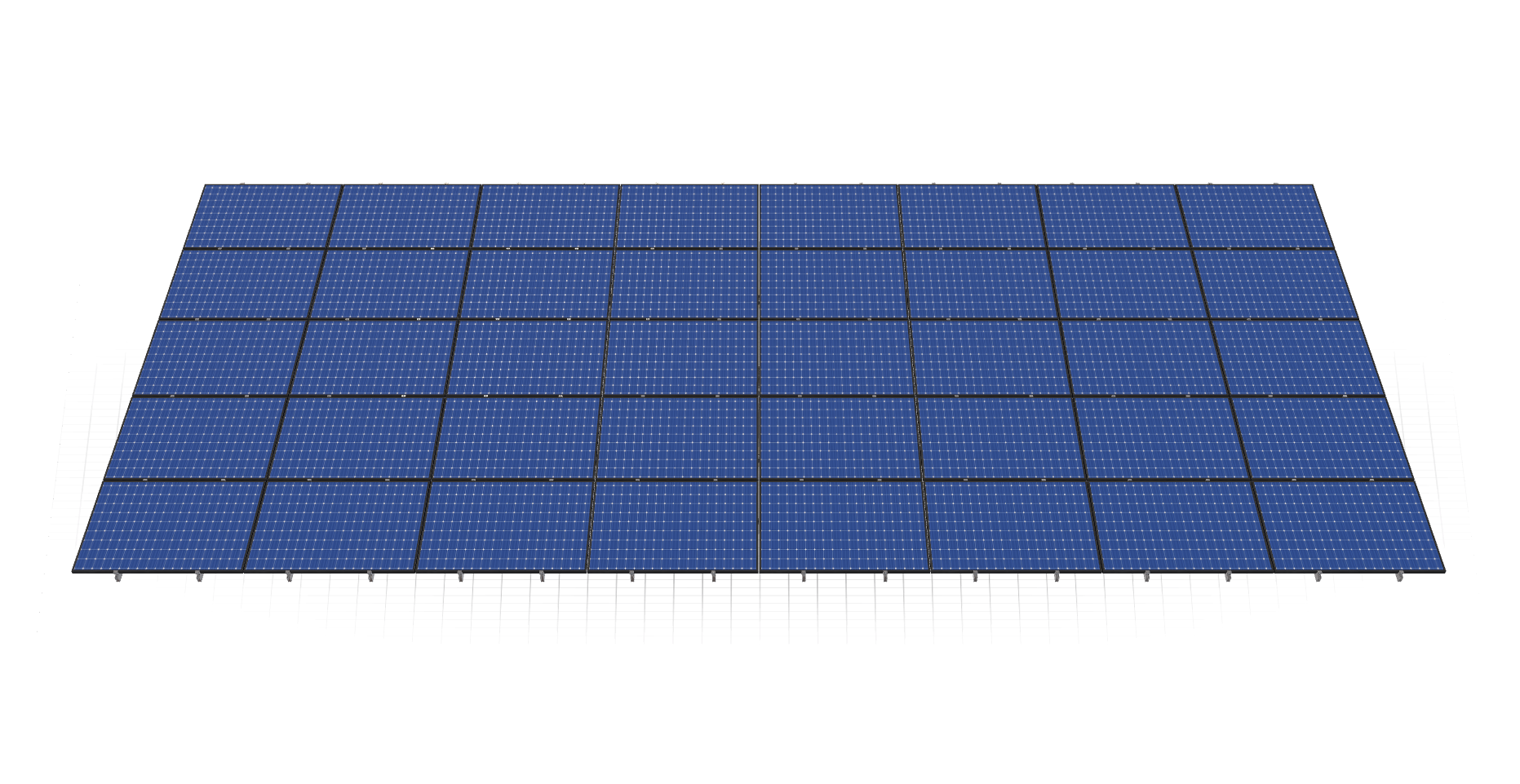

See 3D Model Here
MTSOLAR_067CC16B3BD2FE
$16,087.54
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 44 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3187.37 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-8TOP-XD-12-L-5HX8W-9III |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 10.92 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 6.75 |
| TILT ANGLE | 25.00 |
| CANTILEVER | 522.00 |
| GROUND CLEARANCE | 7.00 |
| NO POLES | 3.00 |
| MODULE AREA | 815.83 |
| ARRAY WIDTH | 44.00 |
| ARRAY HEIGHT | 18.54 |
| RAIL LENGTH | 222.50 |
| MODULE LENGTH | 65.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 43.50 |
| GROUND TO TOP | 14.79 |
| PROJECTED PANEL HEIGHT | 7.75 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | MTSOLAR, 067CC16B3BD2FE |
| SITE ADDRESS | 15235, DEBORAH, DR, HUGHESVILLE, MD, 20637, USA |
| MODULE WIDTH | 44.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 16087.54 |
| TOTAL WEIGHT | 3187.37 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/781c7e33-473f-466e-a75d-c999457f50a0.pdf |
|
| ID | 819.00 |
| 3D Solar link |
