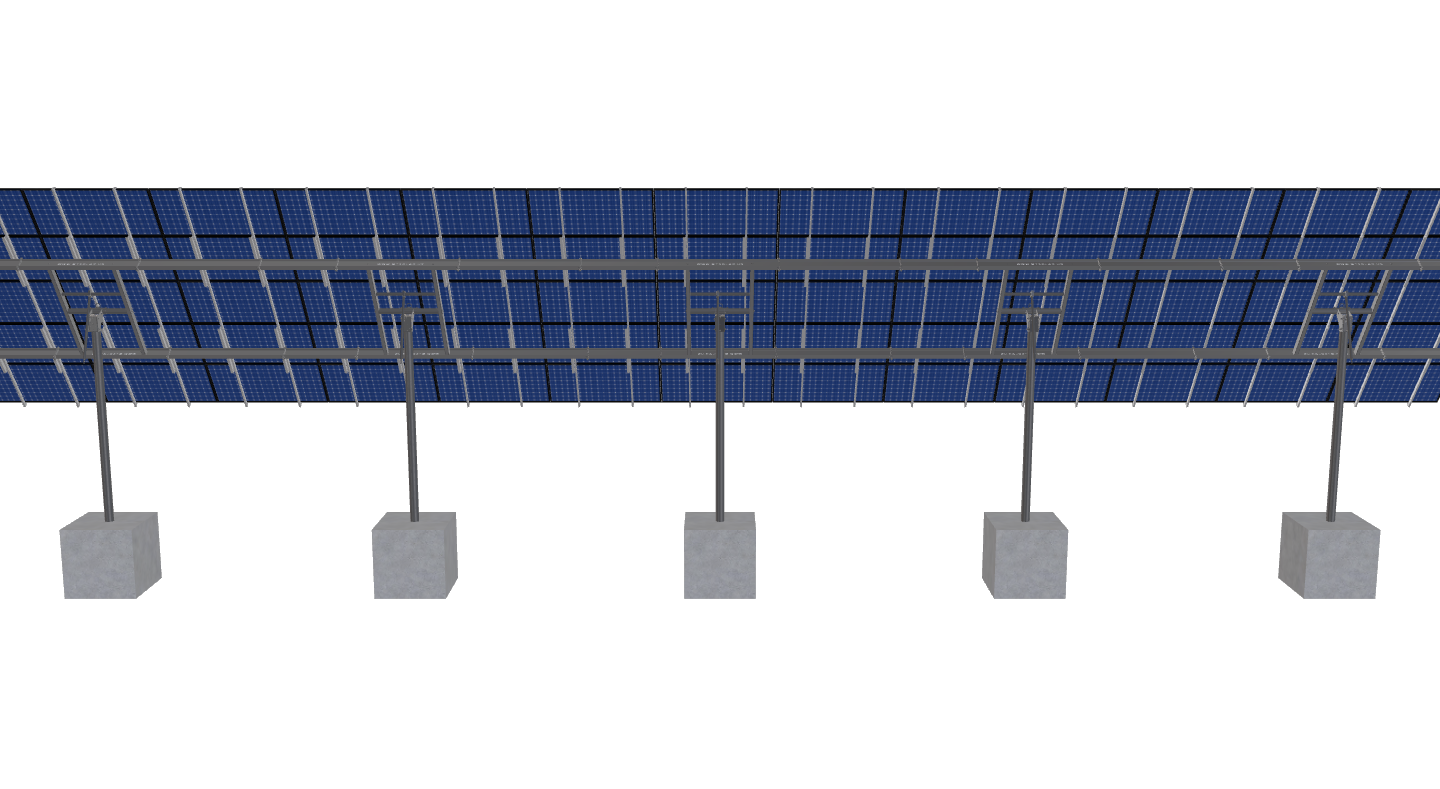

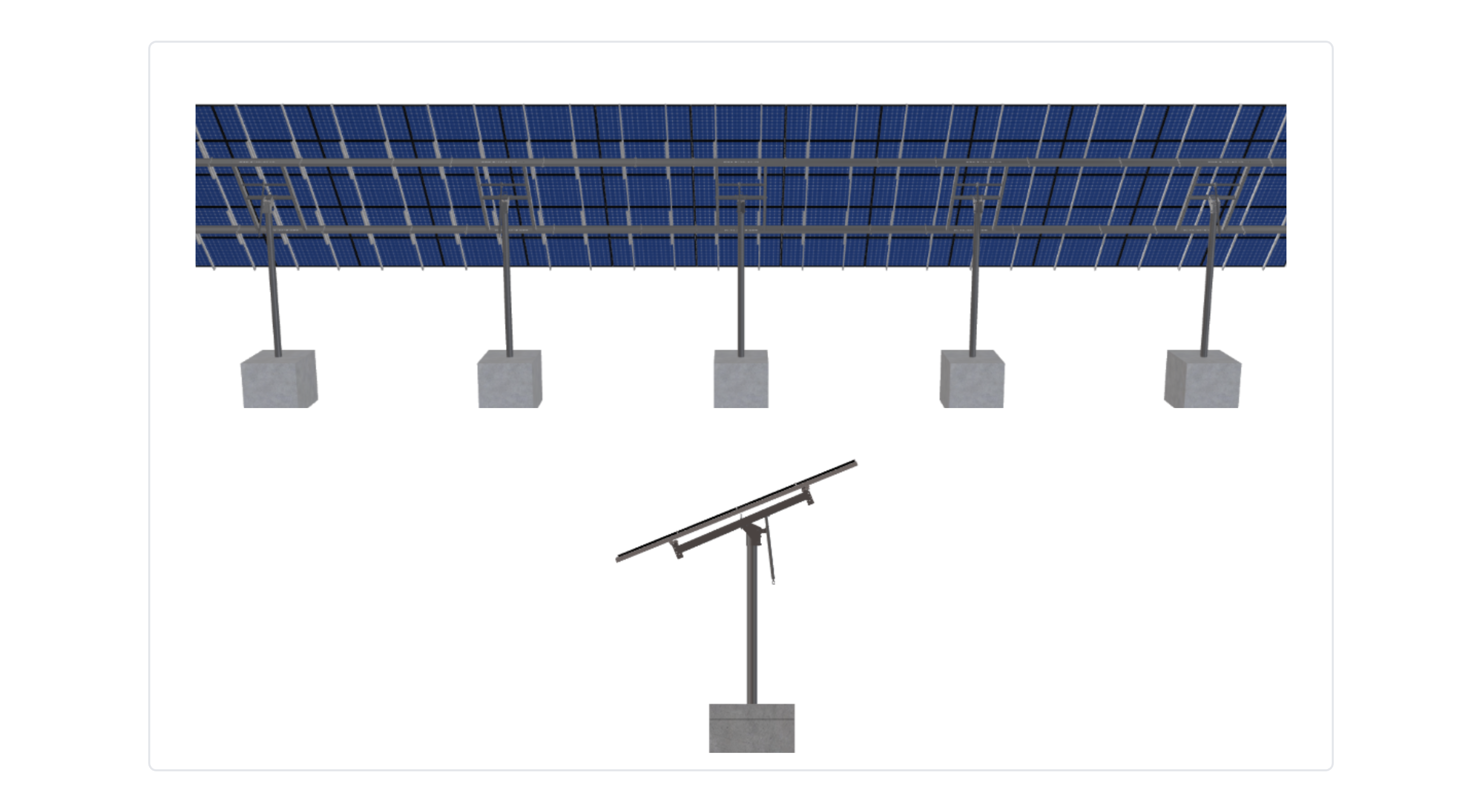

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 90 inches by 44 inches and an array layout of 13 wide by 5 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_10AG1252B7212-JB-RevA
$23,503.04
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 90 inches by 44 inches and an array layout of 13 wide by 5 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4672.72 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-19.75-8TOP-SD-72-L-5HX13W-6GA3 |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 13.59 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 4.50 |
| TILT ANGLE | 55.00 |
| CANTILEVER | 1182.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1827.90 |
| ARRAY WIDTH | 98.58 |
| ARRAY HEIGHT | 18.54 |
| RAIL LENGTH | 222.50 |
| MODULE LENGTH | 90.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 98.50 |
| GROUND TO TOP | 21.10 |
| PROJECTED PANEL HEIGHT | 15.02 |
| WIND SPEED OVERRIDE | 75.00 |
| SNOW LOAD OVERRIDE | 60.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | MTSOLAR, 10AG1252B7212-JB-REVA |
| SITE ADDRESS | SHERMAN, ME, USA |
| MODULE WIDTH | 44.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 13.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SEDIMENTARY |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 23503.04 |
| TOTAL WEIGHT | 4672.72 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/7e9258b6-c005-455e-b0a3-56d6a75bc931.pdf |
|
| ID | 2020.00 |
| 3D Solar link |
