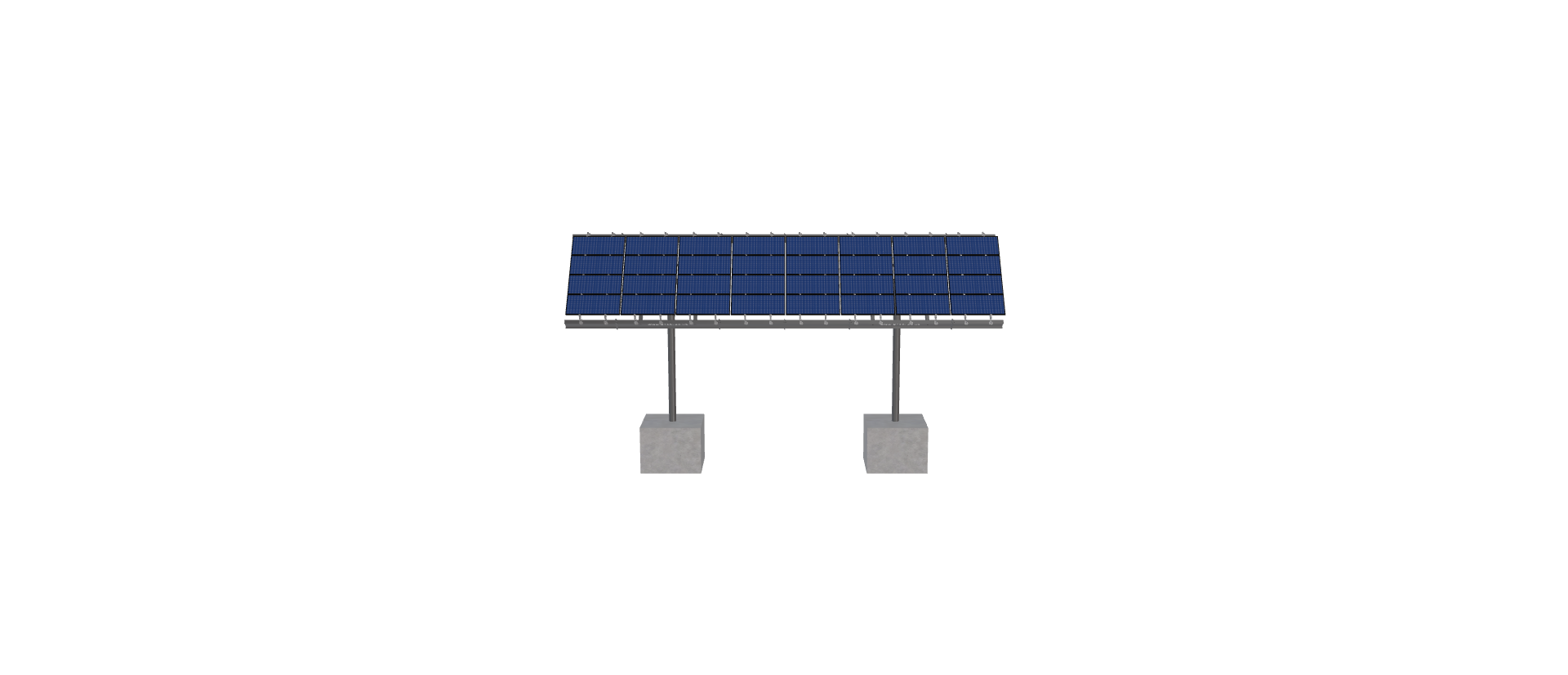

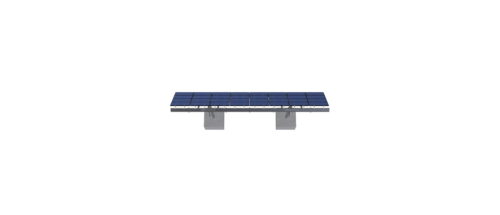

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 47.5 inches by 21.25 inches and an array layout of 8 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_1F0K3C6H3HD
$9,020.31
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 47.5 inches by 21.25 inches and an array layout of 8 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1461.76 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-6TOP-SD-45-L-4HX8W-315H |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 10.78 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 3.50 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 384.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 2.00 |
| MODULE AREA | 234.42 |
| ARRAY WIDTH | 32.33 |
| ARRAY HEIGHT | 7.25 |
| RAIL LENGTH | 87.00 |
| MODULE LENGTH | 47.50 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 32.00 |
| GROUND TO TOP | 13.55 |
| PROJECTED PANEL HEIGHT | 5.55 |
| WIND SPEED OVERRIDE | 60.00 |
| SNOW LOAD OVERRIDE | 40.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | HANNES, STUECKLER |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 3077142263.00 |
| PROJECT ID | MTSOLAR, 1F0K3C6H3HD |
| SITE ADDRESS | 36, SHADOW, BROOK, LN, LANDER, WY, 82520, USA |
| MODULE WIDTH | 21.25 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 8590.77 |
| TOTAL WEIGHT | 1461.76 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/cfc41033-c948-40ed-af8a-bbdf0f6e946d.pdf |
|
| ID | 10755.00 |
| 3D Solar link |
