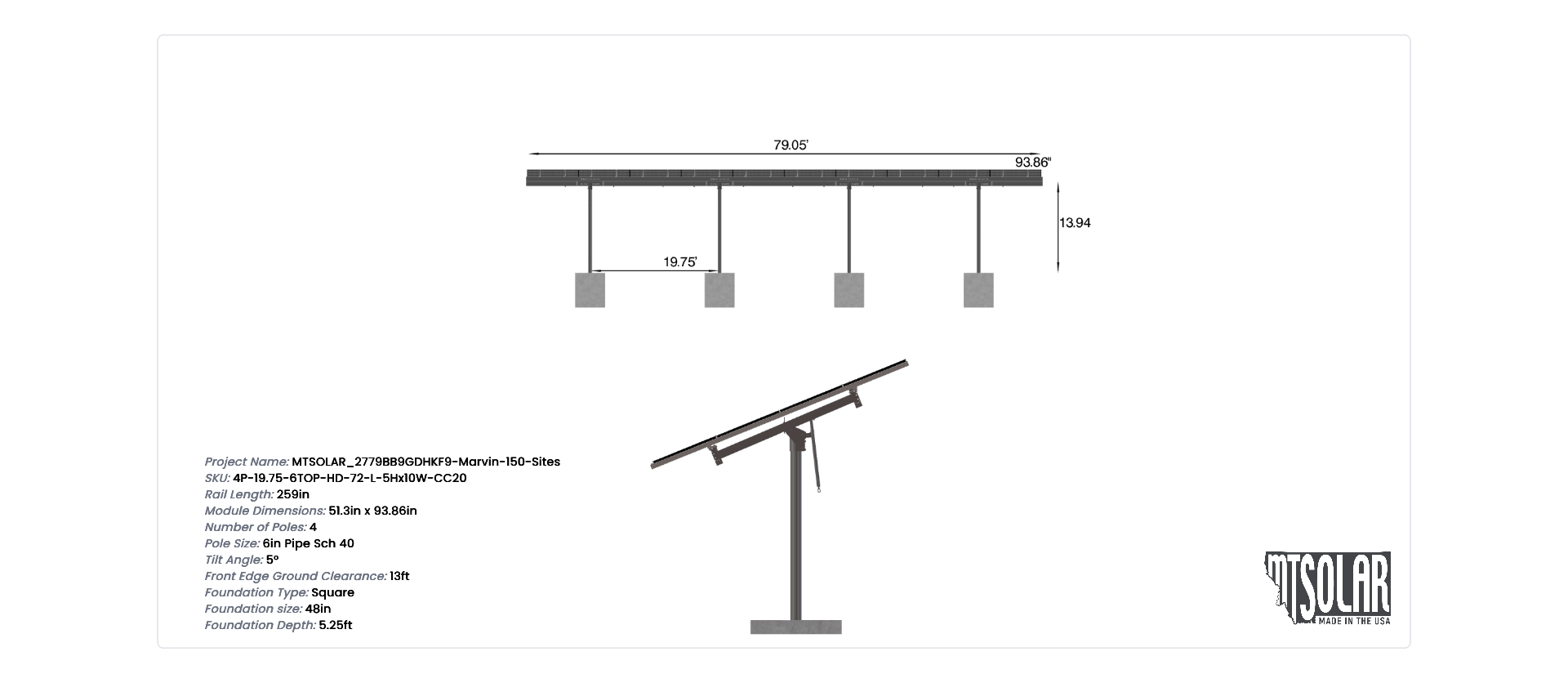

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 93.86 inches by 51.3 inches and an array layout of 10 wide by 5 high.

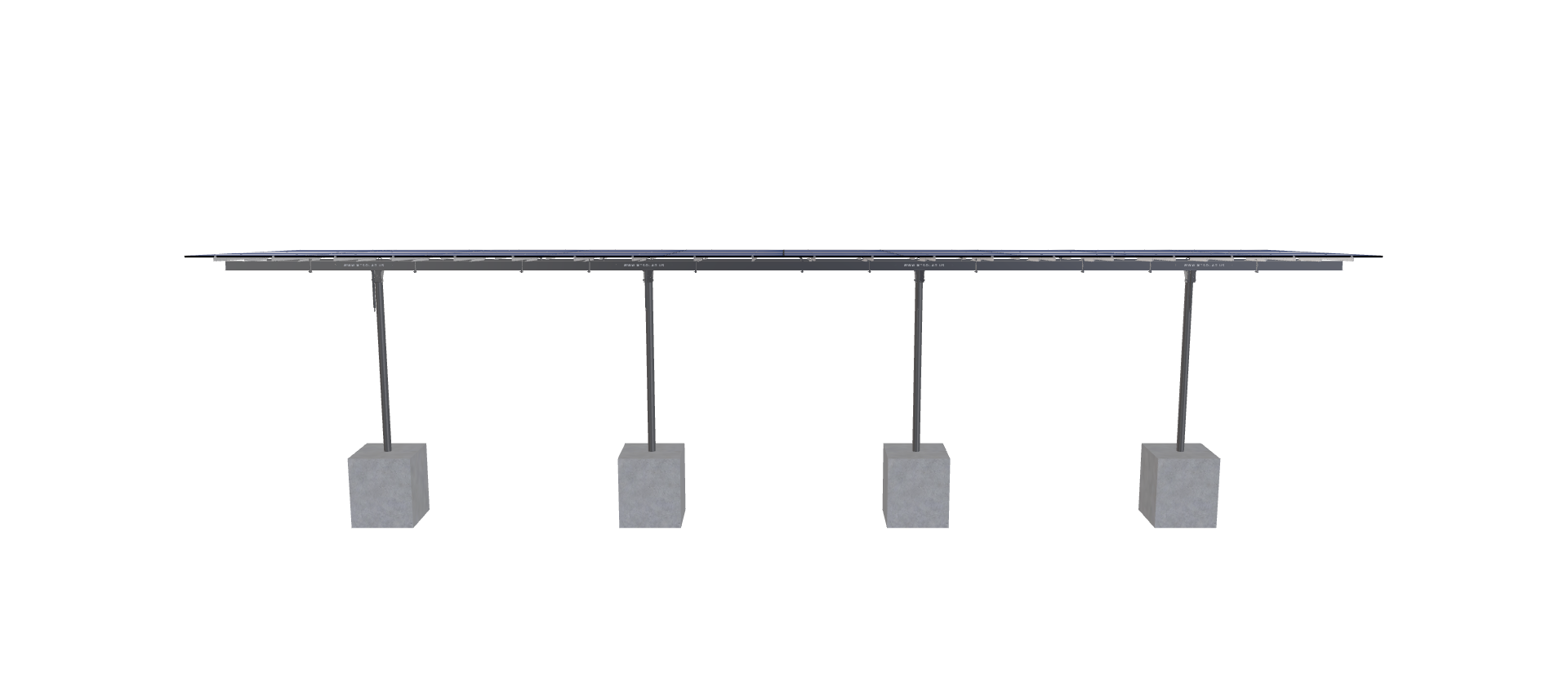

This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

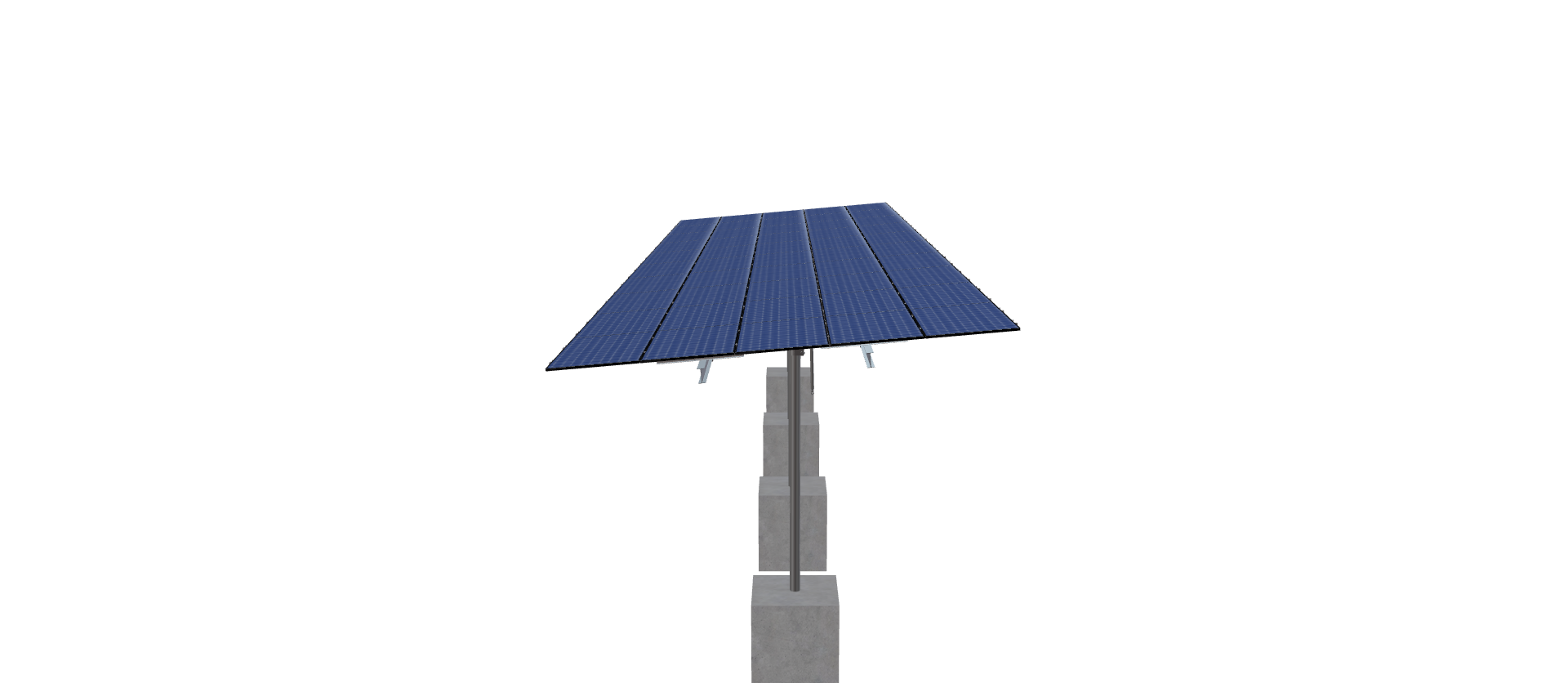

See 3D Model Here
MTSOLAR_2779BB9GDHKF9-Marvin-150-Sites
$21,536.68
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 93.86 inches by 51.3 inches and an array layout of 10 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4146.54 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-6TOP-HD-72-L-5HX10W-CC20 |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 13.94 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 5.25 |
| TILT ANGLE | 5.00 |
| CANTILEVER | 945.00 |
| GROUND CLEARANCE | 13.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1706.16 |
| ARRAY WIDTH | 79.05 |
| ARRAY HEIGHT | 21.58 |
| RAIL LENGTH | 259.00 |
| MODULE LENGTH | 93.86 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 78.75 |
| GROUND TO TOP | 14.88 |
| PROJECTED PANEL HEIGHT | 1.88 |
| WIND SPEED OVERRIDE | 121.00 |
| SNOW LOAD OVERRIDE | 0.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | MTSOLAR, 2779BB9GDHKF9-MARVIN-150-SITES |
| SITE ADDRESS | HOUSTON, TX, USA |
| MODULE WIDTH | 51.30 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 20511.12 |
| TOTAL WEIGHT | 4146.54 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/f791ff3a-be76-4cb7-83fb-90f620268254.pdf |
|
| ID | 9671.00 |
| 3D Solar link |
