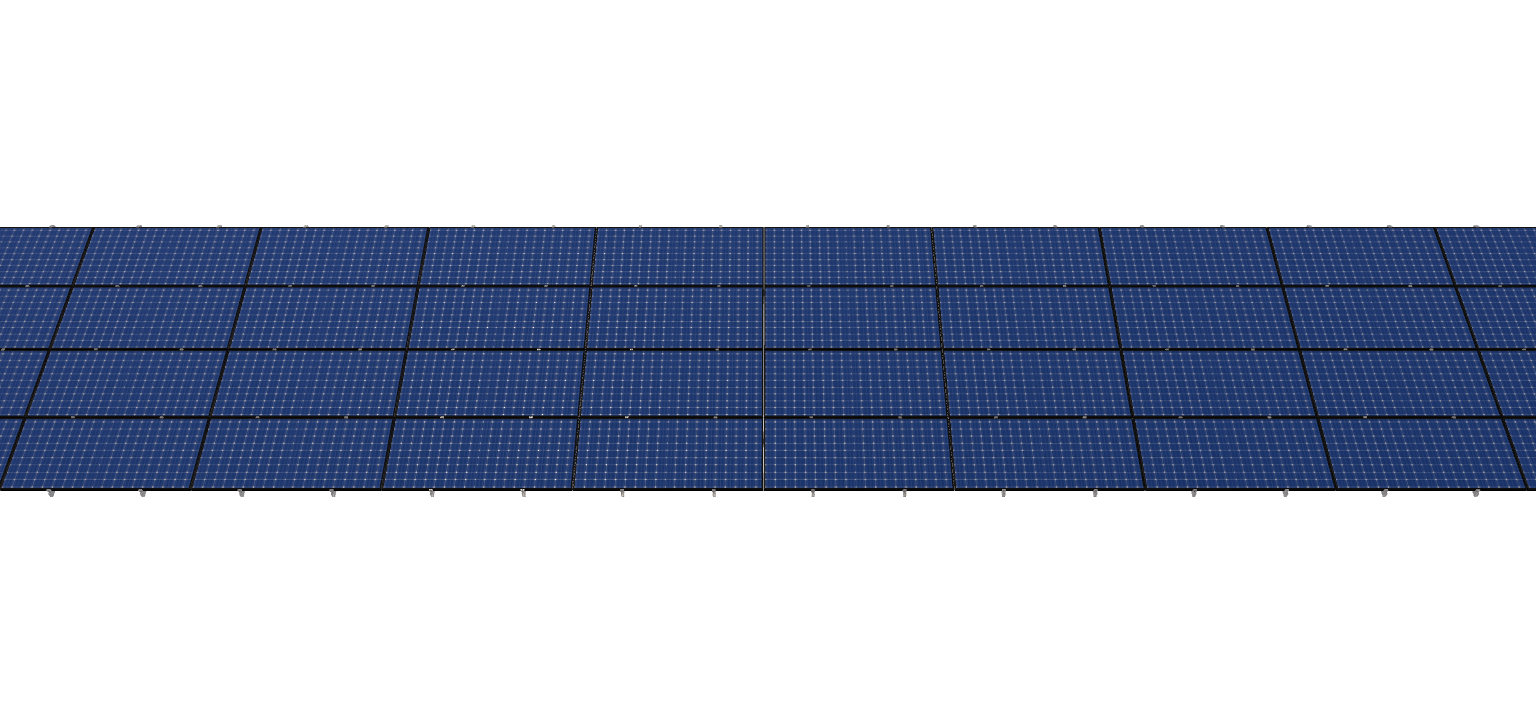

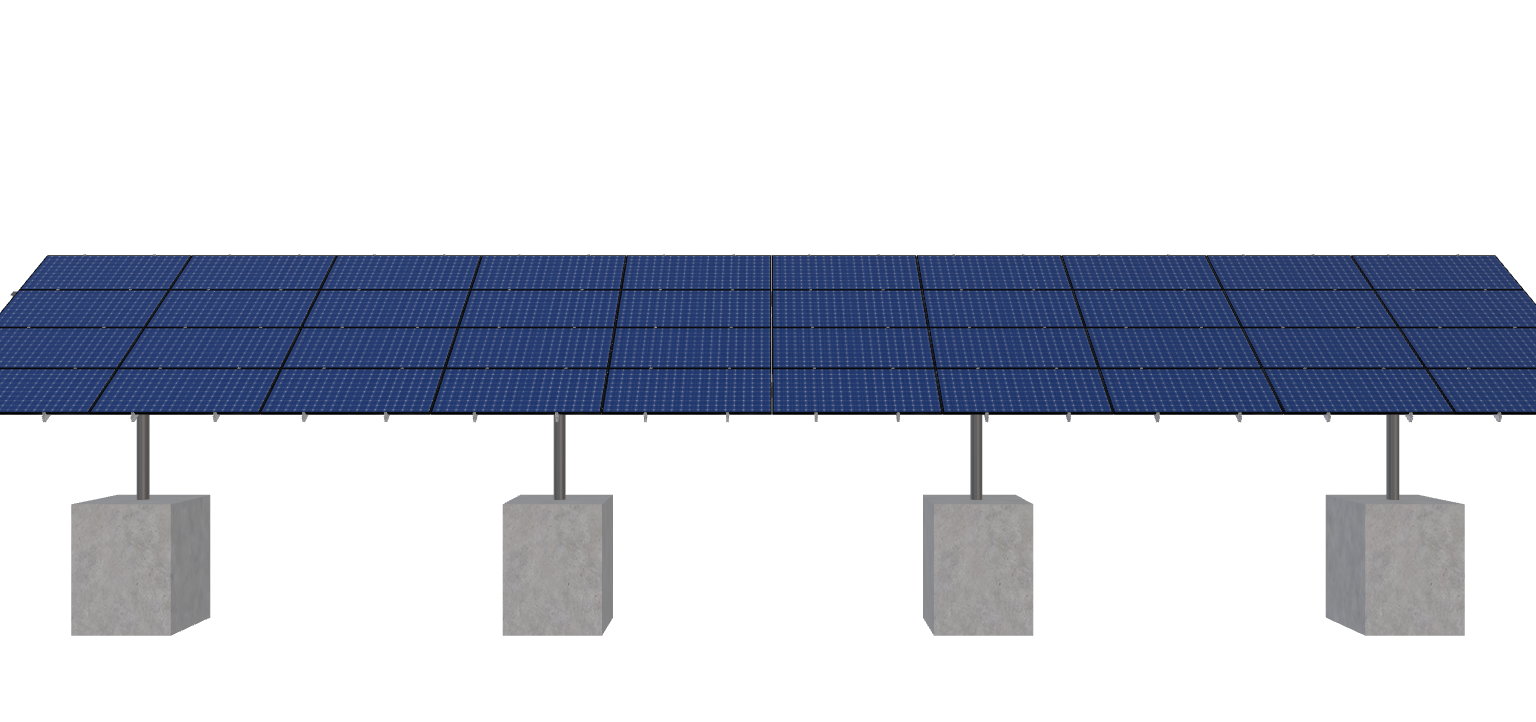

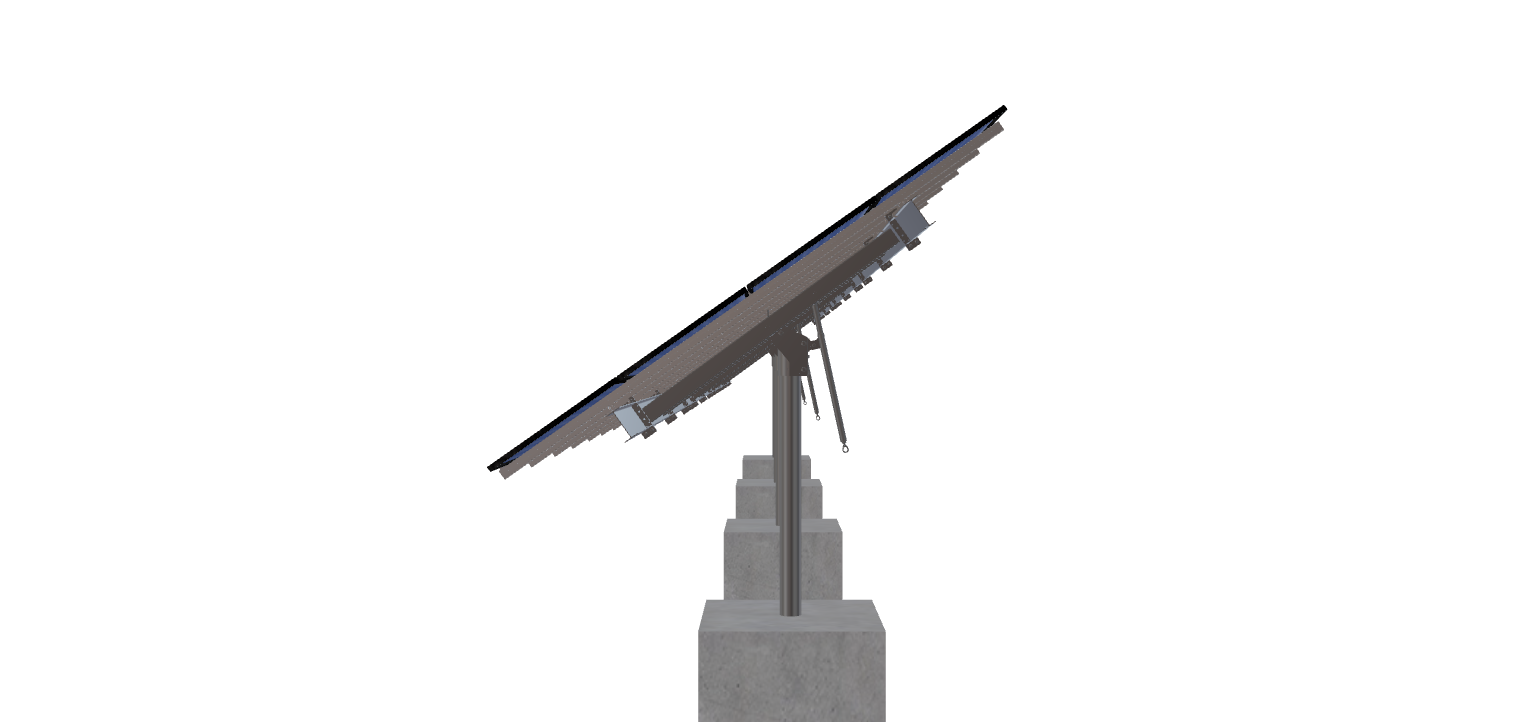

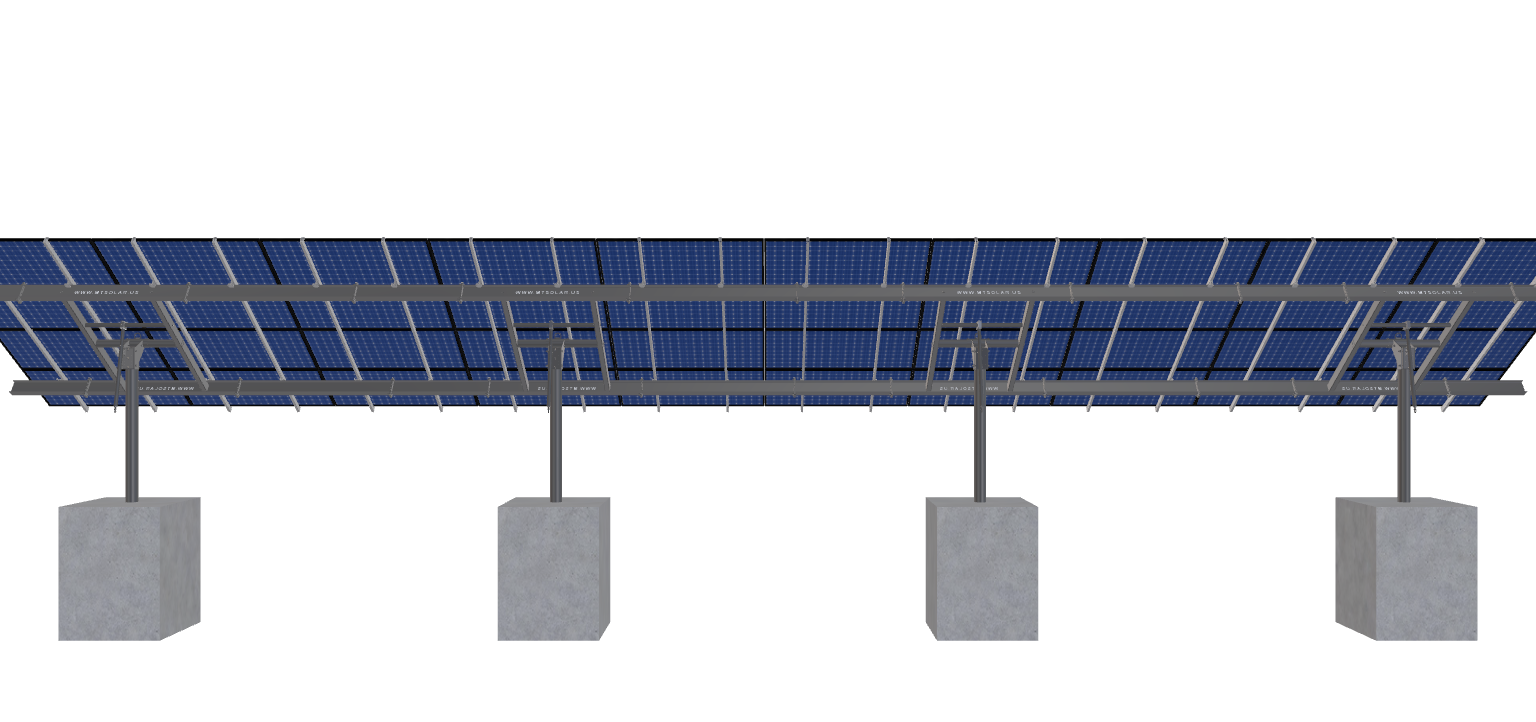

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 40.1 inches and an array layout of 10 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_2HC3BK9705I6
$21,893.97
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 40.1 inches and an array layout of 10 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3941.2 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-8TOP-XD-45-L-4HX10W-A88G |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 7.38 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 891.00 |
| GROUND CLEARANCE | 3.50 |
| NO POLES | 4.00 |
| MODULE AREA | 994.70 |
| ARRAY WIDTH | 73.50 |
| ARRAY HEIGHT | 13.53 |
| RAIL LENGTH | 162.40 |
| MODULE LENGTH | 87.20 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 74.25 |
| GROUND TO TOP | 11.21 |
| PROJECTED PANEL HEIGHT | 7.67 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | MTSOLAR, 2HC3BK9705I6 |
| SITE ADDRESS | 110, RUNNELLS, RD, CONCORD, NH, 03303, USA |
| MODULE WIDTH | 40.10 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 20851.40 |
| TOTAL WEIGHT | 3941.20 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/33a3eaf4-375b-4731-b074-805aa0d27b3d.pdf |
|
| ID | 1718.00 |
| CAD URL | |
| 3D Solar link |
