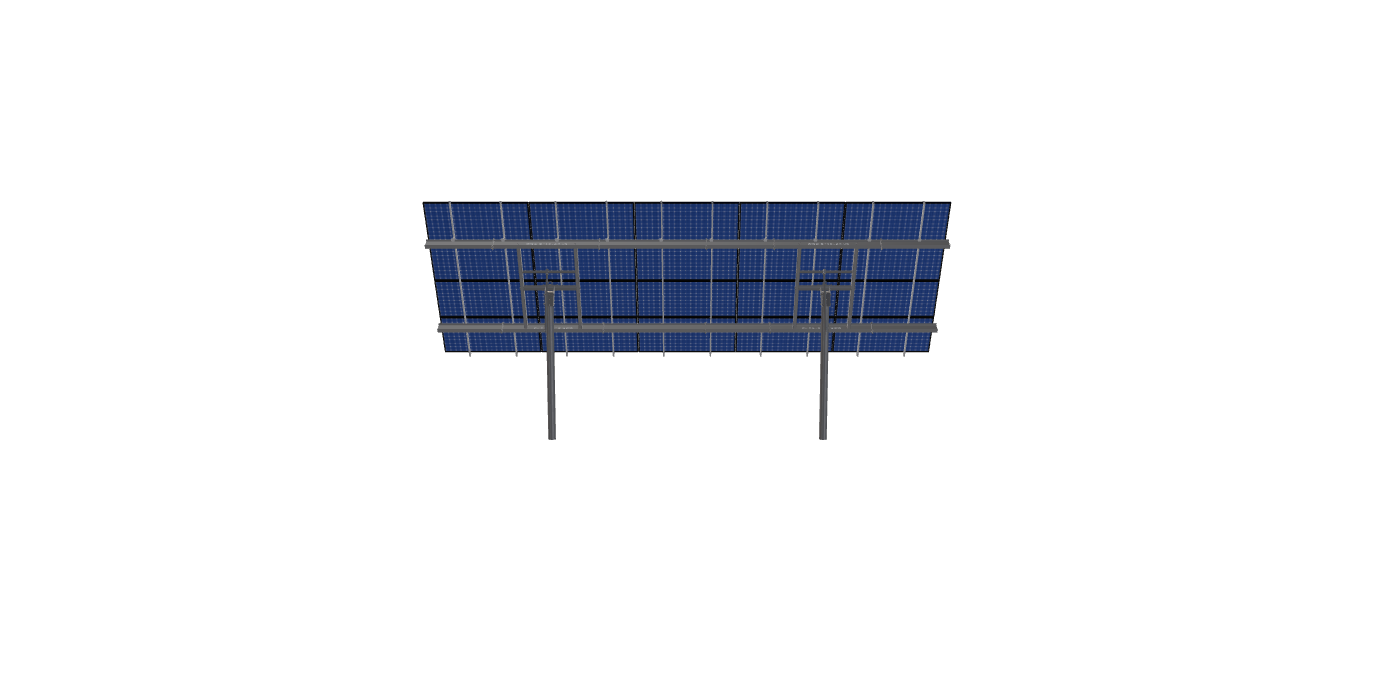

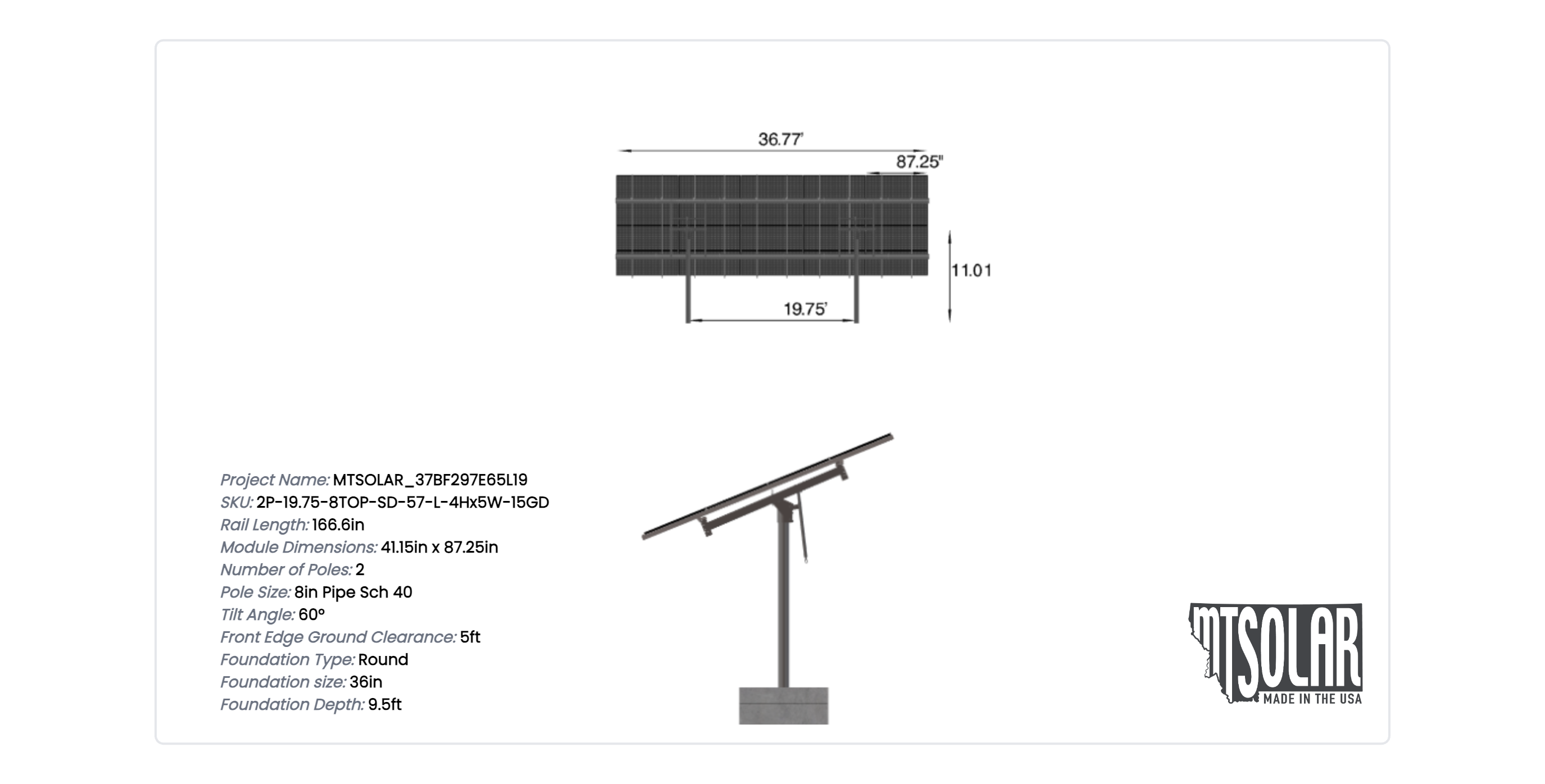

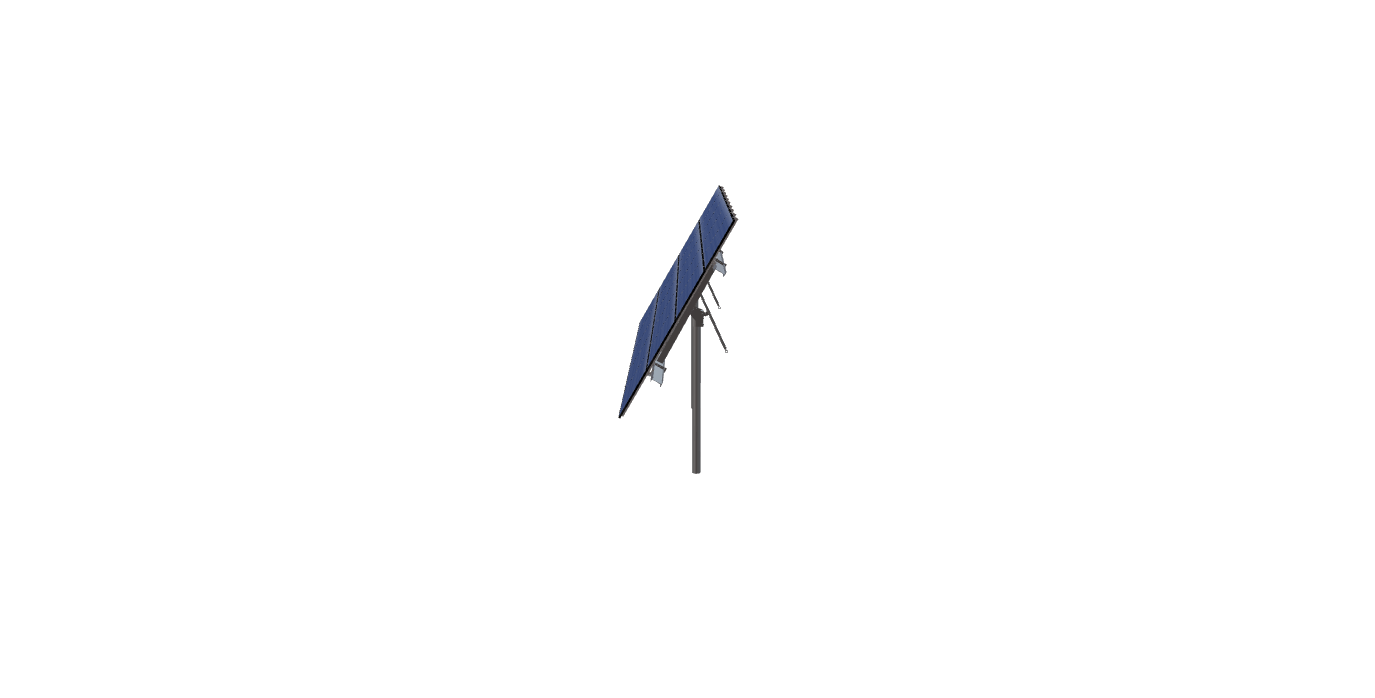

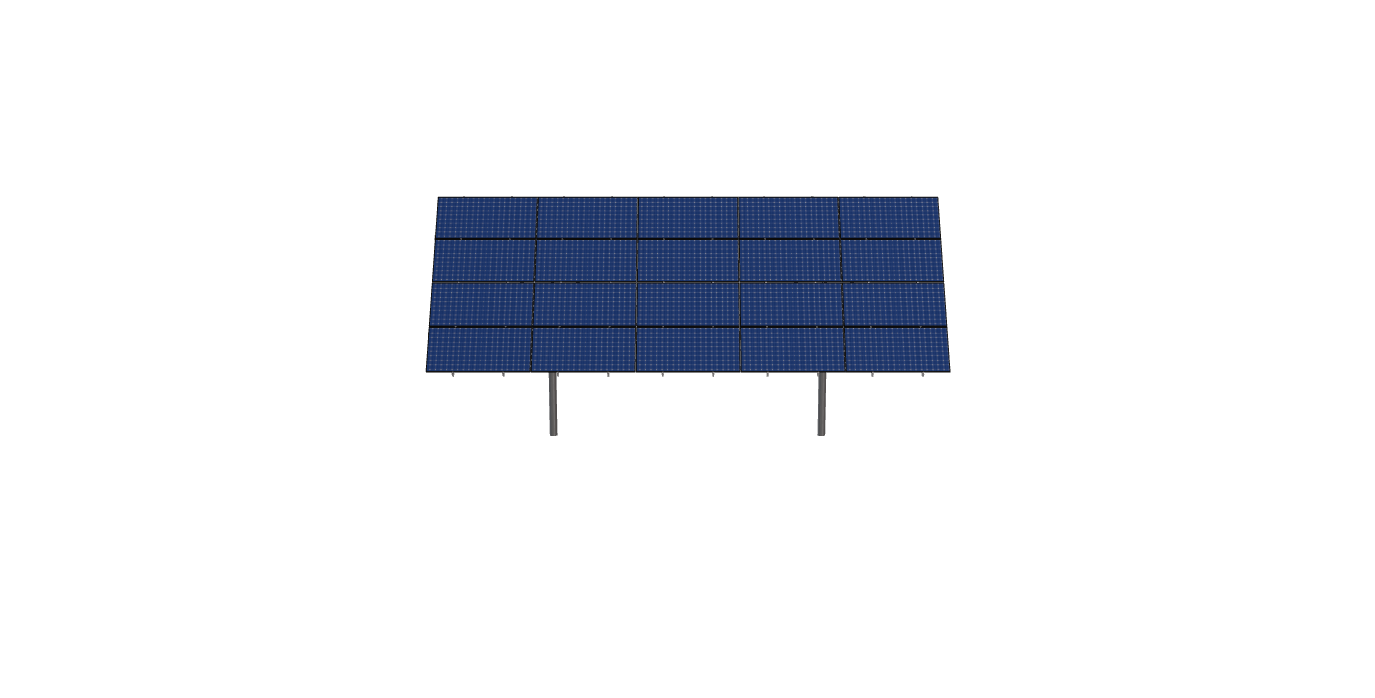

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.25 inches by 41.15 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_37BF297E65L19
$8,545.67
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.25 inches by 41.15 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1465.6 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-19.75-8TOP-SD-57-L-4HX5W-15GD |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 11.01 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 9.50 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 441.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 510.50 |
| ARRAY WIDTH | 36.77 |
| ARRAY HEIGHT | 13.88 |
| RAIL LENGTH | 166.60 |
| MODULE LENGTH | 87.25 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 36.75 |
| GROUND TO TOP | 16.95 |
| PROJECTED PANEL HEIGHT | 11.88 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | MTSOLAR, 37BF297E65L19 |
| SITE ADDRESS | COLUMBUS, MT, 59019, USA |
| MODULE WIDTH | 41.15 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 8138.73 |
| TOTAL WEIGHT | 1465.60 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/1cb2284d-2b4d-4981-b24e-608fd405a7a6.pdf |
|
| ID | 2657.00 |
| 3D Solar link |
