This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 40.5 inches and an array layout of 2 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

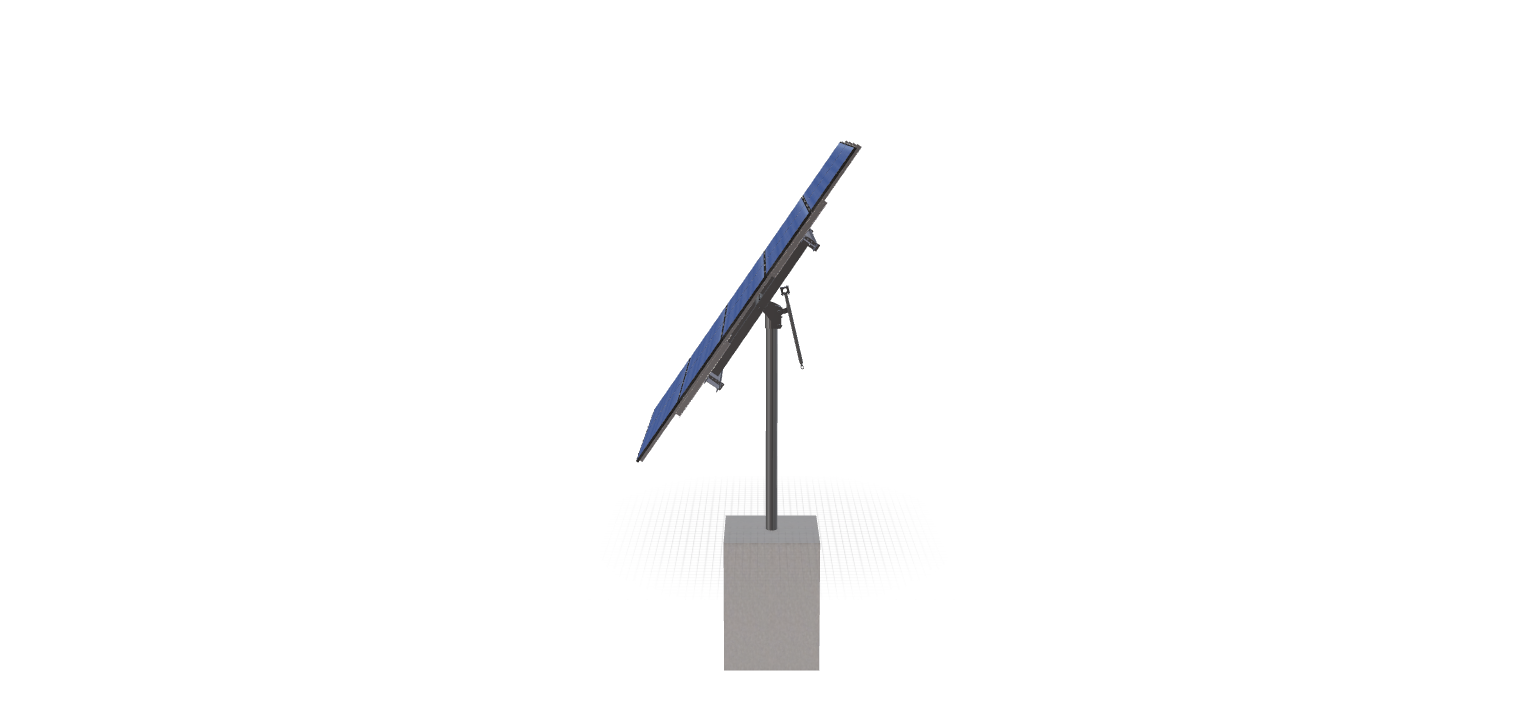

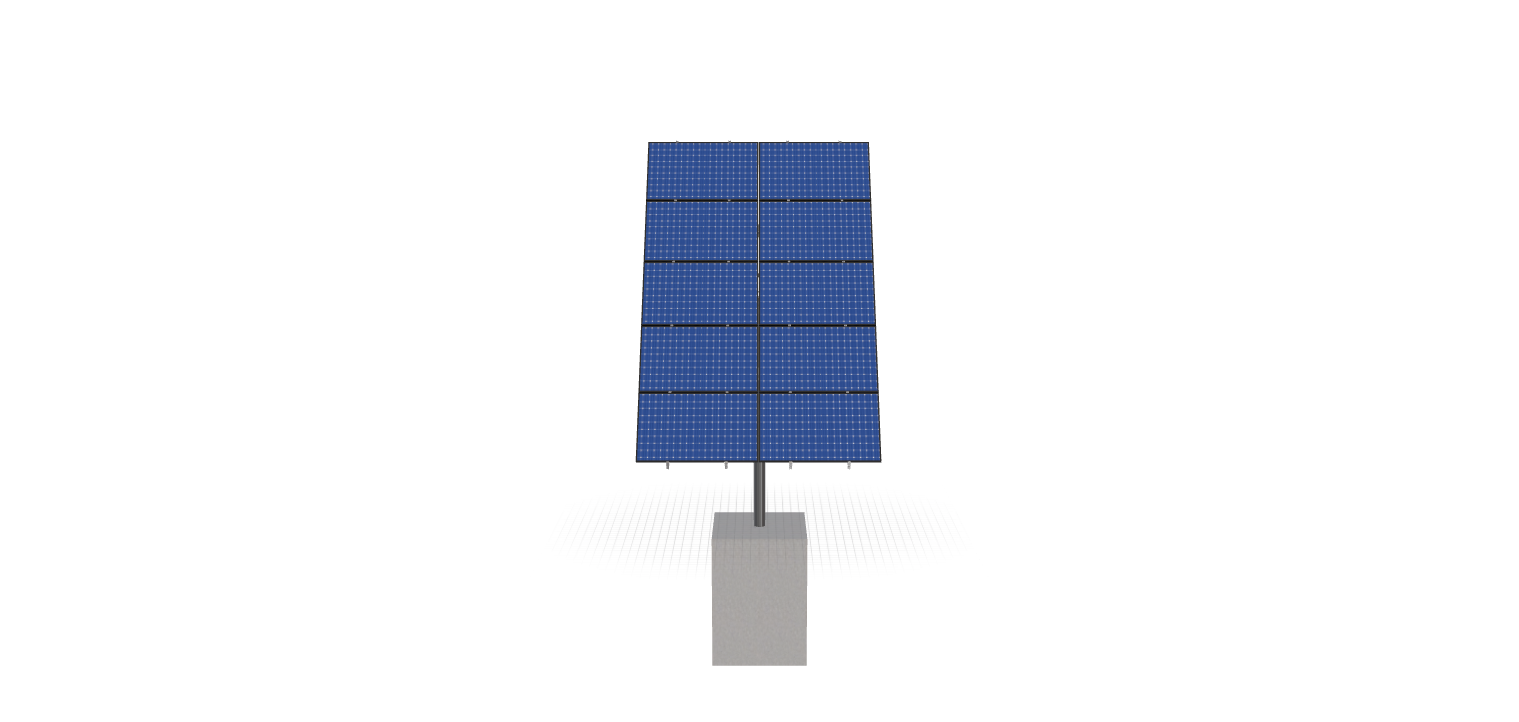

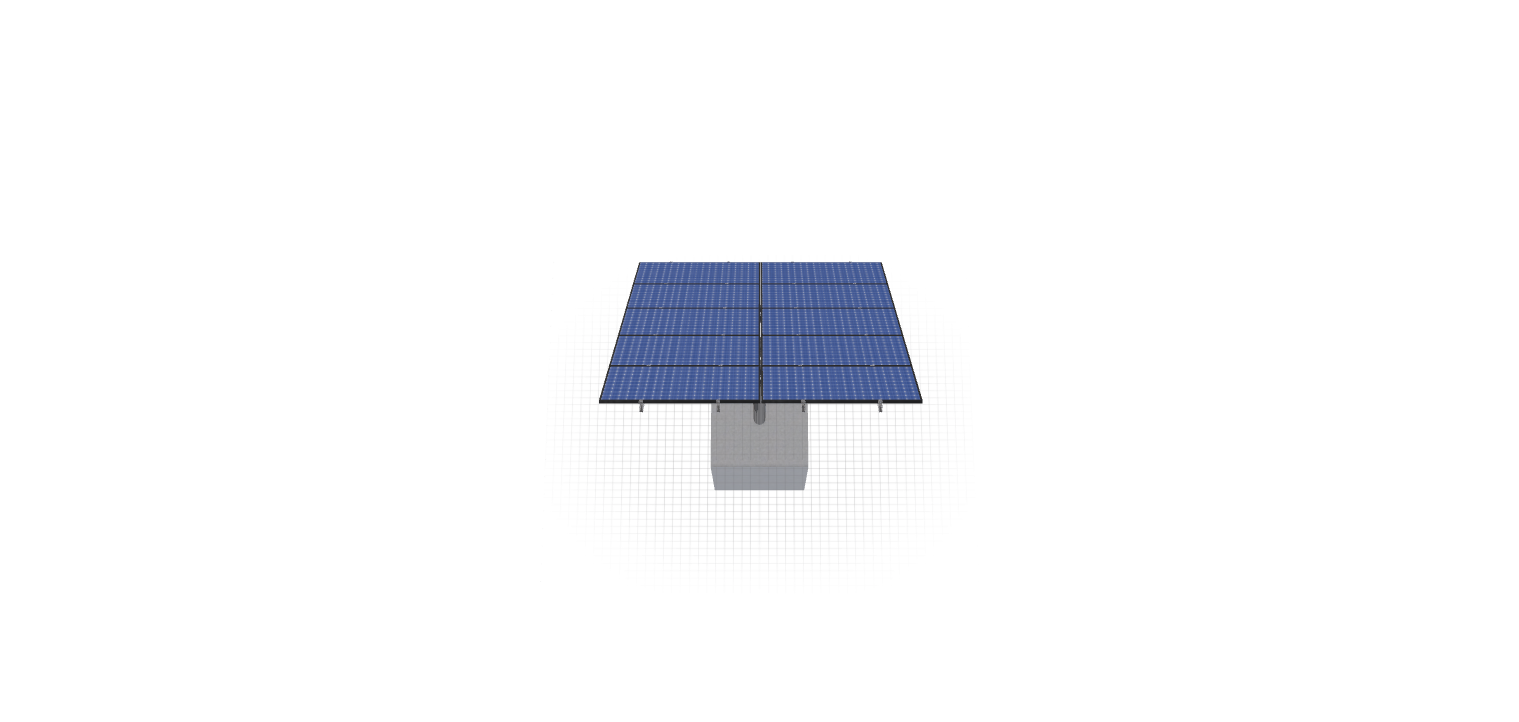

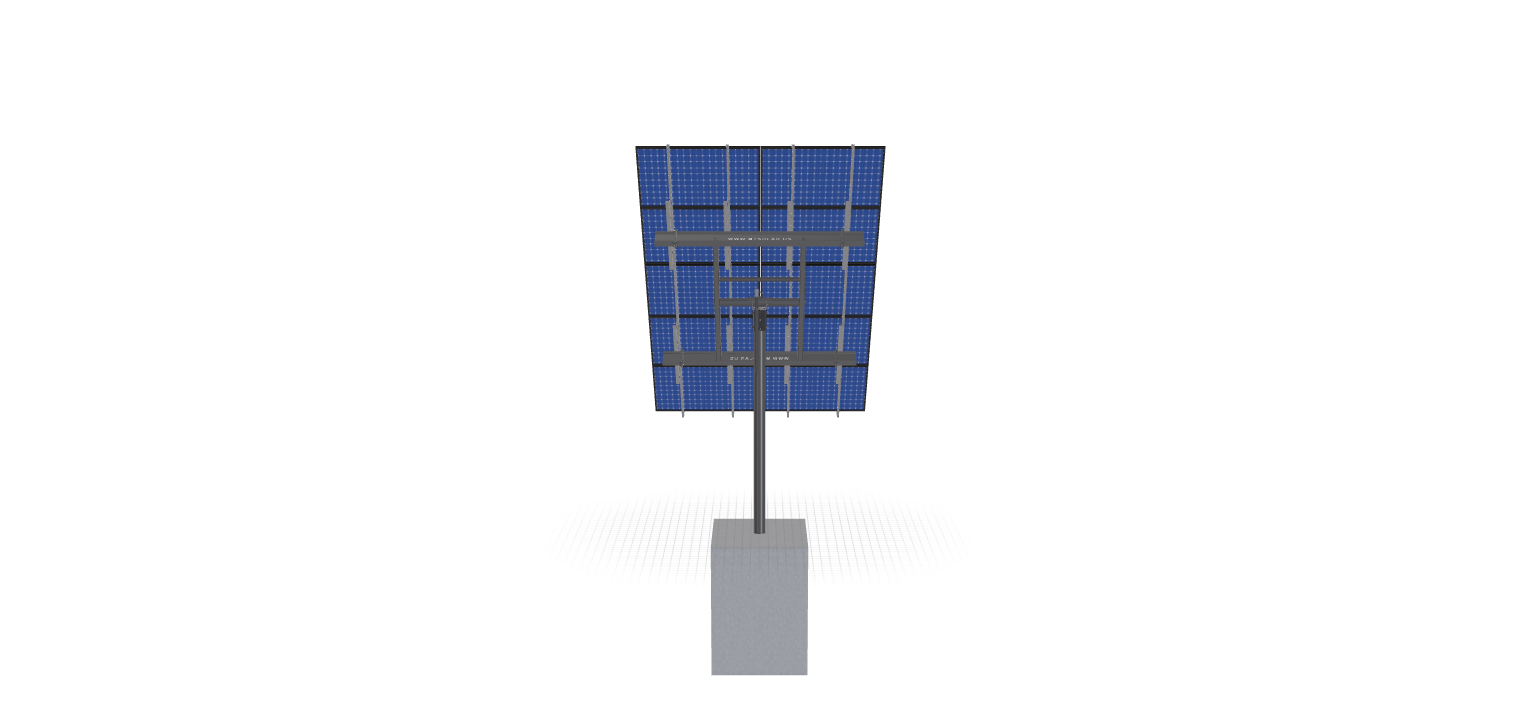

See 3D Model Here
MTSOLAR_3F3F4HE9CGB26
$3,535.82
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 40.5 inches and an array layout of 2 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 655.88 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-SD-12-L-5HX2W-LI43 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 11.00 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 6.25 |
| TILT ANGLE | 55.00 |
| CANTILEVER | 114.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 1.00 |
| MODULE AREA | 187.92 |
| ARRAY WIDTH | 11.00 |
| ARRAY HEIGHT | 17.08 |
| RAIL LENGTH | 205.00 |
| MODULE LENGTH | 65.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 9.50 |
| GROUND TO TOP | 17.91 |
| PROJECTED PANEL HEIGHT | 13.82 |
| PROJECT ID | MTSOLAR, 3F3F4HE9CGB26 |
| SITE ADDRESS | 365, QUINN, CREEK, RD, BOZEMAN, MT, 59715, USA |
| MODULE WIDTH | 40.50 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 2.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | D |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 105.00 |
| SNOW LOAD OVERRIDE | 30.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 3535.82 |
| TOTAL WEIGHT | 655.88 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/e41d0327-74cc-4d5a-9505-c912053379ec.pdf |
|
| ID | 1245.00 |
| 3D Solar link |
