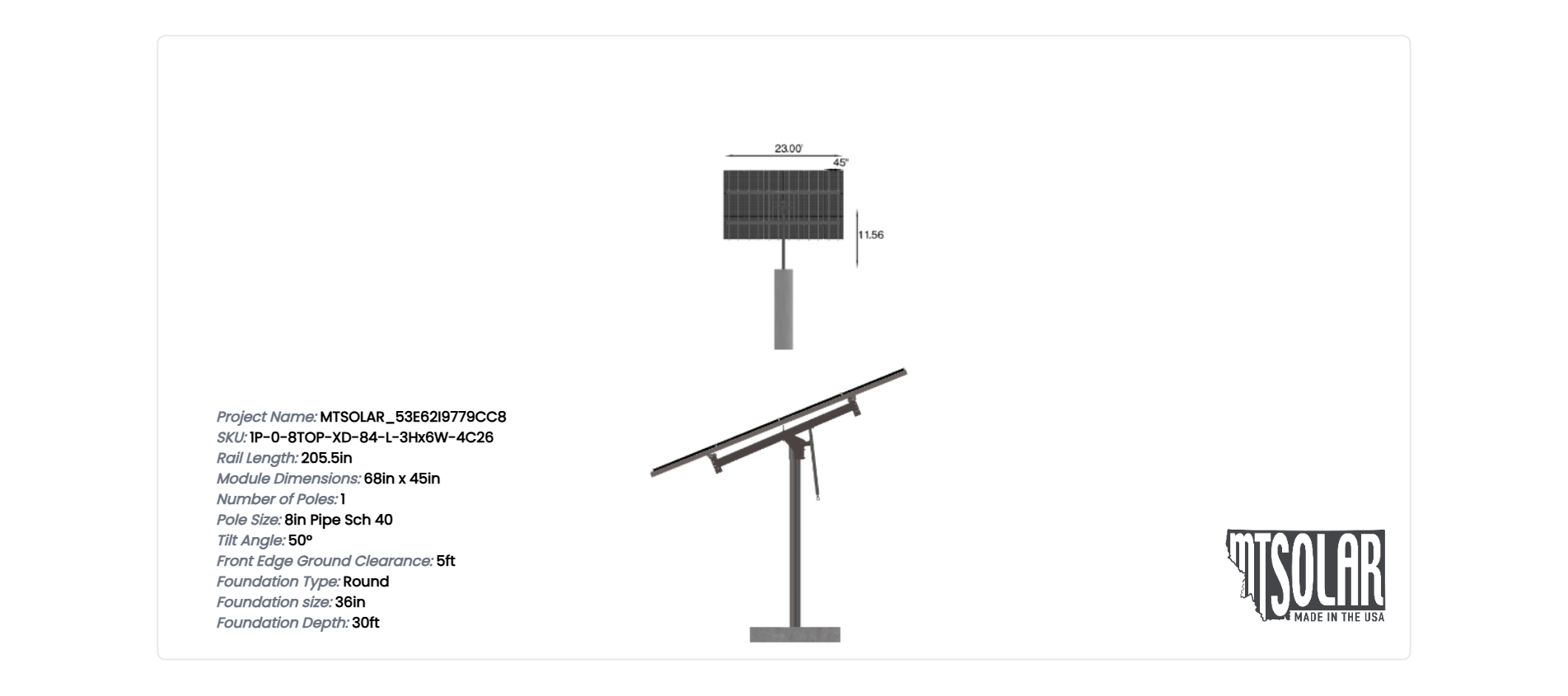

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 45 inches by 68 inches and an array layout of 6 wide by 3 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

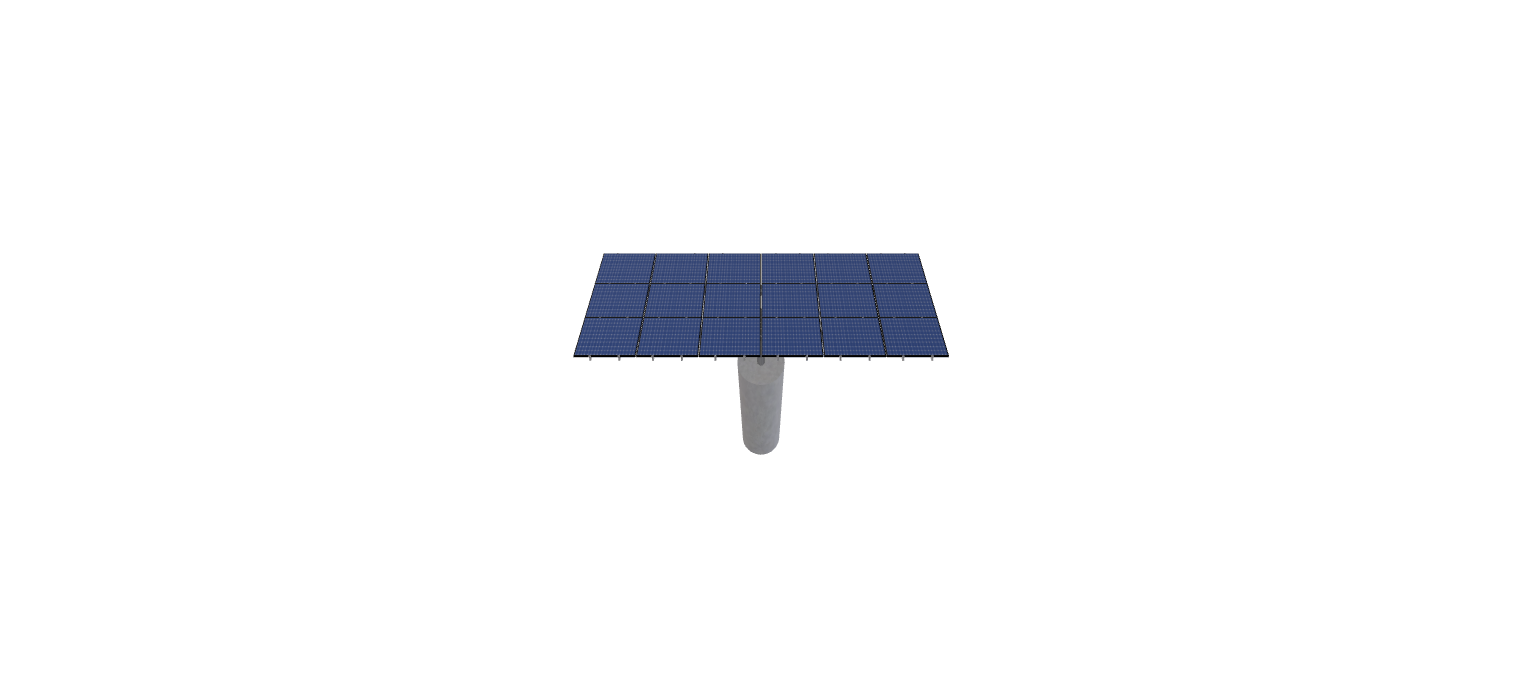

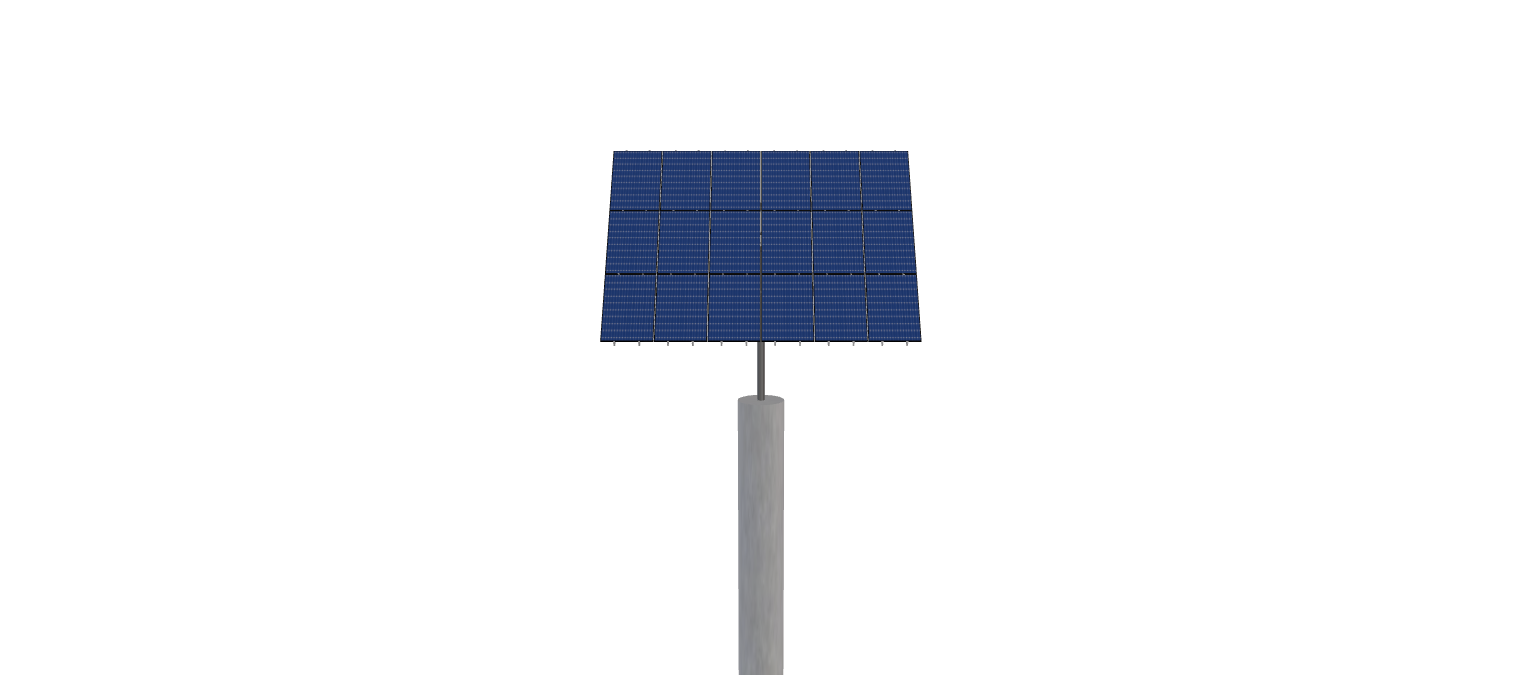

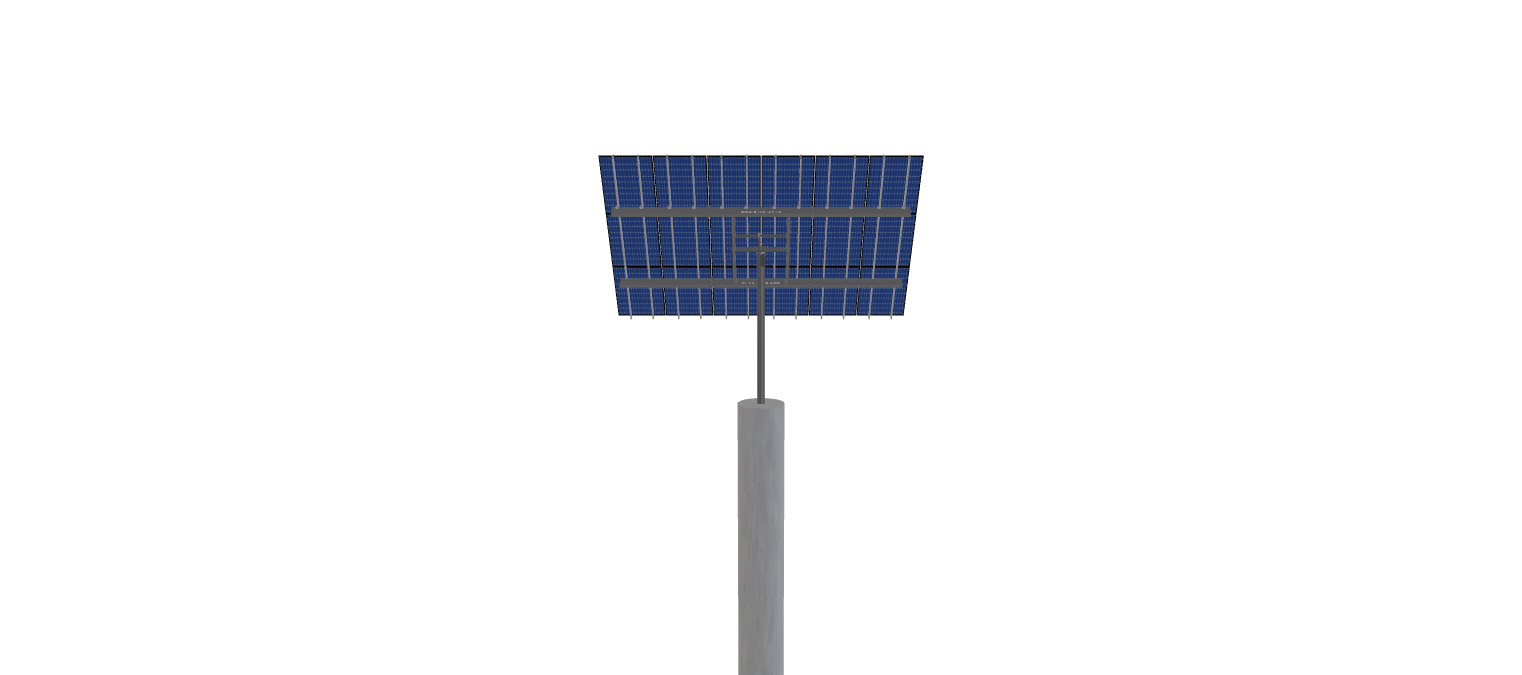

See 3D Model Here
MTSOLAR_53E62I9779CC8
$6,436.01
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 45 inches by 68 inches and an array layout of 6 wide by 3 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1121.97 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-XD-84-L-3HX6W-4C26 |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 11.56 |
| WING SPAN | 84.00 |
| MAX FOUNDATION DEPTH | 30.00 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 258.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 393.88 |
| ARRAY WIDTH | 23.00 |
| ARRAY HEIGHT | 17.13 |
| RAIL LENGTH | 205.50 |
| MODULE LENGTH | 45.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 21.50 |
| GROUND TO TOP | 18.12 |
| PROJECTED PANEL HEIGHT | 13.12 |
| DESIGNER NAME | VLADIMIR, HROMIS |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 6037313169.00 |
| PROJECT ID | MTSOLAR, 53E62I9779CC8 |
| SITE ADDRESS | 68, EATON, RD, PITTSFIELD, NH, 03263, USA |
| MODULE INFO | TRINA |
| MODULE WIDTH | 68.00 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 40.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 6436.01 |
| TOTAL WEIGHT | 1121.97 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/6a2000f9-a1e8-49a3-b642-d1398904e2bf.pdf |
|
| ID | 12797.00 |
| 3D Solar link |
