This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 6 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

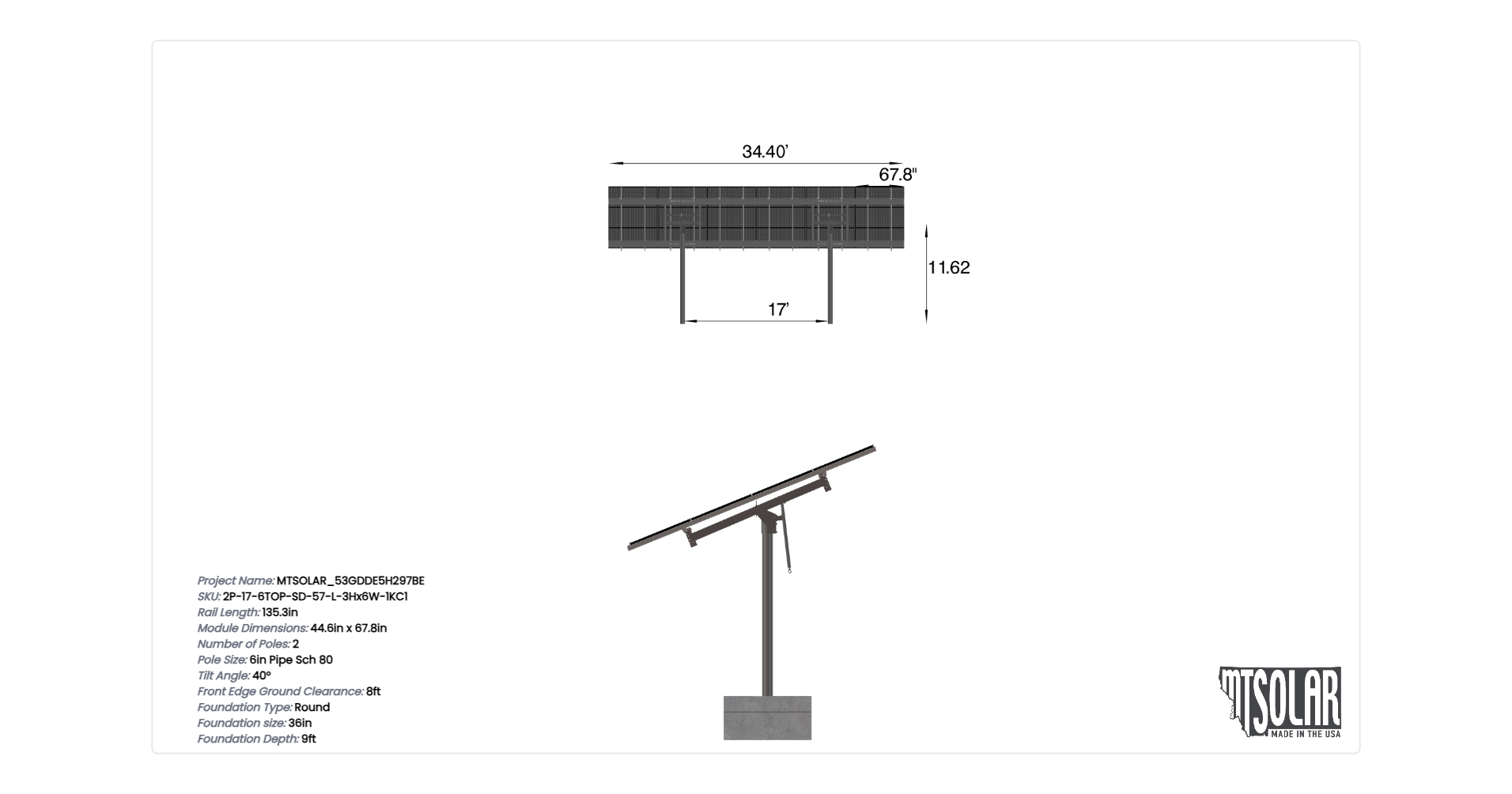

See 3D Model Here
MTSOLAR_53GDDE5H297BE
$8,177.52
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 6 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1379.52 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-6TOP-SD-57-L-3HX6W-1KC1 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 11.62 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 9.00 |
| TILT ANGLE | 40.00 |
| CANTILEVER | 408.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 2.00 |
| MODULE AREA | 387.86 |
| ARRAY WIDTH | 34.40 |
| ARRAY HEIGHT | 11.28 |
| RAIL LENGTH | 135.30 |
| MODULE LENGTH | 67.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 34.00 |
| GROUND TO TOP | 15.21 |
| PROJECTED PANEL HEIGHT | 7.17 |
| PROJECT ID | MTSOLAR, 53GDDE5H297BE |
| SITE ADDRESS | 5525, WEDEKIND, RD, SPARKS, NV, 89431, USA |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 120.00 |
| SNOW LOAD OVERRIDE | 30.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 7788.11 |
| TOTAL WEIGHT | 1379.52 |
| TOTAL PALLETS | 2.00 |
