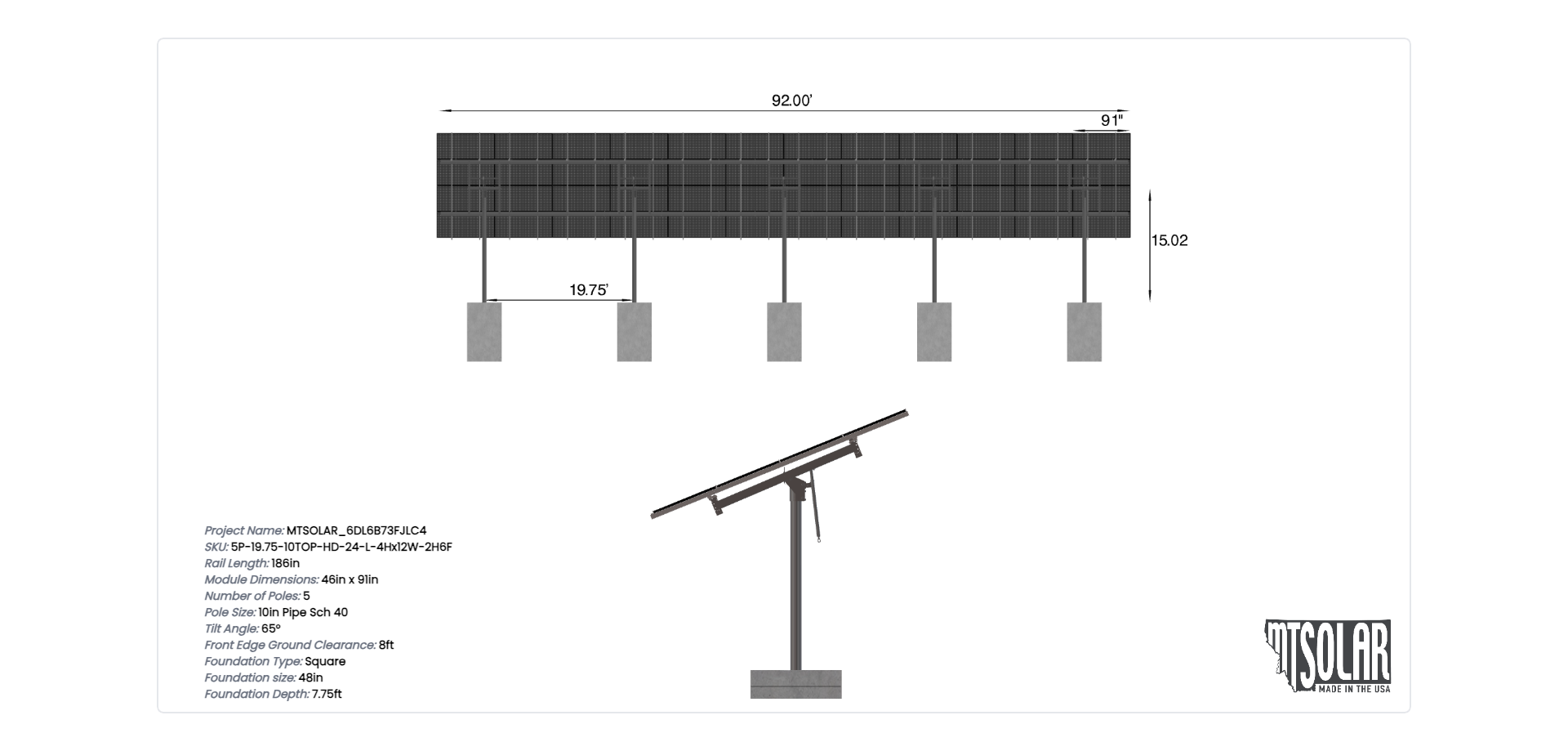

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 91 inches by 46 inches and an array layout of 12 wide by 4 high.
This mount fits on 5 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

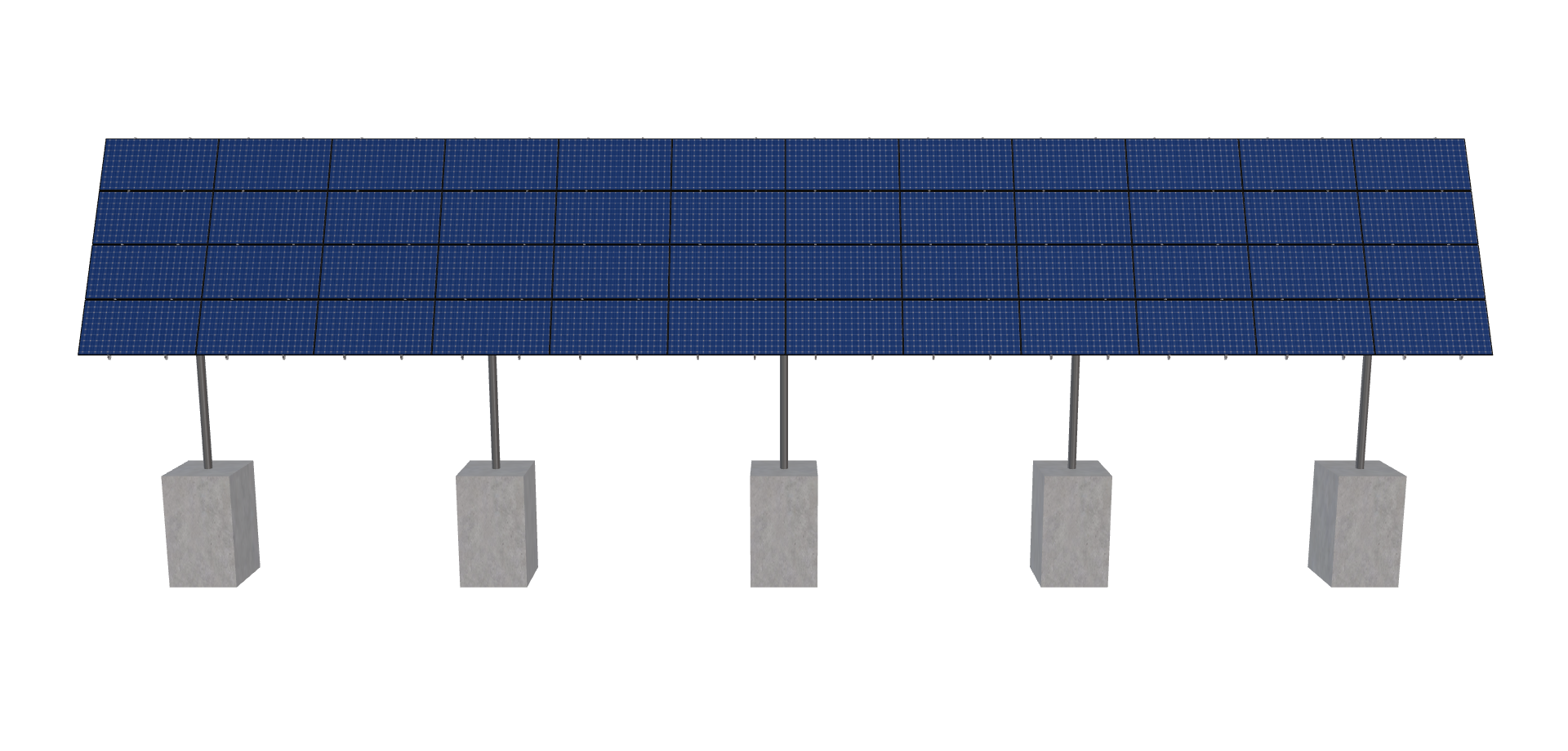

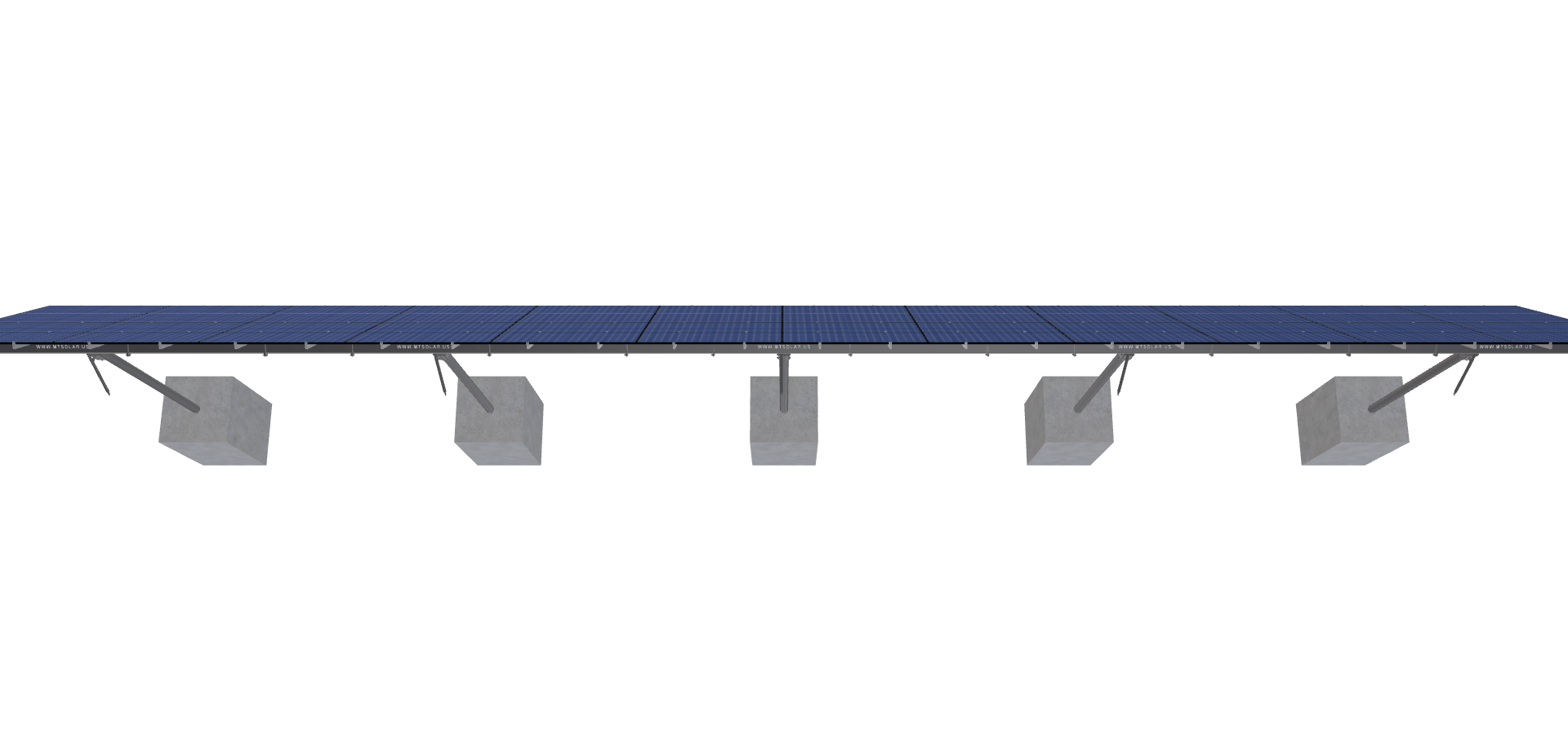

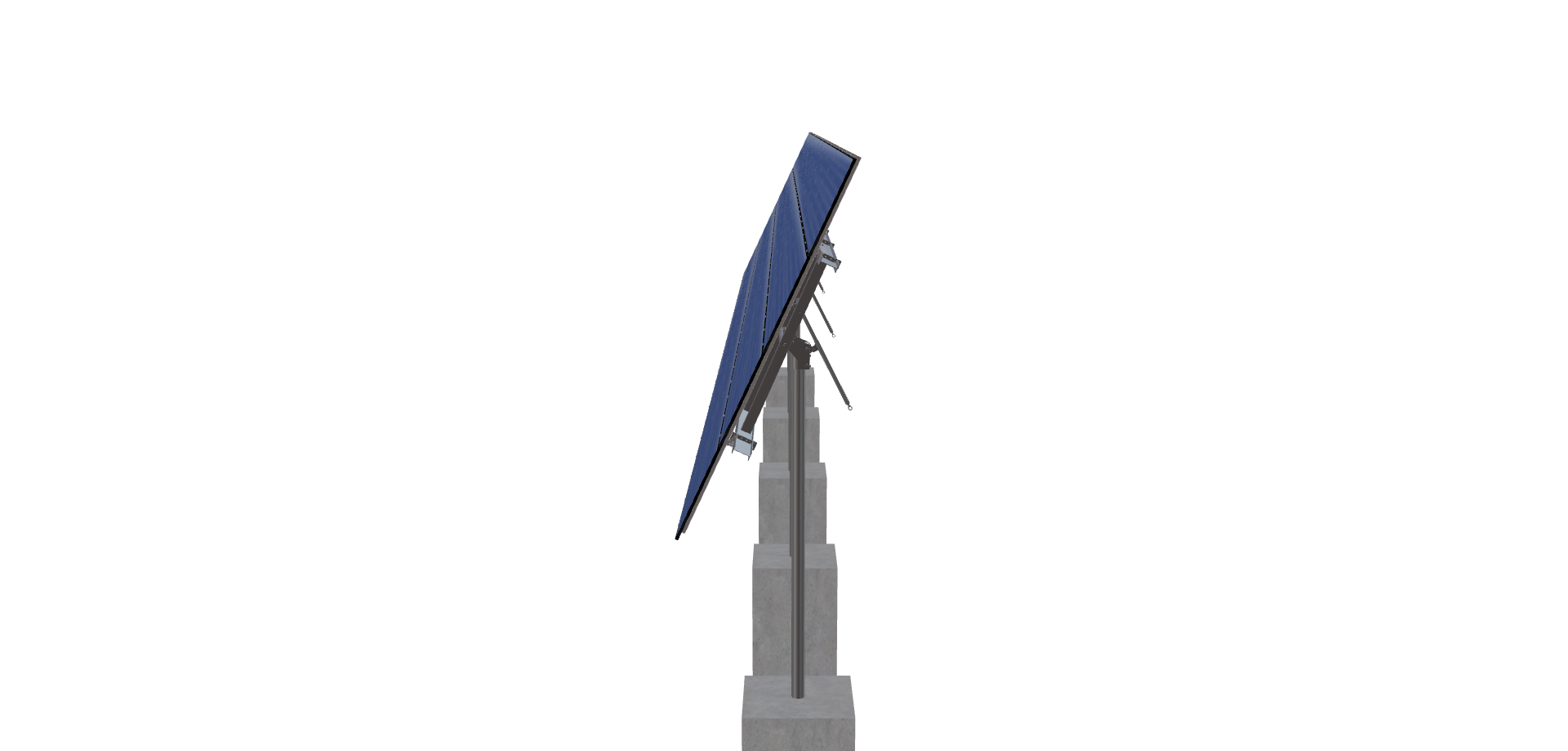

See 3D Model Here
MTSOLAR_6DL6B73FJLC4
$24,539.72
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 91 inches by 46 inches and an array layout of 12 wide by 4 high.
This mount fits on 5 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4360.35 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-19.75-10TOP-HD-24-L-4HX12W-2H6F |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 15.02 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 7.75 |
| TILT ANGLE | 65.00 |
| CANTILEVER | 1086.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1426.00 |
| ARRAY WIDTH | 92.00 |
| ARRAY HEIGHT | 15.50 |
| RAIL LENGTH | 186.00 |
| MODULE LENGTH | 91.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 90.50 |
| GROUND TO TOP | 21.97 |
| PROJECTED PANEL HEIGHT | 13.90 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | MTSOLAR, 6DL6B73FJLC4 |
| SITE ADDRESS | 305, E, 2ND, ST, SUPERIOR, WI, 54880, USA |
| MODULE WIDTH | 46.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 12.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | HD |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 23371.16 |
| TOTAL WEIGHT | 4360.35 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/53a242c8-c1e7-43b7-a472-460b5246cda0.pdf |
|
| ID | 7264.00 |
| 3D Solar link |
