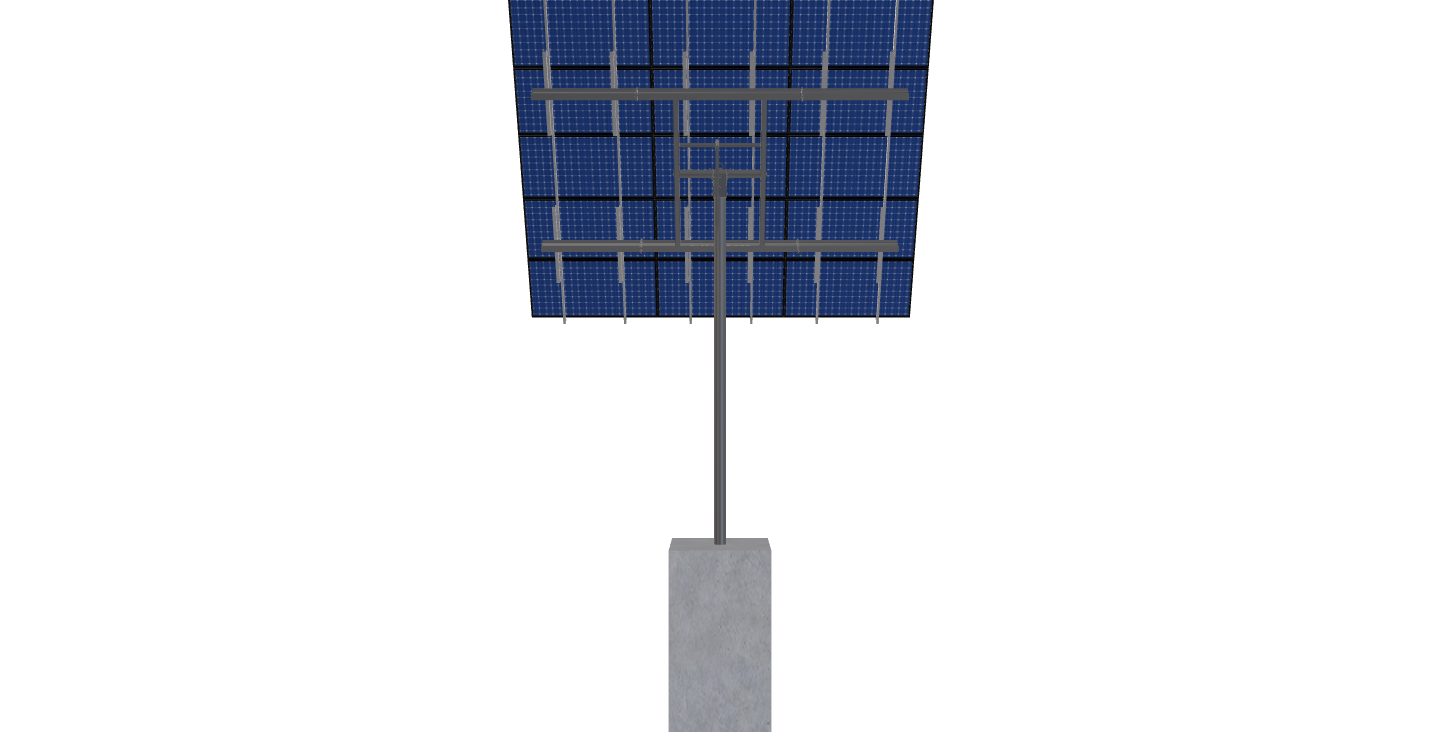

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75 inches by 39 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_6GEEK5LB82F5-JB-RevB
$6,033.71
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75 inches by 39 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1148.8700000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-10TOP-XD-57-L-5HX3W-LFD5 |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 17.13 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 8.25 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 204.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 1.00 |
| MODULE AREA | 312.71 |
| ARRAY WIDTH | 19.00 |
| ARRAY HEIGHT | 16.46 |
| RAIL LENGTH | 197.50 |
| MODULE LENGTH | 75.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 17.00 |
| GROUND TO TOP | 24.16 |
| PROJECTED PANEL HEIGHT | 14.07 |
| WIND SPEED OVERRIDE | 120.00 |
| SNOW LOAD OVERRIDE | 243.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | MTSOLAR, 6GEEK5LB82F5-JB-REVB |
| SITE ADDRESS | 22222, NV-431, RENO, NV, 89511, USA |
| MODULE WIDTH | 39.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 5746.39 |
| TOTAL WEIGHT | 1148.87 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/44b9a0ff-cb55-4542-8238-33fe4509cd75.pdf |
|
| ID | 1808.00 |
| CAD URL | |
| 3D Solar link |
