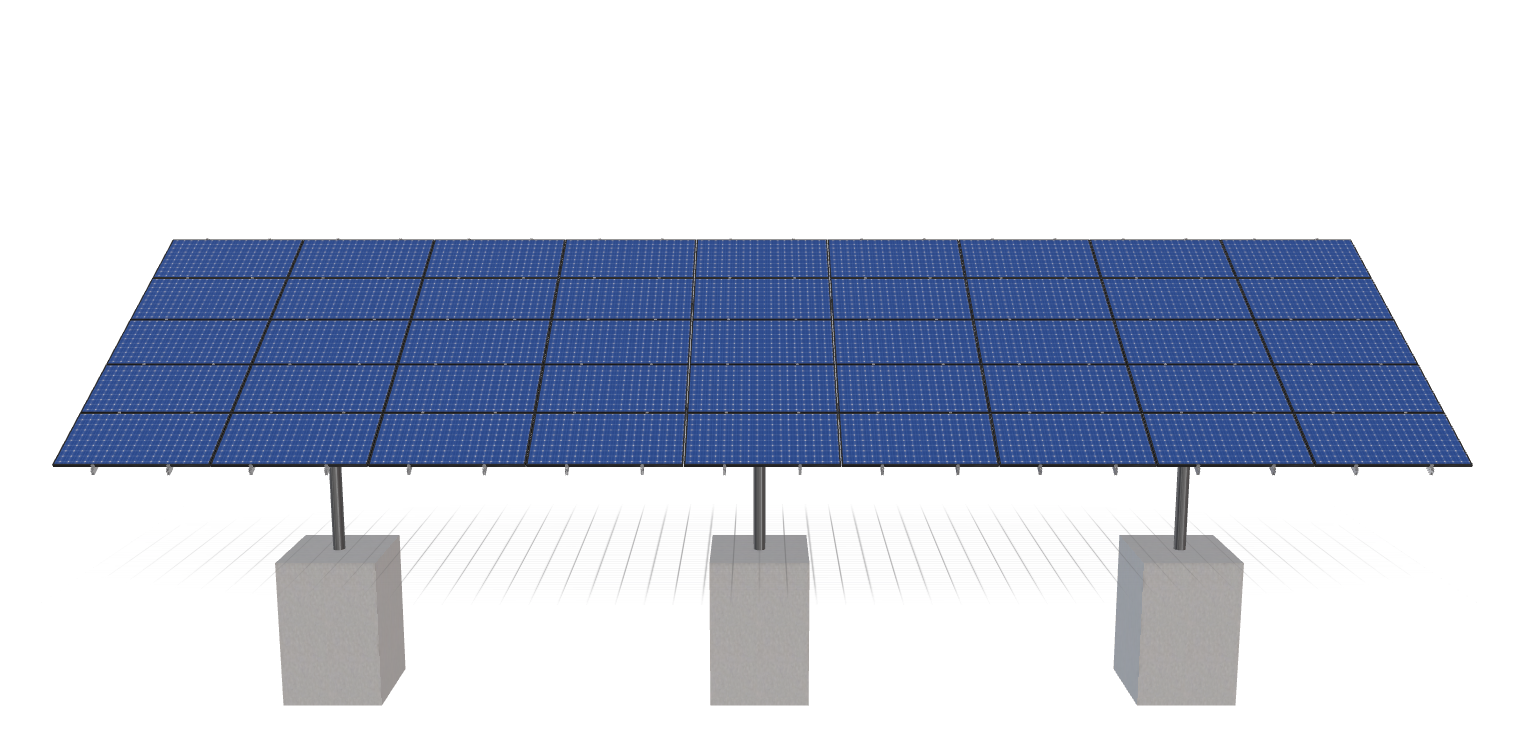

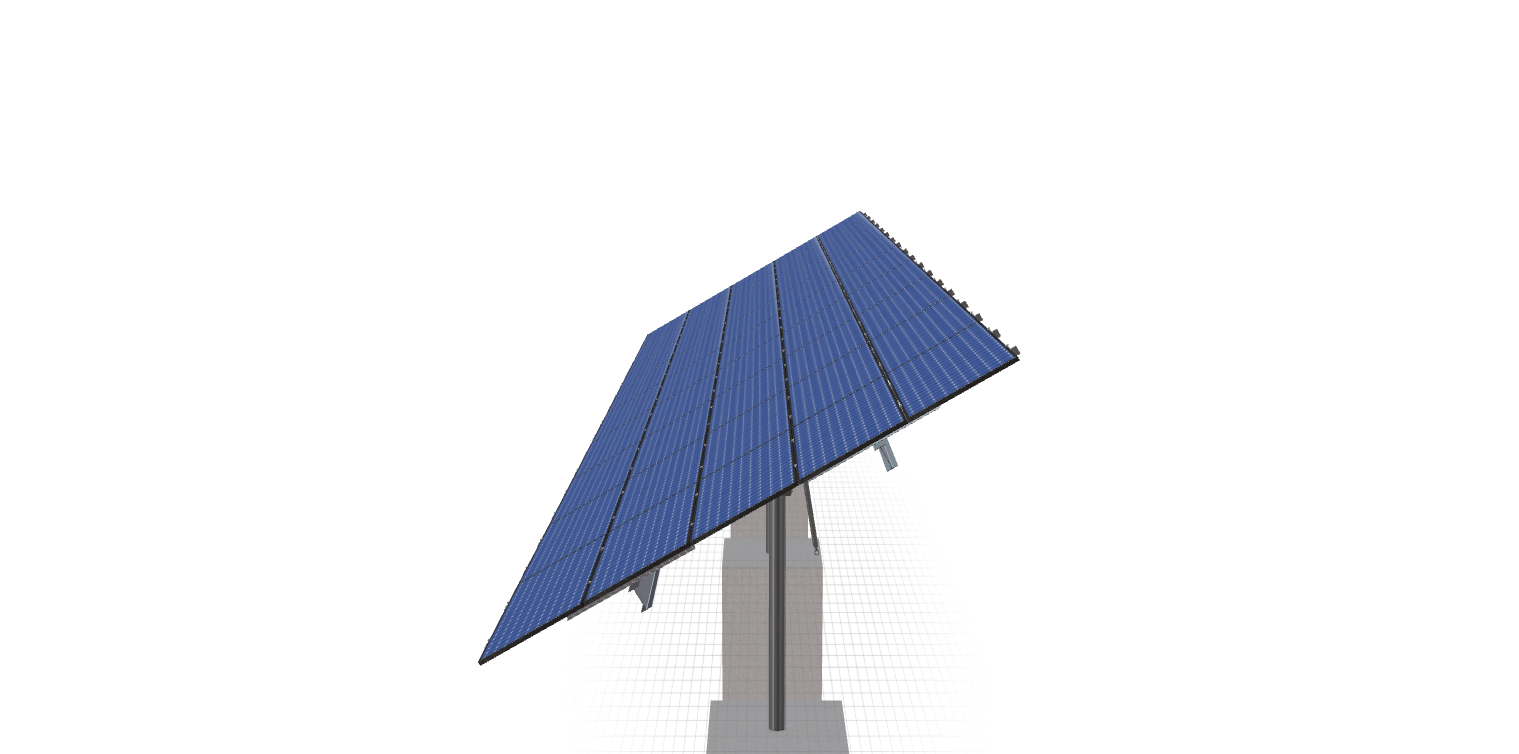

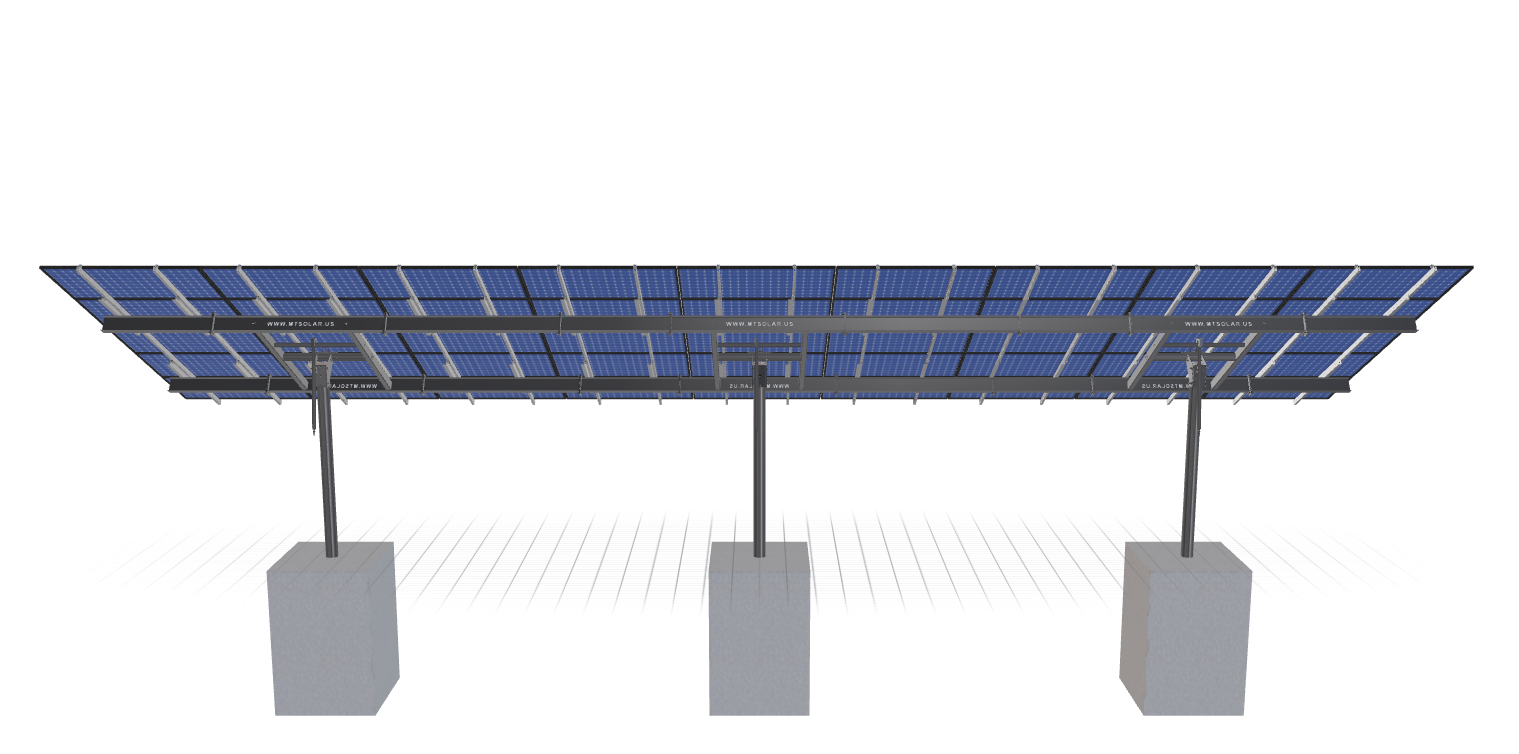

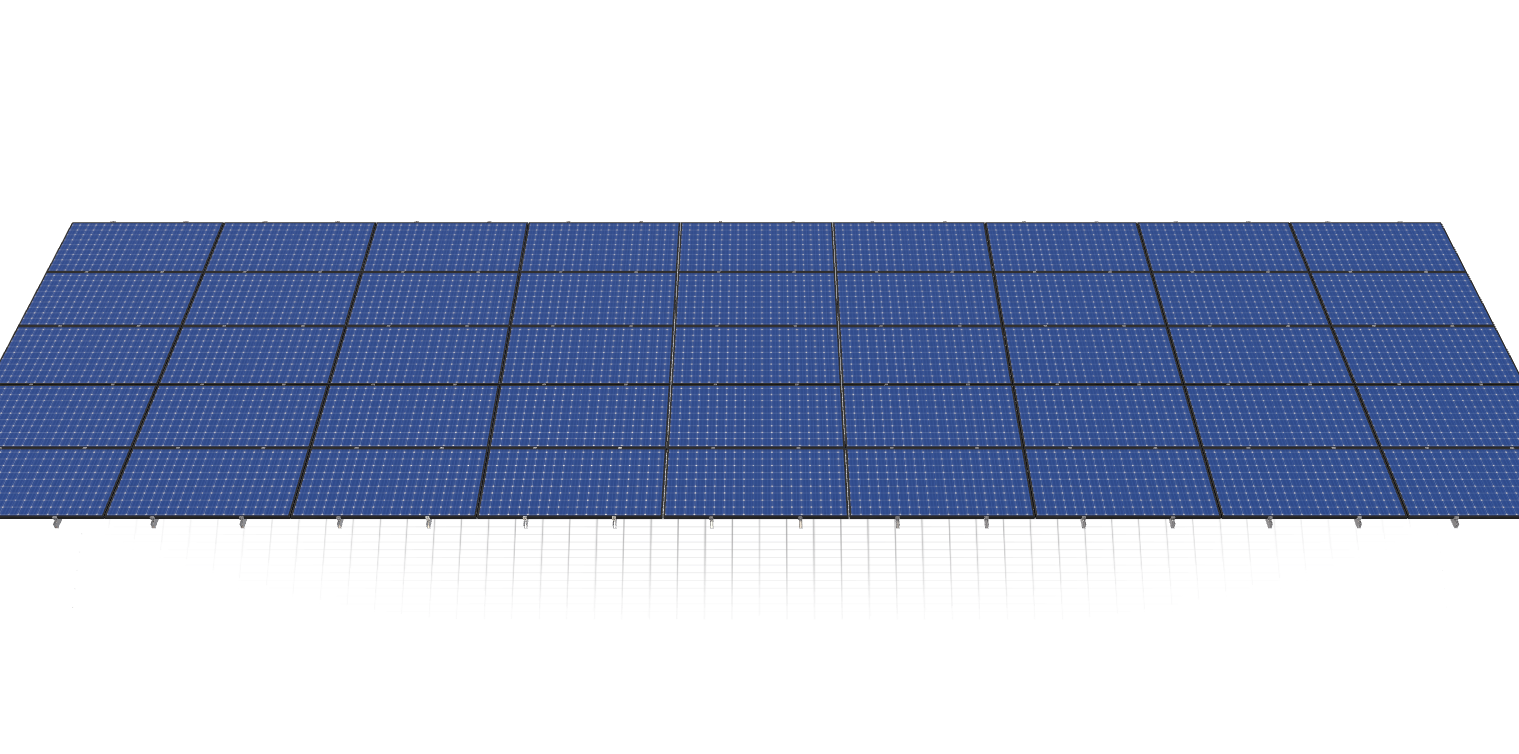

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 77.01 inches by 39.06 inches and an array layout of 9 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_6IG8KIC4051C
$17,790.52
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 77.01 inches by 39.06 inches and an array layout of 9 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3600.81 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-8TOP-XD-57-L-5HX9W-926I |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 9.12 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 6.75 |
| TILT ANGLE | 30.00 |
| CANTILEVER | 678.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 3.00 |
| MODULE AREA | 964.40 |
| ARRAY WIDTH | 58.51 |
| ARRAY HEIGHT | 16.48 |
| RAIL LENGTH | 197.80 |
| MODULE LENGTH | 77.01 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 56.50 |
| GROUND TO TOP | 13.19 |
| PROJECTED PANEL HEIGHT | 8.14 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | MTSOLAR, 6IG8KIC4051C |
| SITE ADDRESS | 600, WARM, SPRINGS, RD, LANDISBURG, PA, 17040, USA |
| MODULE WIDTH | 39.06 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 9.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 17790.52 |
| TOTAL WEIGHT | 3600.81 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/efac6fae-67c3-40e2-8ae1-1a760f8a2422.pdf |
|
| ID | 1009.00 |
| 3D Solar link |
