MTSOLAR_7842B2F77K3F-RevD

$13,077.74

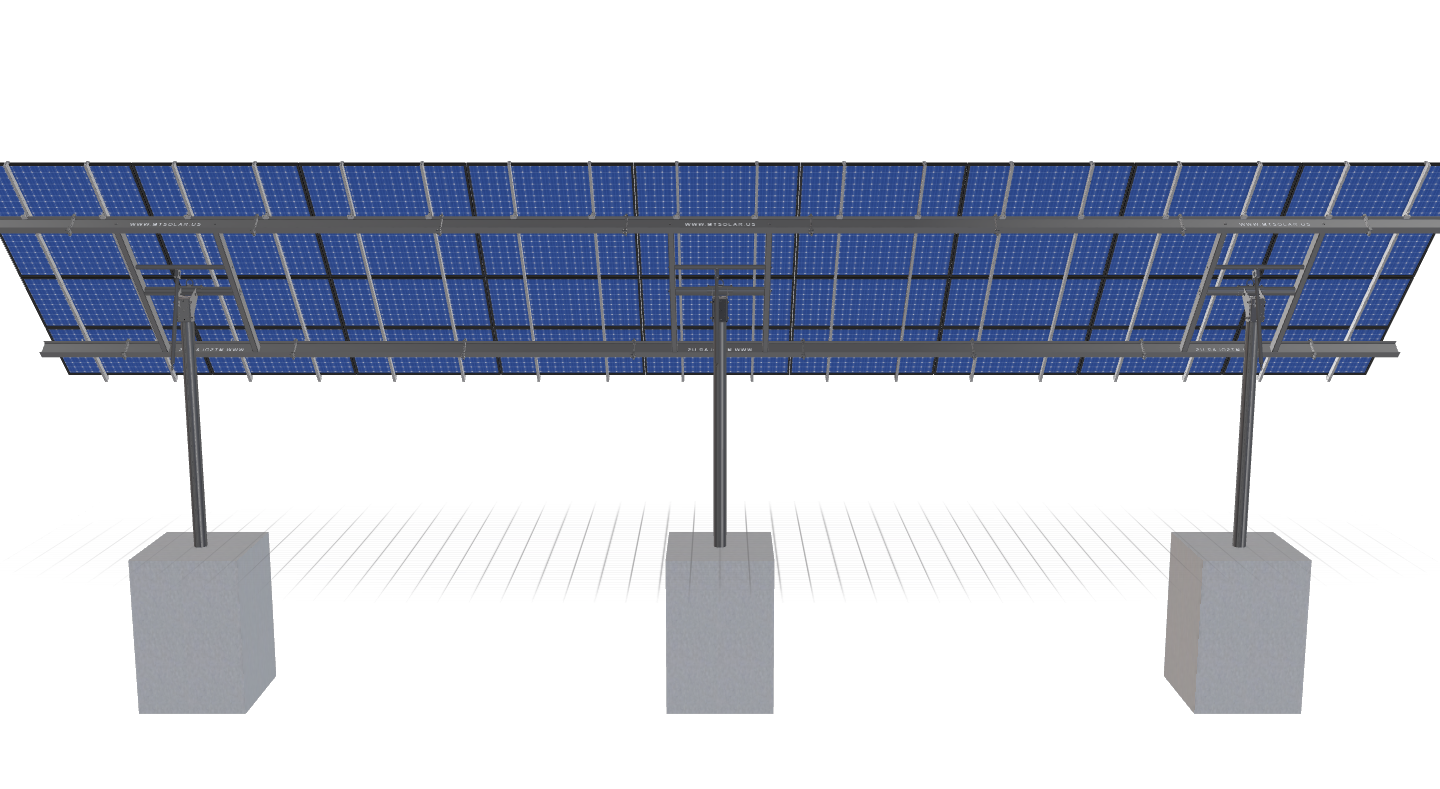

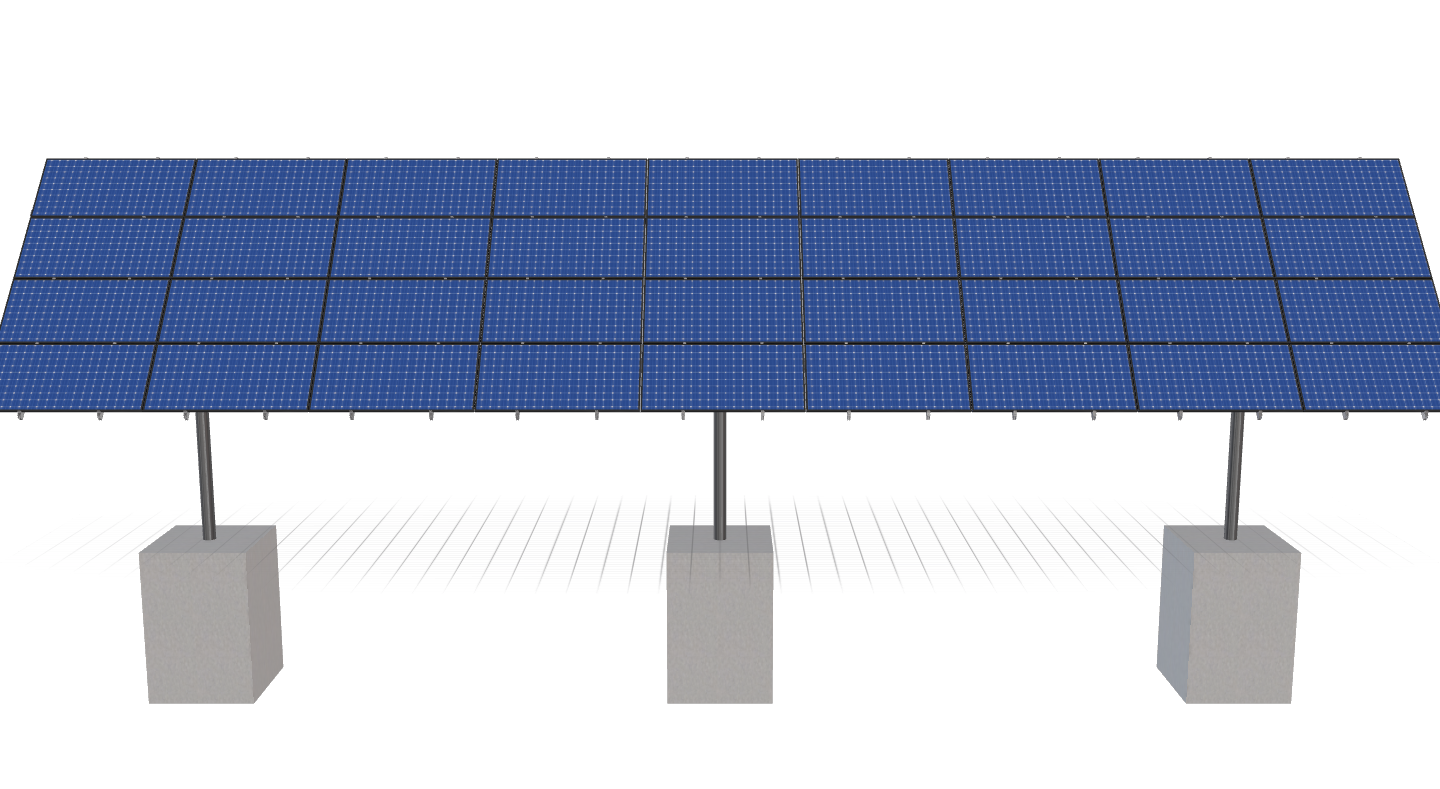

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79 inches by 39 inches and an array layout of 9 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

SKU: 3P-22.5-8TOP-SD-45-L-4Hx9W-B7D9 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79 inches by 39 inches and an array layout of 9 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 2353.98 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-22.5-8TOP-SD-45-L-4HX9W-B7D9

DUTY SIZE

SD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

22.50

POLE HEIGHT

11.04

WING SPAN

45.00

MAX FOUNDATION DEPTH

6.75

TILT ANGLE

50.00

CANTILEVER

720.00

GROUND CLEARANCE

6.00

NO POLES

3.00

MODULE AREA

790.00

ARRAY WIDTH

60.00

ARRAY HEIGHT

13.17

RAIL LENGTH

158.00

MODULE LENGTH

79.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

60.00

GROUND TO TOP

16.02

PROJECTED PANEL HEIGHT

9.96

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

PROJECT ID

MTSOLAR, 7842B2F77K3F-REVD

SITE ADDRESS

100, E, MAIN, ST, MANDAN, ND, 58554, USA

MODULE WIDTH

39.00

NUMBER ROWS

4.00

NUMBER COLUMNS

9.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

13077.74

TOTAL WEIGHT

2353.98

TOTAL PALLETS

3.00

pdf

https://skycivquotes.s3.amazonaws.com/f796eb0a-7d28-4576-b8a4-0880c74cc10b.pdf

ID

887.00
