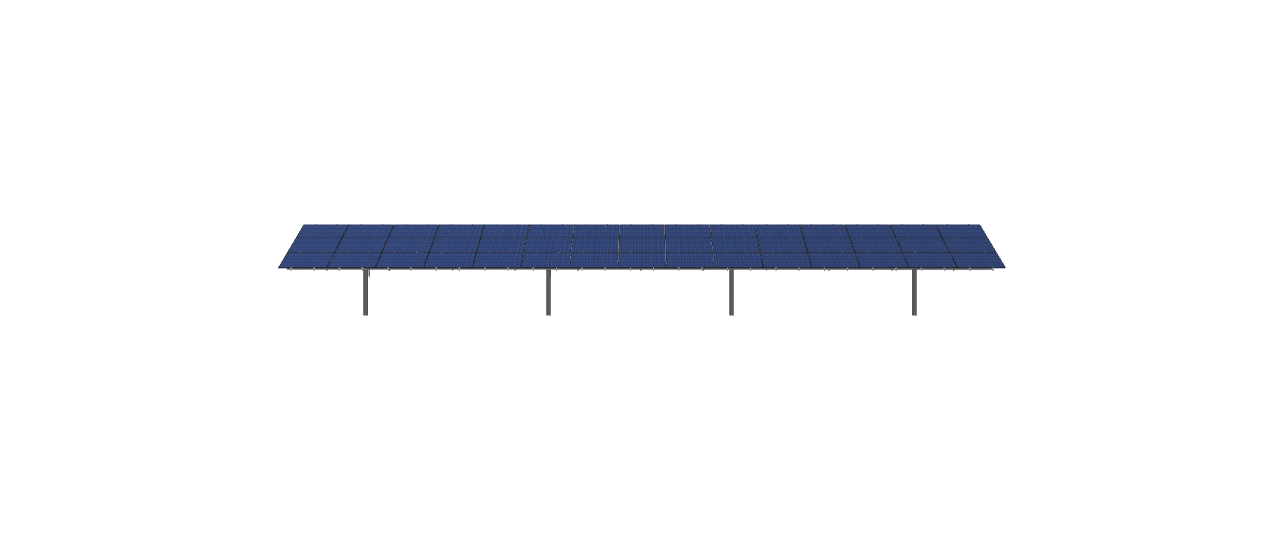

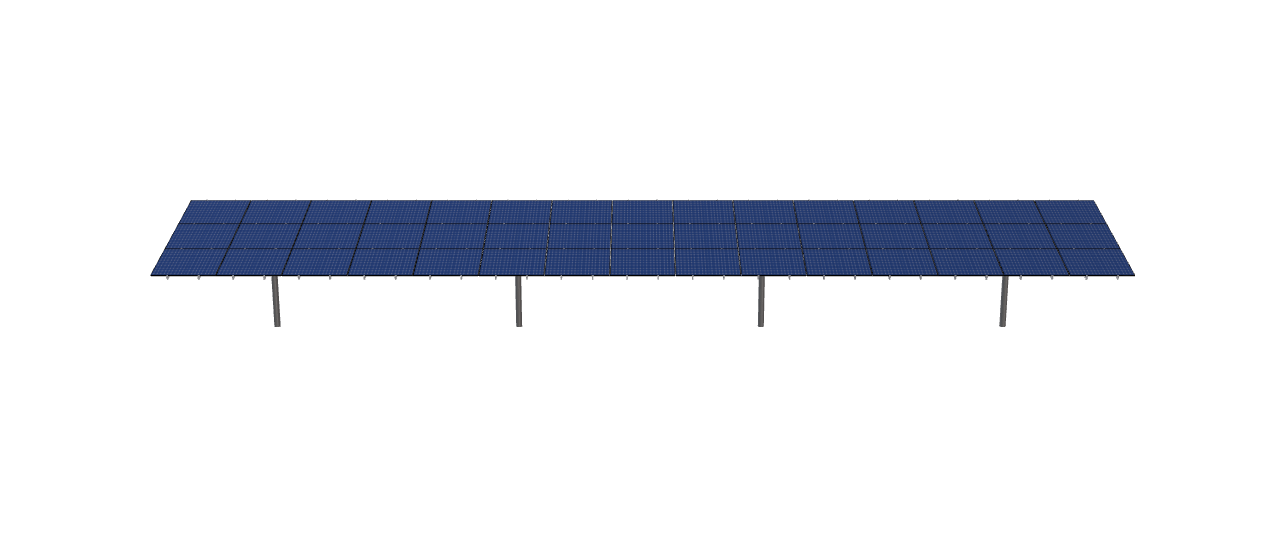

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 45 inches and an array layout of 15 wide by 3 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

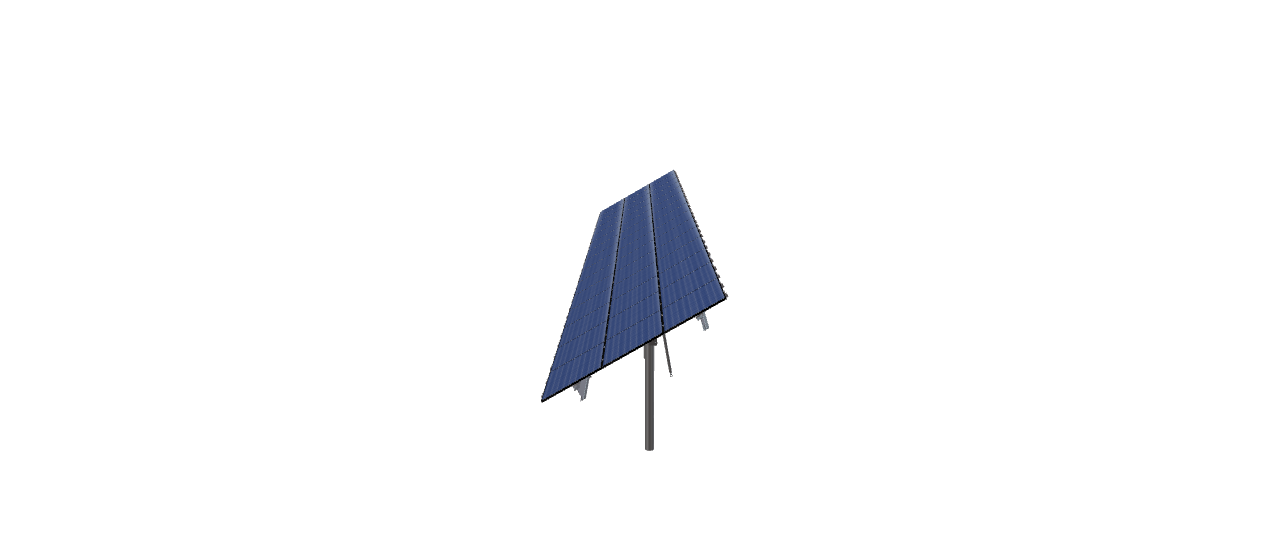

See 3D Model Here
MTSOLAR_7AJLJ4L53AC4B
$20,894.10
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 45 inches and an array layout of 15 wide by 3 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

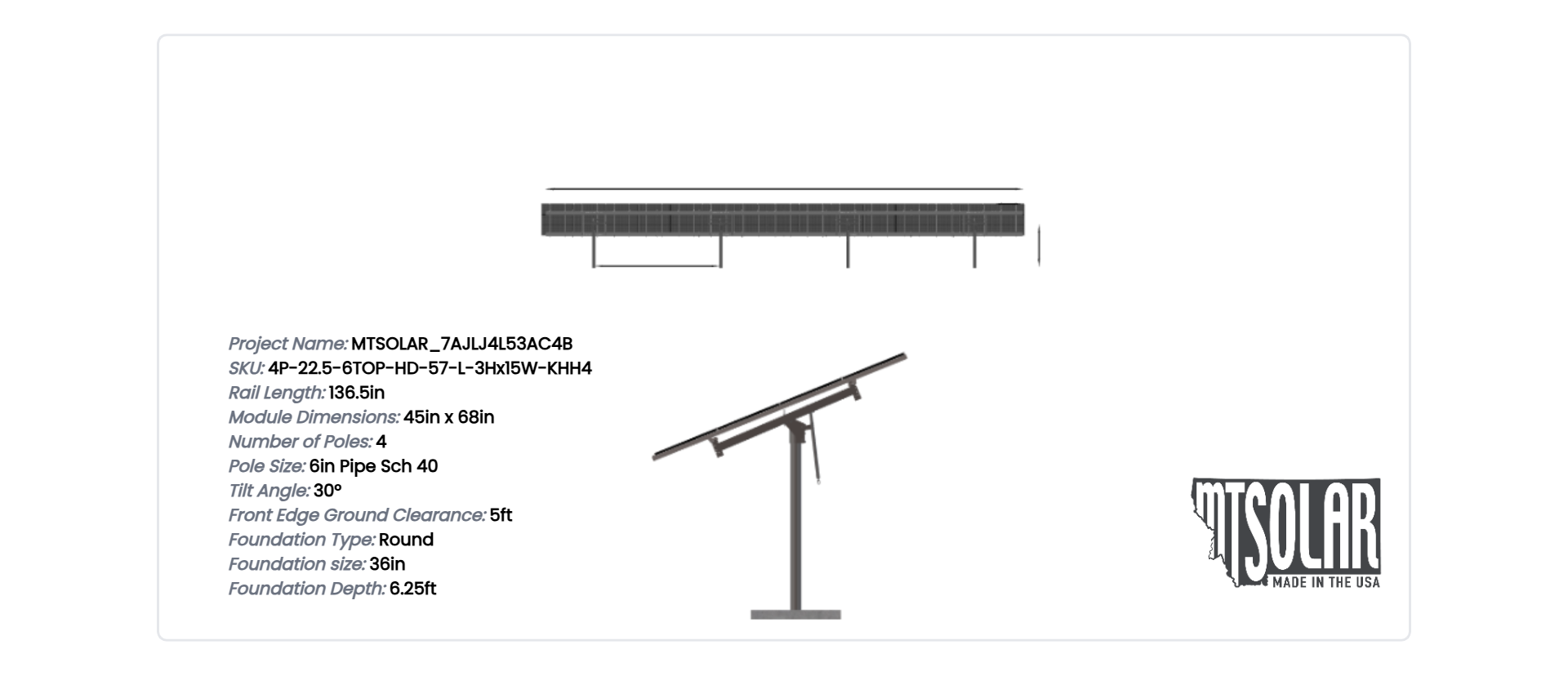

Additional information
| Weight | 3695.92 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-22.5-6TOP-HD-57-L-3HX15W-KHH4 |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 7.84 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 6.25 |
| TILT ANGLE | 30.00 |
| CANTILEVER | 1014.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 4.00 |
| MODULE AREA | 981.09 |
| ARRAY WIDTH | 86.25 |
| ARRAY HEIGHT | 11.38 |
| RAIL LENGTH | 136.50 |
| MODULE LENGTH | 68.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 84.50 |
| GROUND TO TOP | 10.69 |
| PROJECTED PANEL HEIGHT | 5.69 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | KYLE, MCCARTY |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | MTSOLAR, 7AJLJ4L53AC4B |
| SITE ADDRESS | 4675, KY-181, GREENVILLE, KY, 42345, USA |
| MODULE WIDTH | 45.00 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 15.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SEDIMENTARY |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 19899.14 |
| TOTAL WEIGHT | 3695.92 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/309be273-3599-4b30-952f-35a36fc061b7.pdf |
|
| ID | 10283.00 |
| 3D Solar link |
