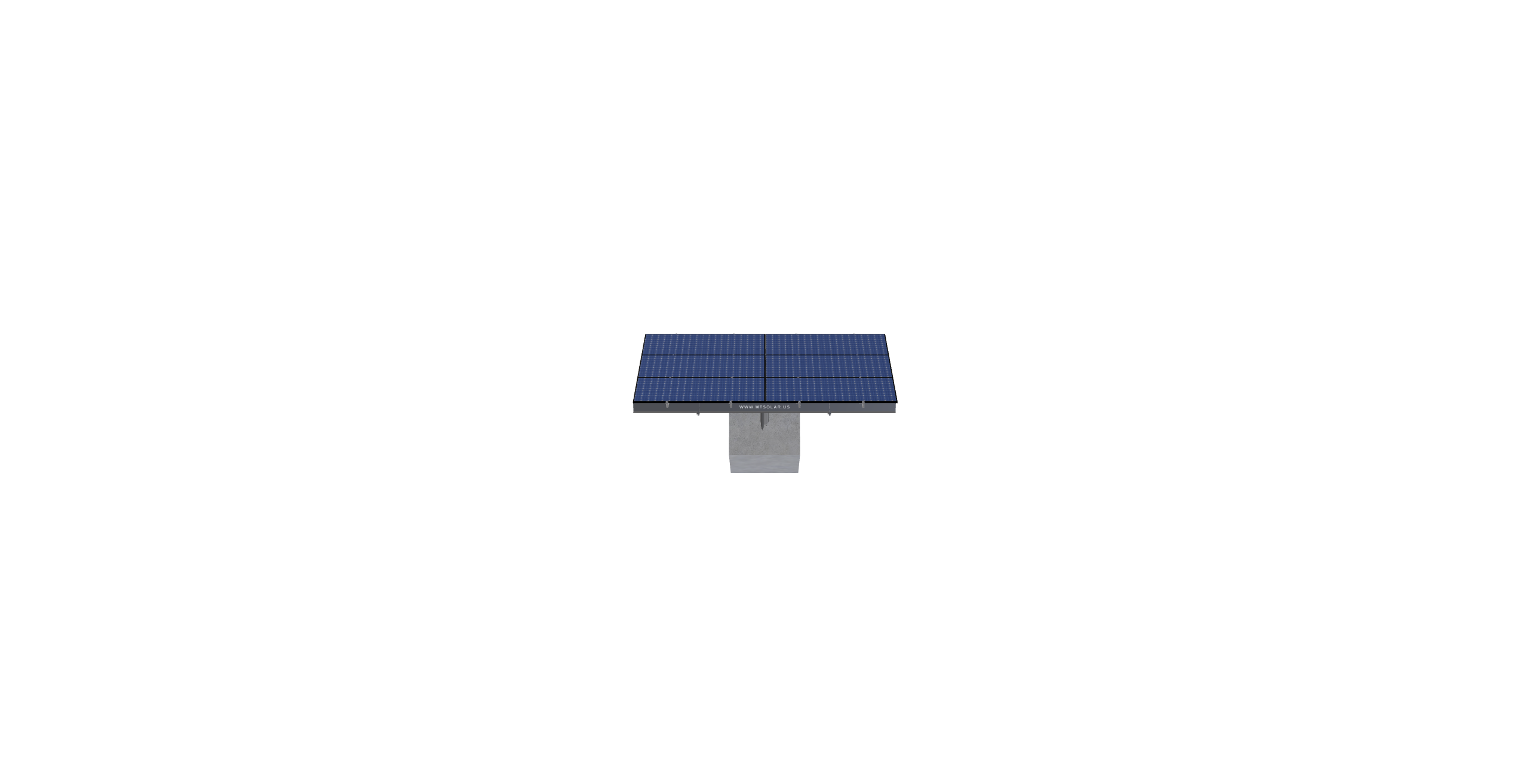

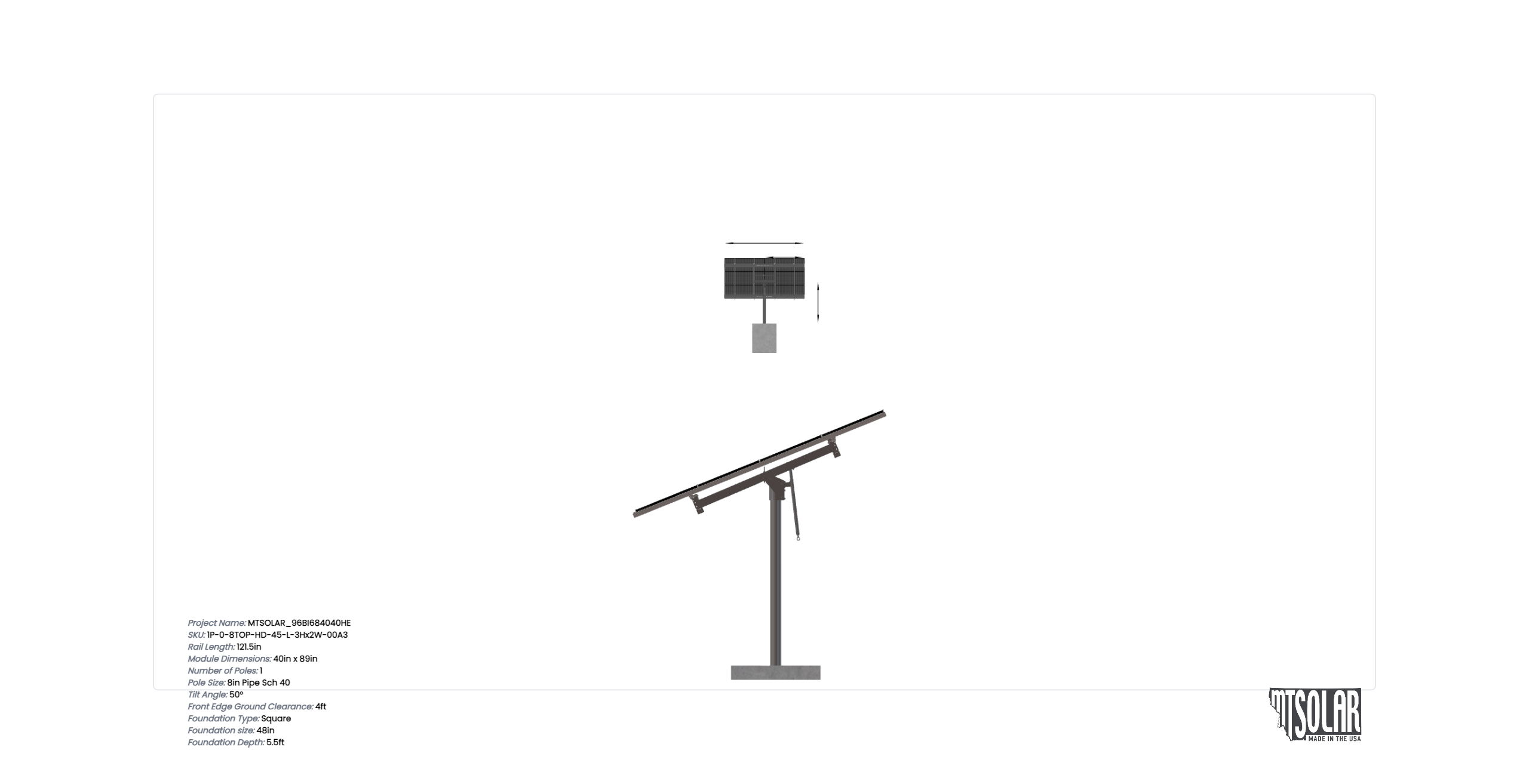

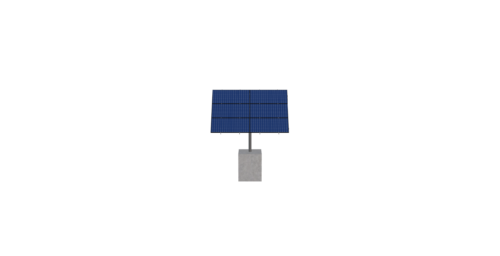

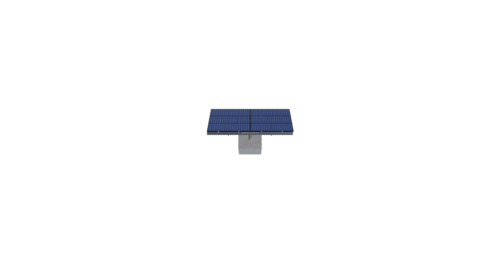

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89 inches by 40 inches and an array layout of 2 wide by 3 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_96BI684040HE
$4,210.65
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89 inches by 40 inches and an array layout of 2 wide by 3 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 742.5500000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-HD-45-L-3HX2W-00A3 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 7.88 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 5.50 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 180.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 1.00 |
| MODULE AREA | 151.88 |
| ARRAY WIDTH | 15.00 |
| ARRAY HEIGHT | 10.13 |
| RAIL LENGTH | 121.50 |
| MODULE LENGTH | 89.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 15.00 |
| GROUND TO TOP | 11.71 |
| PROJECTED PANEL HEIGHT | 7.66 |
| PROJECT ID | MTSOLAR, 96BI684040HE |
| SITE ADDRESS | 87WH+MW, STEHEKIN, WA, 98852, USA |
| MODULE WIDTH | 40.00 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 2.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | HD |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 130.00 |
| SNOW LOAD OVERRIDE | 182.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 4010.14 |
| TOTAL WEIGHT | 742.55 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/150c6e06-09a9-48a9-8136-b40c3fc5aa67.pdf |
|
| ID | 6106.00 |
| 3D Solar link |
