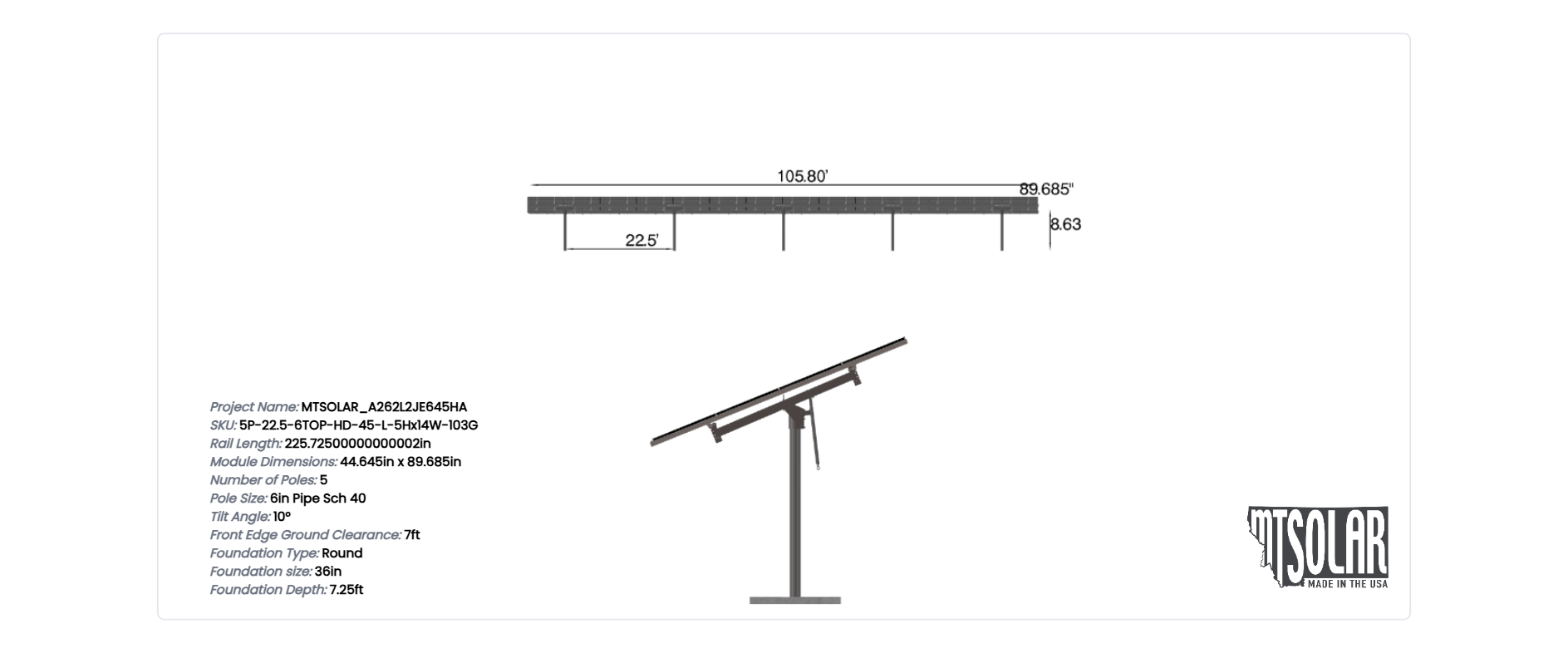

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.685 inches by 44.645 inches and an array layout of 14 wide by 5 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

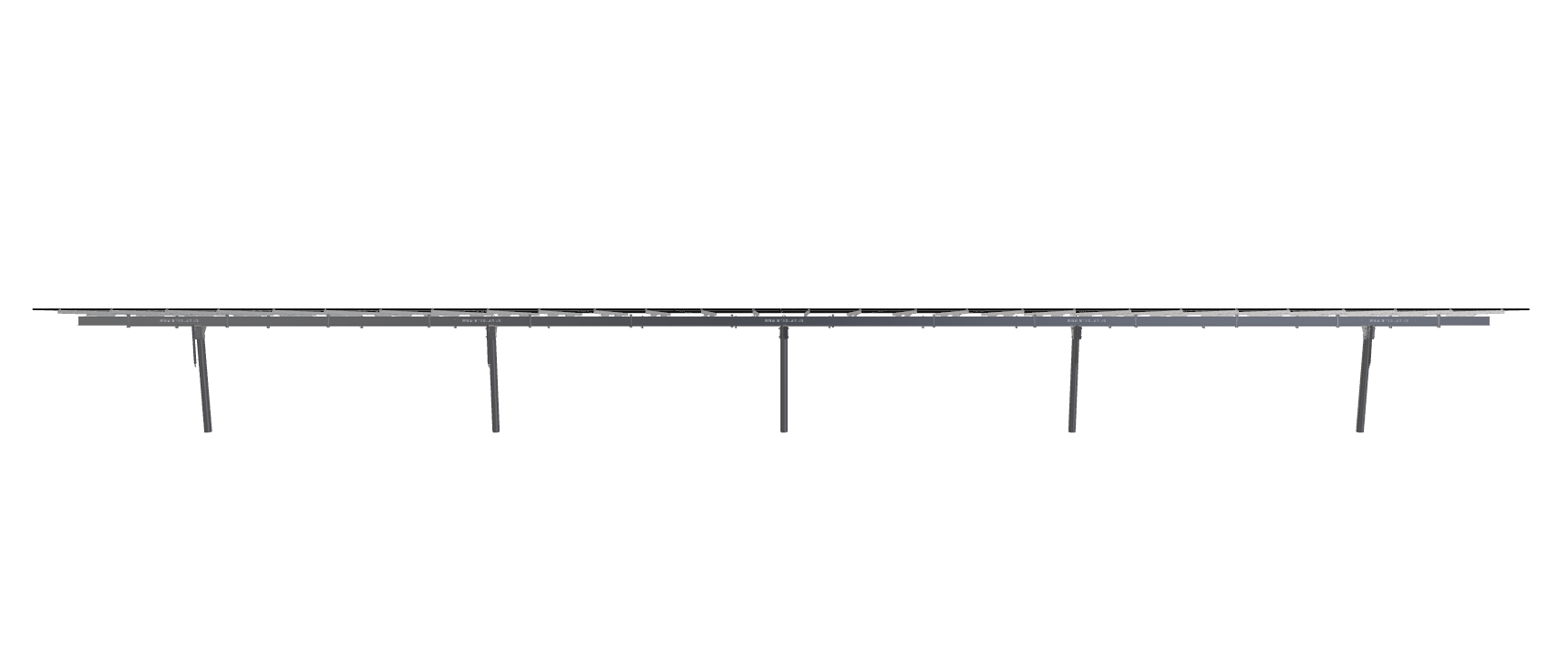

See 3D Model Here
MTSOLAR_A262L2JE645HA
$28,066.31
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.685 inches by 44.645 inches and an array layout of 14 wide by 5 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 5473.75 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-22.5-6TOP-HD-45-L-5HX14W-103G |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 8.63 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 7.25 |
| TILT ANGLE | 10.00 |
| CANTILEVER | 1260.00 |
| GROUND CLEARANCE | 7.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1990.13 |
| ARRAY WIDTH | 105.80 |
| ARRAY HEIGHT | 18.81 |
| RAIL LENGTH | 225.73 |
| MODULE LENGTH | 89.69 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 105.00 |
| GROUND TO TOP | 10.27 |
| PROJECTED PANEL HEIGHT | 3.27 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | ANGELIQUE |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 217-313-5788 |
| PROJECT ID | MTSOLAR, A262L2JE645HA |
| SITE ADDRESS | 140, N, MAIN, ST, HILLSBORO, IL, 62049, USA |
| MODULE INFO | ZNSHINE, 550 |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 14.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 28066.31 |
| TOTAL WEIGHT | 5473.75 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/972c2911-8bcd-4c21-b297-9f31c2da7e51.pdf |
|
| ID | 11788.00 |
| 3D Solar link |
