MTSOLAR_A633467G659H8

$3,661.39

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75 inches by 45 inches and an array layout of 2 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

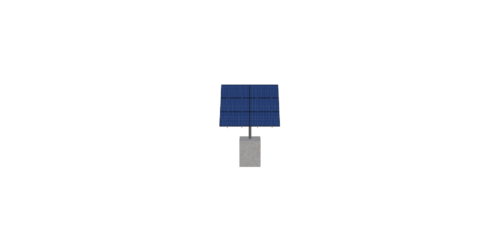

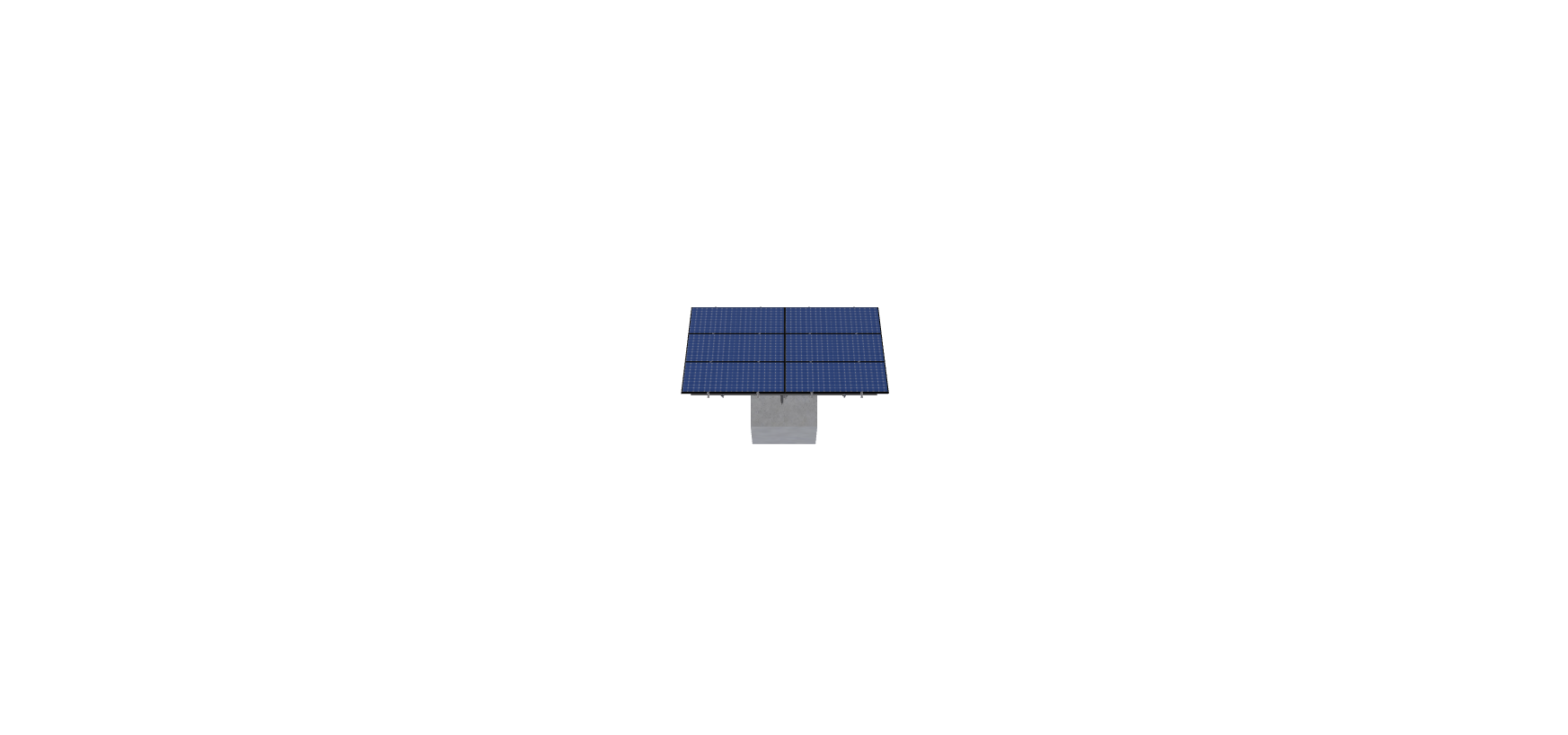

See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

Product price: $3,661.39
Total options:
Order total:
SKU: 1P-0-6TOP-HD-24-L-3Hx2W-33AB Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75 inches by 45 inches and an array layout of 2 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 657.59 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-6TOP-HD-24-L-3HX2W-33AB

DUTY SIZE

HD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

7.02

WING SPAN

24.00

MAX FOUNDATION DEPTH

5.75

TILT ANGLE

45.00

CANTILEVER

138.00

GROUND CLEARANCE

3.00

NO POLES

1.00

MODULE AREA

144.08

ARRAY WIDTH

12.67

ARRAY HEIGHT

11.38

RAIL LENGTH

136.50

MODULE LENGTH

75.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

11.50

GROUND TO TOP

11.00

PROJECTED PANEL HEIGHT

7.95

PROJECT ID

MTSOLAR, A633467G659H8

SITE ADDRESS

PALMER, AK, 99645, USA

MODULE WIDTH

45.00

NUMBER ROWS

3.00

NUMBER COLUMNS

2.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

3661.39

TOTAL WEIGHT

657.59

TOTAL PALLETS

1.00
