MTSOLAR_B1HBF17GC63B

$17,762.17

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 11 wide by 5 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

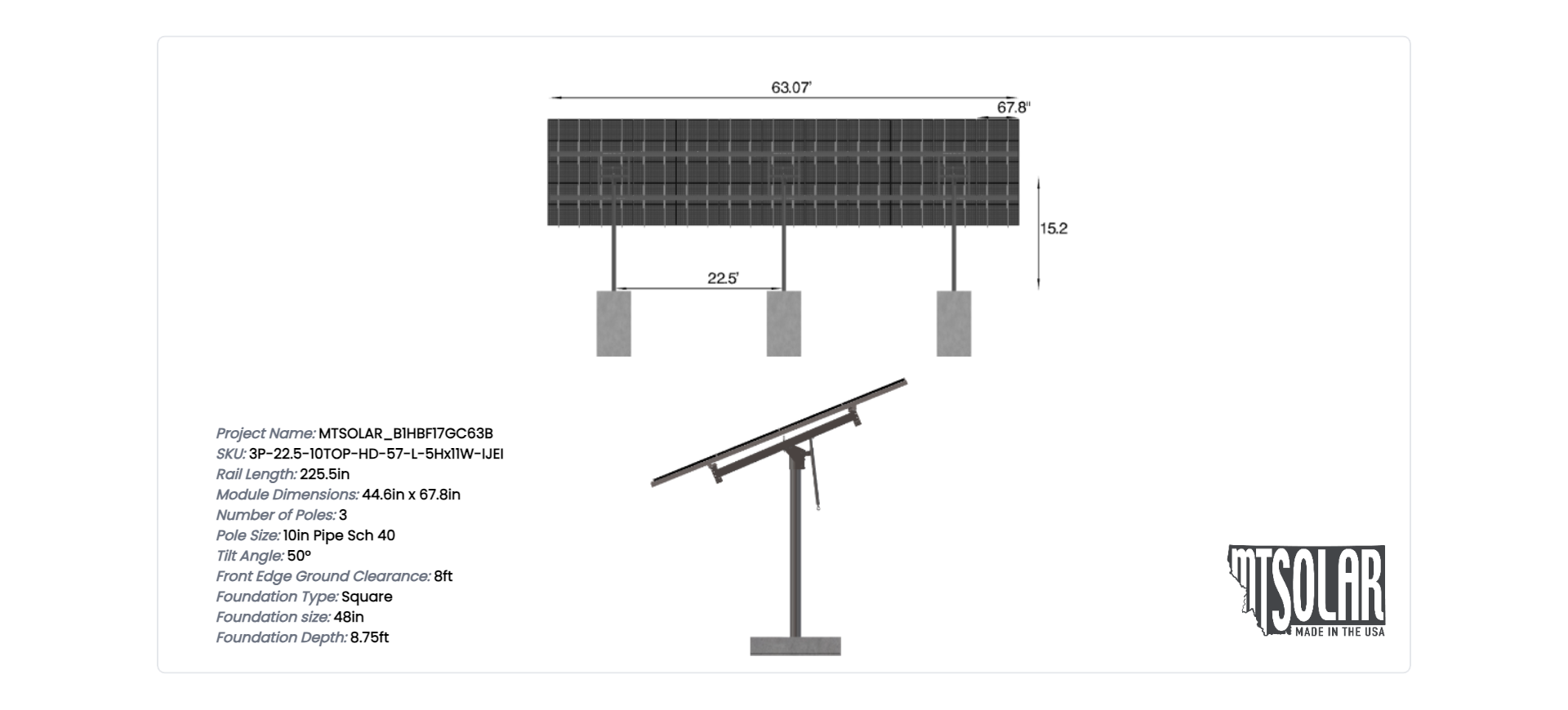

See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 3P-22.5-10TOP-HD-57-L-5Hx11W-IJEI Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 11 wide by 5 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 3606.49 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-22.5-10TOP-HD-57-L-5HX11W-IJEI

DUTY SIZE

HD

POLE SIZE

10IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

22.50

POLE HEIGHT

15.20

WING SPAN

57.00

MAX FOUNDATION DEPTH

8.75

TILT ANGLE

50.00

CANTILEVER

744.00

GROUND CLEARANCE

8.00

NO POLES

3.00

MODULE AREA

1185.13

ARRAY WIDTH

63.07

ARRAY HEIGHT

18.79

RAIL LENGTH

225.50

MODULE LENGTH

67.80

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

62.00

GROUND TO TOP

22.32

PROJECTED PANEL HEIGHT

14.24

PROJECT ID

MTSOLAR, B1HBF17GC63B

SITE ADDRESS

15575, NW, ROADS, END, BANKS, OR, 97106, USA

MODULE WIDTH

44.60

NUMBER ROWS

5.00

NUMBER COLUMNS

11.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

103.00

SNOW LOAD OVERRIDE

25.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

17762.17

TOTAL WEIGHT

3606.49

TOTAL PALLETS

3.00
