This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.4 inches by 40.9 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

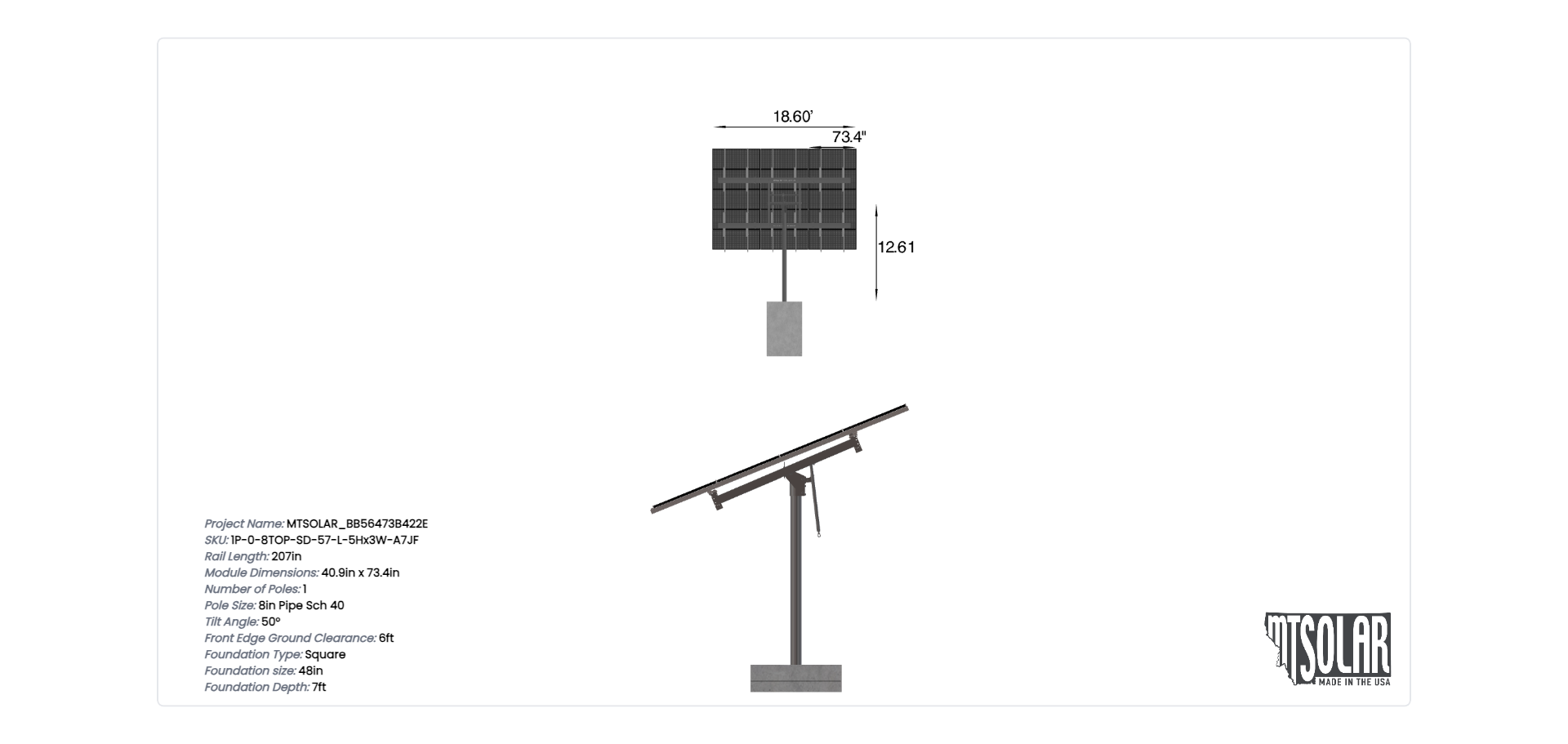

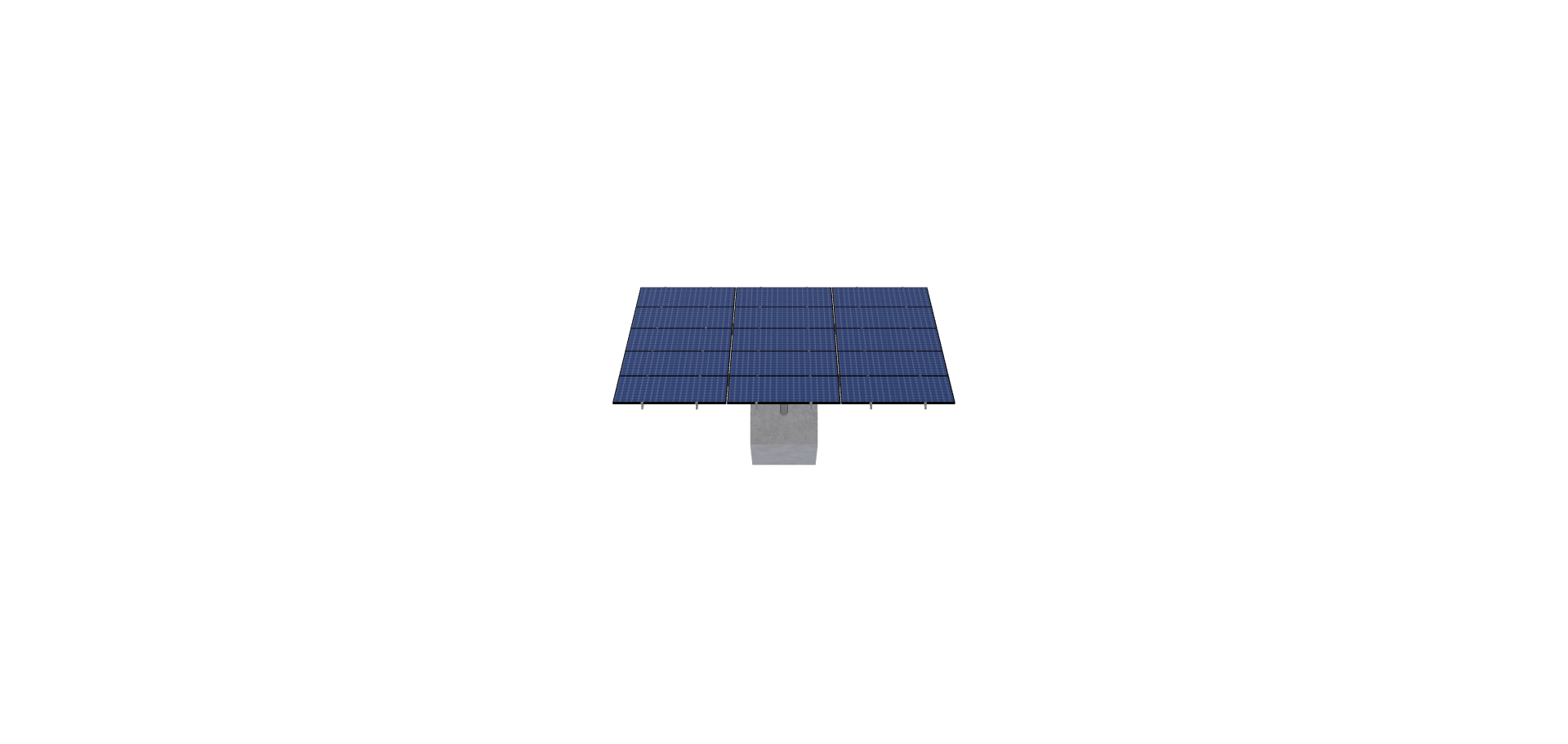

See 3D Model Here

SKU: 1P-0-8TOP-SD-57-L-5Hx3W-A7JF Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.4 inches by 40.9 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 907.3199999999999 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-8TOP-SD-57-L-5HX3W-A7JF

DUTY SIZE

SD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

12.61

WING SPAN

57.00

MAX FOUNDATION DEPTH

7.00

TILT ANGLE

50.00

CANTILEVER

204.00

GROUND CLEARANCE

6.00

NO POLES

1.00

MODULE AREA

320.85

ARRAY WIDTH

18.60

ARRAY HEIGHT

17.25

RAIL LENGTH

207.00

MODULE LENGTH

73.40

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

17.00

GROUND TO TOP

19.13

PROJECTED PANEL HEIGHT

13.05

PROJECT ID

MTSOLAR, BB56473B422E

SITE ADDRESS

1305, HILLSIDE, LN, BOZEMAN, MT, 59715, USA

MODULE WIDTH

40.90

NUMBER ROWS

5.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

101.00

SNOW LOAD OVERRIDE

47.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

4622.99

TOTAL WEIGHT

907.32

TOTAL PALLETS

1.00
