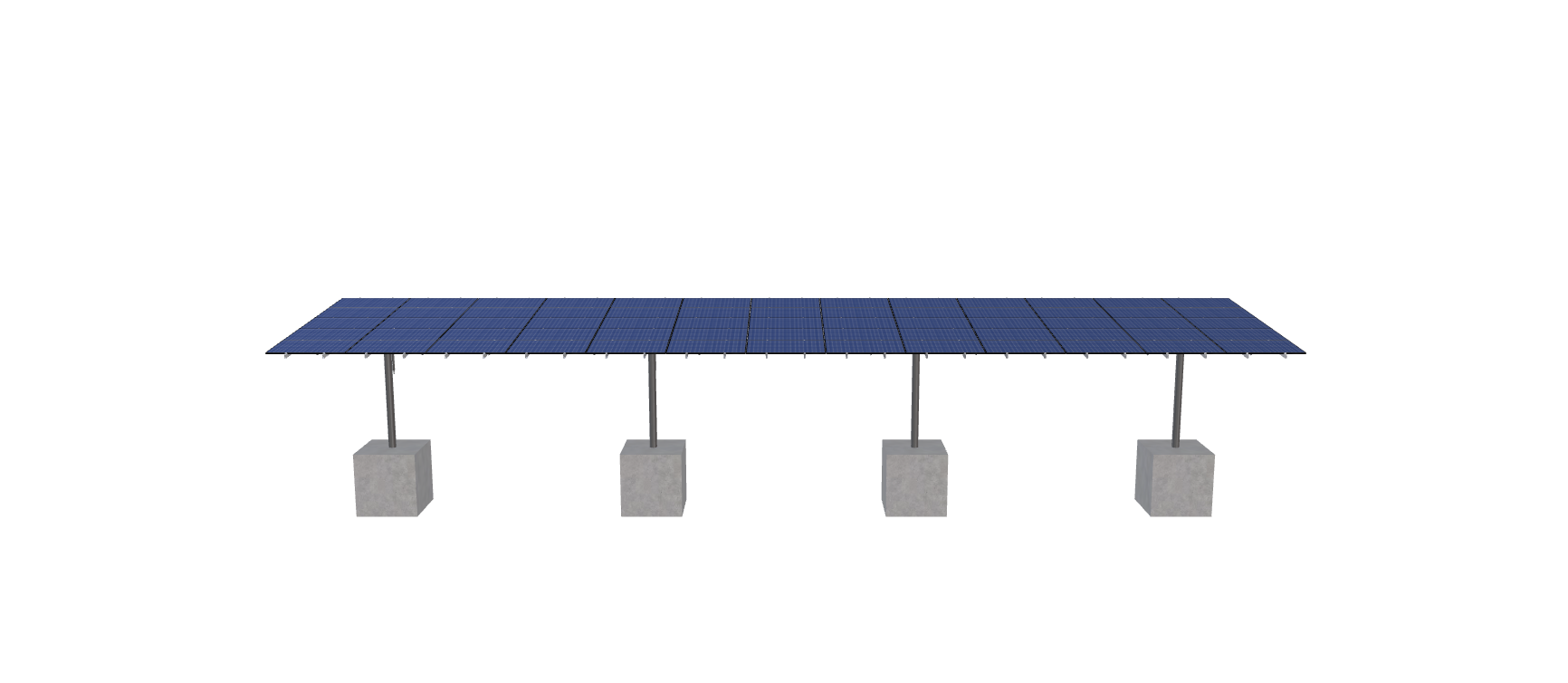

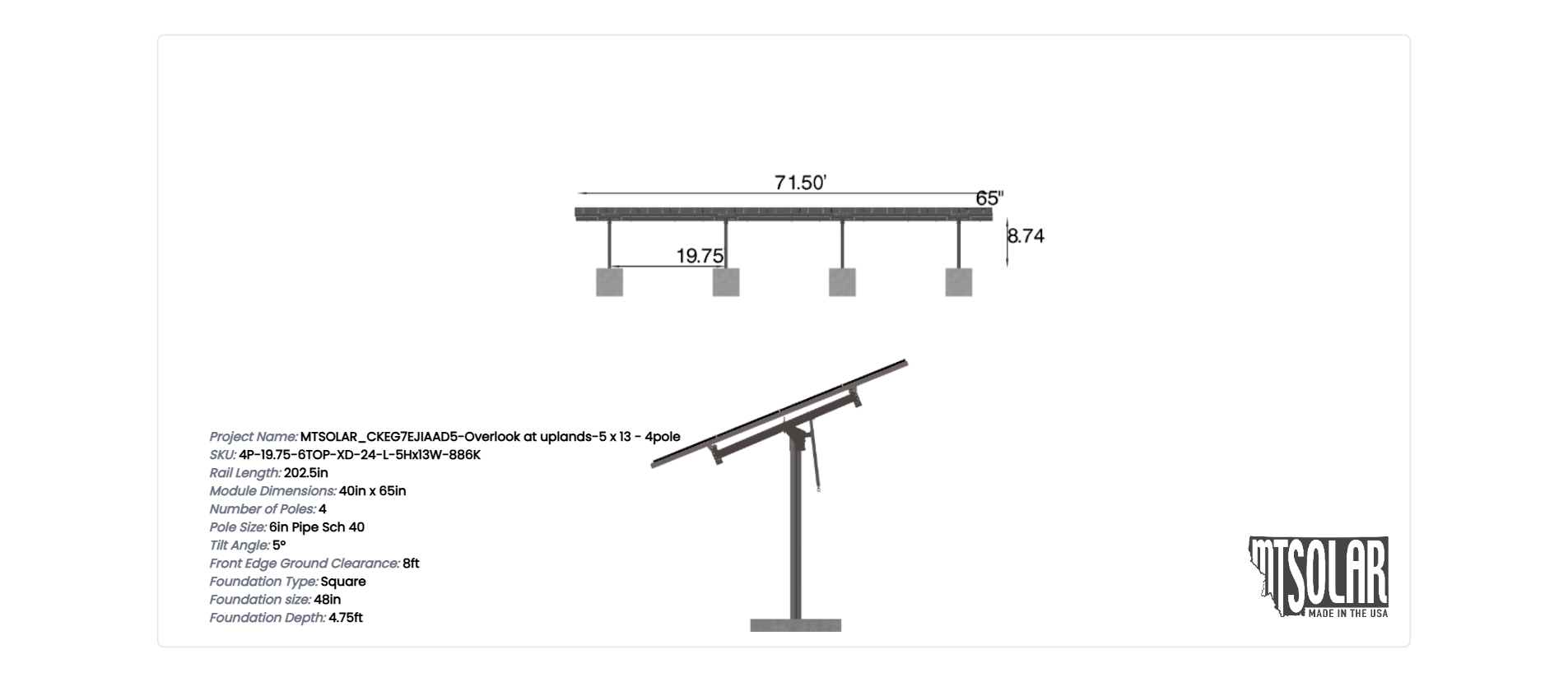

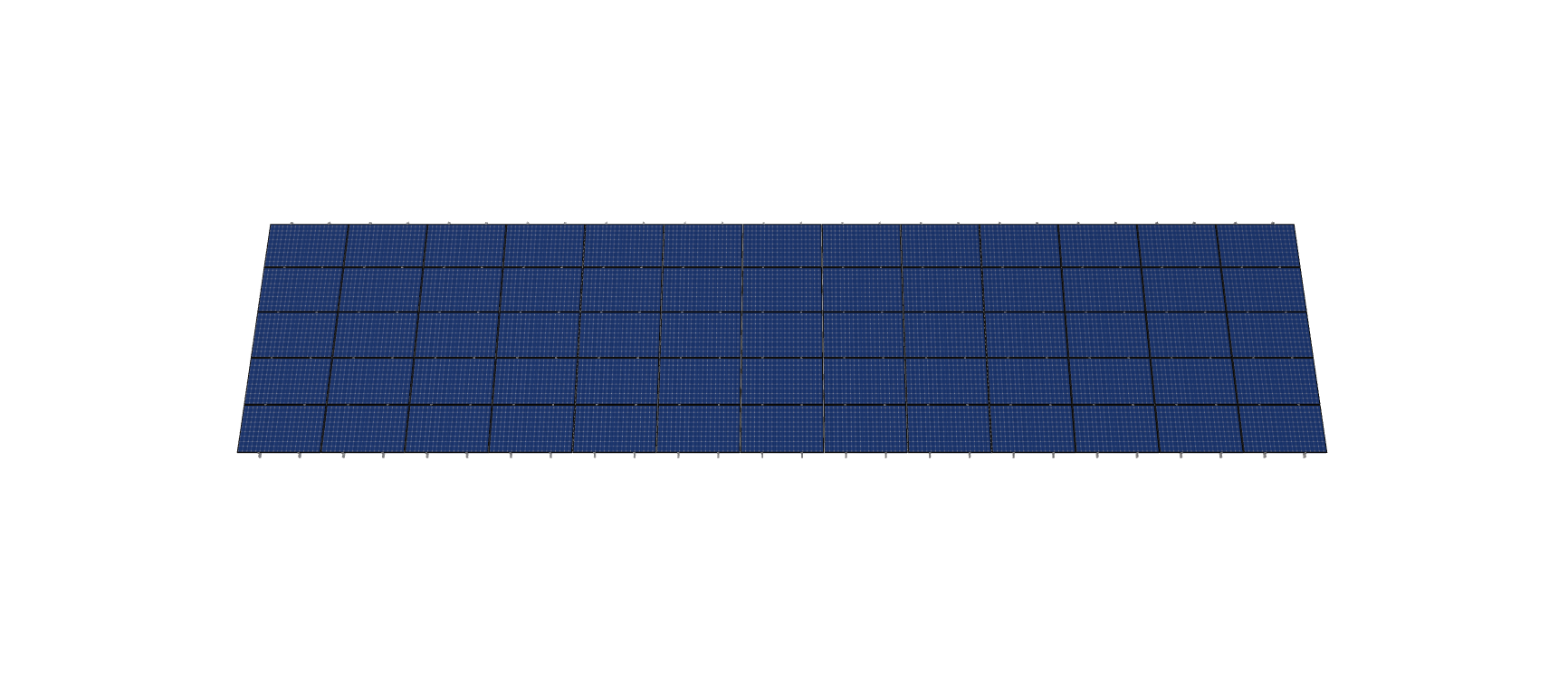

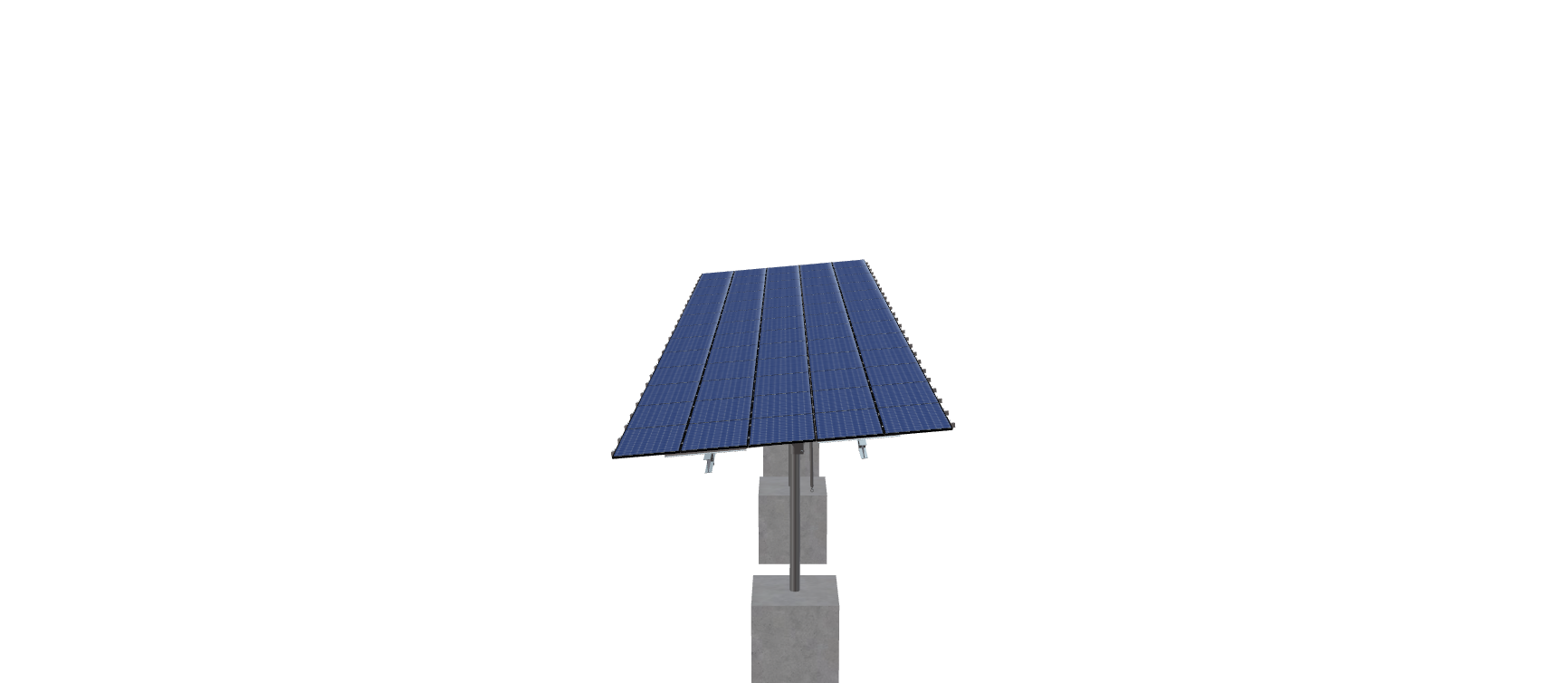

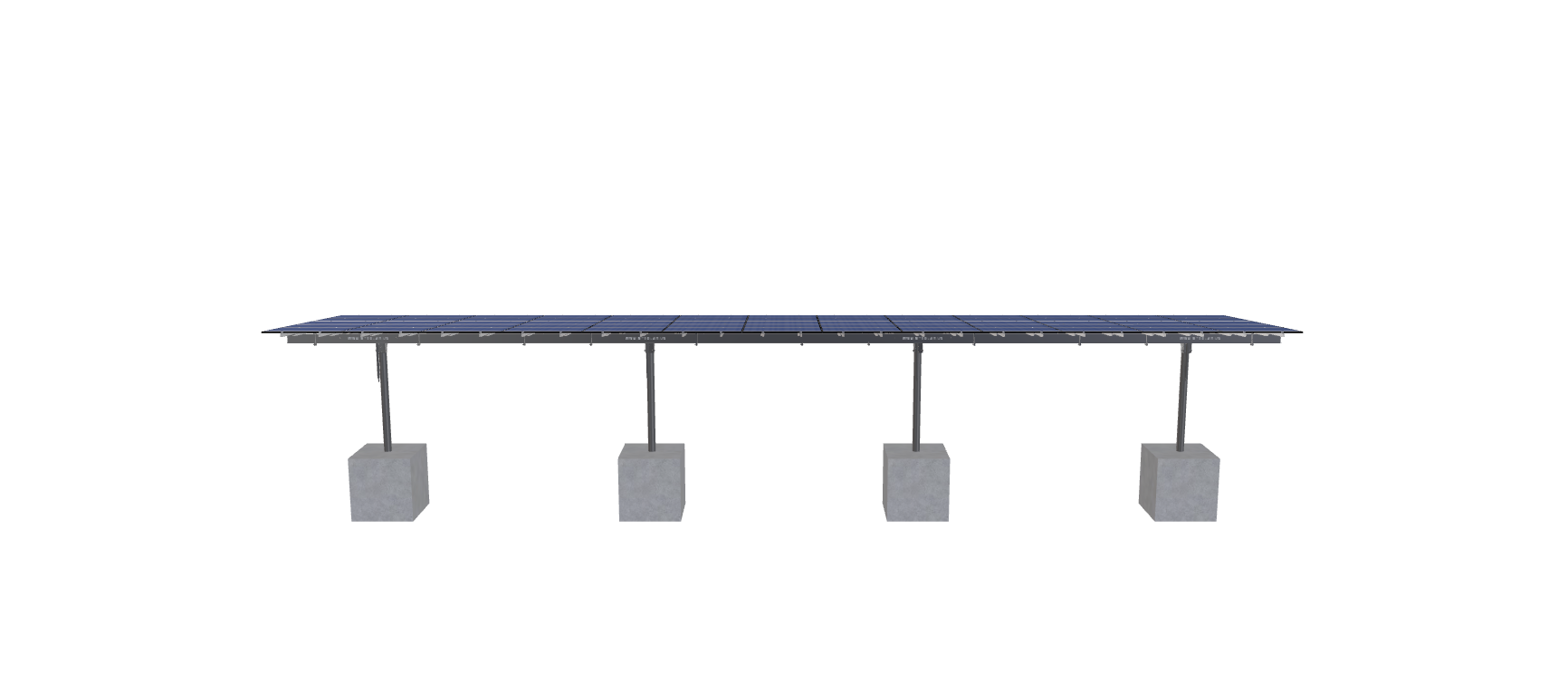

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 40 inches and an array layout of 13 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_CKEG7EJIAAD5-Overlook at uplands-5 x 13 – 4pole
$24,504.11
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 40 inches and an array layout of 13 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4743.72 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-6TOP-XD-24-L-5HX13W-886K |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 8.74 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 4.75 |
| TILT ANGLE | 5.00 |
| CANTILEVER | 849.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1206.56 |
| ARRAY WIDTH | 71.50 |
| ARRAY HEIGHT | 16.88 |
| RAIL LENGTH | 202.50 |
| MODULE LENGTH | 65.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 70.75 |
| GROUND TO TOP | 9.47 |
| PROJECTED PANEL HEIGHT | 1.47 |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | MTSOLAR, CKEG7EJIAAD5-OVERLOOK, AT, UPLANDS-5, X, 13, -, 4POLE |
| SITE ADDRESS | 8660, CLAY, ST, WESTMINSTER, CO, 80031, USA |
| MODULE INFO | |
| MODULE WIDTH | 40.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 13.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 130.00 |
| SNOW LOAD OVERRIDE | 40.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 24504.11 |
| TOTAL WEIGHT | 4743.72 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/1f53ecf7-c797-41be-be3a-abb3992fd6d7.pdf |
|
| ID | 11328.00 |
| 3D Solar link |
