This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79.13 inches by 39.37 inches and an array layout of 14 wide by 5 high.
This mount fits on 5 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

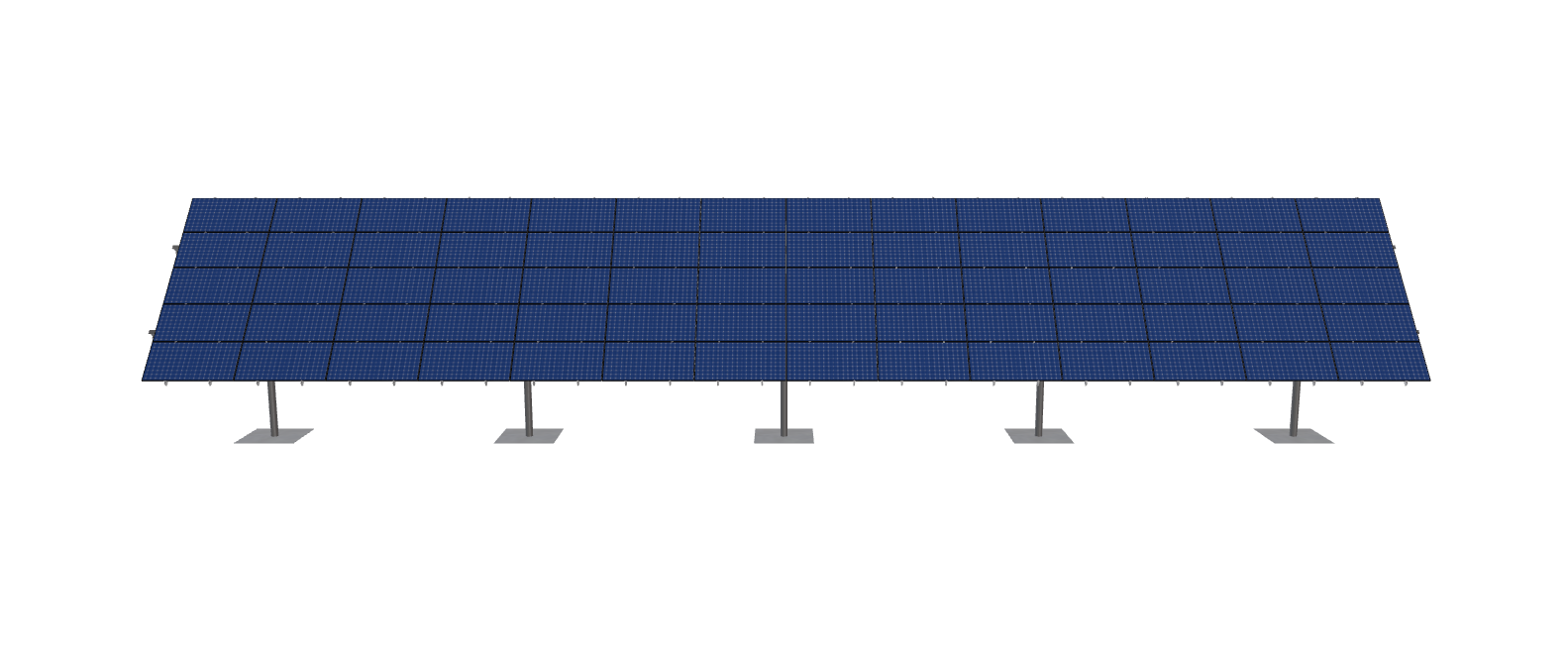

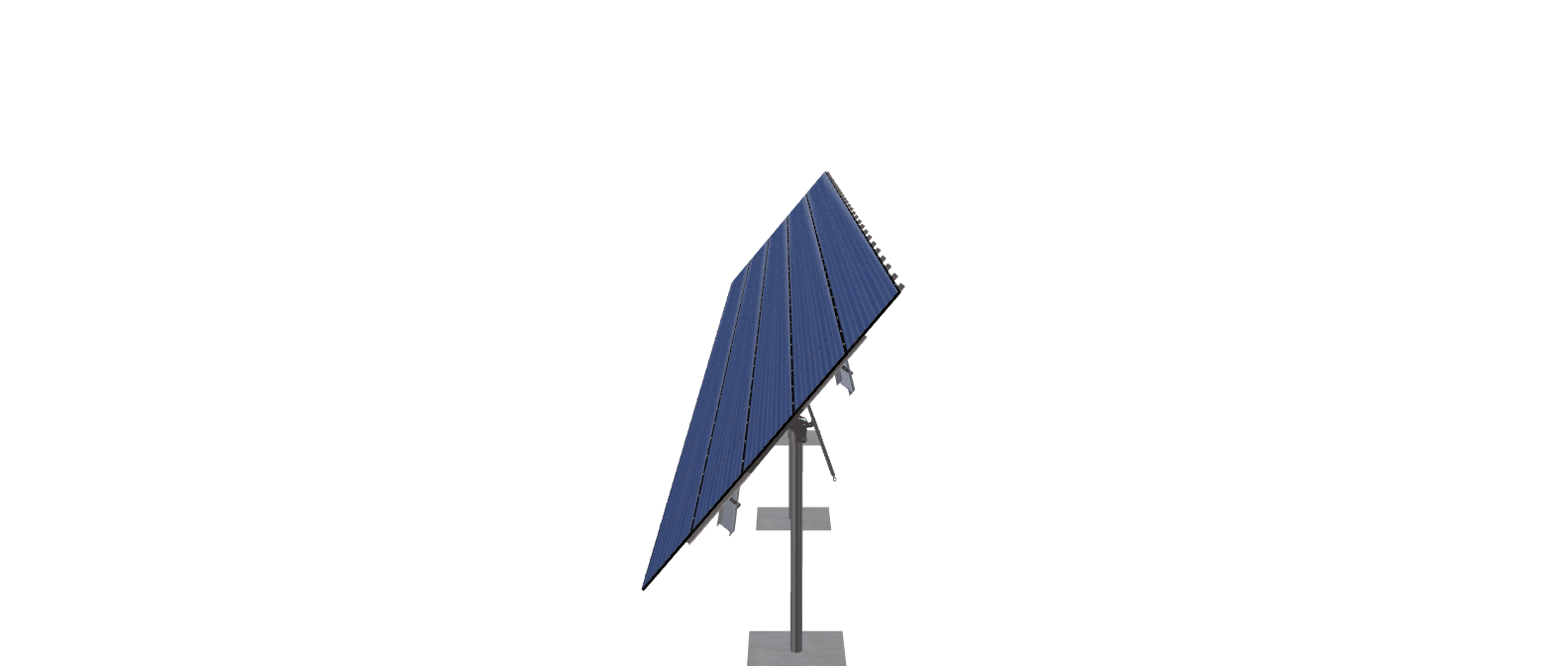

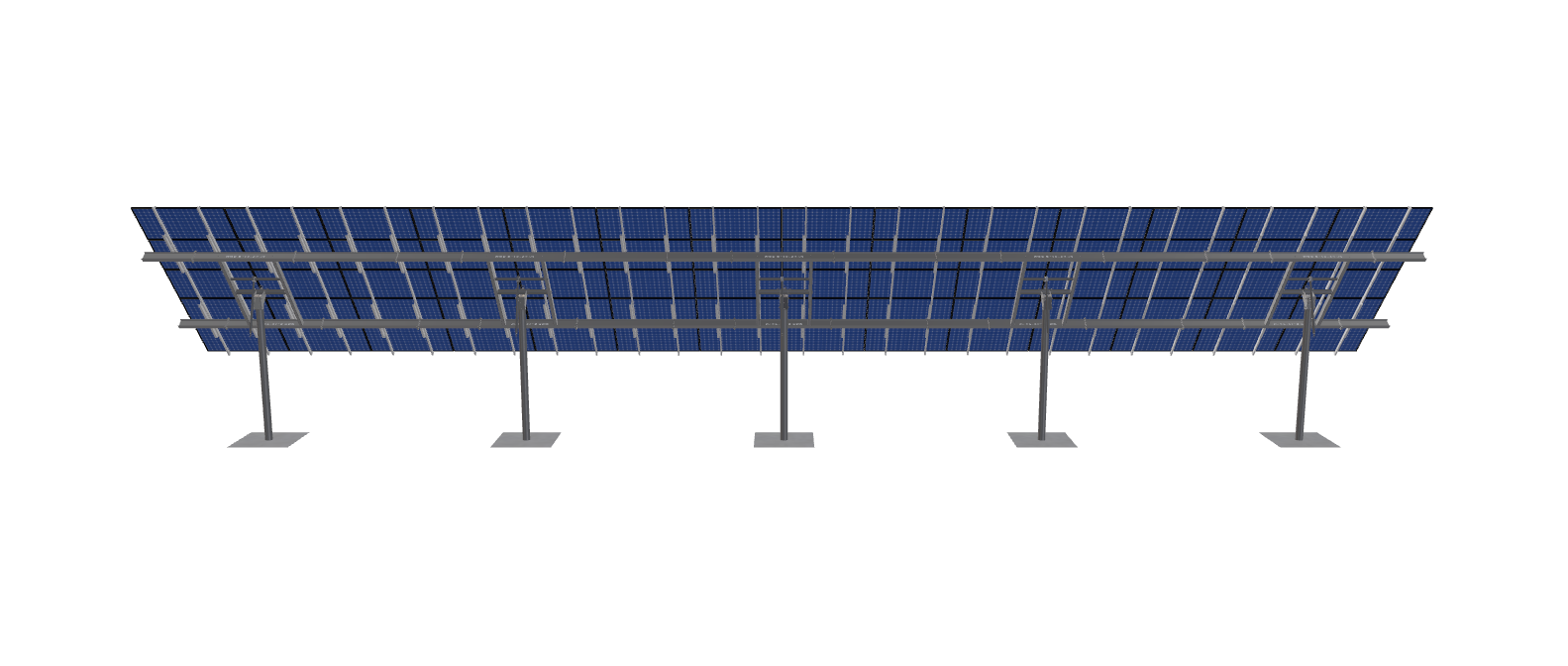

See 3D Model Here
MTSOLAR_CKK0CC24G69H
$24,985.05
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79.13 inches by 39.37 inches and an array layout of 14 wide by 5 high.
This mount fits on 5 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

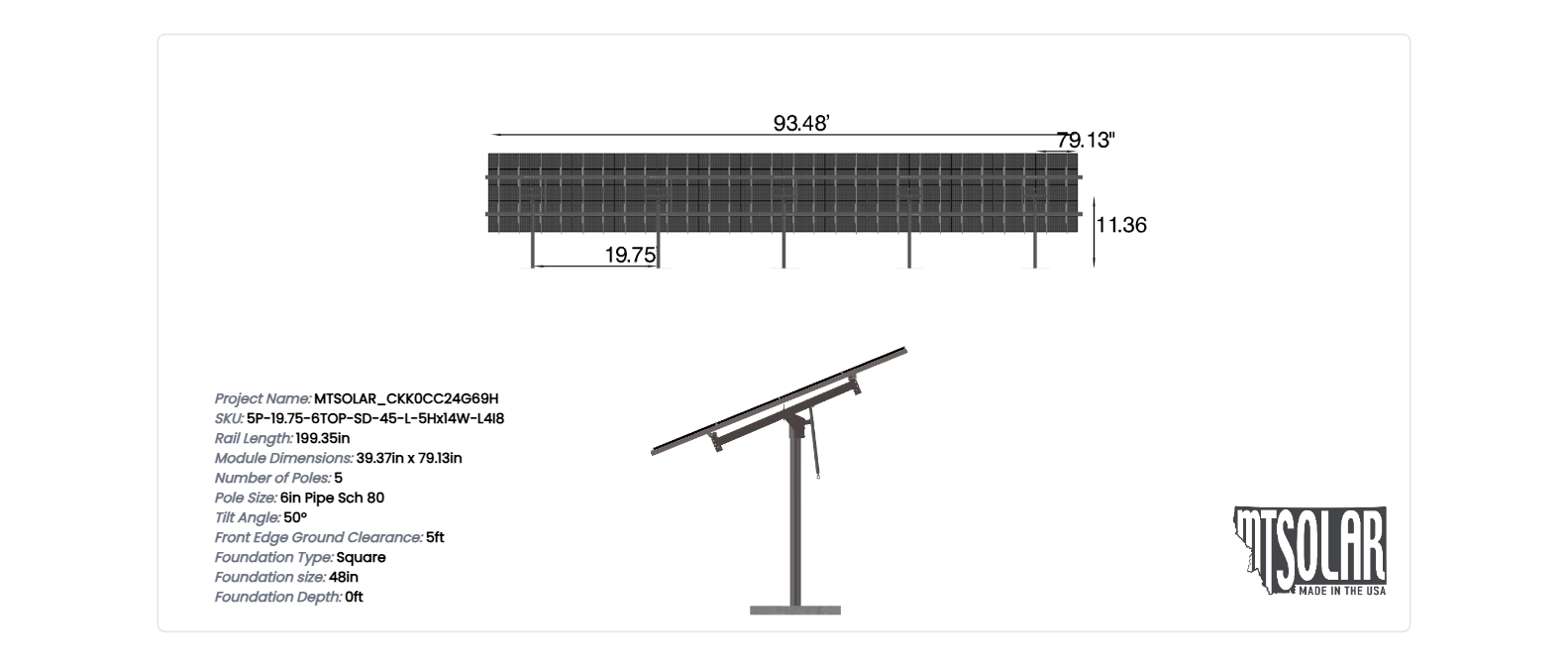

Additional information
| Weight | 4618.16 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-19.75-6TOP-SD-45-L-5HX14W-L4I8 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 11.36 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 0.00 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 1128.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1553.02 |
| ARRAY WIDTH | 93.48 |
| ARRAY HEIGHT | 16.61 |
| RAIL LENGTH | 199.35 |
| MODULE LENGTH | 79.13 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 94.00 |
| GROUND TO TOP | 17.73 |
| PROJECTED PANEL HEIGHT | 12.73 |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 40.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | DAVID, LYNN |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 9709788060.00 |
| PROJECT ID | MTSOLAR, CKK0CC24G69H |
| SITE ADDRESS | RMMM+W8, MIDLAND, CO, 80814, USA |
| MODULE INFO | JOLLYWOOD, JW-HT144P-5BB-395 |
| MODULE WIDTH | 39.37 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 14.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 24985.05 |
| TOTAL WEIGHT | 4618.16 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/0bcac917-c969-49de-ad8e-e61023e2a1f7.pdf |
|
| ID | 13714.00 |
| 3D Solar link |
