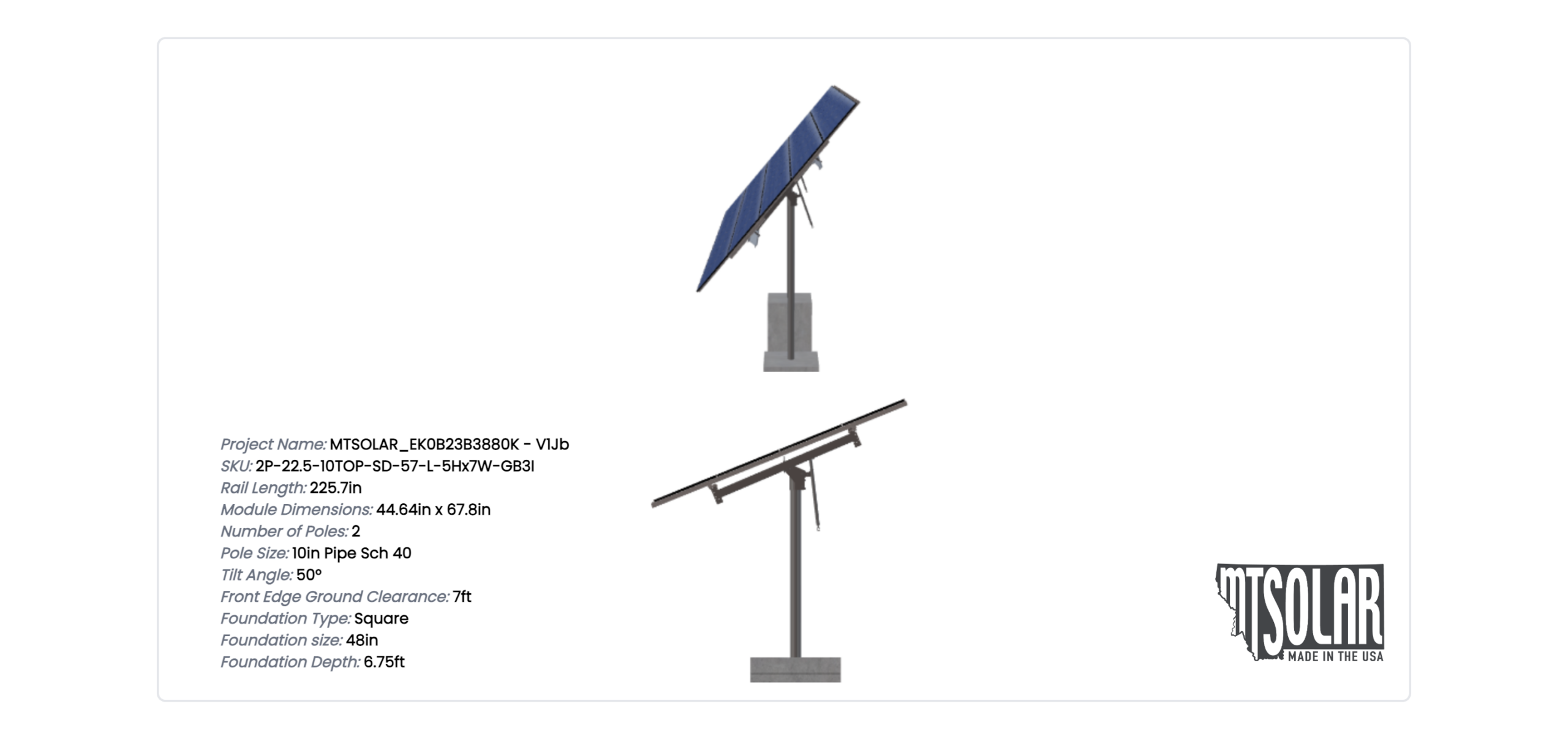

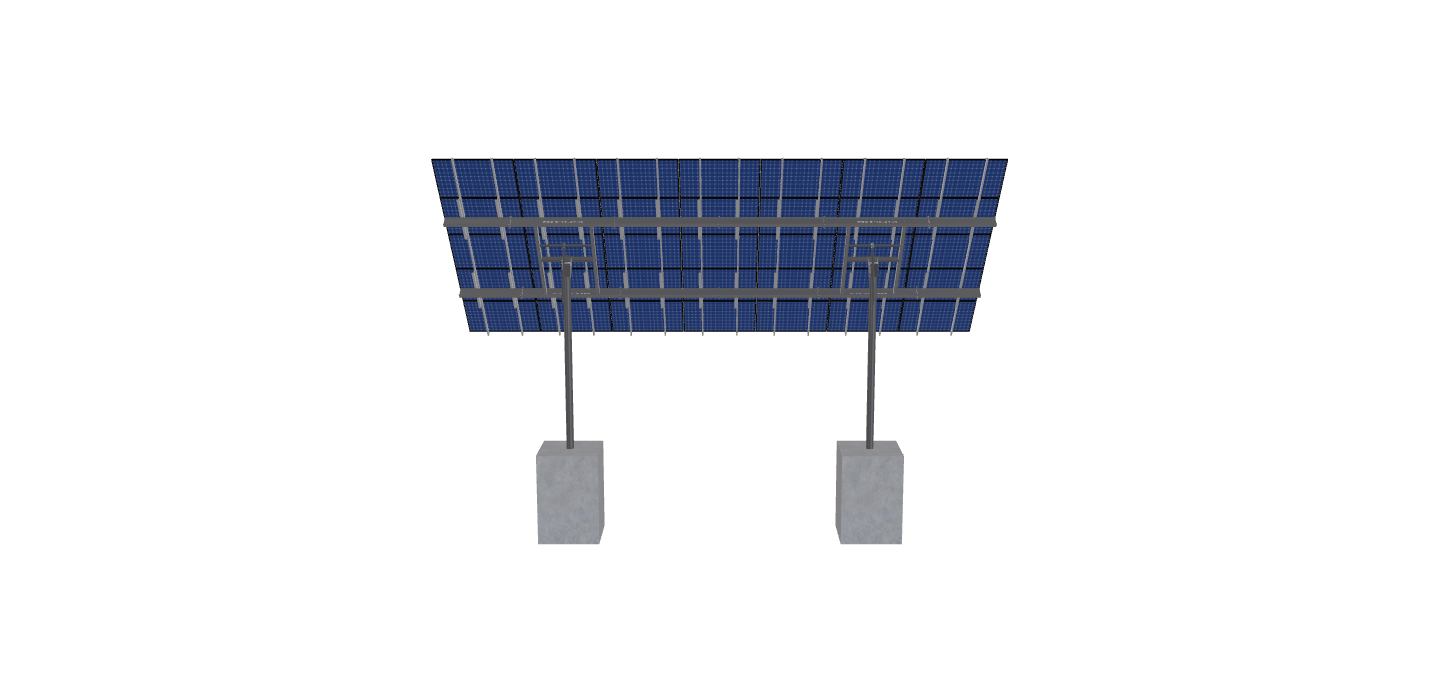

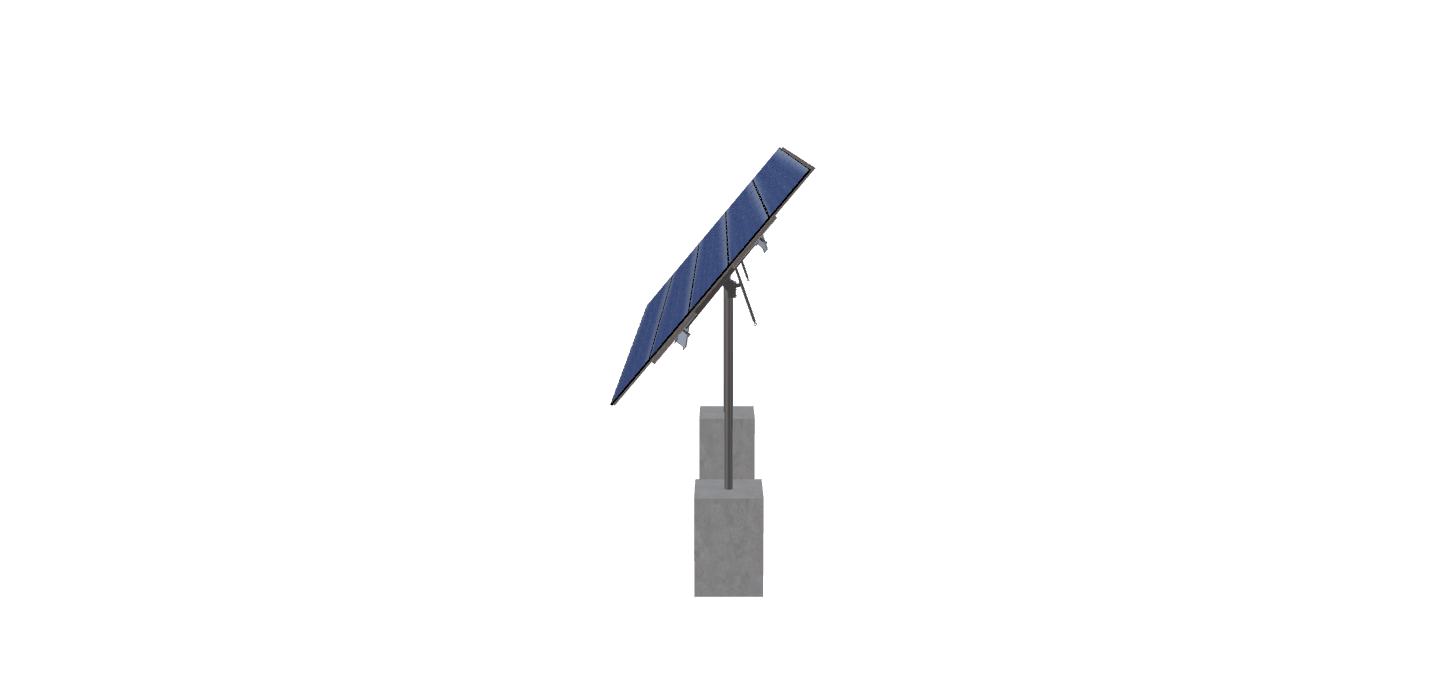

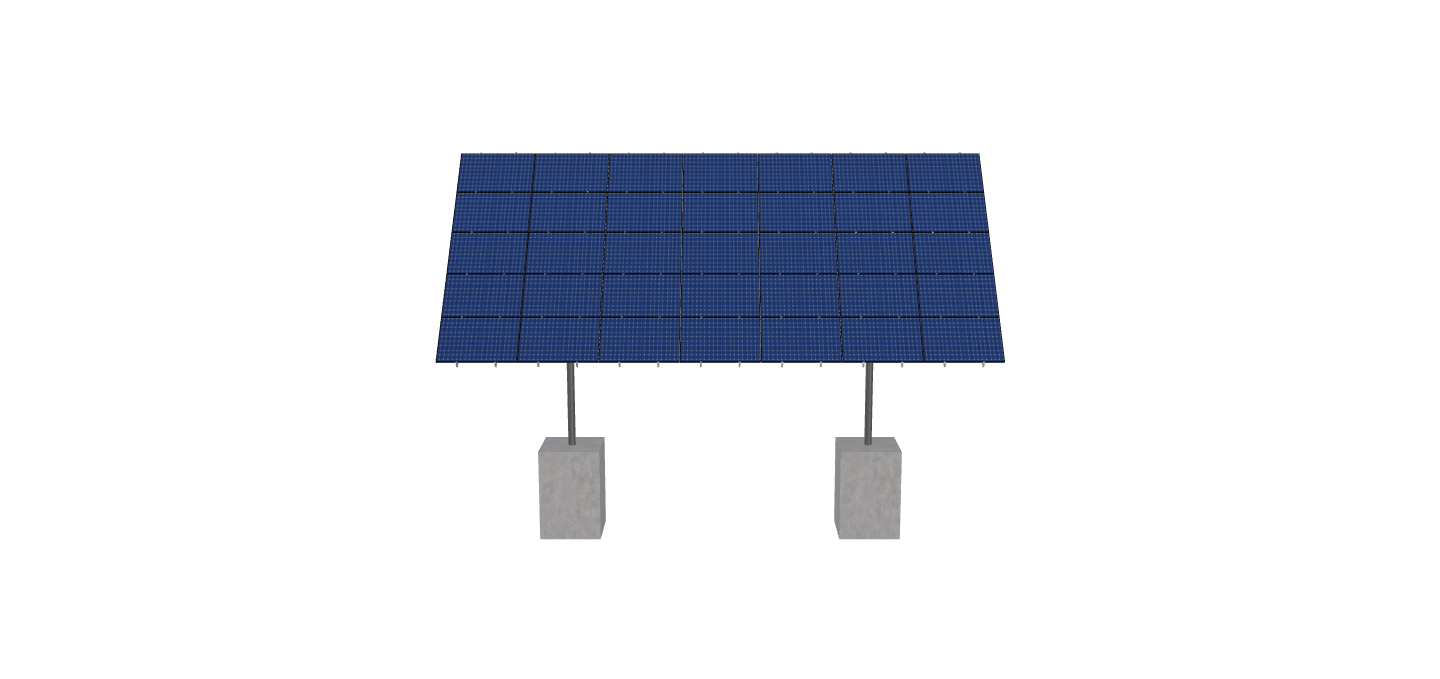

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.64 inches and an array layout of 7 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_EK0B23B3880K – V1Jb
$10,907.86
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.64 inches and an array layout of 7 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2069.08 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-10TOP-SD-57-L-5HX7W-GB3I |
| DUTY SIZE | SD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 14.20 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 6.75 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 474.00 |
| GROUND CLEARANCE | 7.00 |
| NO POLES | 2.00 |
| MODULE AREA | 754.84 |
| ARRAY WIDTH | 40.13 |
| ARRAY HEIGHT | 18.81 |
| RAIL LENGTH | 225.70 |
| MODULE LENGTH | 67.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 39.50 |
| GROUND TO TOP | 21.41 |
| PROJECTED PANEL HEIGHT | 14.41 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | LEW, GRIMM |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 8046946014.00 |
| PROJECT ID | MTSOLAR, EK0B23B3880K, -, V1JB |
| SITE ADDRESS | 3700, MILLINGTON, RD, FREE, UNION, VA, 22940, USA |
| MODULE WIDTH | 44.64 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 7.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SANDY, GRAVEL |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 10388.44 |
| TOTAL WEIGHT | 2069.08 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/b1ef4045-e196-4a81-be2a-aaac884a0ca9.pdf |
|
| ID | 10056.00 |
| 3D Solar link |
