This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44094 inches by 40.86614 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

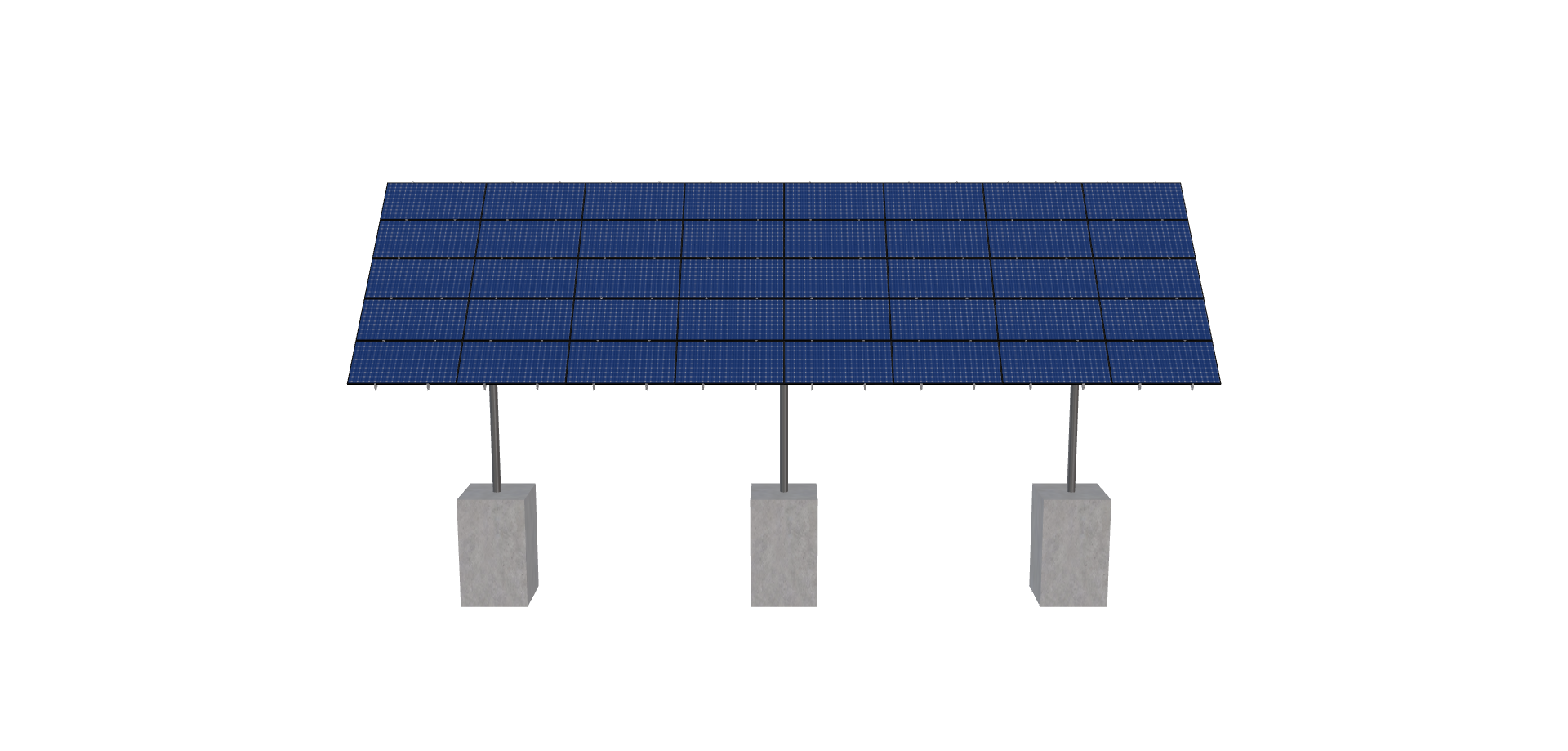

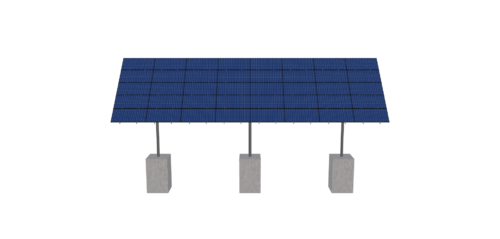

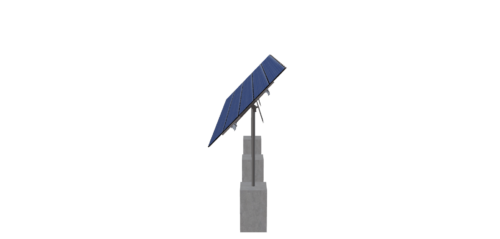

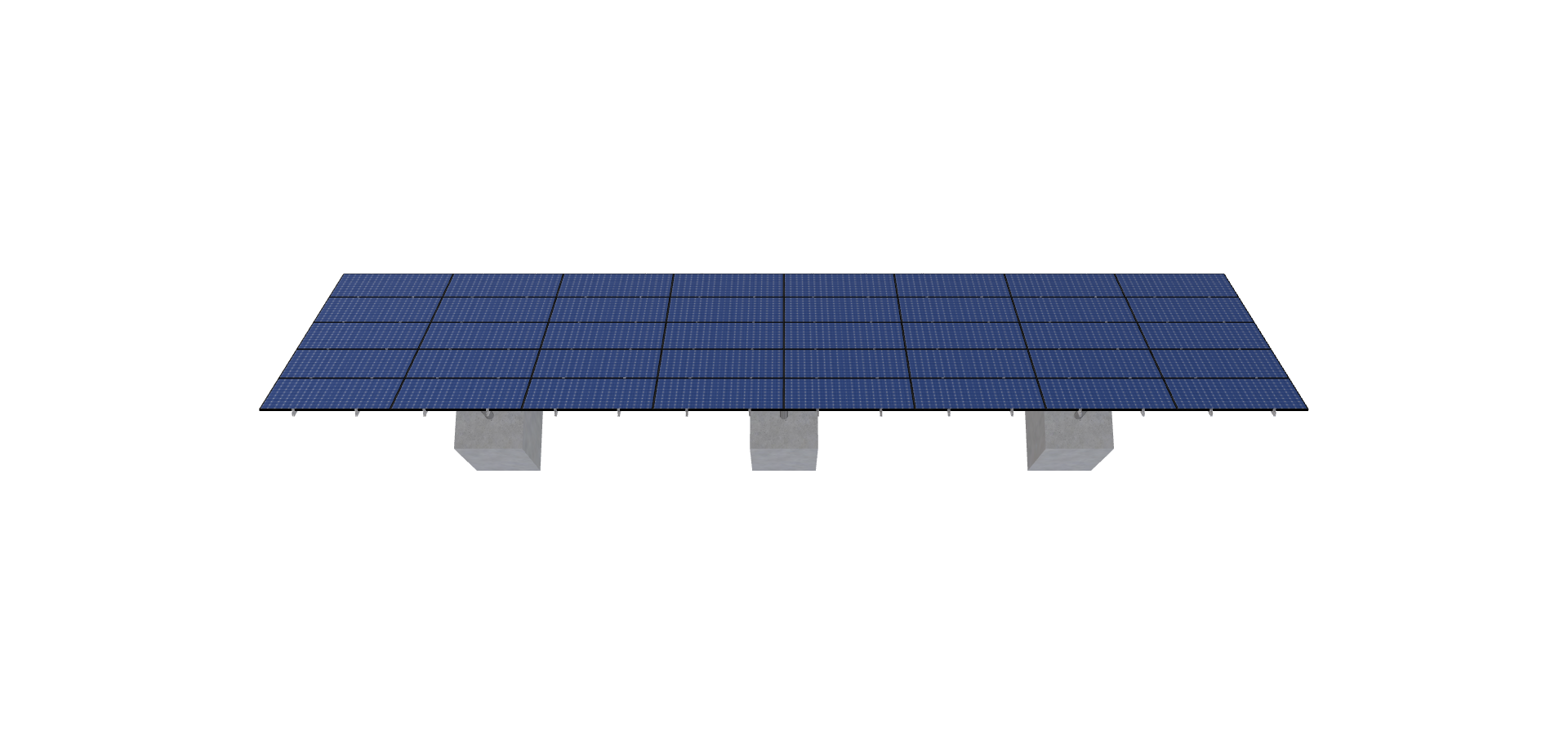

See 3D Model Here
MTSOLAR_FGHBL55I0D4C
$14,532.77
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44094 inches by 40.86614 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2731.52 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-8TOP-SD-45-L-5HX8W-GE8A |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 14.20 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 7.50 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 654.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 3.00 |
| MODULE AREA | 958.79 |
| ARRAY WIDTH | 55.63 |
| ARRAY HEIGHT | 17.24 |
| RAIL LENGTH | 206.83 |
| MODULE LENGTH | 82.44 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 54.50 |
| GROUND TO TOP | 20.32 |
| PROJECTED PANEL HEIGHT | 12.25 |
| PROJECT ID | MTSOLAR, FGHBL55I0D4C |
| SITE ADDRESS | 11944, ROCKFISH, RIVER, RD, FABER, VA, 22938, USA |
| MODULE WIDTH | 40.87 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 30.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 13840.73 |
| TOTAL WEIGHT | 2731.52 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/28dcf1df-79d1-46dc-96a6-1f1ecb97d5b3.pdf |
|
| ID | 7619.00 |
| 3D Solar link |
