This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 96 inches by 43.15 inches and an array layout of 9 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_G69IFFKL0HIH
$22,953.57
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 96 inches by 43.15 inches and an array layout of 9 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4397.96 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |

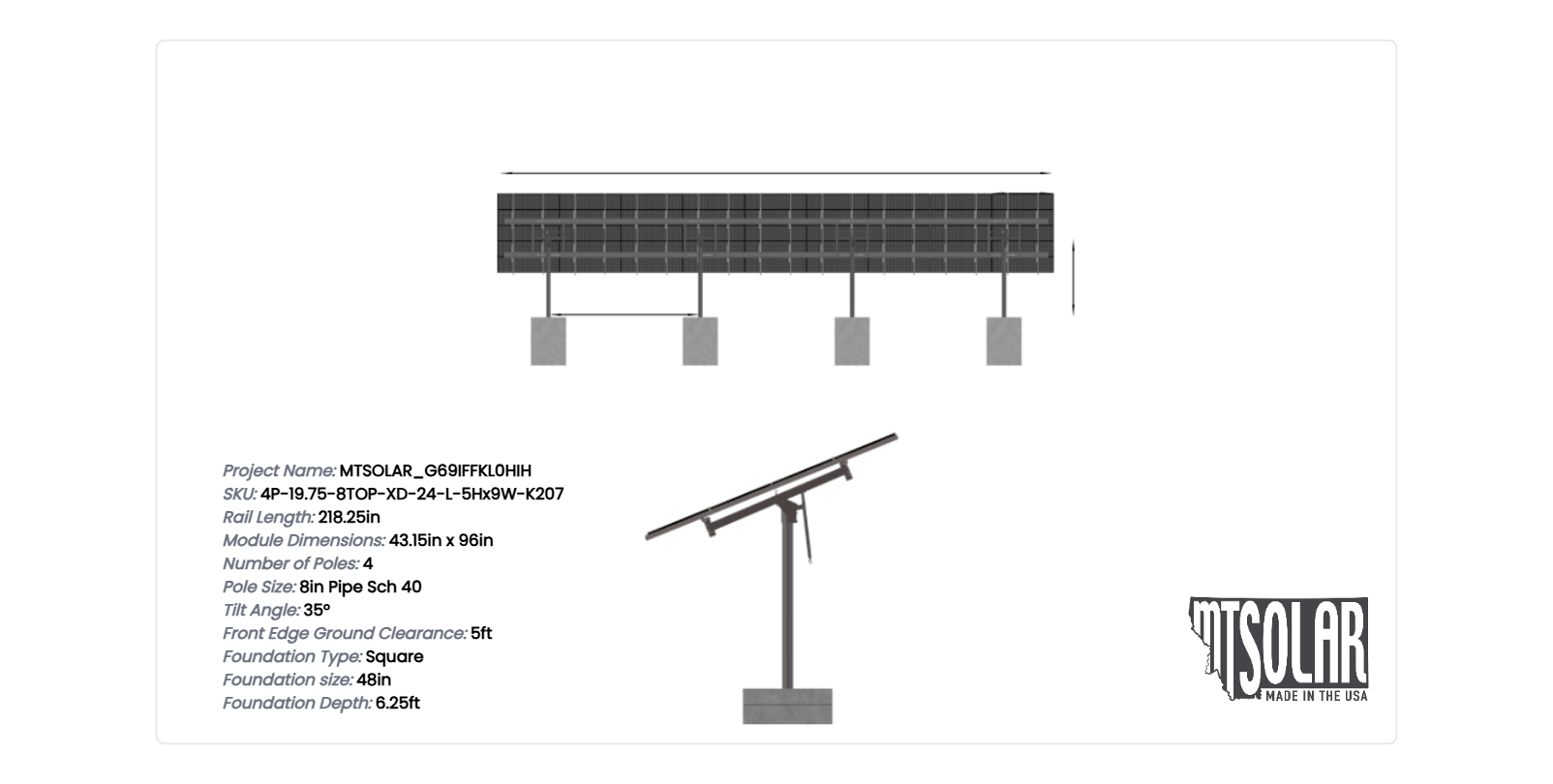

| SKU CODE | 4P-19.75-8TOP-XD-24-L-5HX9W-K207 |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 10.22 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 6.25 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 849.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1323.14 |
| ARRAY WIDTH | 72.75 |
| ARRAY HEIGHT | 18.19 |
| RAIL LENGTH | 218.25 |
| MODULE LENGTH | 96.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 70.75 |
| GROUND TO TOP | 15.43 |
| PROJECTED PANEL HEIGHT | 10.43 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | CRALL, POWER, PLANT |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 2086819422.00 |
| PROJECT ID | MTSOLAR, G69IFFKL0HIH |
| SITE ADDRESS | 2008, OLYMPIA, ST, IDAHO, FALLS, ID, 83402, USA |
| MODULE WIDTH | 43.15 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 9.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 21860.54 |
| TOTAL WEIGHT | 4397.96 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/4013a189-f9d1-41f2-9b93-fc4a3c901619.pdf |
|
| ID | 9340.00 |
| 3D Solar link |
