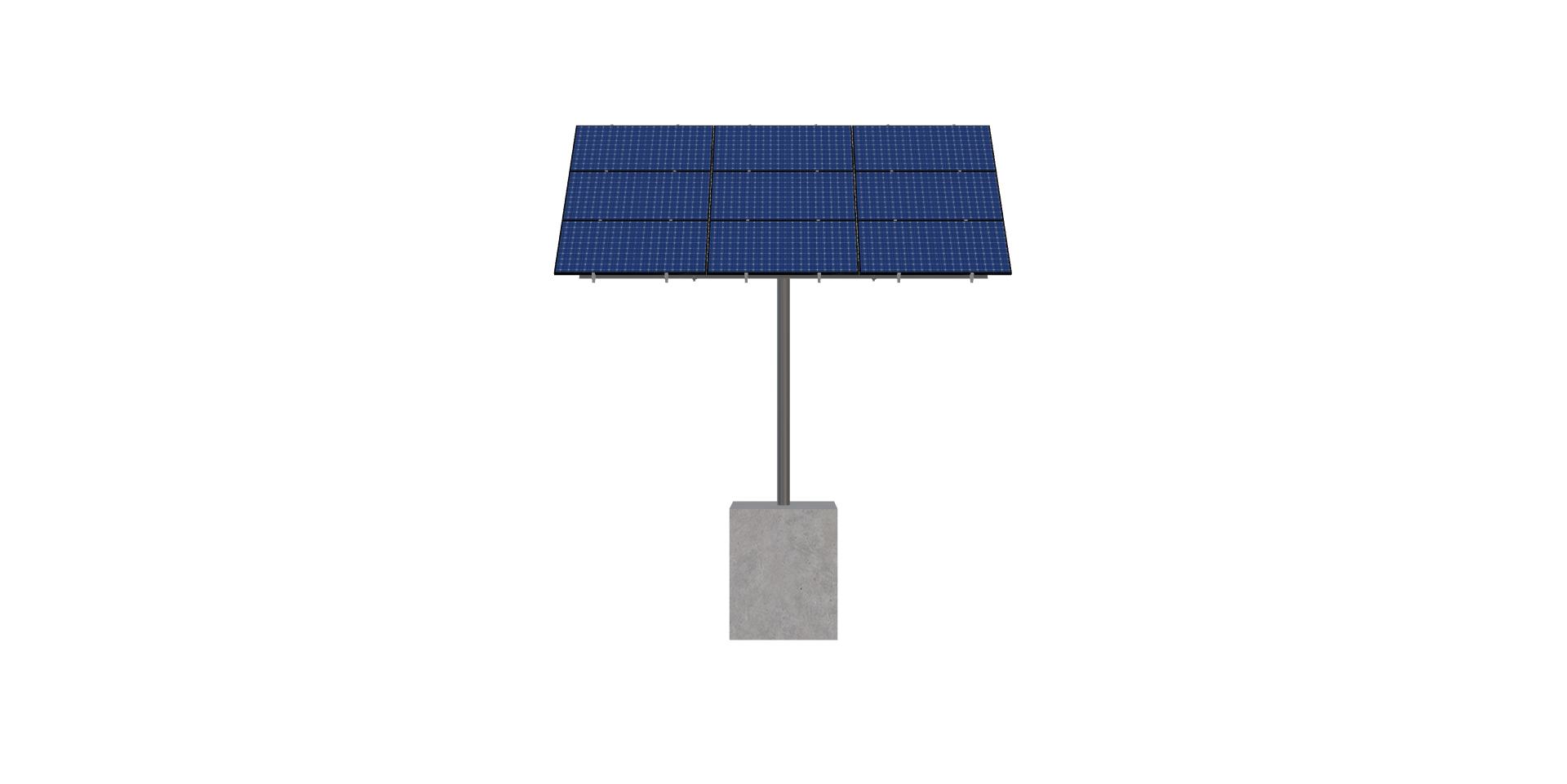

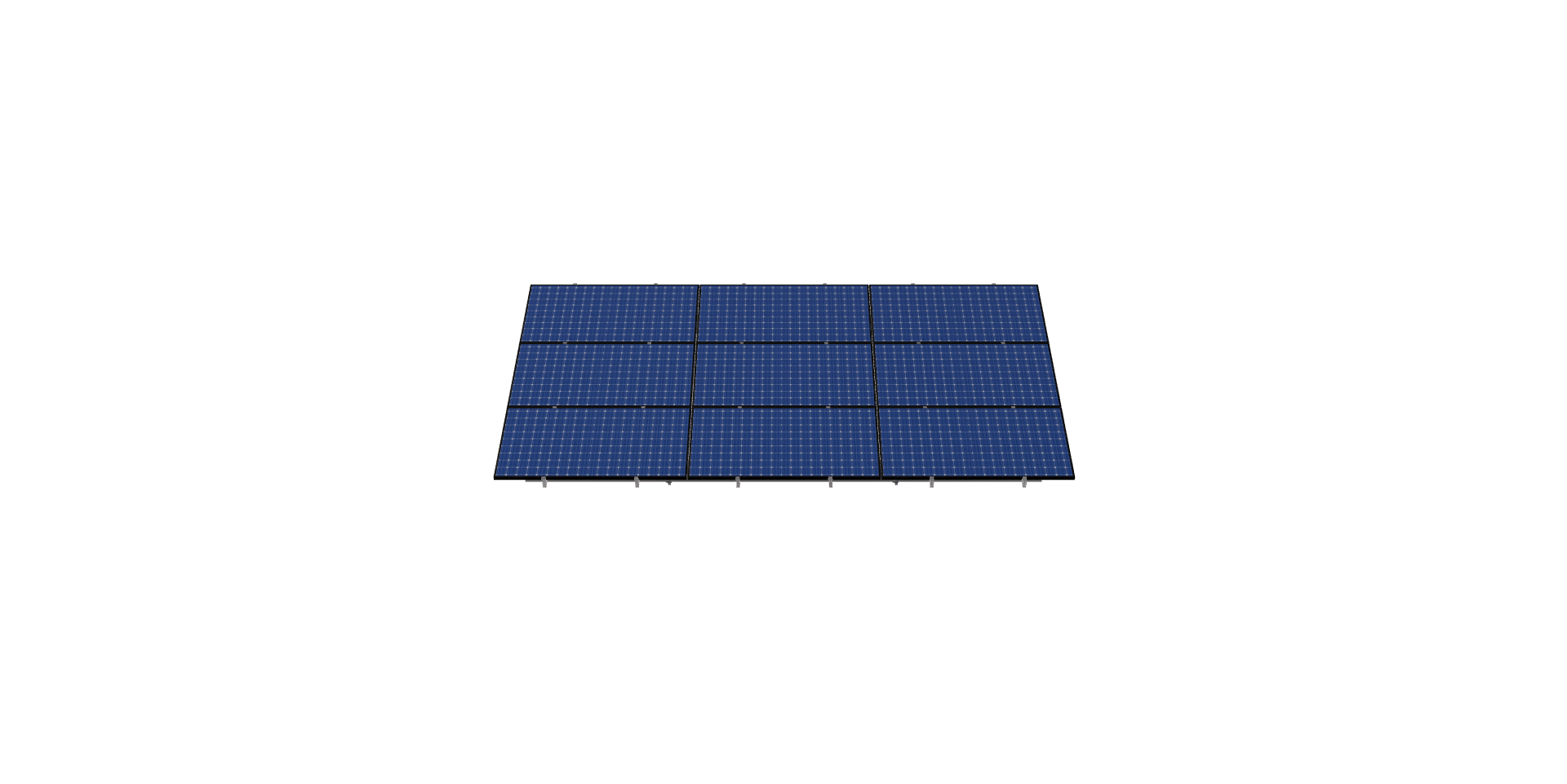

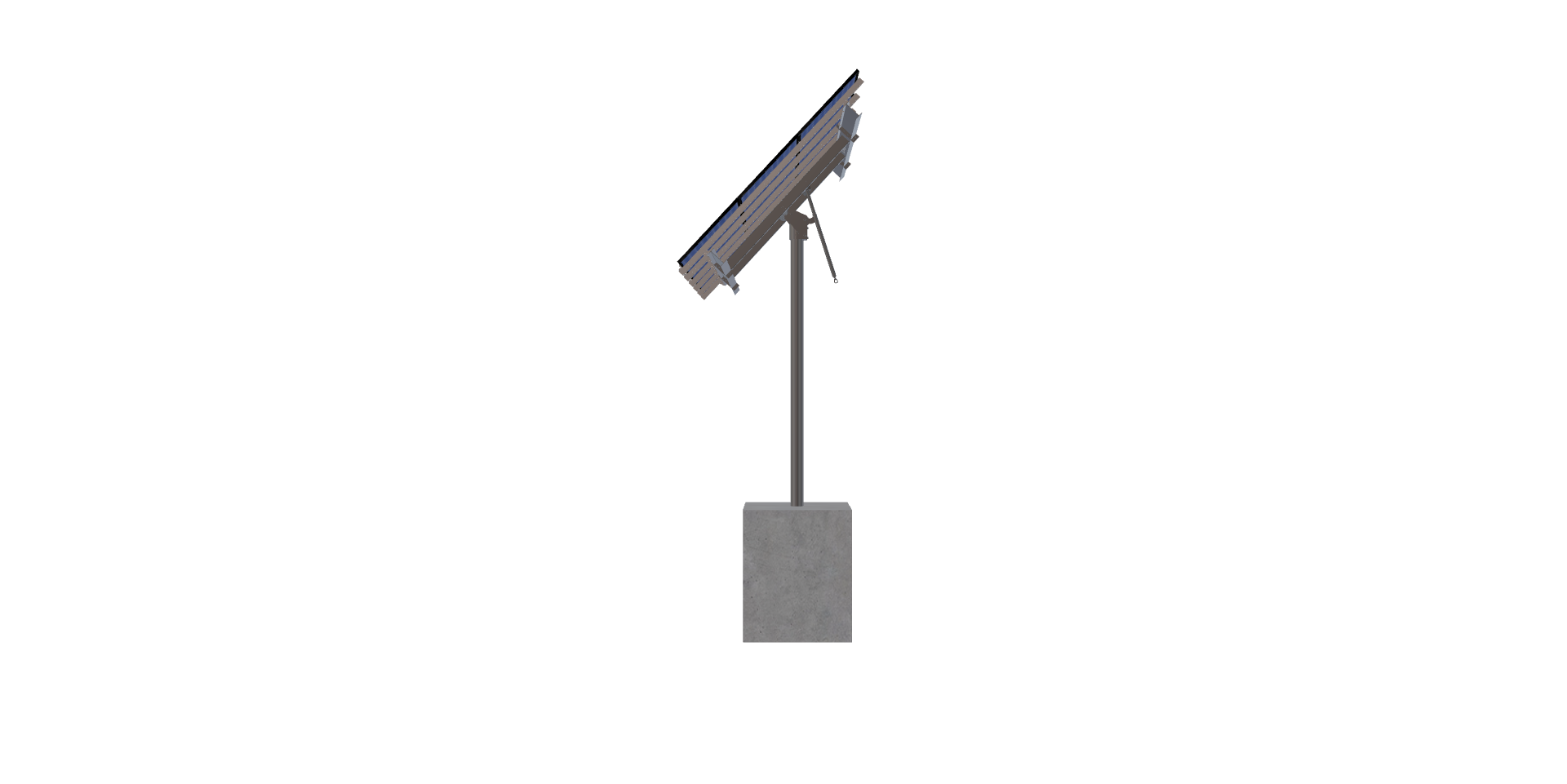

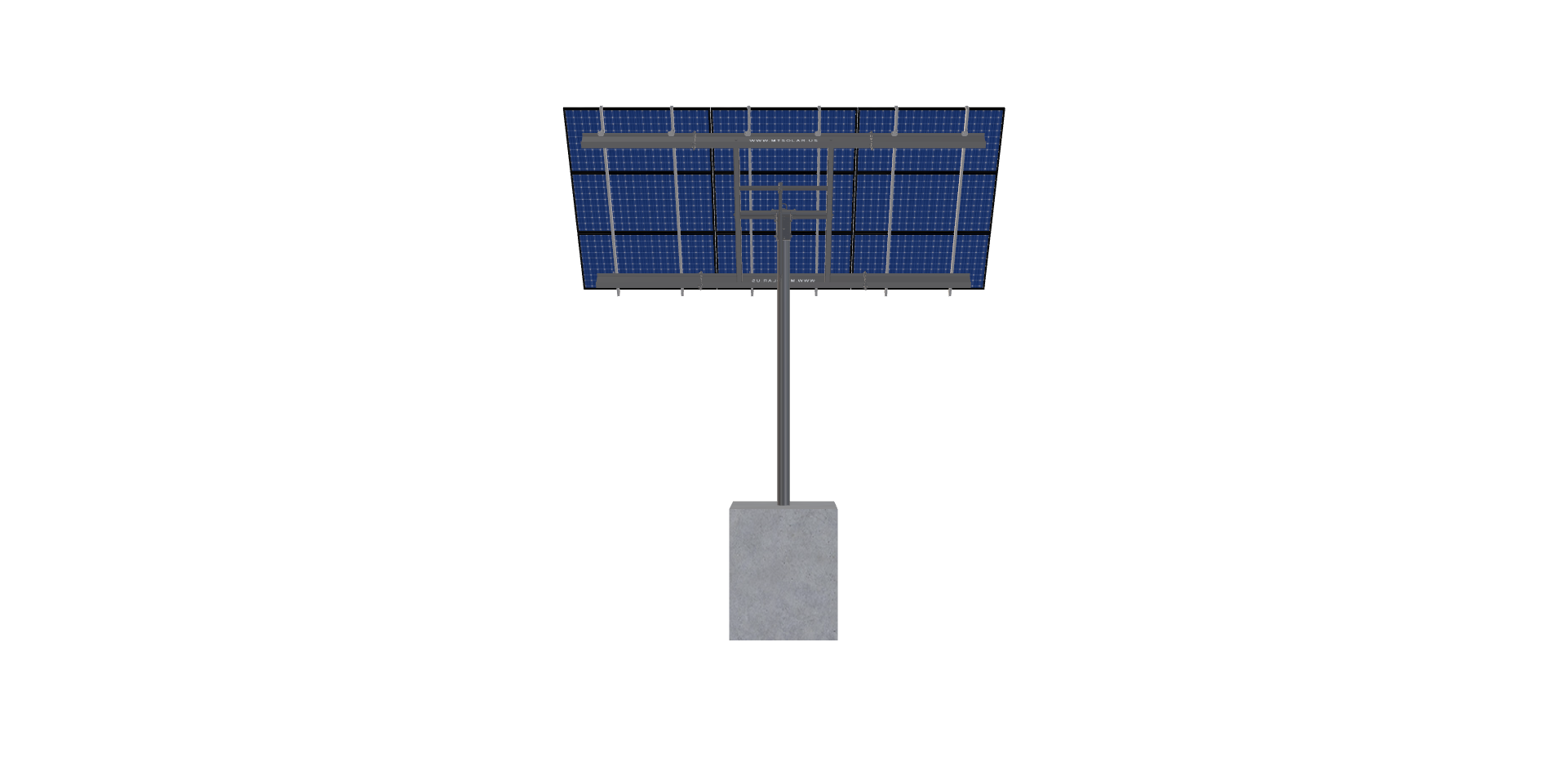

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 40 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_GAALI5H2JK1B
$4,138.02
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 40 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 769.09 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-HD-57-L-3HX3W-554L |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 12.70 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 5.50 |
| TILT ANGLE | 47.00 |
| CANTILEVER | 204.00 |
| GROUND CLEARANCE | 9.00 |
| NO POLES | 1.00 |
| MODULE AREA | 189.84 |
| ARRAY WIDTH | 18.75 |
| ARRAY HEIGHT | 10.13 |
| RAIL LENGTH | 121.50 |
| MODULE LENGTH | 74.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 17.00 |
| GROUND TO TOP | 16.36 |
| PROJECTED PANEL HEIGHT | 7.31 |
| WIND SPEED OVERRIDE | 97.00 |
| SNOW LOAD OVERRIDE | 148.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | MTSOLAR, GAALI5H2JK1B |
| SITE ADDRESS | 11292, E, MAGPIE, POINT, DR, N, HUNTSVILLE, UT, 84317, USA |
| MODULE WIDTH | 40.00 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 4138.02 |
| TOTAL WEIGHT | 769.09 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/42448a15-b6b4-4e35-93bd-58db48460e4c.pdf |
|
| ID | 1765.00 |
| CAD URL | |
| 3D Solar link |
