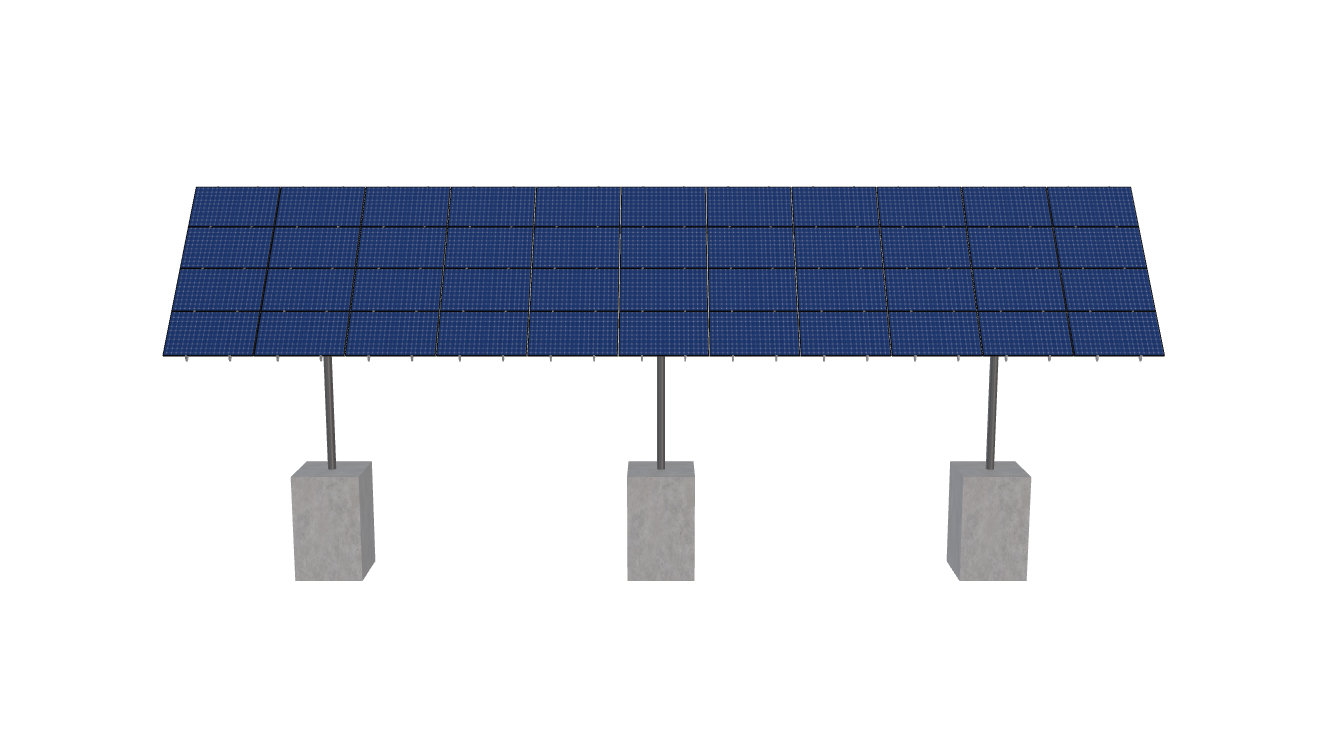

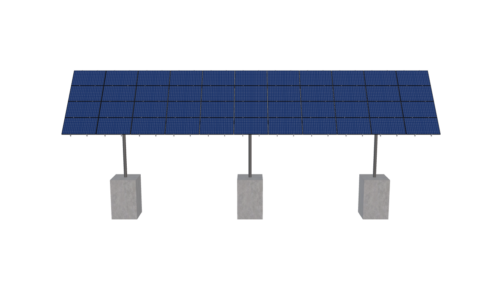

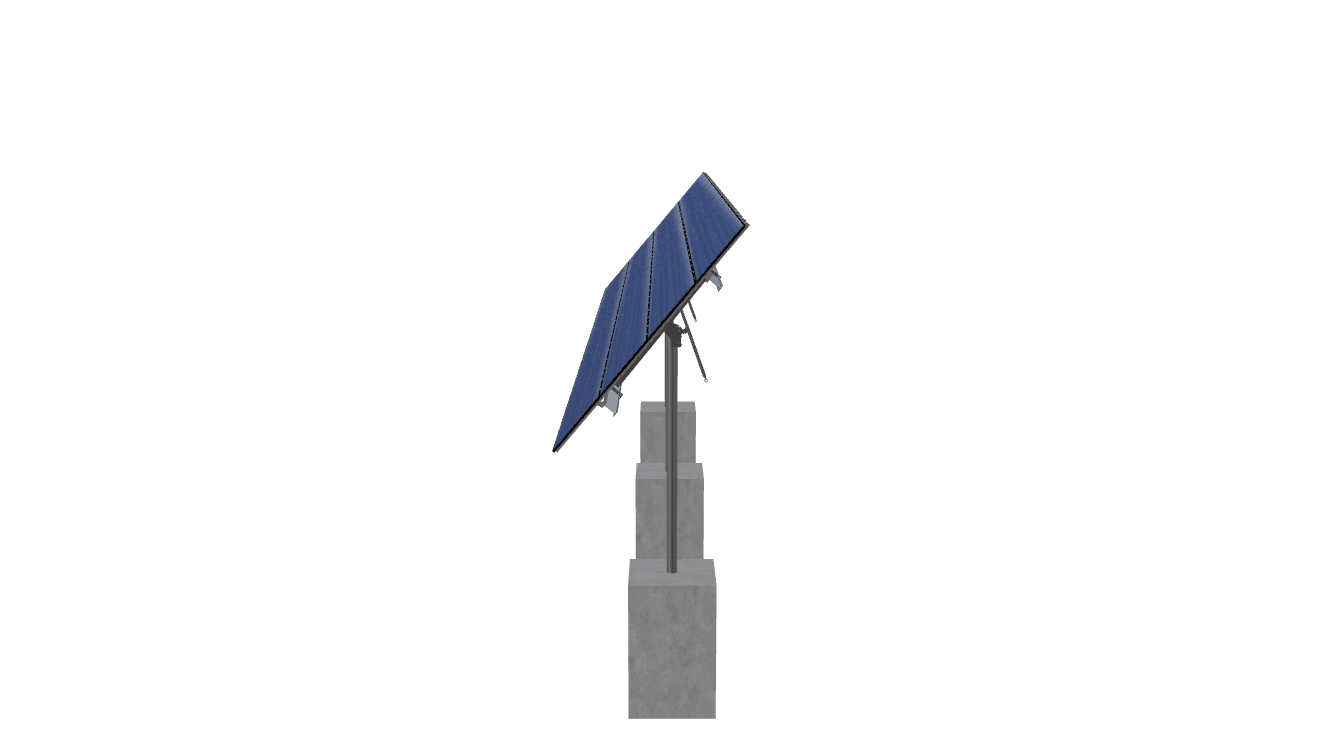

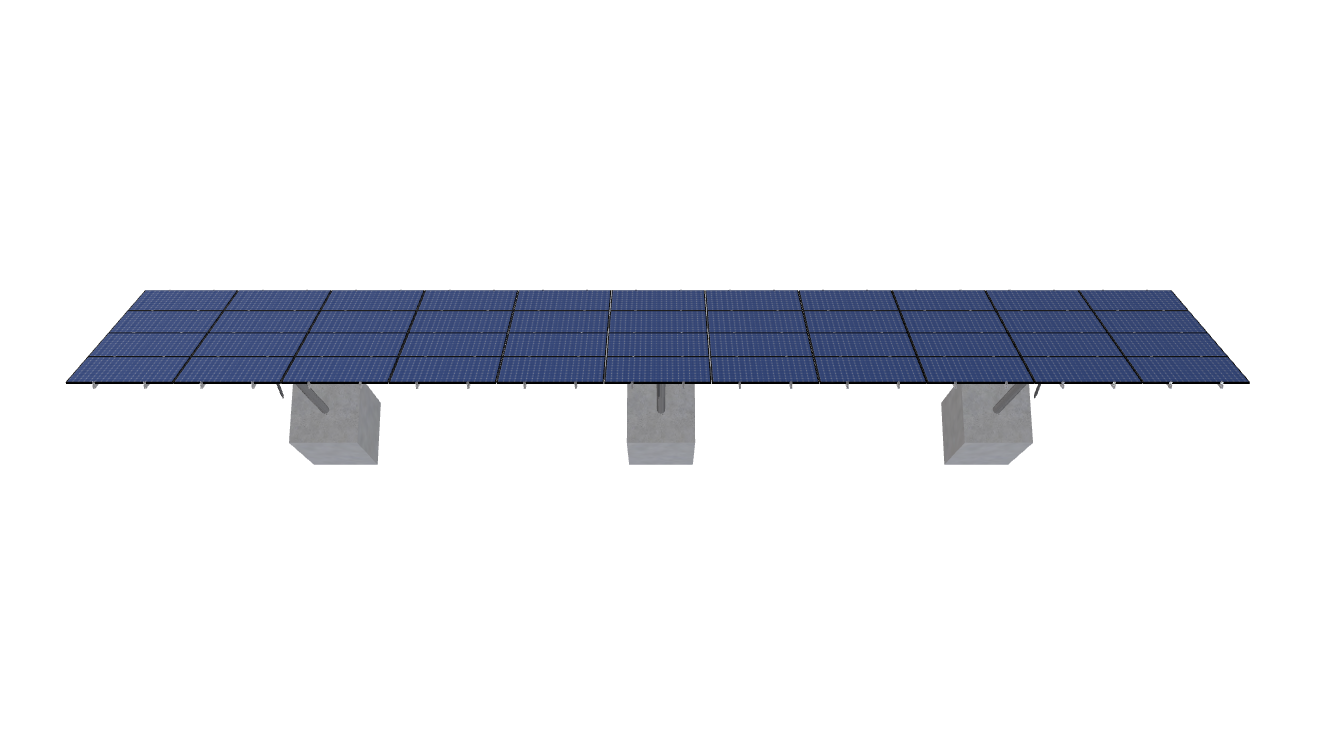

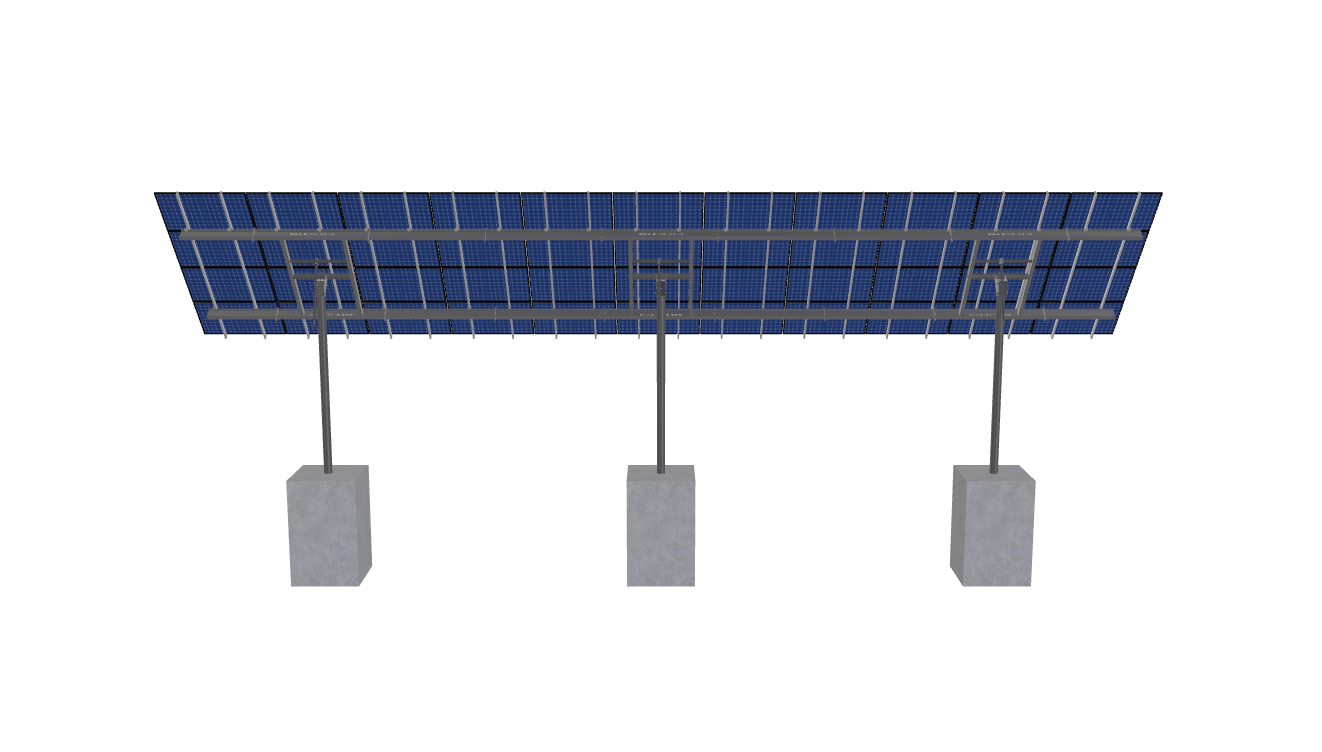

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.13 inches by 40.9 inches and an array layout of 11 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_GIFJE9DI22KI
$14,527.33
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.13 inches by 40.9 inches and an array layout of 11 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information

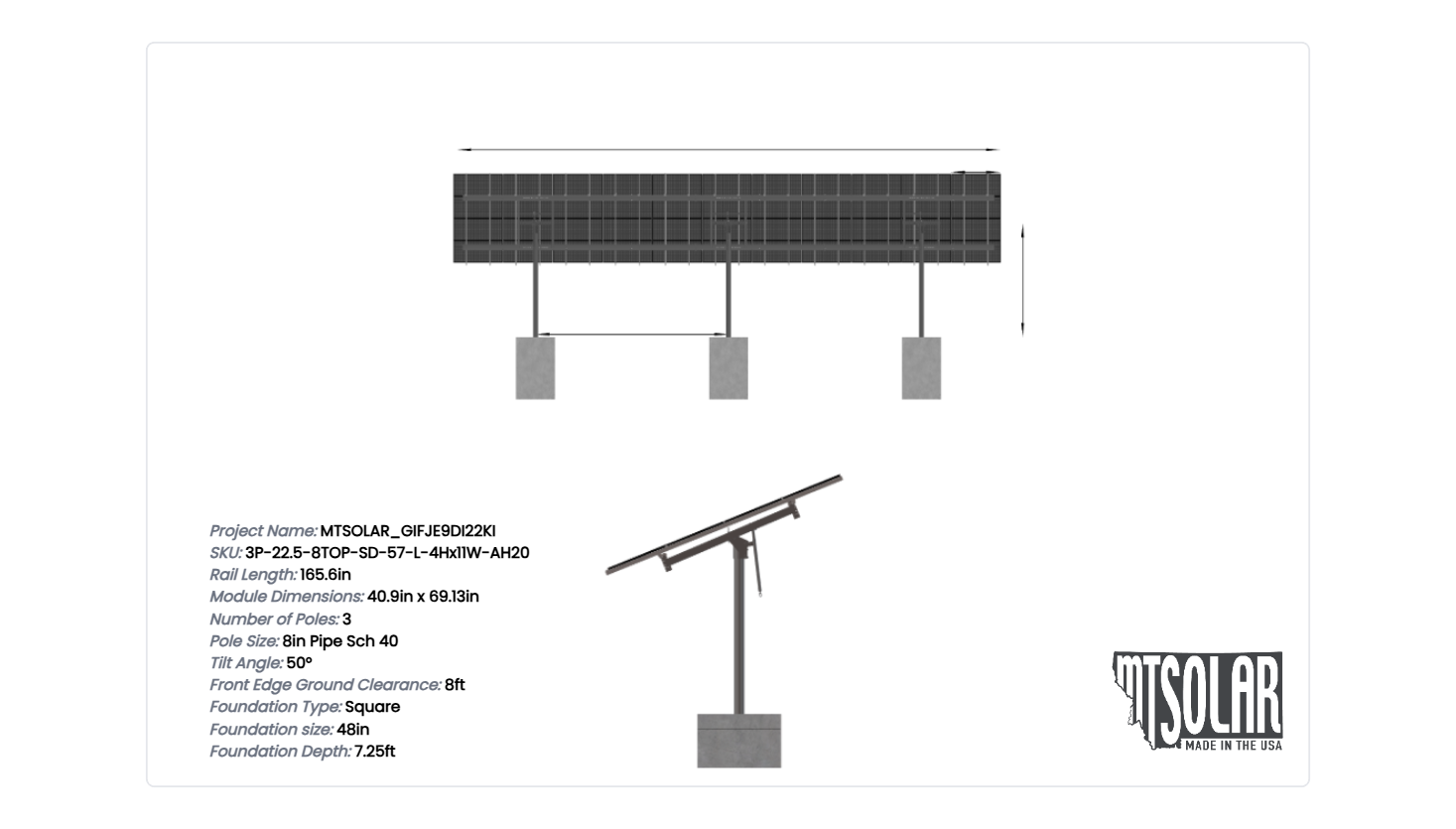

| Weight | 2464.42 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-8TOP-SD-57-L-4HX11W-AH20 |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 13.29 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 7.25 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 744.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 3.00 |
| MODULE AREA | 887.14 |
| ARRAY WIDTH | 64.29 |
| ARRAY HEIGHT | 13.80 |
| RAIL LENGTH | 165.60 |
| MODULE LENGTH | 69.13 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 62.00 |
| GROUND TO TOP | 18.57 |
| PROJECTED PANEL HEIGHT | 10.57 |
| DESIGNER NAME | DENNIS |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 6819991387.00 |
| PROJECT ID | MTSOLAR, GIFJE9DI22KI |
| SITE ADDRESS | 2214, FAIRVIEW, RD, INDEPENDENCE, WV, 26374, USA |
| MODULE WIDTH | 40.90 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 11.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 100.00 |
| SNOW LOAD OVERRIDE | 30.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 13835.55 |
| TOTAL WEIGHT | 2464.42 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/3a280044-31e4-4571-bbb6-f8e633c7c1c0.pdf |
|
| ID | 8107.00 |
| 3D Solar link |
