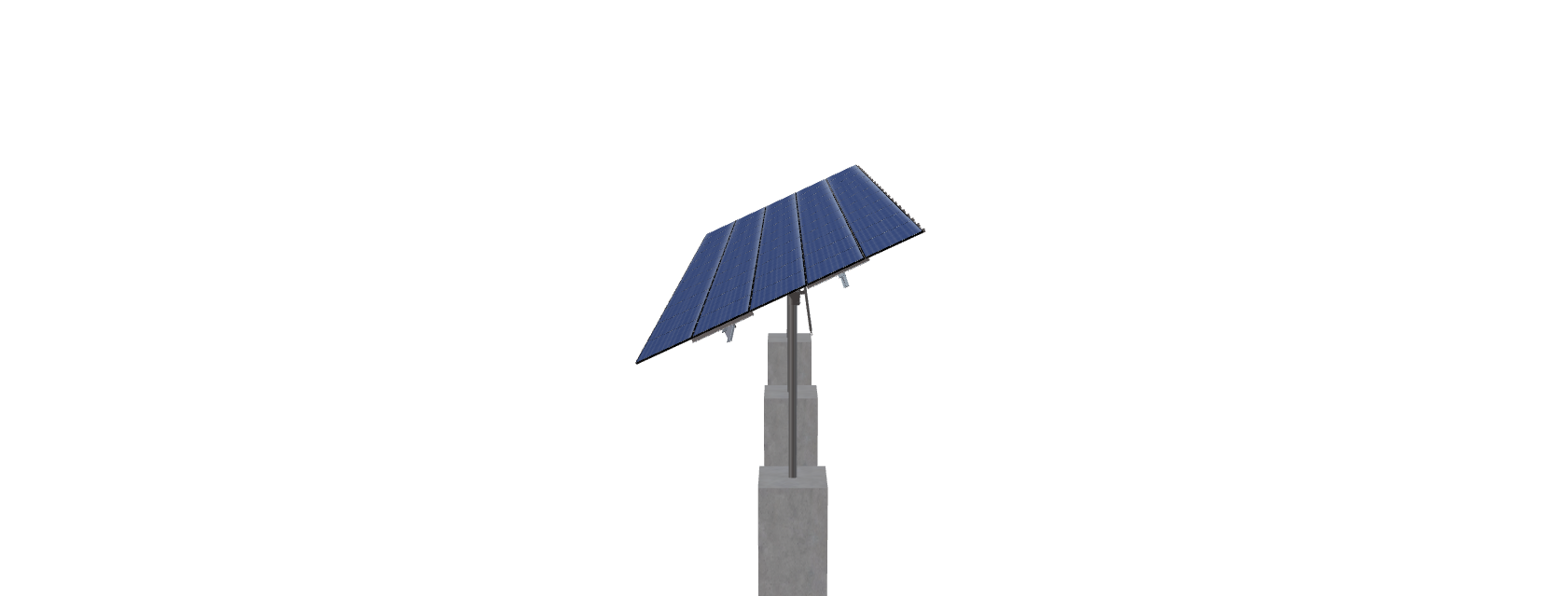

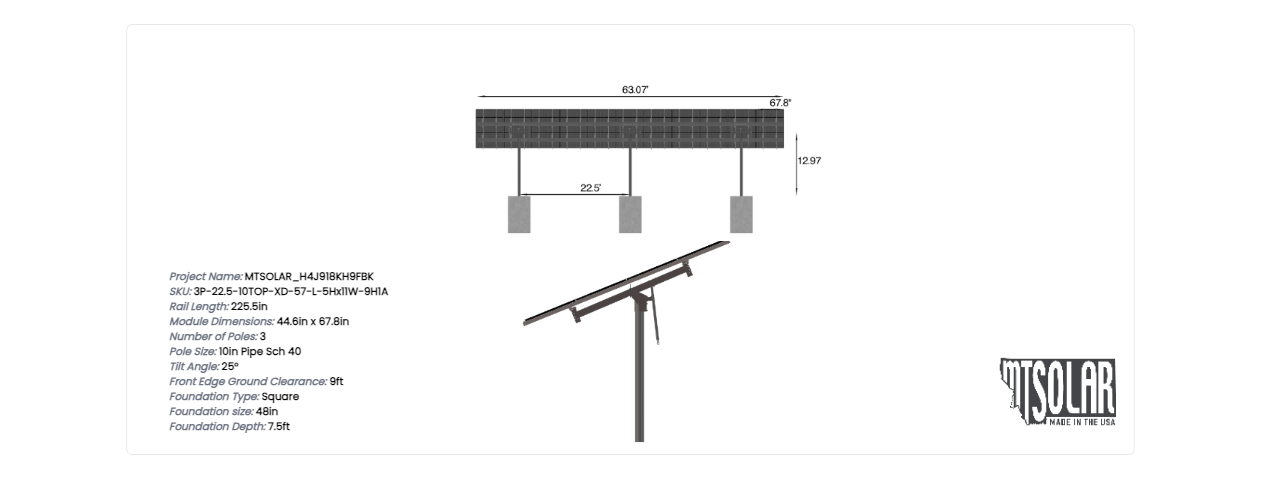

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 11 wide by 5 high.

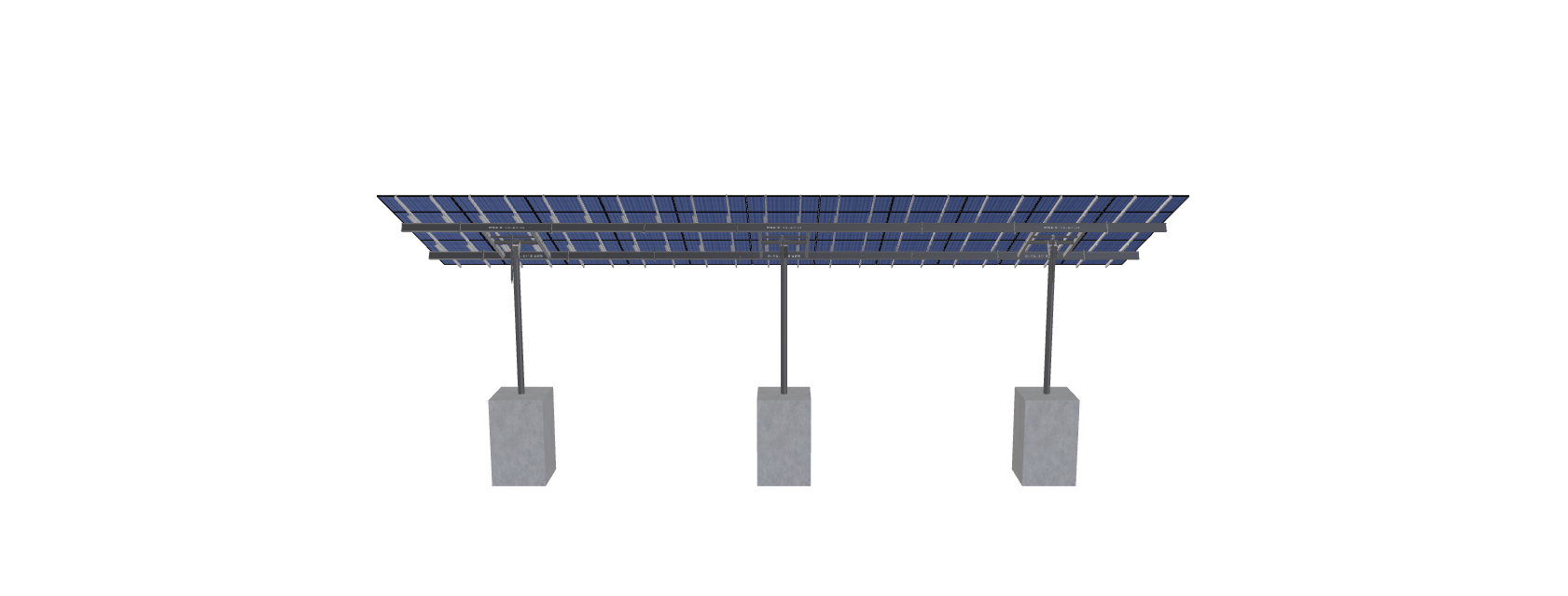

This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_H4J918KH9FBK
$20,499.77
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 11 wide by 5 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3980.6899999999996 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-10TOP-XD-57-L-5HX11W-9H1A |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 12.97 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 7.50 |
| TILT ANGLE | 25.00 |
| CANTILEVER | 744.00 |
| GROUND CLEARANCE | 9.00 |
| NO POLES | 3.00 |
| MODULE AREA | 1185.13 |
| ARRAY WIDTH | 63.07 |
| ARRAY HEIGHT | 18.79 |
| RAIL LENGTH | 225.50 |
| MODULE LENGTH | 67.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 62.00 |
| GROUND TO TOP | 16.94 |
| PROJECTED PANEL HEIGHT | 7.94 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | MTSOLAR, H4J918KH9FBK |
| SITE ADDRESS | COLUMBUS, OH, 43219, USA |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 11.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 19523.59 |
| TOTAL WEIGHT | 3980.69 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/1b0bb65f-c7fc-420f-951d-702e705d0e5d.pdf |
|
| ID | 8943.00 |
| 3D Solar link |
