This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 71.2 inches by 41 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

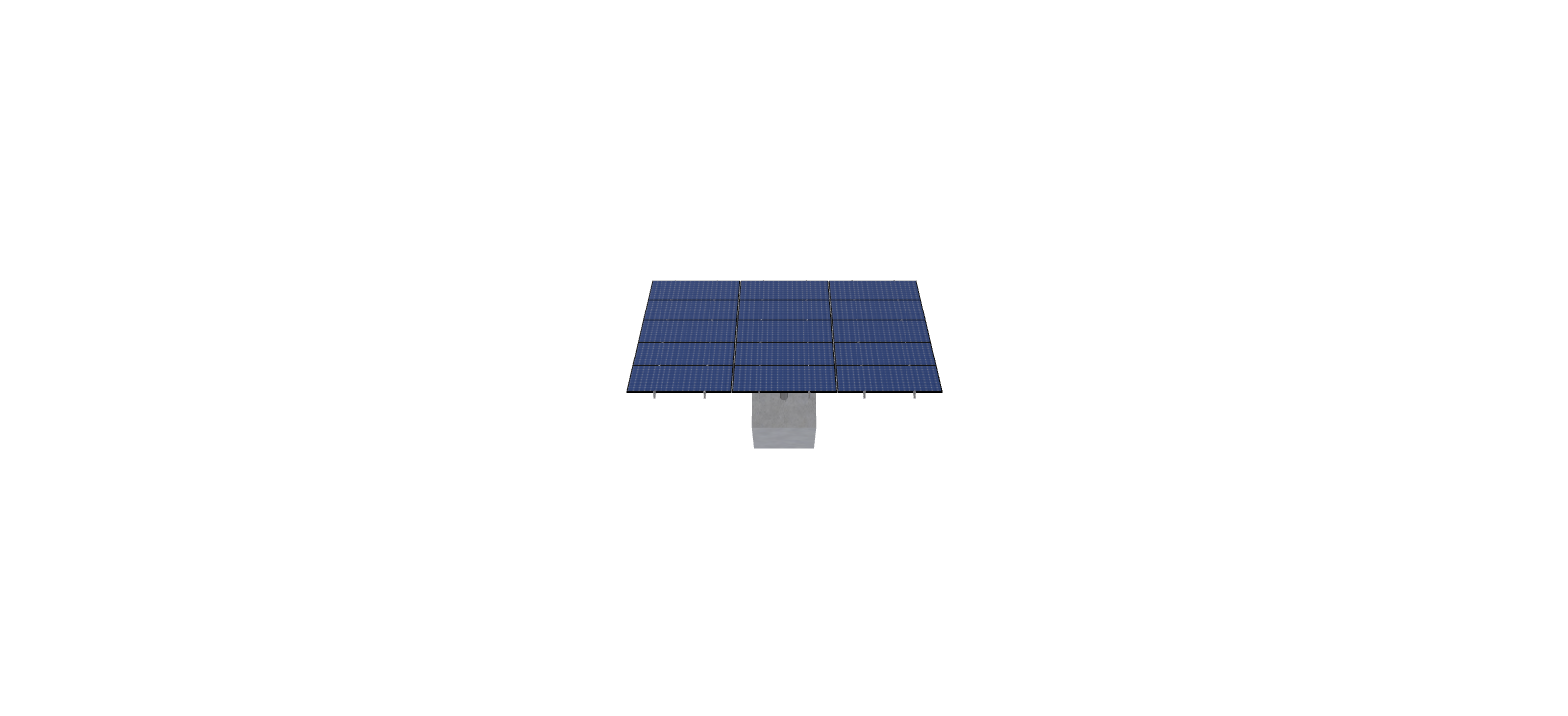

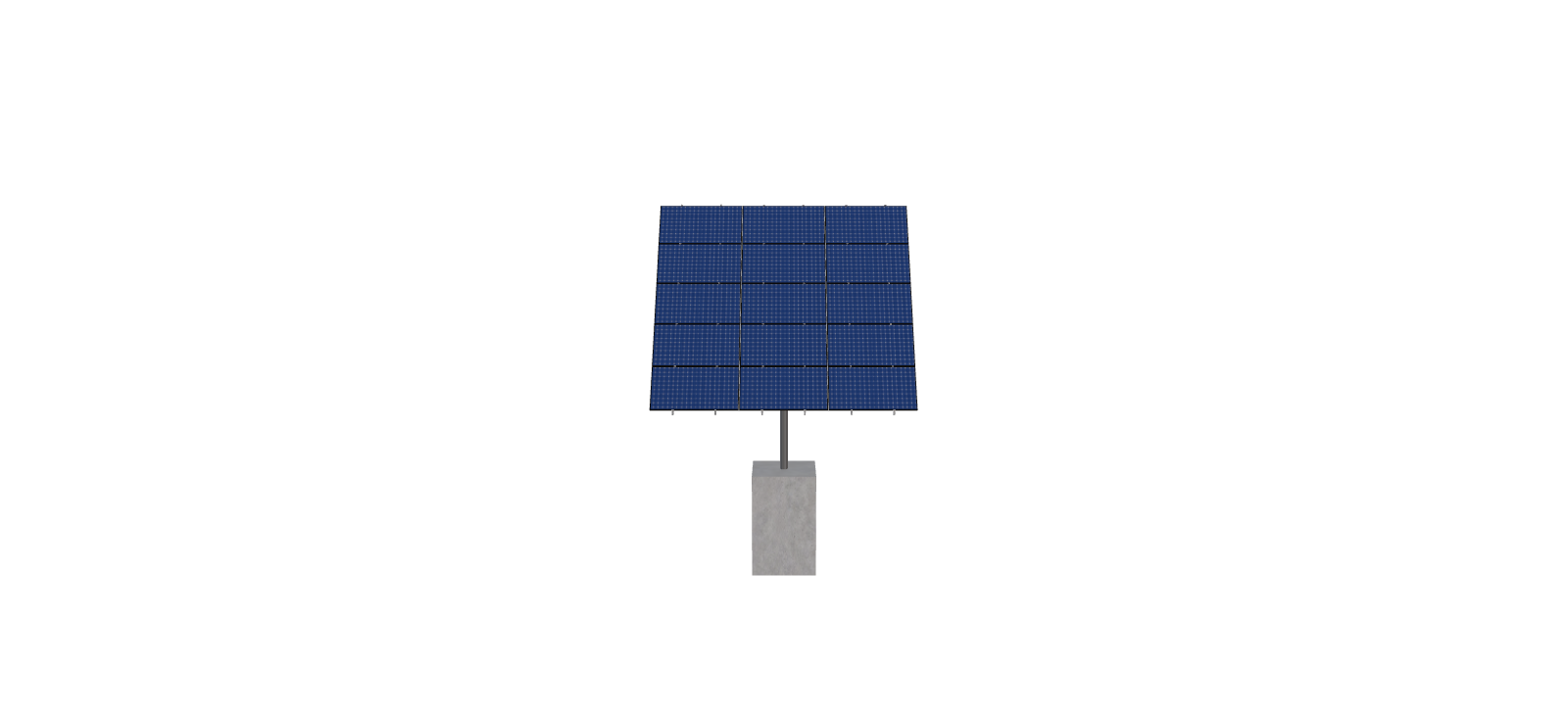

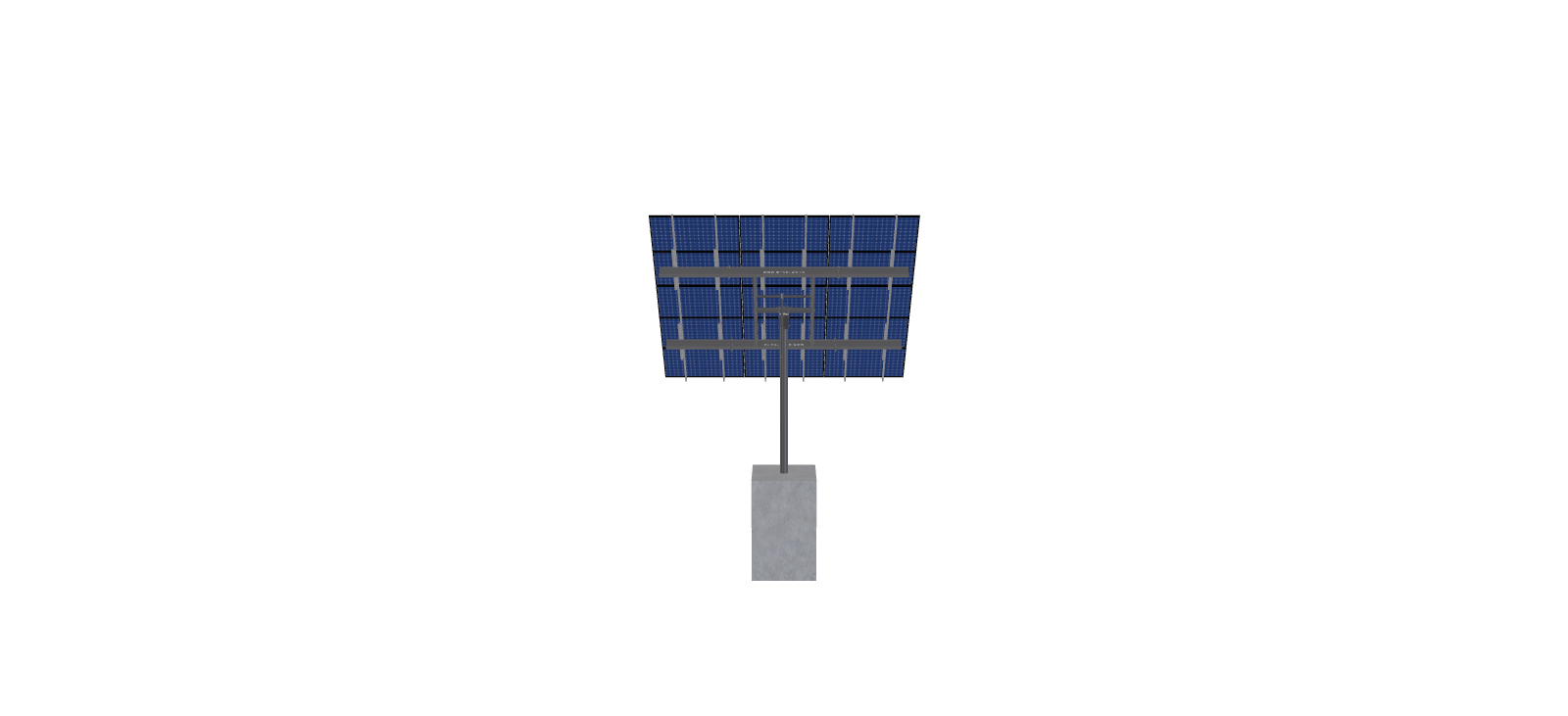

See 3D Model Here
MTSOLAR_J965J24C722
$5,385.25
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 71.2 inches by 41 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1027.03 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-HD-57-L-5HX3W-3HD9 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 11.62 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 7.25 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 204.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 312.11 |
| ARRAY WIDTH | 18.05 |
| ARRAY HEIGHT | 17.29 |
| RAIL LENGTH | 207.50 |
| MODULE LENGTH | 71.20 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 17.00 |
| GROUND TO TOP | 18.17 |
| PROJECTED PANEL HEIGHT | 13.09 |
| PROJECT ID | MTSOLAR, J965J24C722 |
| SITE ADDRESS | 43, TURNPIKE, RD, SHARON, NH, 03458, USA |
| MODULE WIDTH | 41.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 112.00 |
| SNOW LOAD OVERRIDE | 70.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 5128.81 |
| TOTAL WEIGHT | 1027.03 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/ae9d838c-d905-4b12-be98-a467d7fd4a76.pdf |
|
| ID | 4769.00 |
| 3D Solar link |
