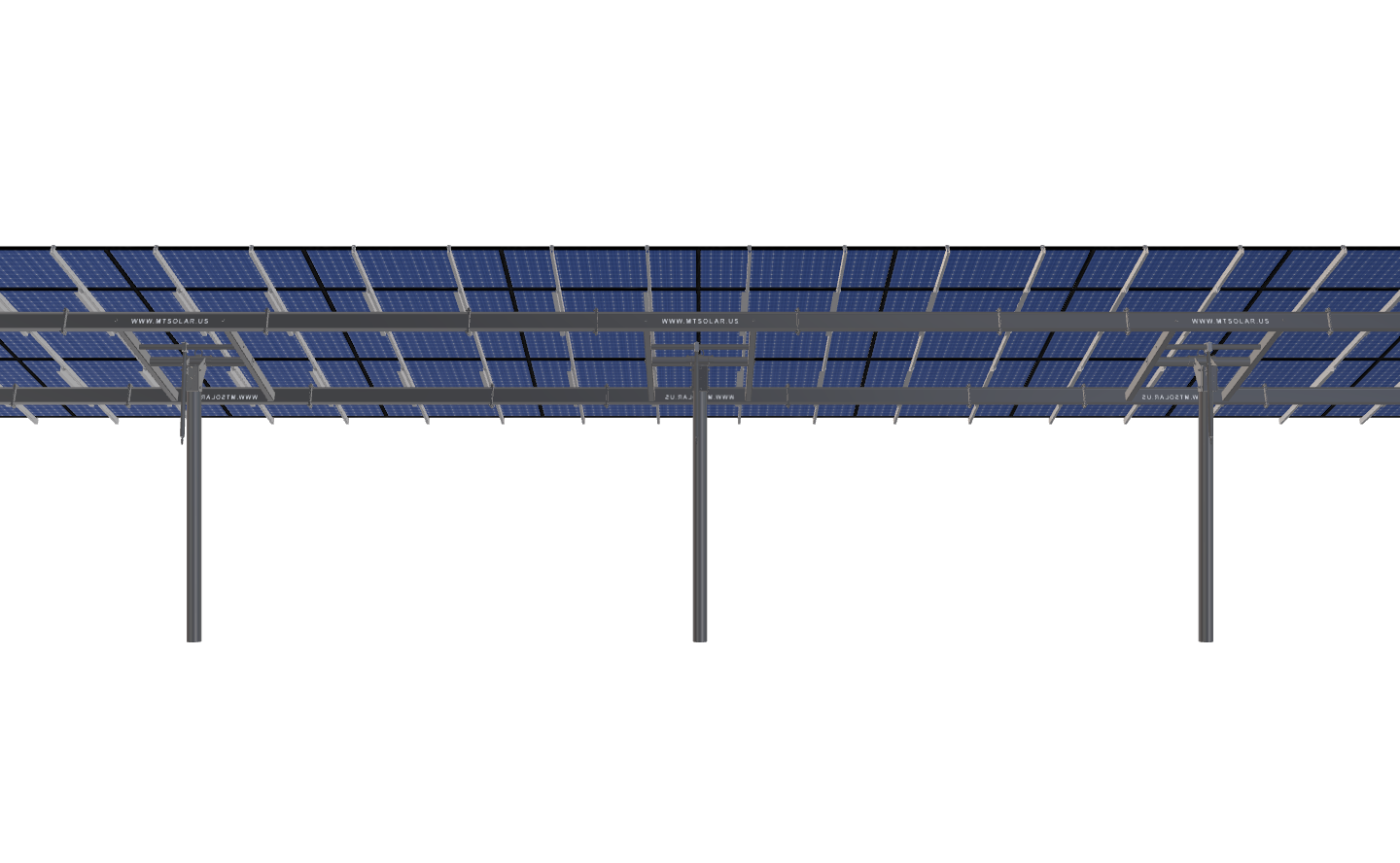

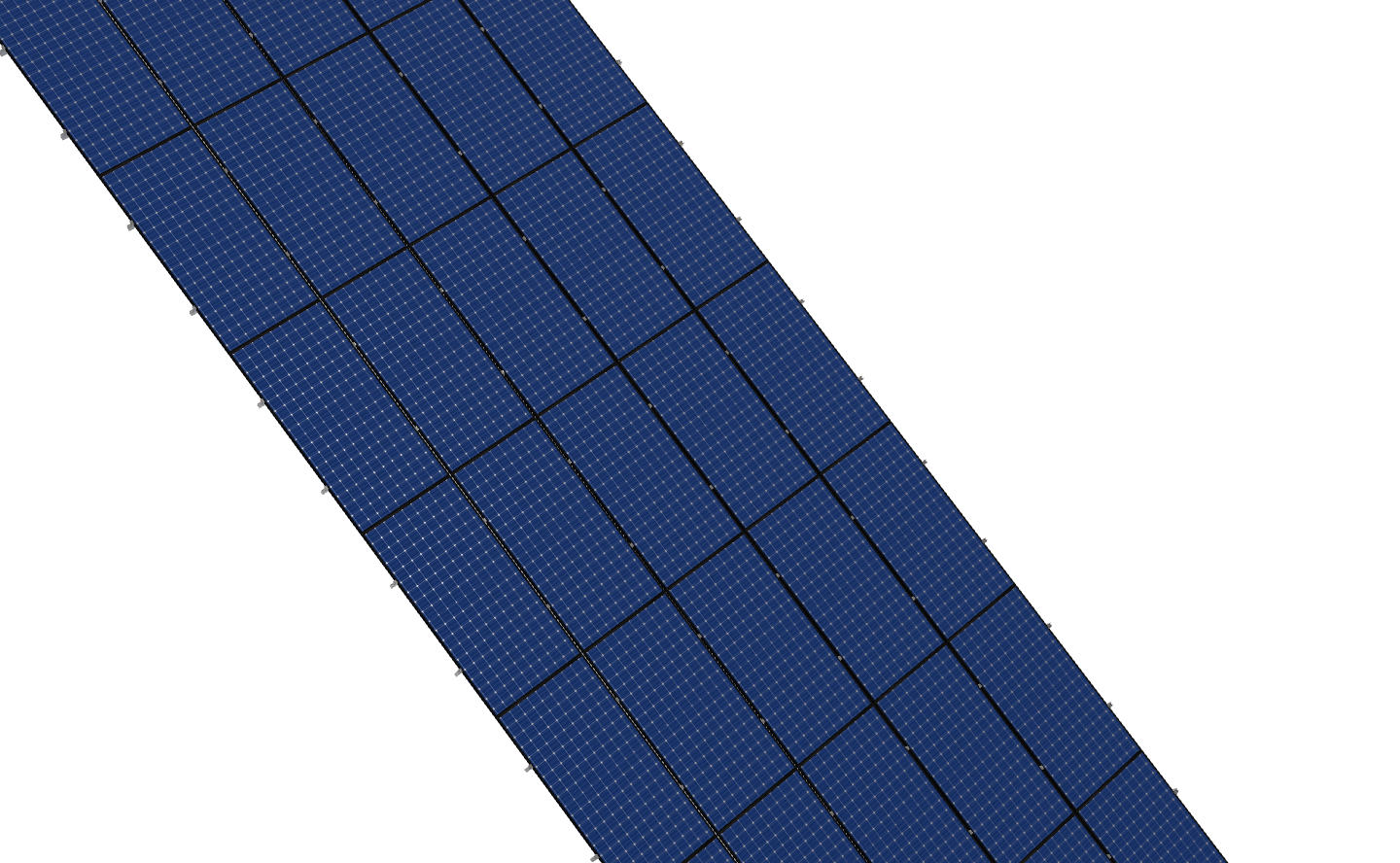

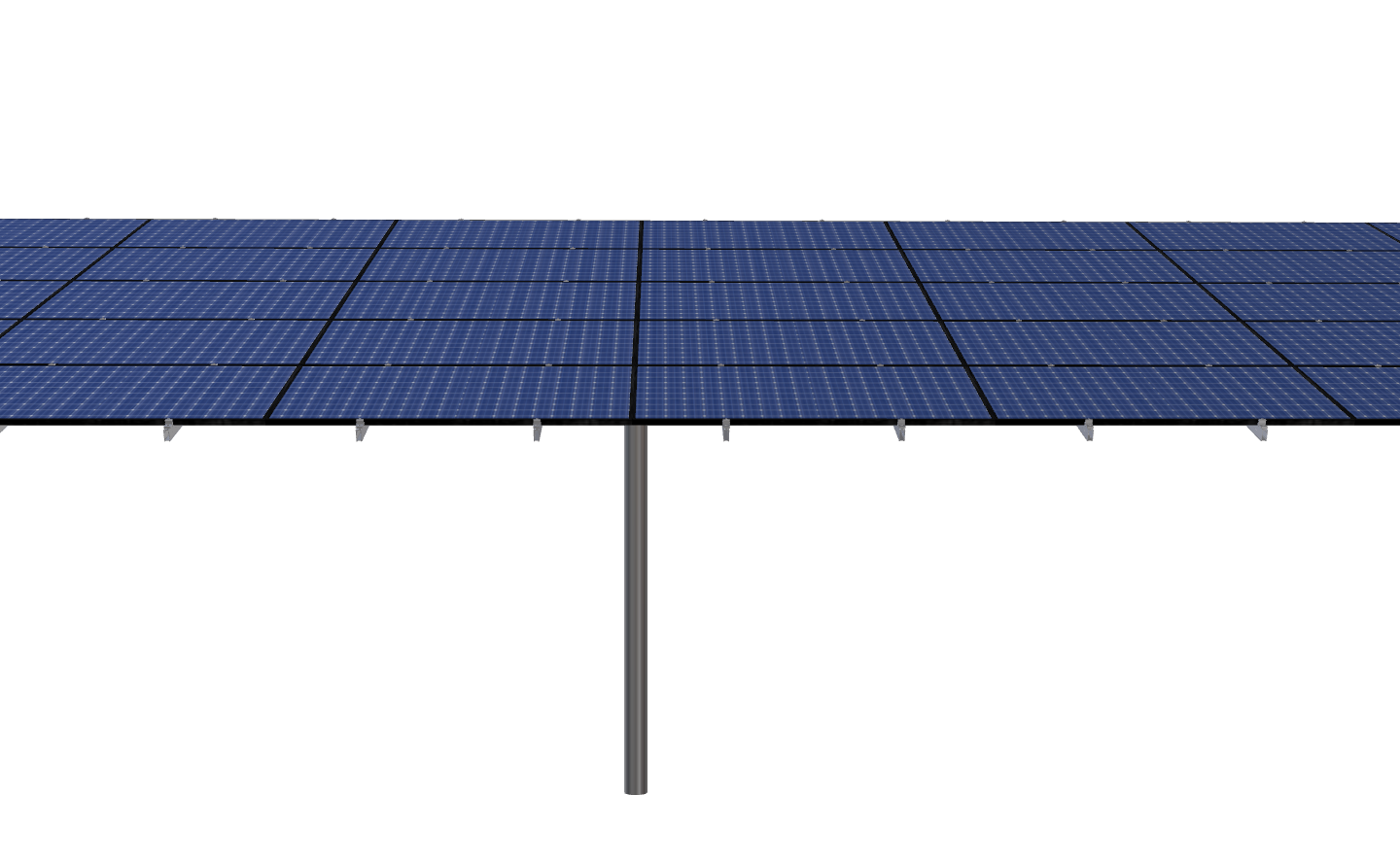

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.45 inches by 40.87 inches and an array layout of 14 wide by 5 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_JBA2EC44H48L
$30,888.50
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.45 inches by 40.87 inches and an array layout of 14 wide by 5 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 5966.31 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-19.75-8TOP-XD-57-L-5HX14W-GLKK |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 10.95 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 15.00 |
| TILT ANGLE | 20.00 |
| CANTILEVER | 1152.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1678.21 |
| ARRAY WIDTH | 97.36 |
| ARRAY HEIGHT | 17.24 |
| RAIL LENGTH | 206.85 |
| MODULE LENGTH | 82.45 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 96.00 |
| GROUND TO TOP | 13.86 |
| PROJECTED PANEL HEIGHT | 5.82 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | MTSOLAR, JBA2EC44H48L |
| SITE ADDRESS | 100, NE, MIZNER, BLVD, BOCA, RATON, FL, 33432, USA |
| MODULE WIDTH | 40.87 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 14.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 29417.62 |
| TOTAL WEIGHT | 5966.31 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/030ba790-5853-4d92-8627-014f7e048134.pdf |
|
| ID | 1943.00 |
| CAD URL | |
| 3D Solar link |
