This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65.5 inches by 39.5 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

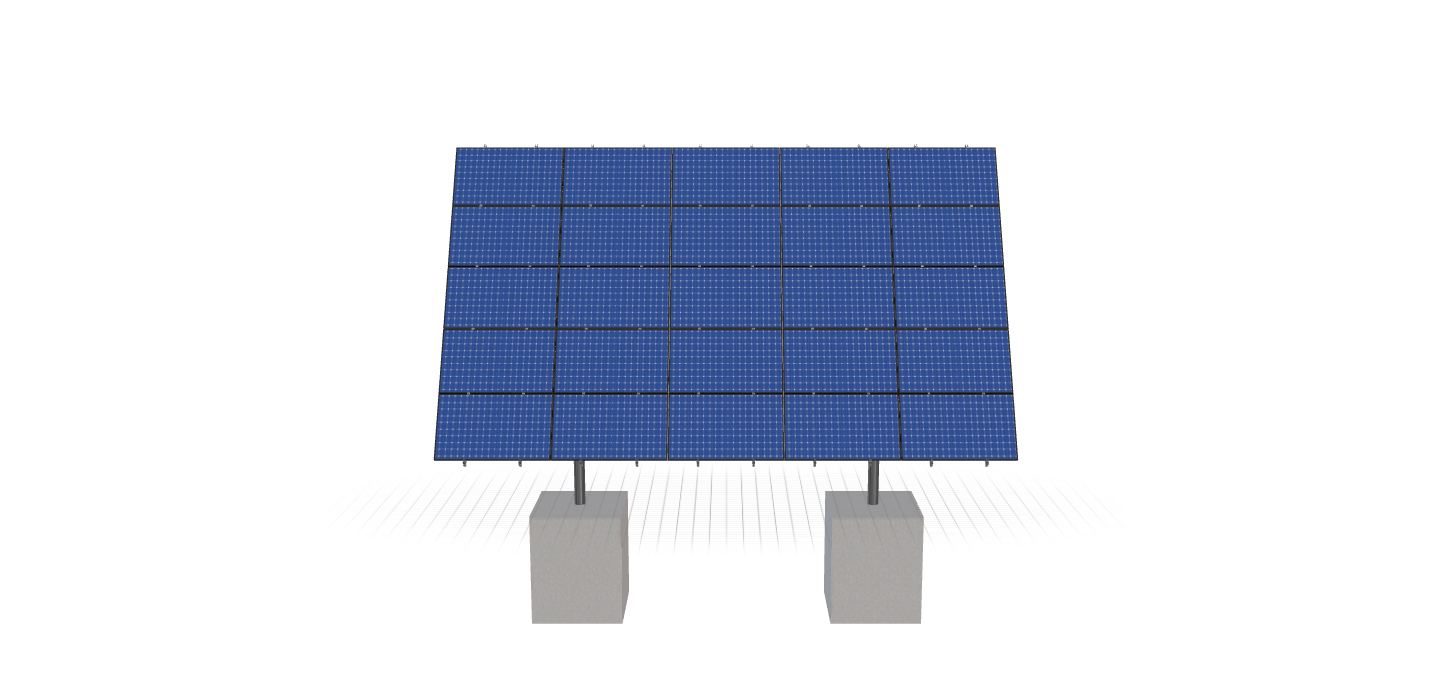

See 3D Model Here

SKU: 2P-15-6TOP-SD-24-L-5Hx5W-53B4 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65.5 inches by 39.5 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1549.7 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-15-6TOP-SD-24-L-5HX5W-53B4

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

15.00

POLE HEIGHT

10.29

WING SPAN

24.00

MAX FOUNDATION DEPTH

5.50

TILT ANGLE

61.00

CANTILEVER

318.00

GROUND CLEARANCE

3.00

NO POLES

2.00

MODULE AREA

461.81

ARRAY WIDTH

27.71

ARRAY HEIGHT

16.67

RAIL LENGTH

200.00

MODULE LENGTH

65.50

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

26.50

GROUND TO TOP

17.49

PROJECTED PANEL HEIGHT

14.39

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

PROJECT ID

MTSOLAR, JFK3EGEIEK2J

SITE ADDRESS

310, FELDSPAR, WAY, BILLINGS, MT, 59106, USA

MODULE WIDTH

39.50

NUMBER ROWS

5.00

NUMBER COLUMNS

5.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

8058.48

TOTAL WEIGHT

1549.70

TOTAL PALLETS

2.00
