This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 78.5 inches by 39.5 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

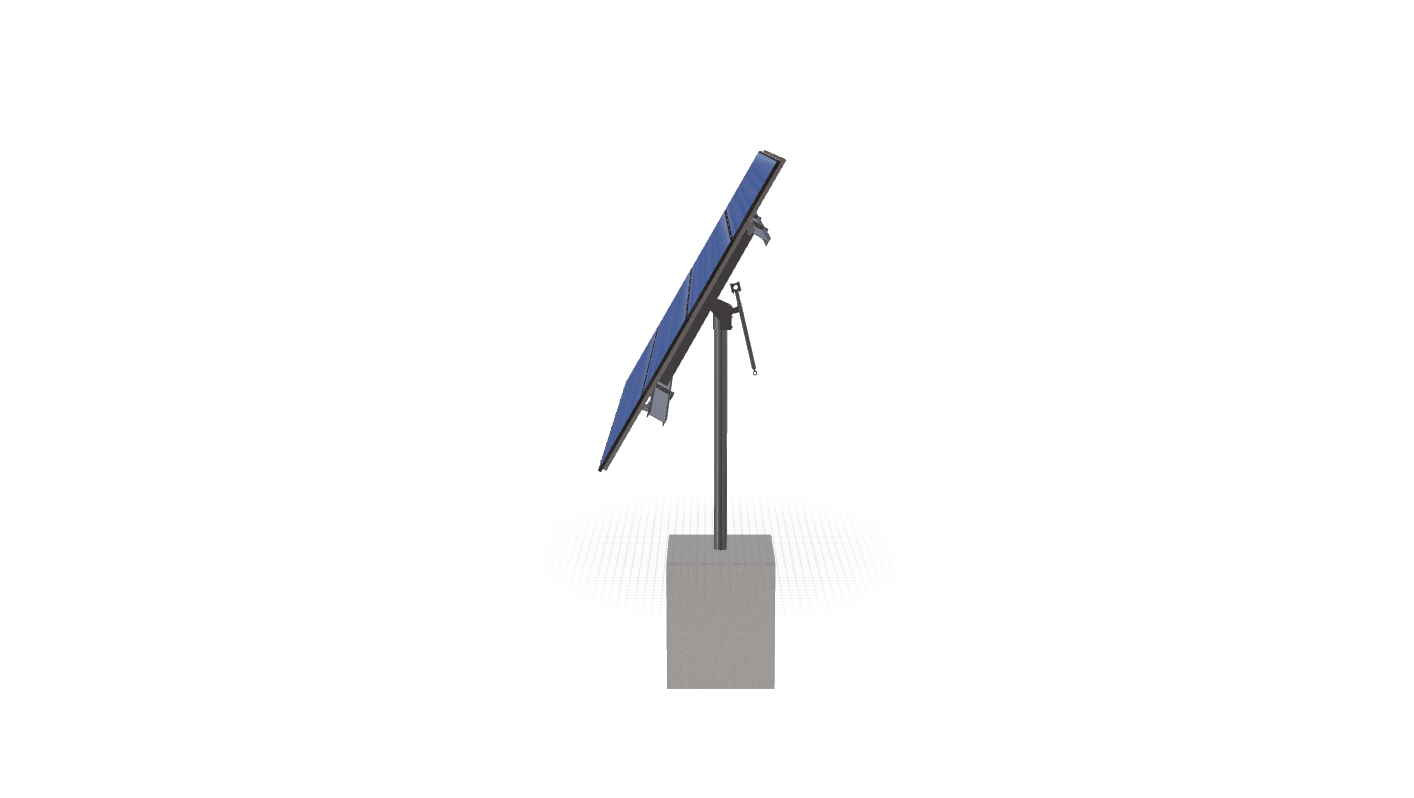

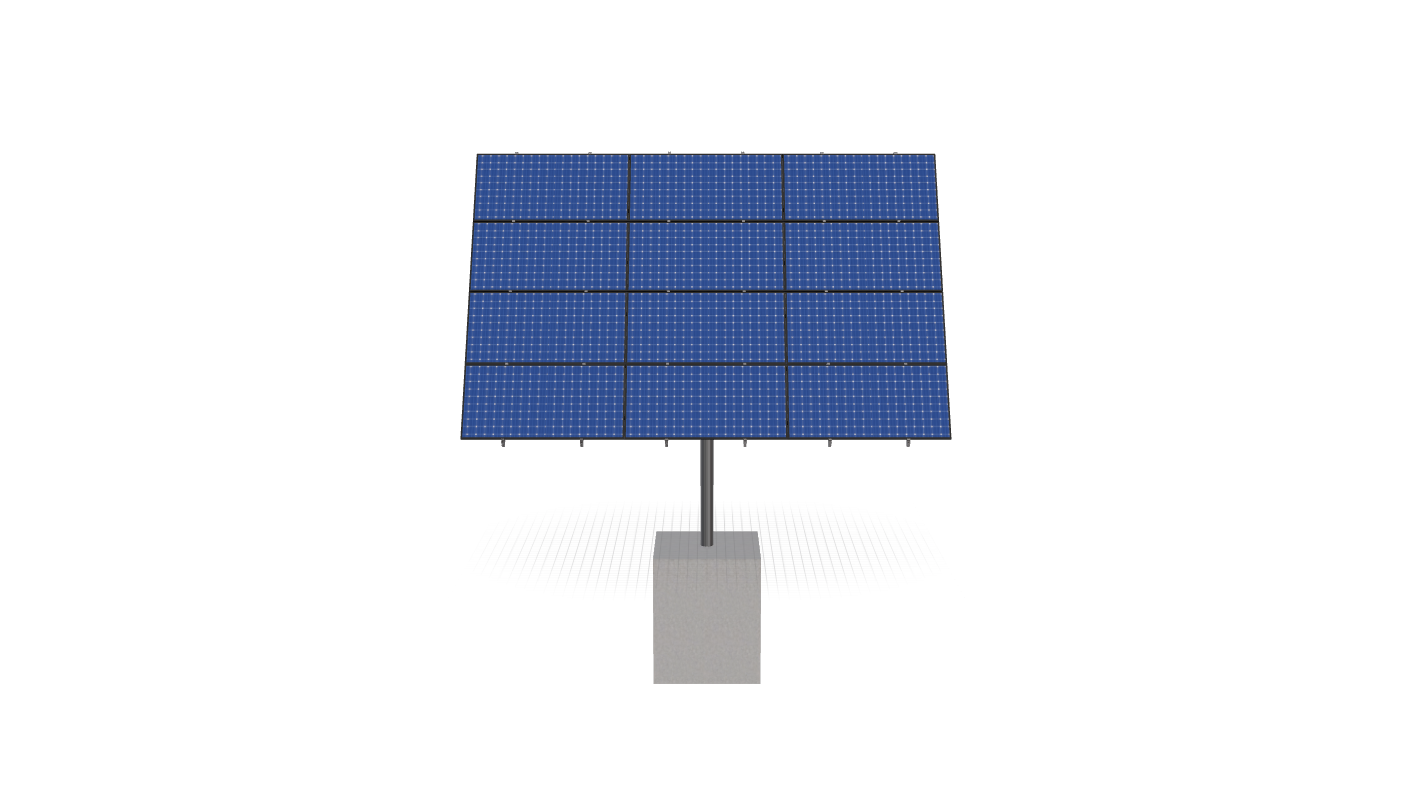

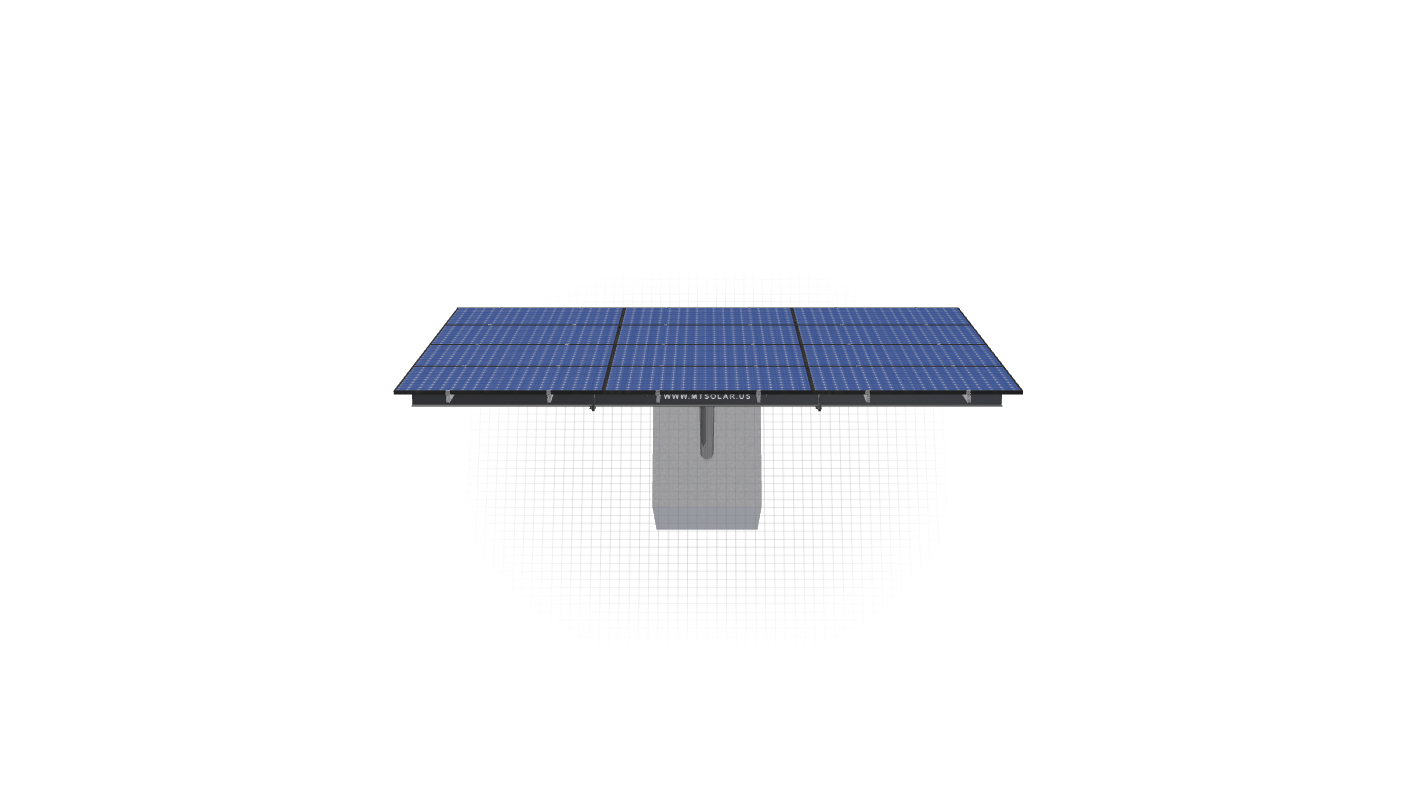

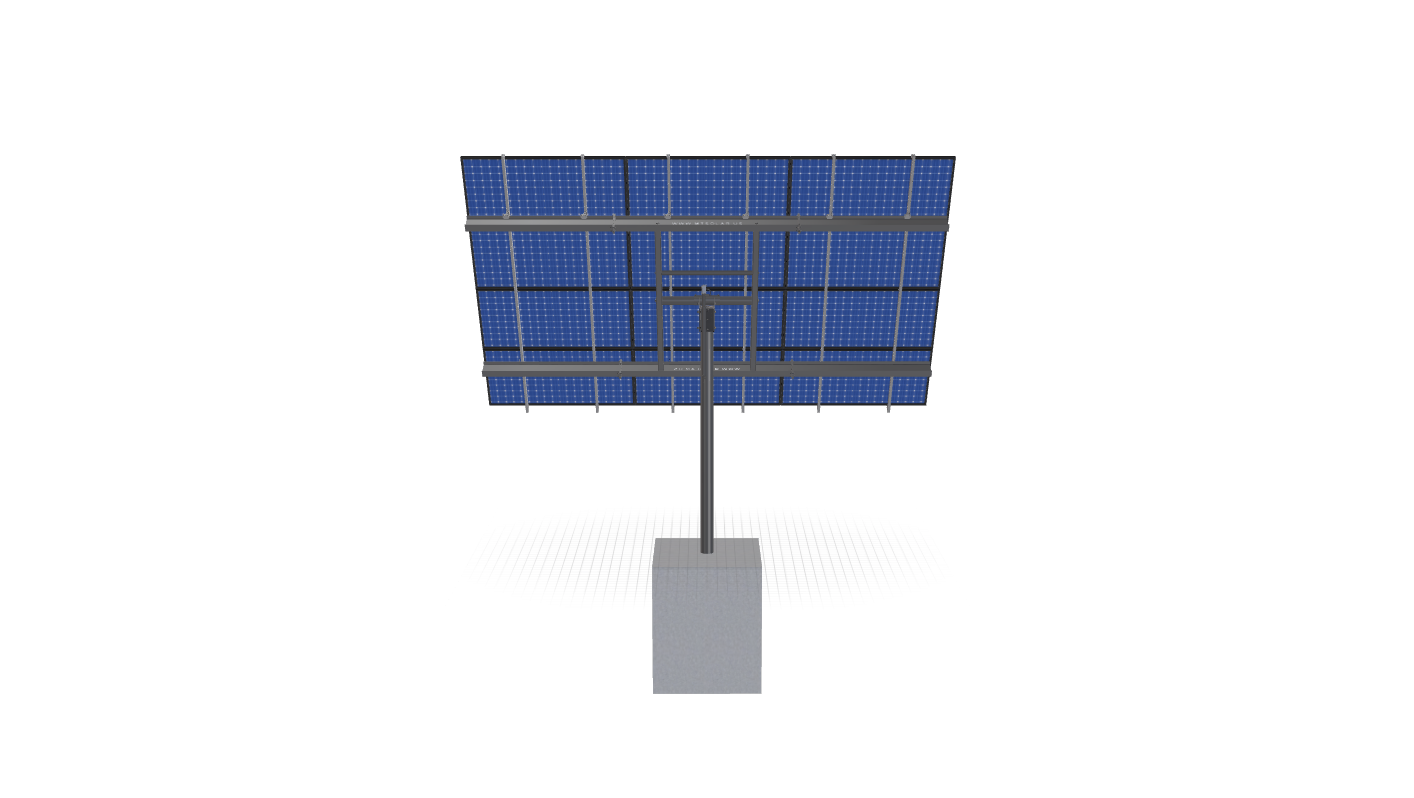

See 3D Model Here
MTSOLAR_JLLE060GFIHB
$4,171.28
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 78.5 inches by 39.5 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 744.66 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-SD-72-L-4HX3W-BD69 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 10.77 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 5.50 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 234.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 265.00 |
| ARRAY WIDTH | 19.88 |
| ARRAY HEIGHT | 13.33 |
| RAIL LENGTH | 160.00 |
| MODULE LENGTH | 78.50 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 19.50 |
| GROUND TO TOP | 16.47 |
| PROJECTED PANEL HEIGHT | 11.40 |
| PROJECT ID | MTSOLAR, JLLE060GFIHB |
| SITE ADDRESS | 324, 6TH, ST, W, KALISPELL, MT, 59901, USA |
| MODULE WIDTH | 39.50 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 75.00 |
| SNOW LOAD OVERRIDE | 50.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 4171.28 |
| TOTAL WEIGHT | 744.66 |
| TOTAL PALLETS | 1.00 |
