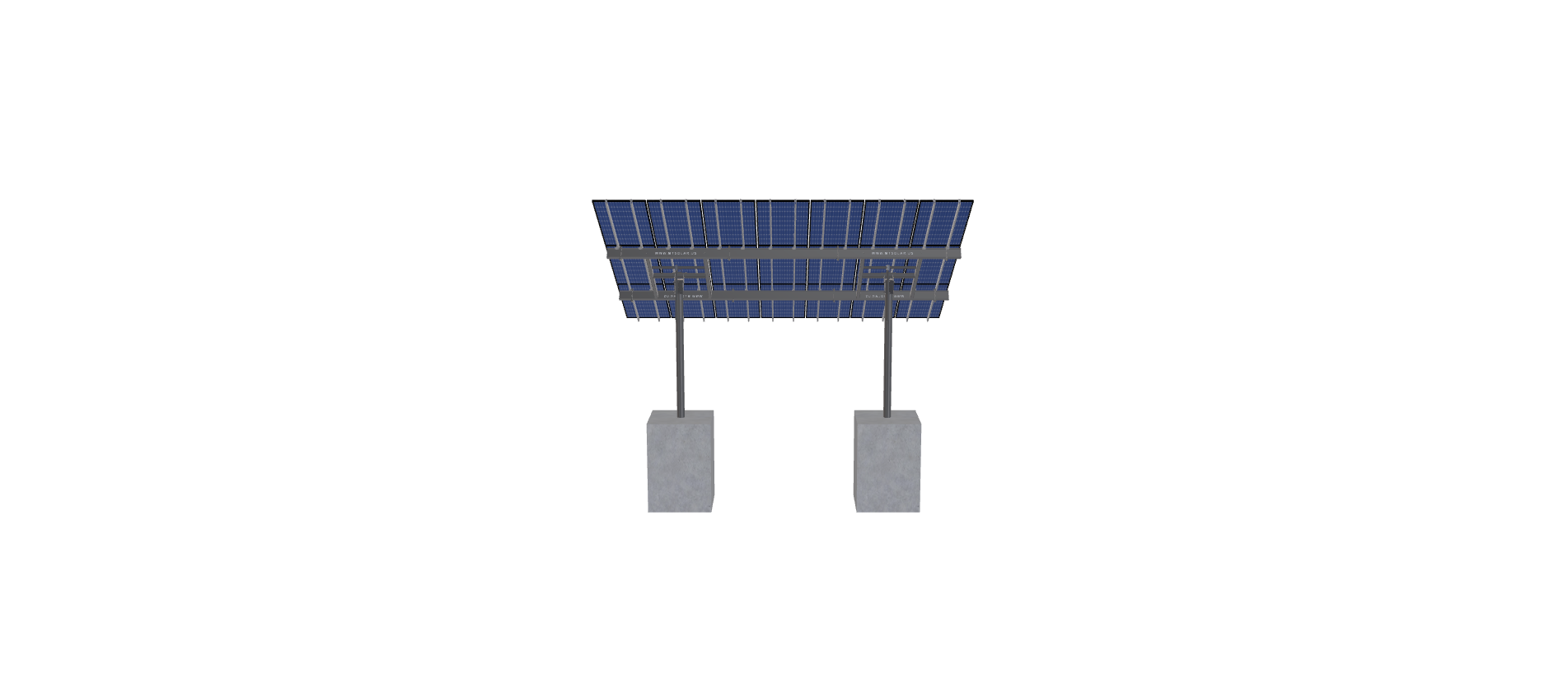

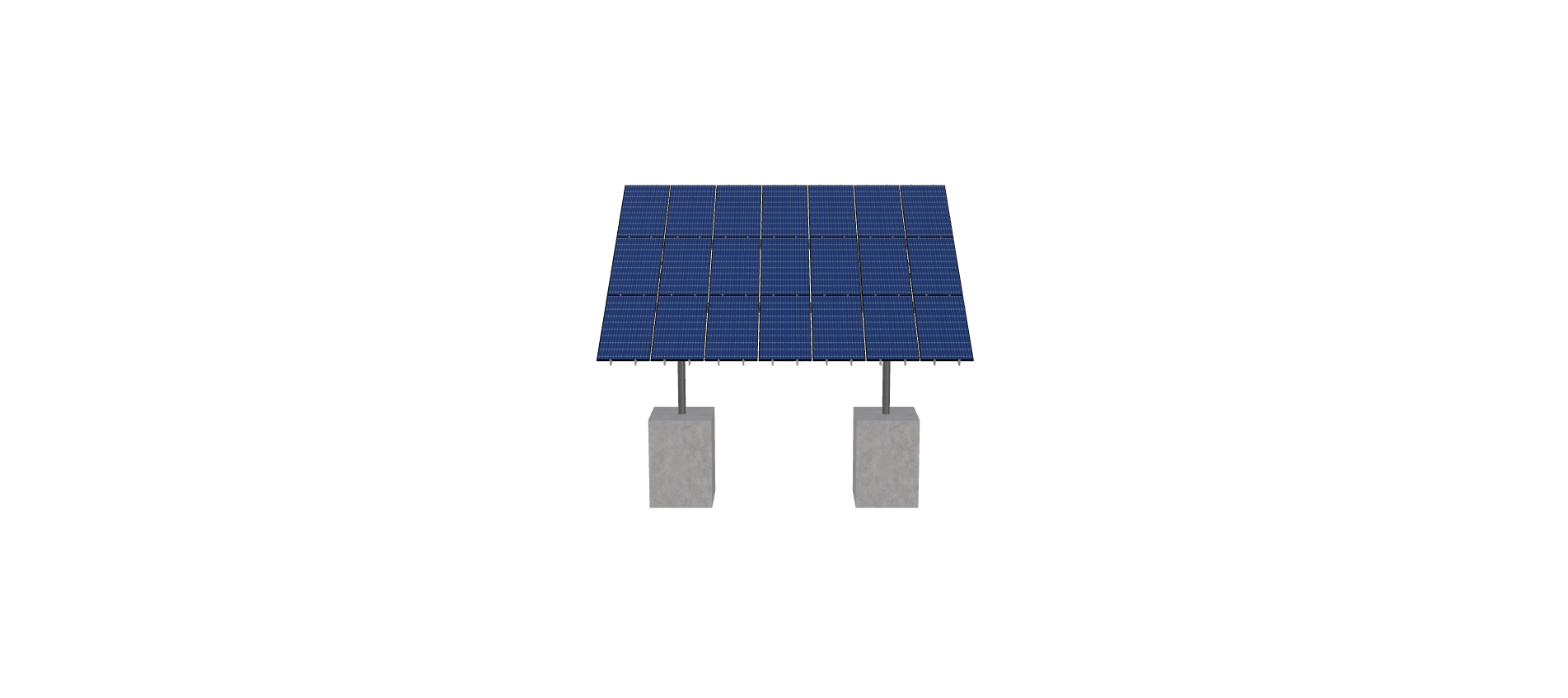

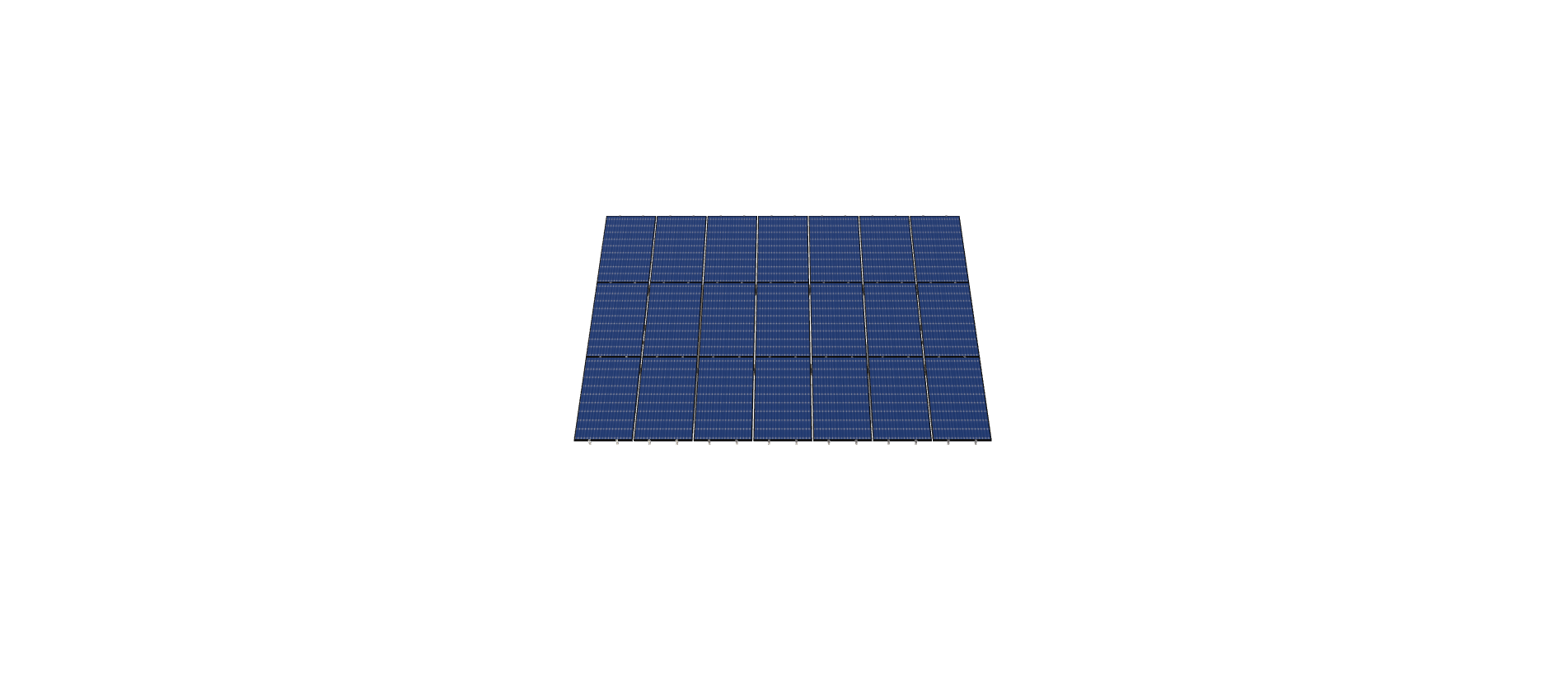

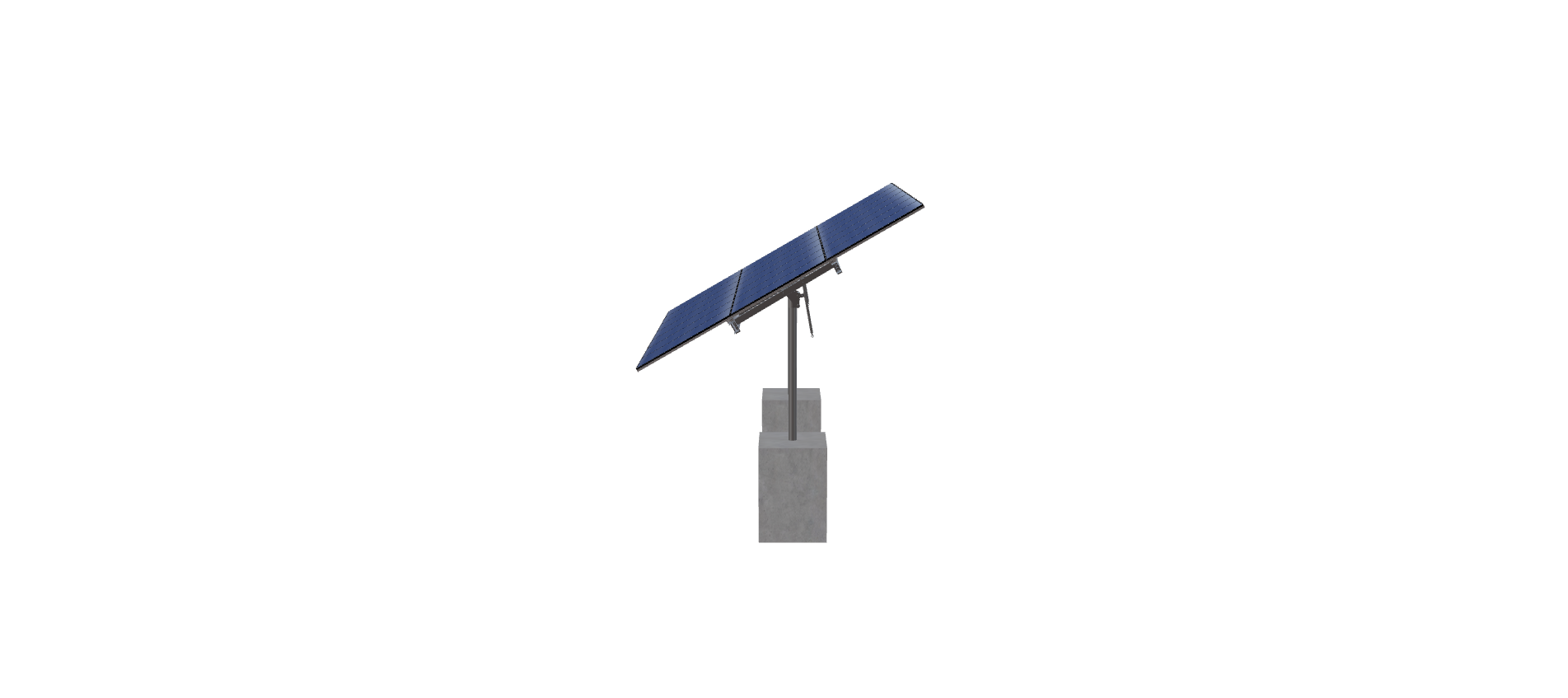

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 42 inches by 84 inches and an array layout of 7 wide by 3 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_K592CLCC094G
$8,338.63
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 42 inches by 84 inches and an array layout of 7 wide by 3 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1466.5800000000002 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-15-8TOP-HD-12-L-3HX7W-IA42 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 10.28 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 6.50 |
| TILT ANGLE | 30.00 |
| CANTILEVER | 294.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 529.89 |
| ARRAY WIDTH | 25.08 |
| ARRAY HEIGHT | 21.13 |
| RAIL LENGTH | 253.50 |
| MODULE LENGTH | 42.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 24.50 |
| GROUND TO TOP | 15.53 |
| PROJECTED PANEL HEIGHT | 10.50 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | MTSOLAR, K592CLCC094G |
| SITE ADDRESS | 1976, W, ATHENA, CIR, NORTH, POLE, AK, 99705, USA |
| MODULE WIDTH | 84.00 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 7.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 8338.63 |
| TOTAL WEIGHT | 1466.58 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/c952e34f-052d-43e9-81c5-a50ea30136a0.pdf |
|
| ID | 2542.00 |
| 3D Solar link |
