This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.3 inches by 40.8 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

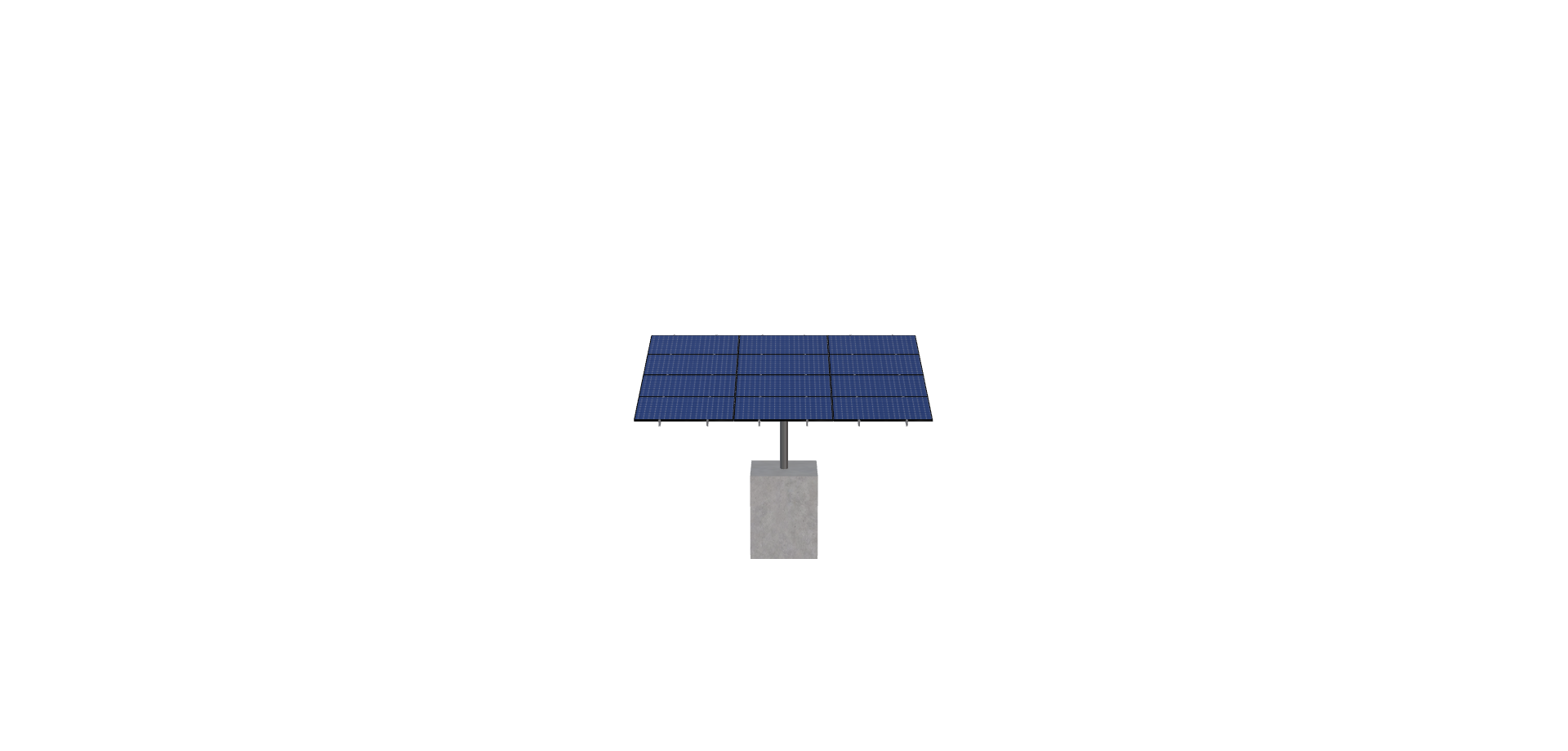

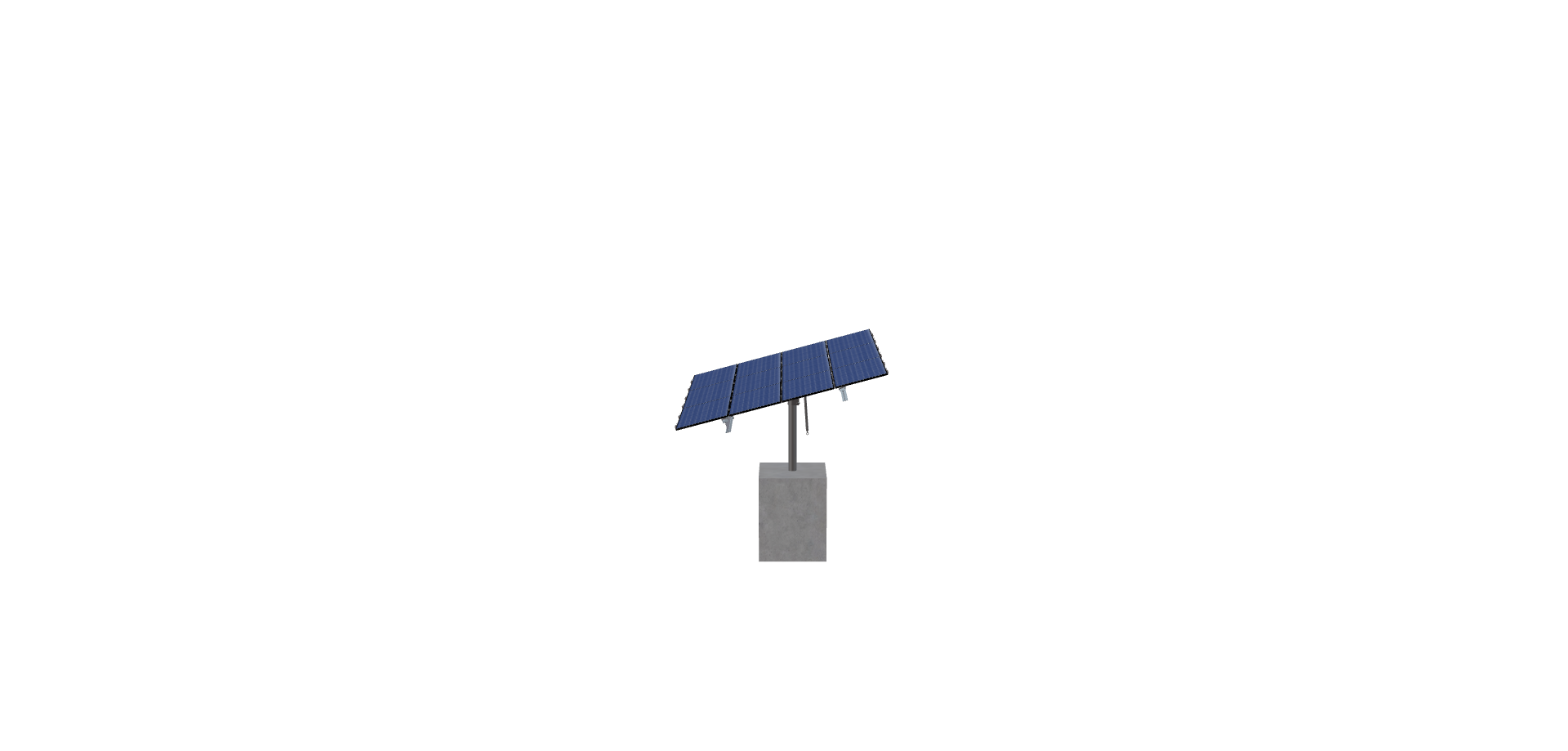

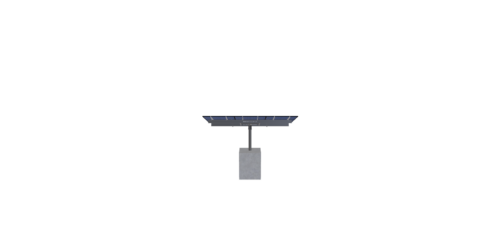

See 3D Model Here
MTSOLAR_KLEJ1GDIEKL1
$4,731.43
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.3 inches by 40.8 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 819.37 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-HD-57-L-4HX3W-F0G9 |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 5.78 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 5.75 |
| TILT ANGLE | 15.00 |
| CANTILEVER | 204.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 1.00 |
| MODULE AREA | 262.60 |
| ARRAY WIDTH | 19.07 |
| ARRAY HEIGHT | 13.77 |
| RAIL LENGTH | 165.20 |
| MODULE LENGTH | 75.30 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 17.00 |
| GROUND TO TOP | 7.54 |
| PROJECTED PANEL HEIGHT | 3.52 |
| PROJECT ID | MTSOLAR, KLEJ1GDIEKL1 |
| SITE ADDRESS | 14078, WESTERN, MINE, RD, MIDDLETOWN, CA, 95461, USA |
| MODULE WIDTH | 40.80 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 100.00 |
| SNOW LOAD OVERRIDE | 5.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 4506.12 |
| TOTAL WEIGHT | 819.37 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/afc638a0-fff6-4766-8c07-ec5d5ff03c56.pdf |
|
| ID | 7552.00 |
| 3D Solar link |
