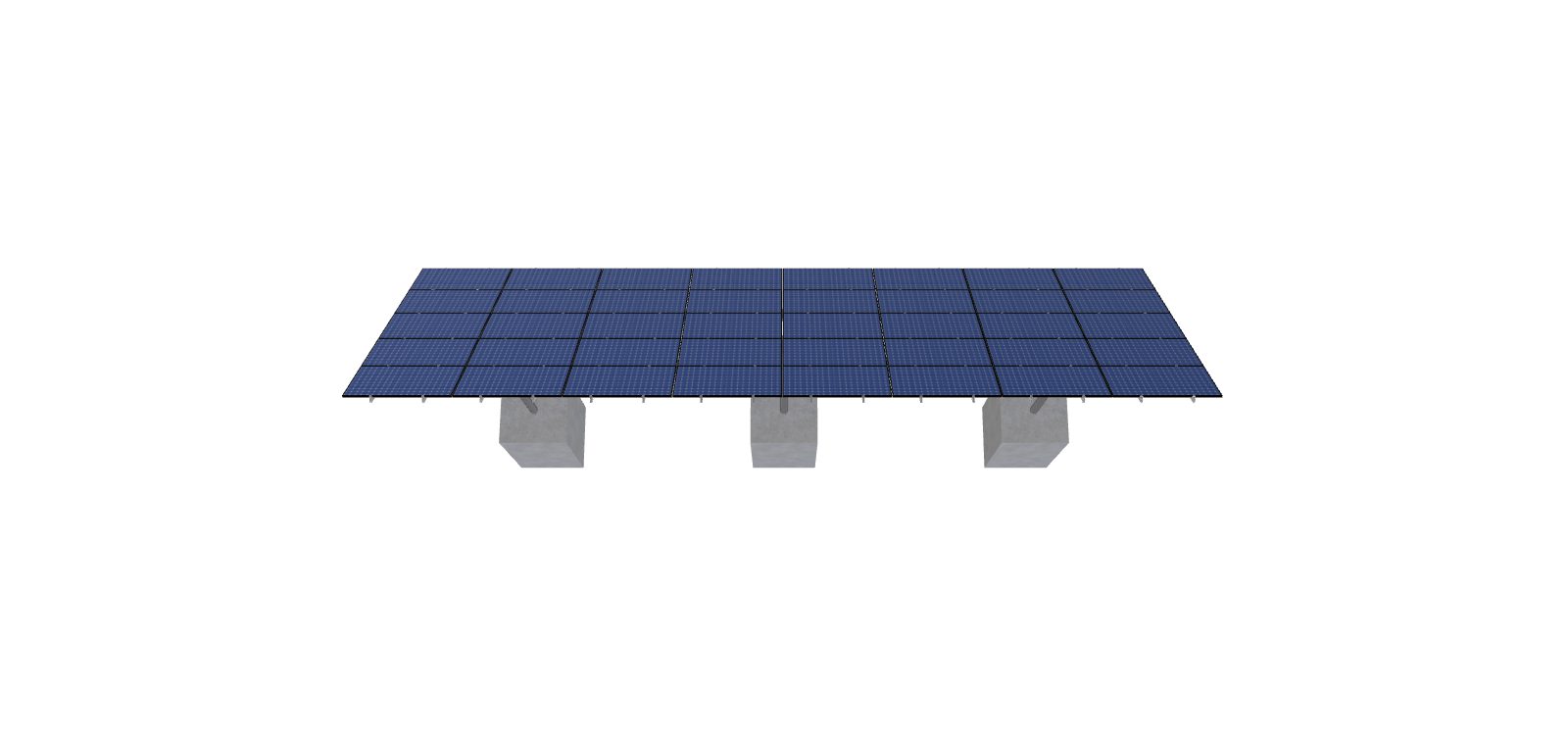

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 44.7 inches and an array layout of 8 wide by 5 high.

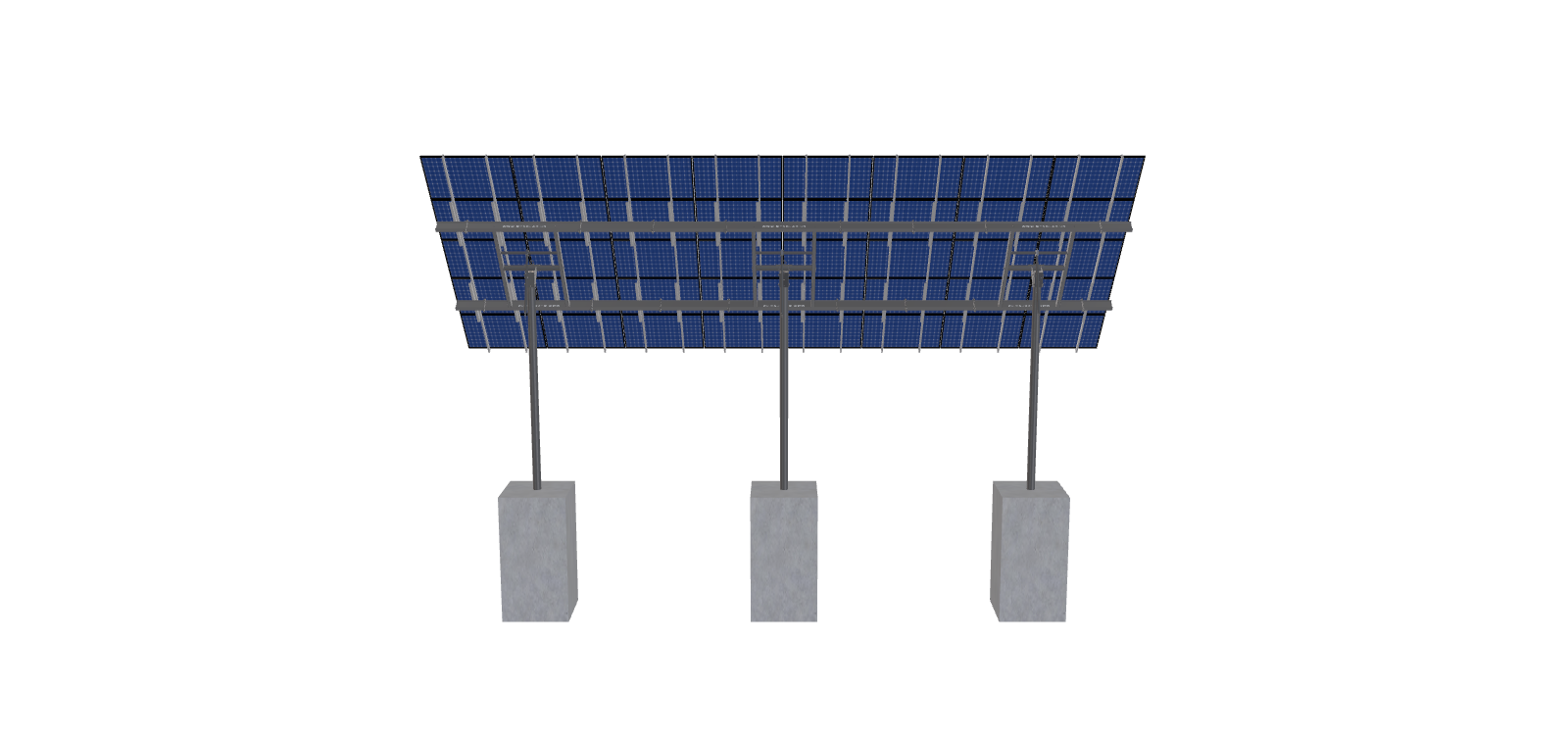

This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_L8K90BI6HJDE
$15,732.82
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 44.7 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2972.29 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-10TOP-HD-24-L-5HX8W-2KL4 |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 15.21 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 8.75 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 546.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 3.00 |
| MODULE AREA | 866.33 |
| ARRAY WIDTH | 46.00 |
| ARRAY HEIGHT | 18.83 |
| RAIL LENGTH | 226.00 |
| MODULE LENGTH | 68.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 45.50 |
| GROUND TO TOP | 22.43 |
| PROJECTED PANEL HEIGHT | 14.43 |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | MTSOLAR, L8K90BI6HJDE |
| SITE ADDRESS | FALLON, NV, 89406, USA |
| MODULE WIDTH | 44.70 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | D |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 20.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 14983.64 |
| TOTAL WEIGHT | 2972.29 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/4d0fff3f-b8a6-4ed2-83a5-a99834f984f7.pdf |
|
| ID | 8310.00 |
| 3D Solar link |
