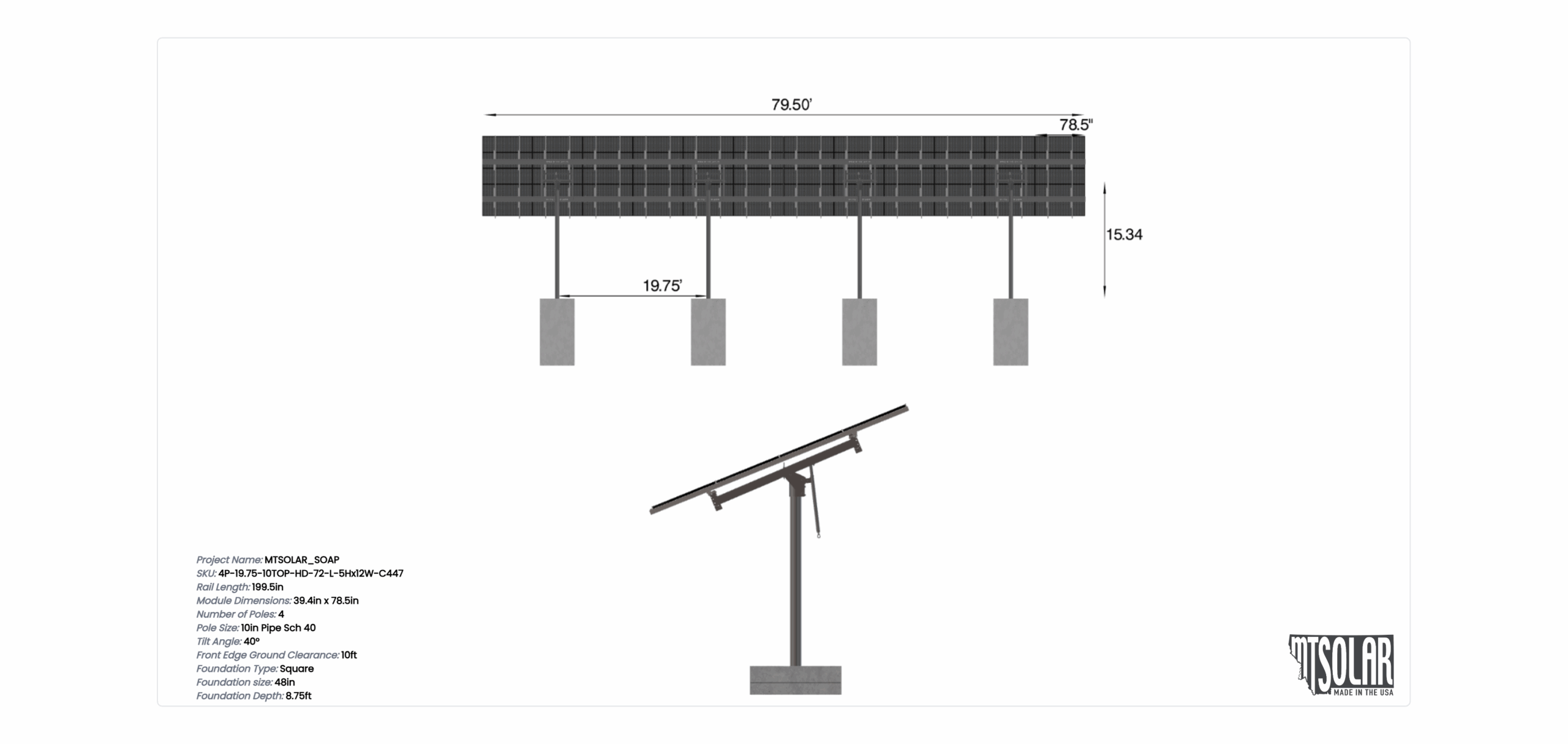

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 78.5 inches by 39.4 inches and an array layout of 12 wide by 5 high.
This mount fits on 4 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

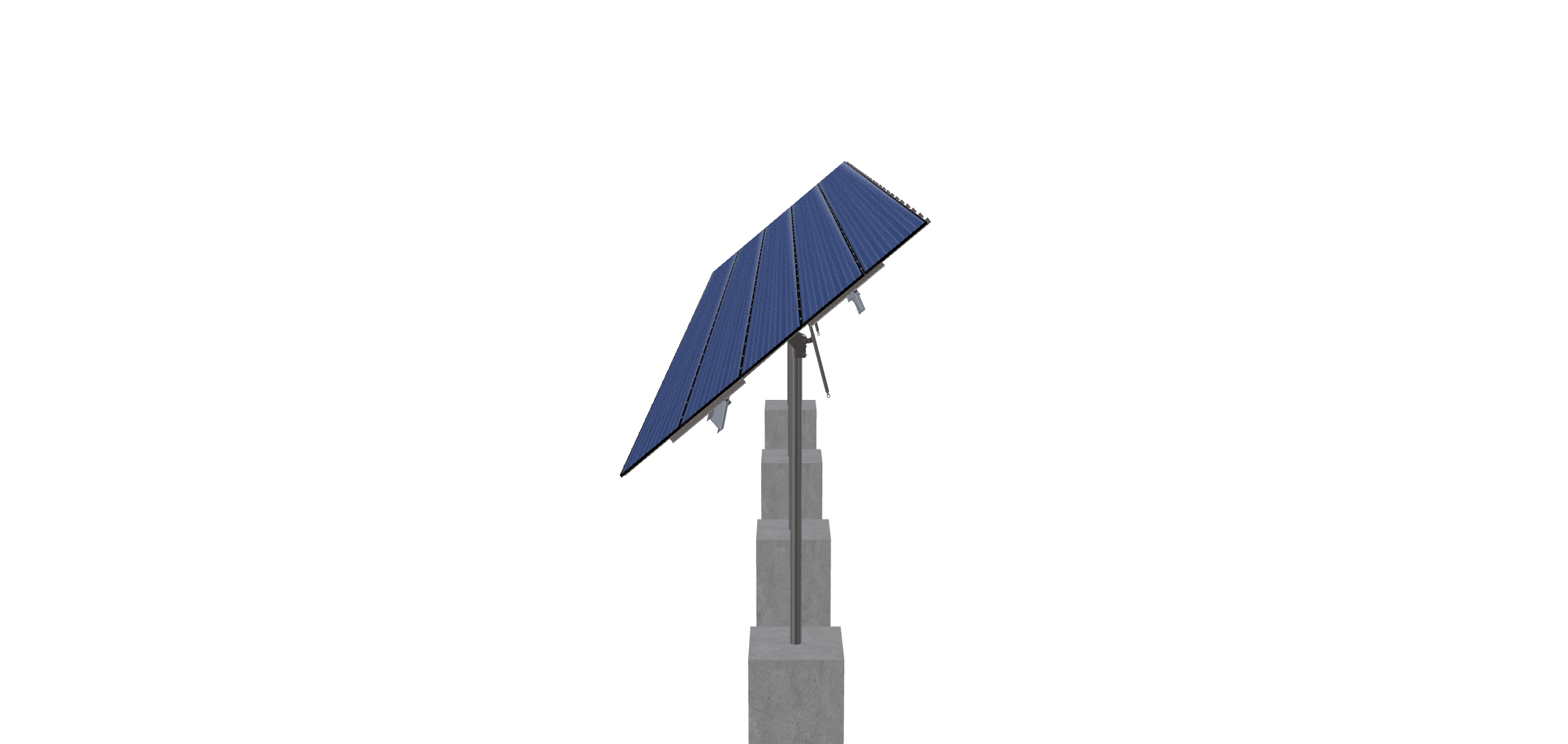

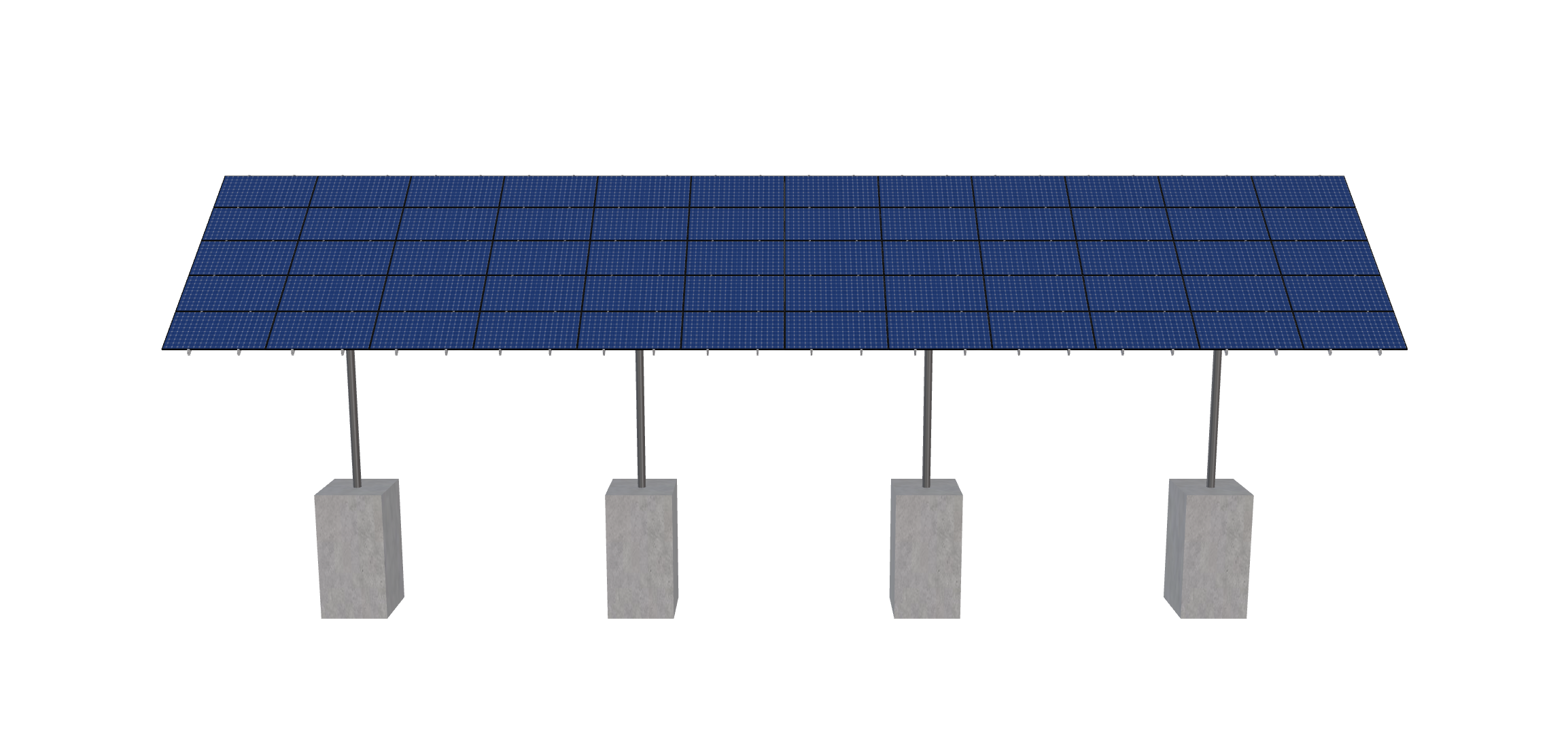

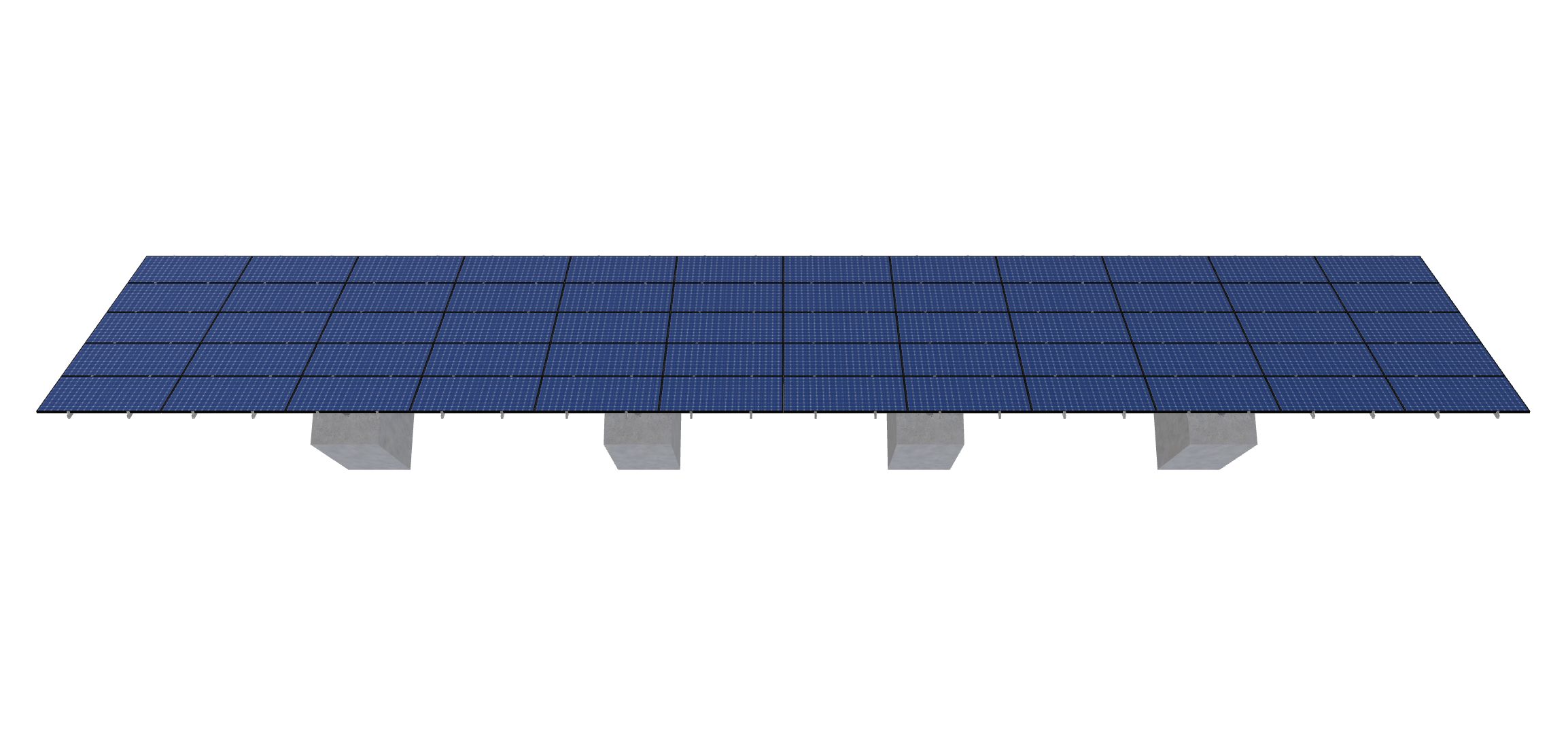

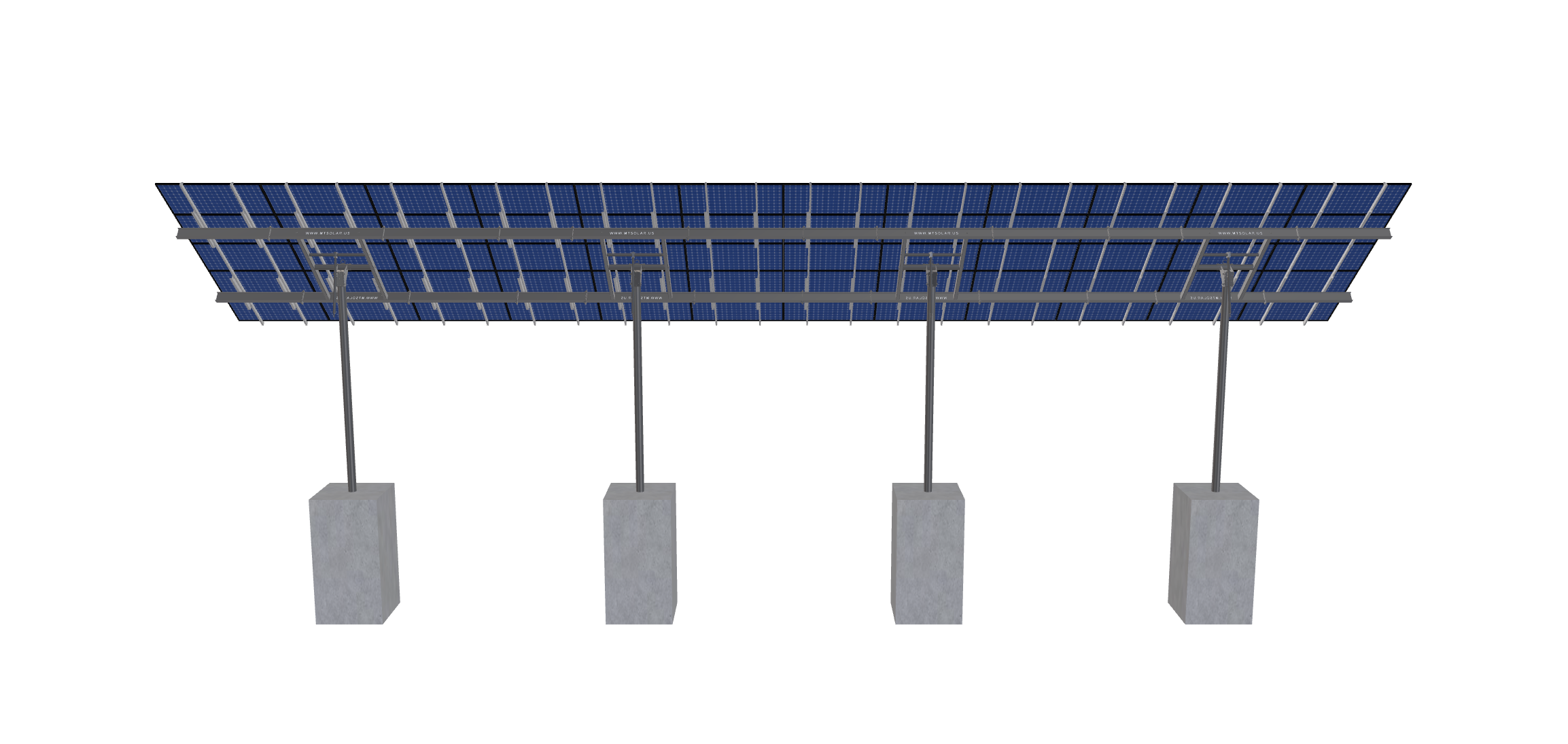

See 3D Model Here
MTSOLAR_SOAP
$23,008.34
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 78.5 inches by 39.4 inches and an array layout of 12 wide by 5 high.
This mount fits on 4 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4469.42 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-10TOP-HD-72-L-5HX12W-C447 |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 15.34 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 8.75 |
| TILT ANGLE | 40.00 |
| CANTILEVER | 945.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1321.69 |
| ARRAY WIDTH | 79.50 |
| ARRAY HEIGHT | 16.63 |
| RAIL LENGTH | 199.50 |
| MODULE LENGTH | 78.50 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 78.75 |
| GROUND TO TOP | 20.69 |
| PROJECTED PANEL HEIGHT | 10.69 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | JONATHAN, PETRUSH |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 404-895-7277 |
| PROJECT ID | MTSOLAR, SOAP |
| SITE ADDRESS | 1764, SOAP, CREEK, RD, BALL, GROUND, GA, 30107, USA |
| MODULE INFO | HANWAH, QCEL, 4.2, 355 |
| MODULE WIDTH | 39.40 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 12.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 23008.34 |
| TOTAL WEIGHT | 4469.42 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/b3f498d4-ea58-46c4-9cae-daab39971e2f.pdf |
|
| ID | 12755.00 |
| 3D Solar link |
