This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.65 inches and an array layout of 14 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

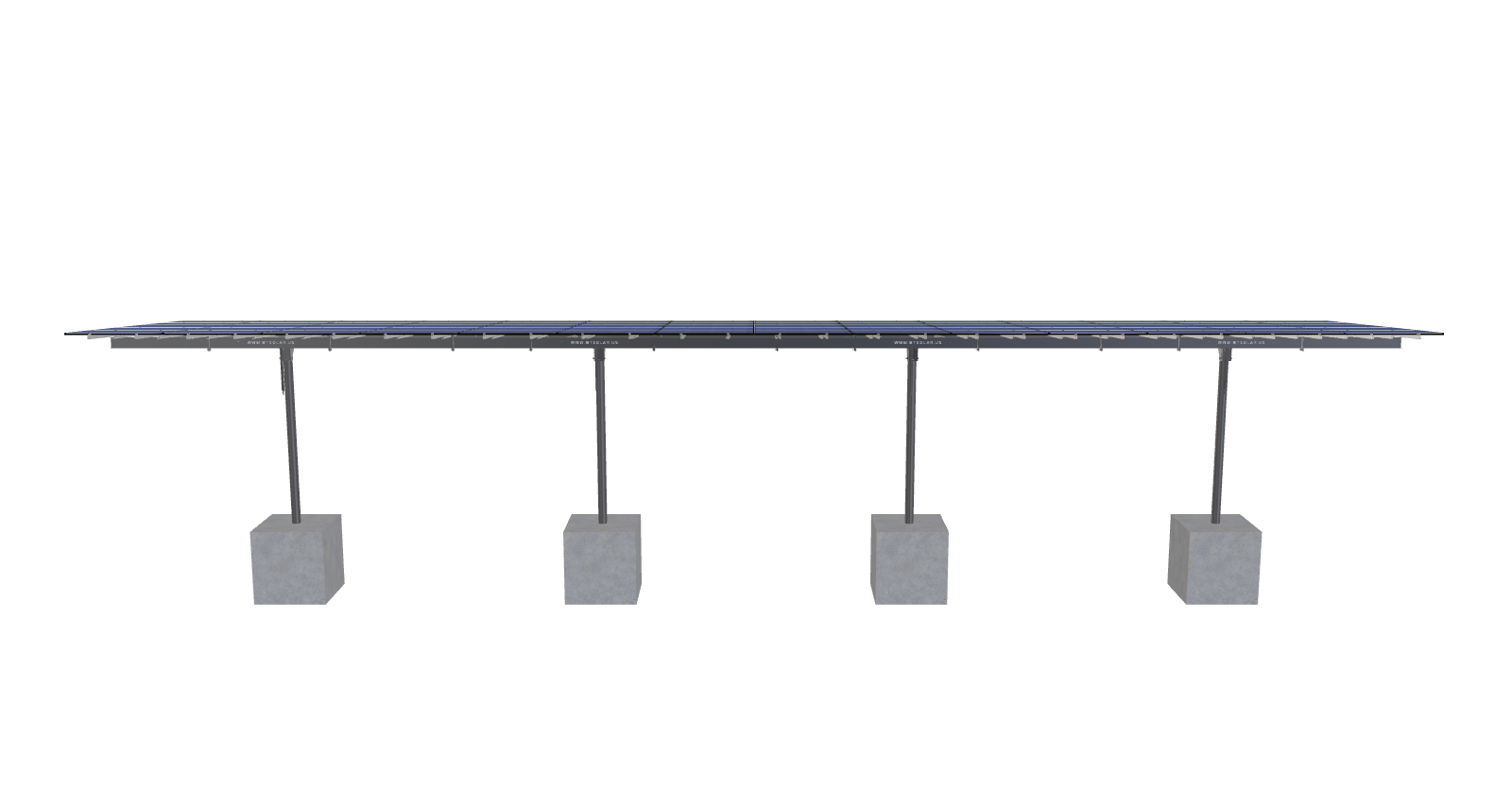

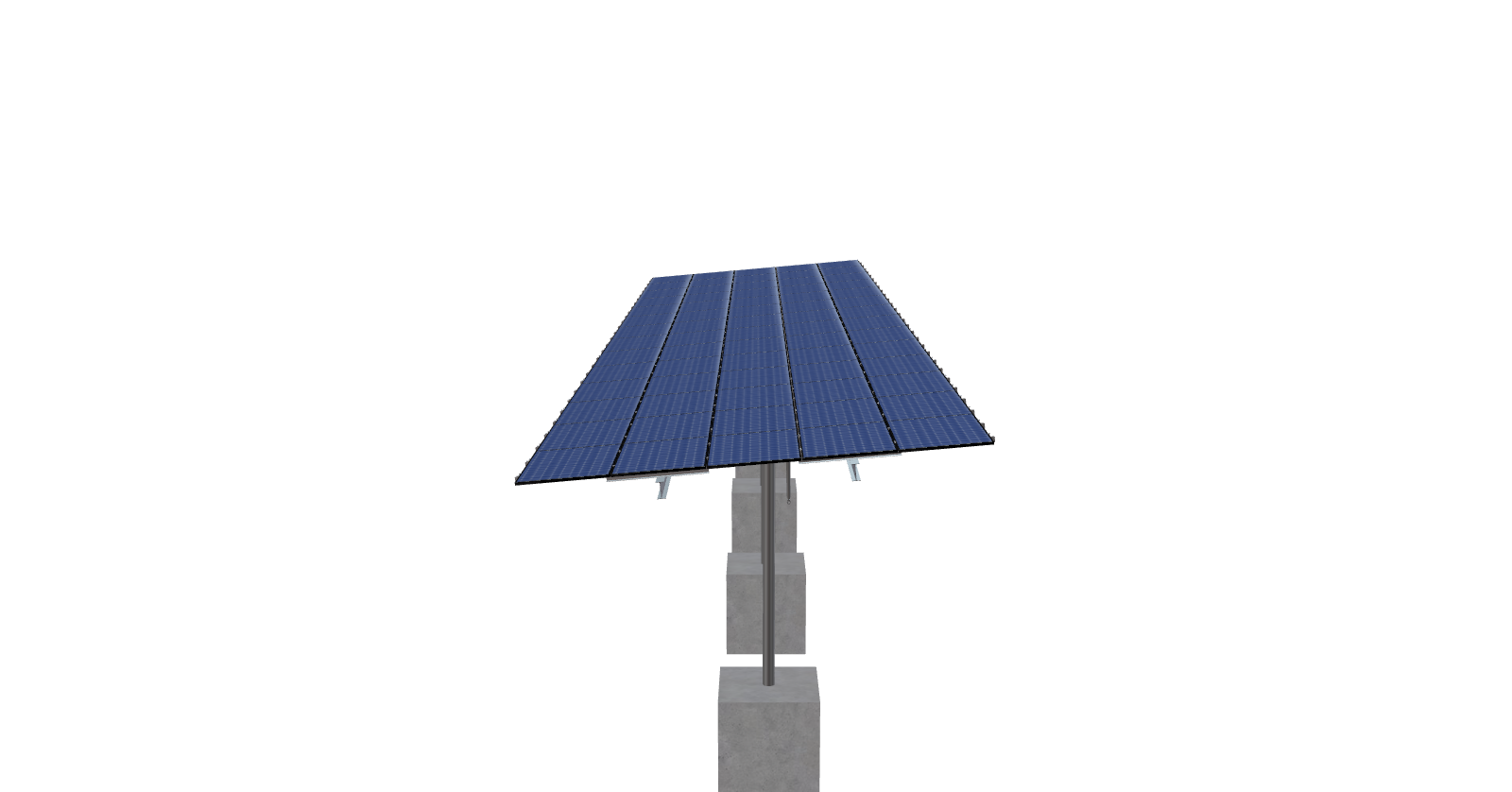

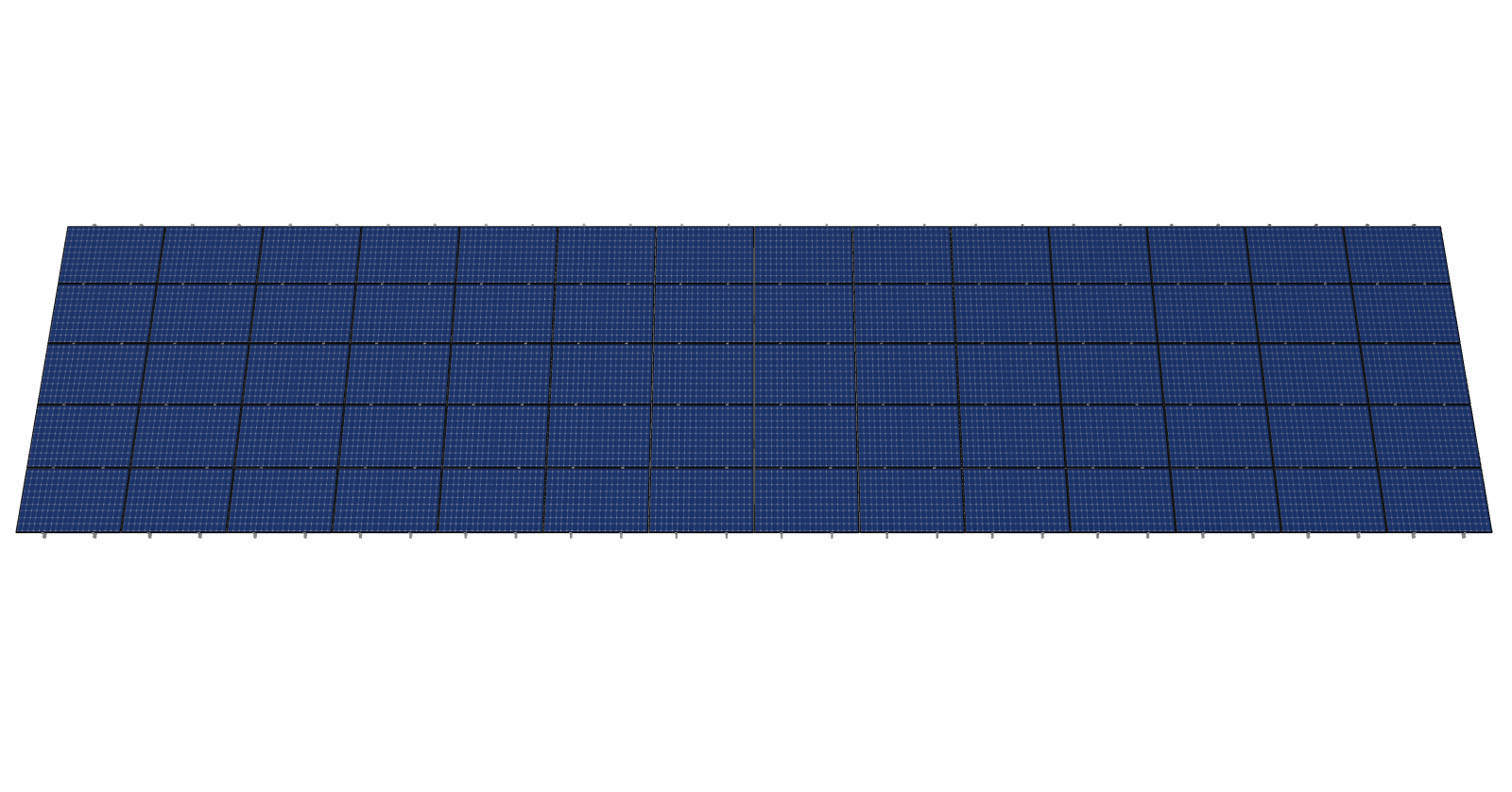

See 3D Model Here
Mulawa 5×14 -Rev3cu
$21,042.22
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.65 inches and an array layout of 14 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4037.66 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-6TOP-SD-72-L-5HX14W-1EKI |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 11.82 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 4.75 |
| TILT ANGLE | 5.00 |
| CANTILEVER | 945.00 |
| GROUND CLEARANCE | 11.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1510.02 |
| ARRAY WIDTH | 80.27 |
| ARRAY HEIGHT | 18.81 |
| RAIL LENGTH | 225.75 |
| MODULE LENGTH | 67.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 78.75 |
| GROUND TO TOP | 12.64 |
| PROJECTED PANEL HEIGHT | 1.64 |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | MULAWA, 5X14, -REV3CU |
| SITE ADDRESS | 4921, W, PASEO, DE, LAS, COLINAS, TUCSON, AZ, 85745, USA |
| MODULE INFO | |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 14.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 21042.22 |
| TOTAL WEIGHT | 4037.66 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/d5d3b0db-b5b7-481a-9860-7cc67a09ebac.pdf |
|
| ID | 11432.00 |
| 3D Solar link |
