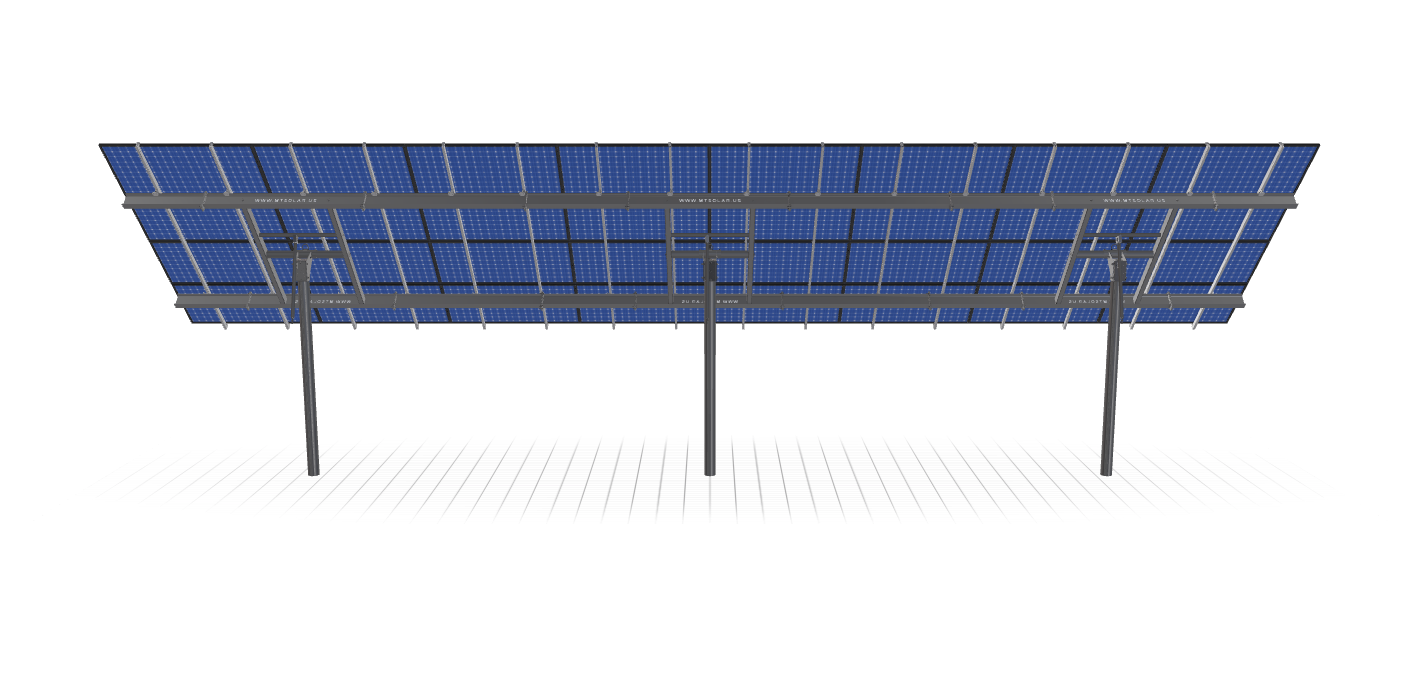

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.4 inches by 40.8 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
North Teton Valley Property Development.32.A
$13,779.15
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.4 inches by 40.8 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2548.45 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-6TOP-HD-45-L-4HX8W-B6F8 |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 10.95 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 8.25 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 654.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 3.00 |
| MODULE AREA | 765.43 |
| ARRAY WIDTH | 55.60 |
| ARRAY HEIGHT | 13.77 |
| RAIL LENGTH | 165.20 |
| MODULE LENGTH | 82.40 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 54.50 |
| GROUND TO TOP | 15.84 |
| PROJECTED PANEL HEIGHT | 9.78 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | NORTH, TETON, VALLEY, PROPERTY, DEVELOPMENT.32.A |
| SITE ADDRESS | 4904, E, 1000, N, ASHTON, ID, 83420, USA |
| MODULE WIDTH | 40.80 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 13779.15 |
| TOTAL WEIGHT | 2548.45 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/78ee0318-543d-4bc7-bb15-b6e10a0da76b.pdf |
|
| ID | 1013.00 |
| 3D Solar link |
