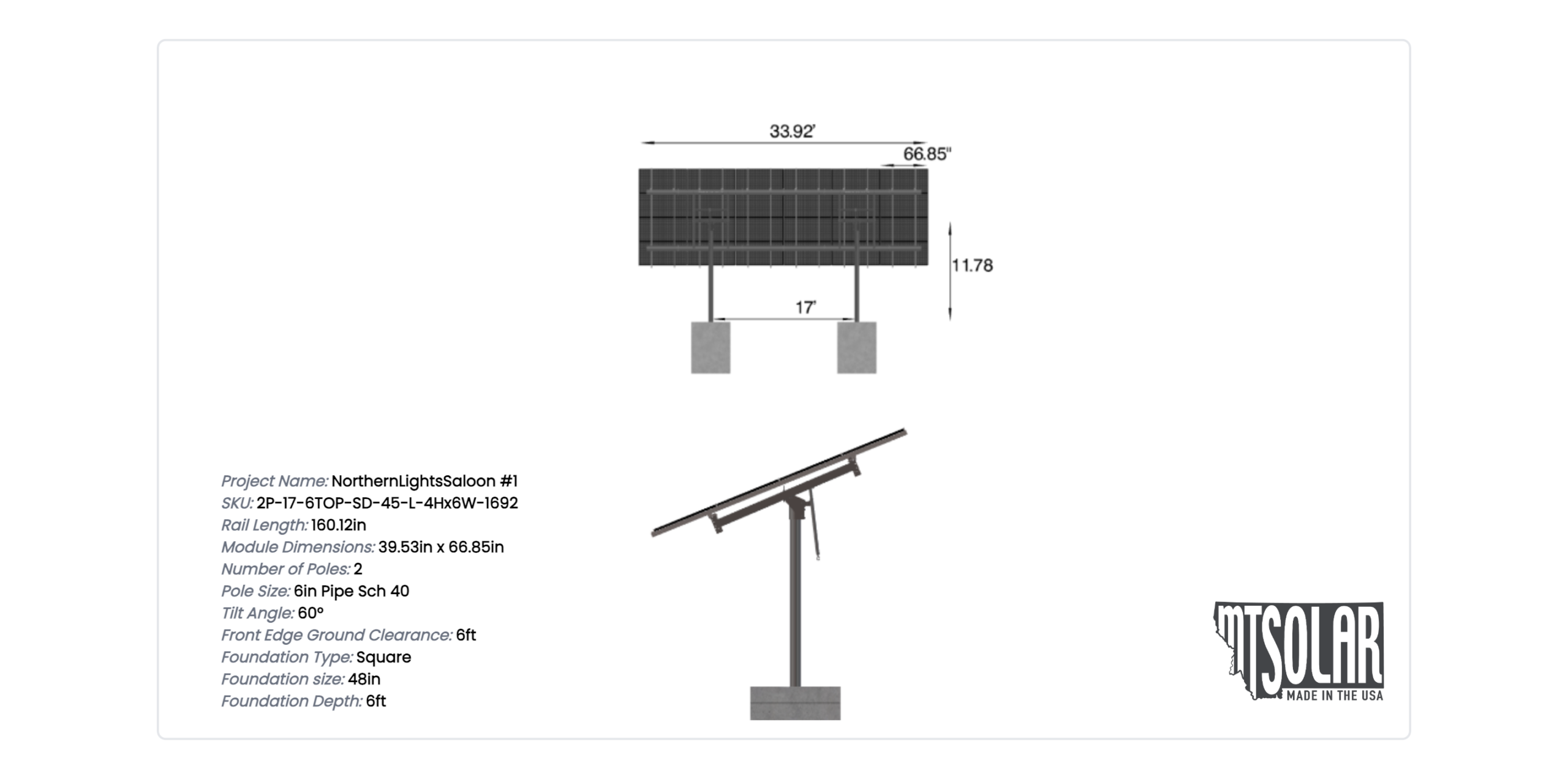

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 66.85 inches by 39.53 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

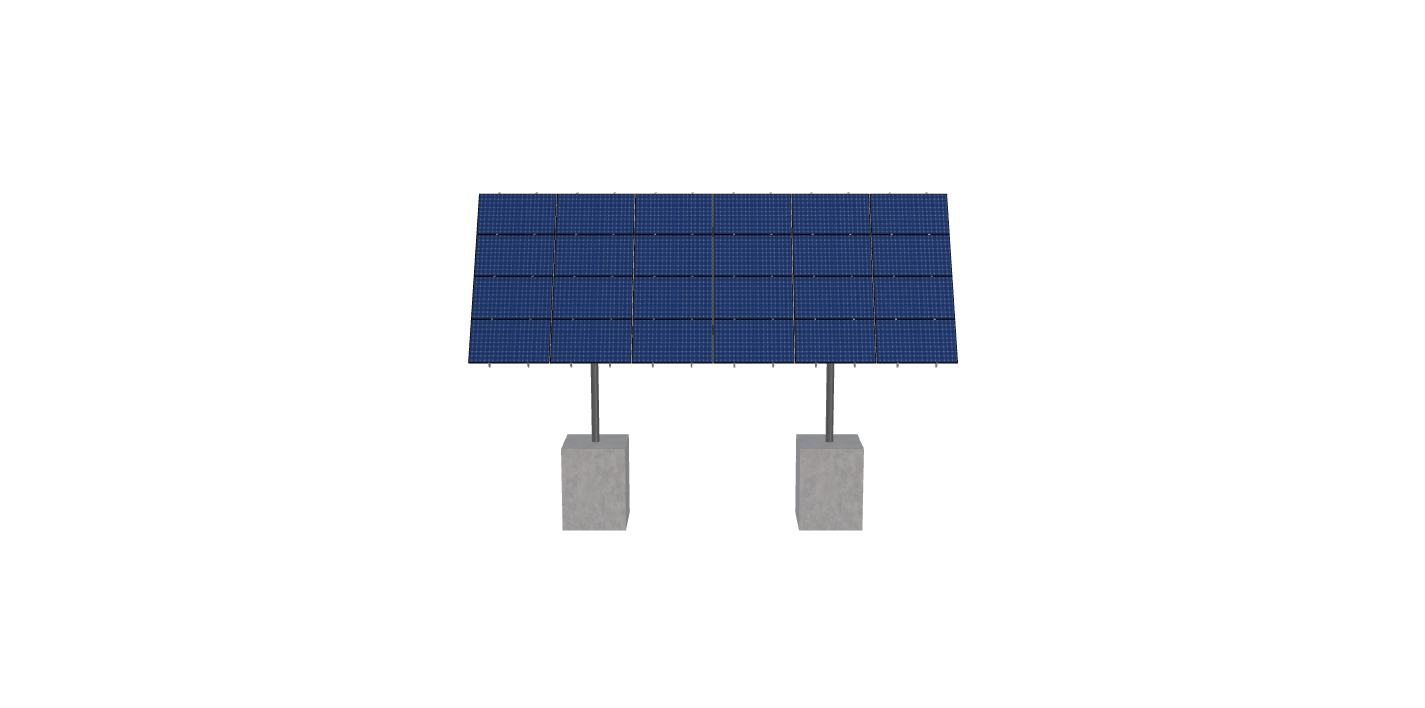

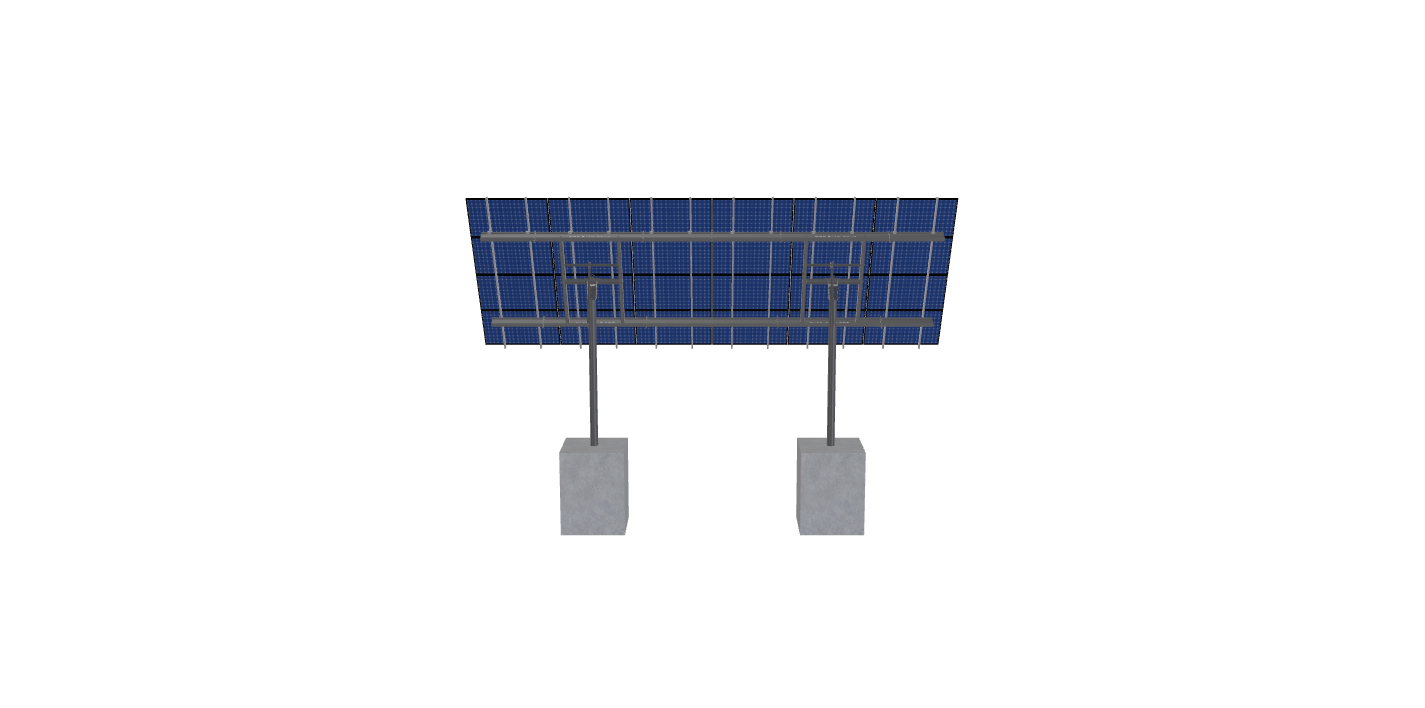

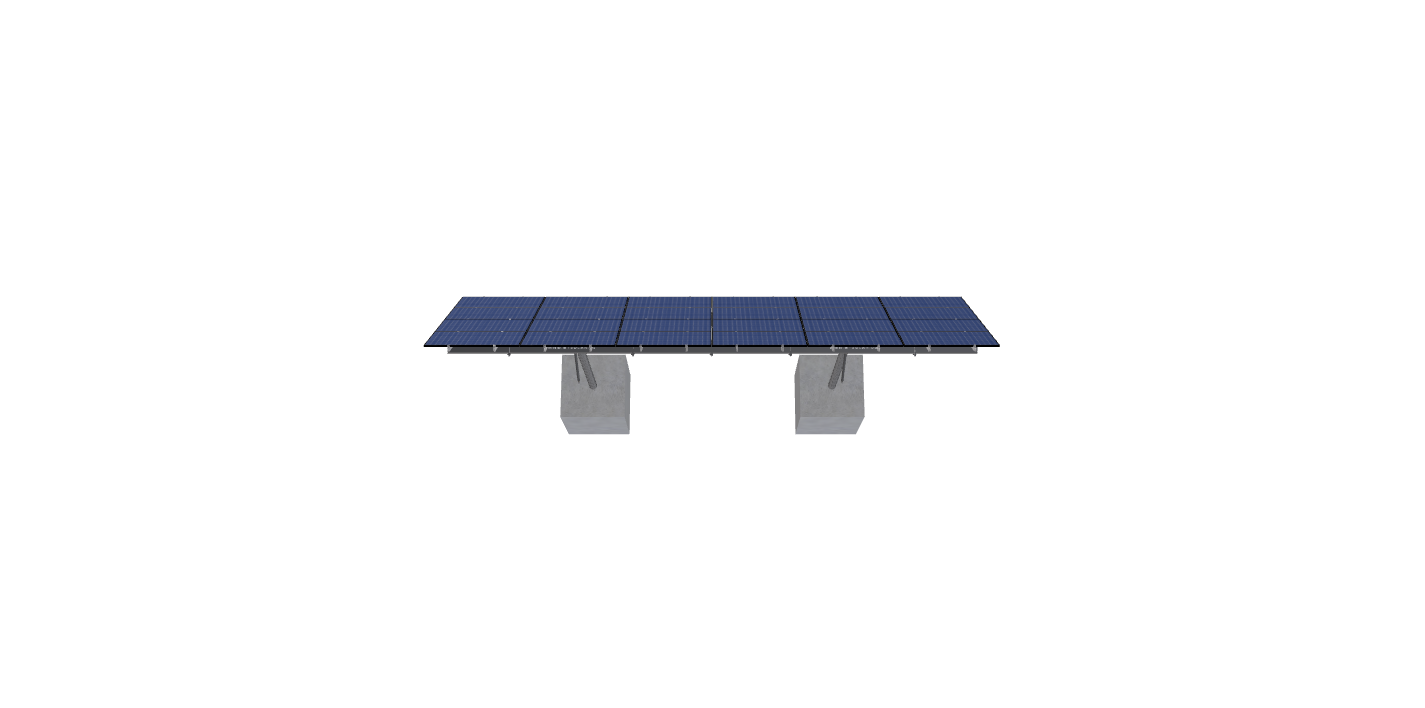

See 3D Model Here
NorthernLightsSaloon #1
$8,368.23
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 66.85 inches by 39.53 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1387.32 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-6TOP-SD-45-L-4HX6W-1692 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 11.78 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 384.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 2.00 |
| MODULE AREA | 452.67 |
| ARRAY WIDTH | 33.92 |
| ARRAY HEIGHT | 13.34 |
| RAIL LENGTH | 160.12 |
| MODULE LENGTH | 66.85 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 32.00 |
| GROUND TO TOP | 17.56 |
| PROJECTED PANEL HEIGHT | 11.56 |
| DESIGNER NAME | JORDAN, SOLAR |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 4065297088.00 |
| PROJECT ID | NORTHERNLIGHTSSALOON, #1 |
| SITE ADDRESS | 255, POLEBRIDGE, LOOP, POLEBRIDGE, MT, 59928, USA |
| MODULE WIDTH | 39.53 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 100.00 |
| SNOW LOAD OVERRIDE | 70.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 7969.74 |
| TOTAL WEIGHT | 1387.32 |
| TOTAL PALLETS | 2.00 |
