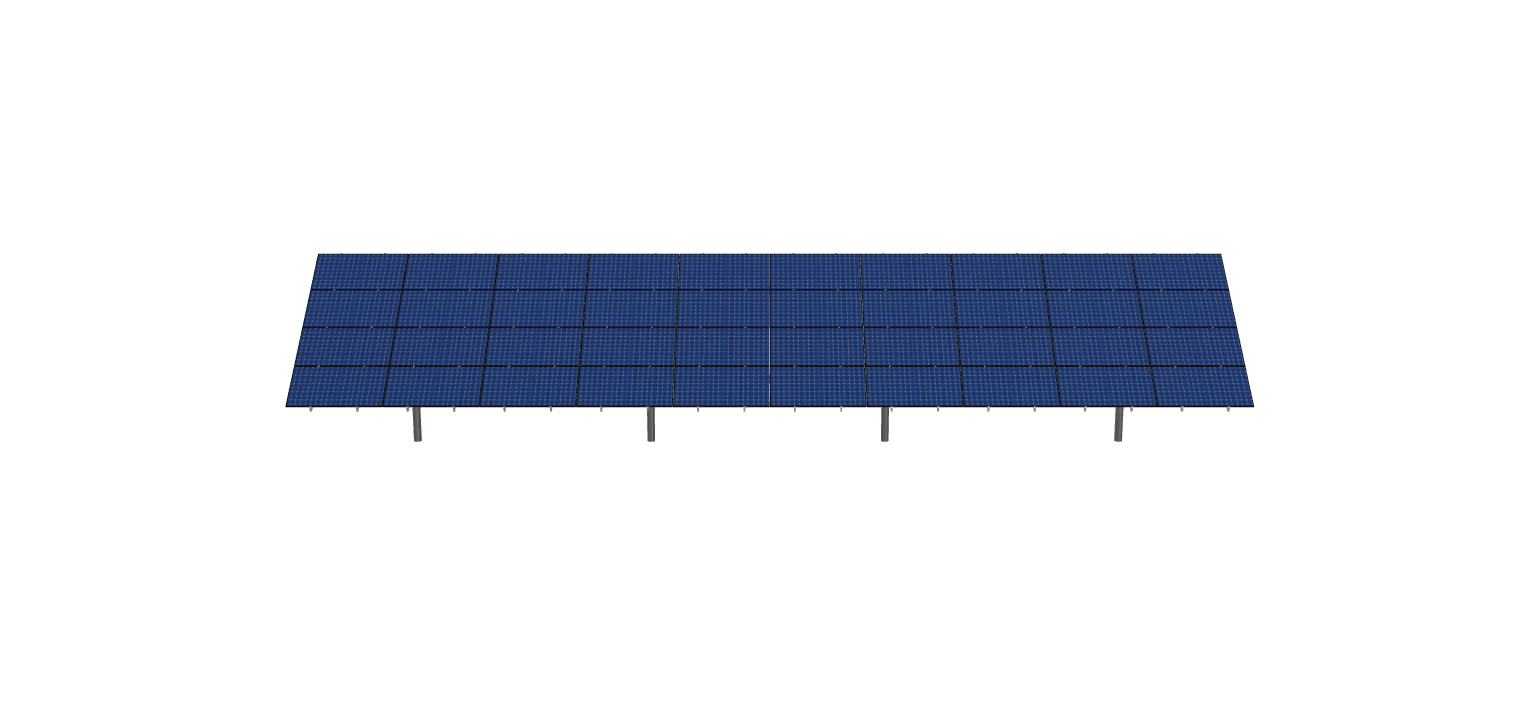

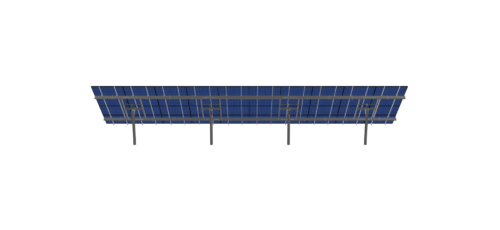

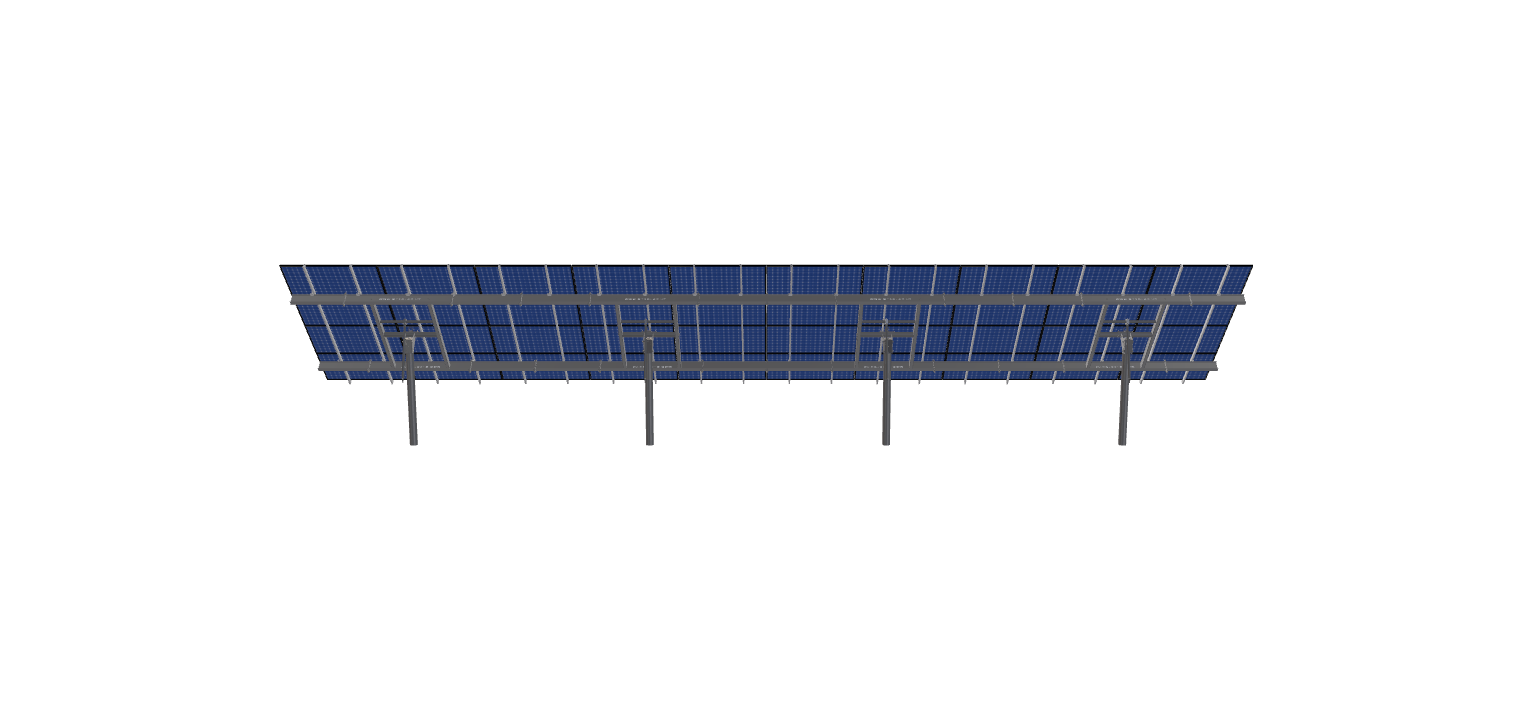

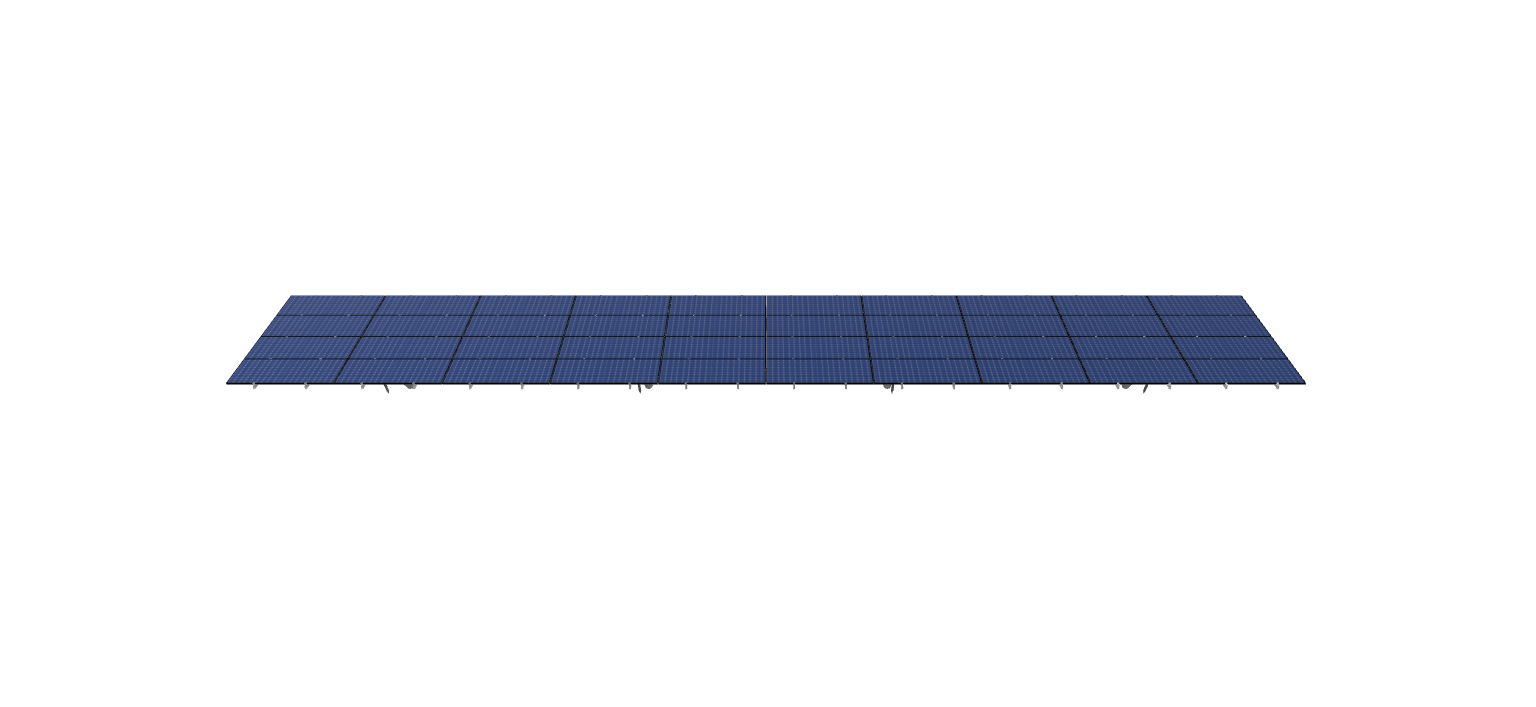

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79.06 inches by 39.45 inches and an array layout of 10 wide by 4 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Olsen_Residential_410
$16,339.24
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79.06 inches by 39.45 inches and an array layout of 10 wide by 4 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2760.2 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-17-6TOP-SD-45-L-4HX10W-J847 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 7.95 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 7.25 |
| TILT ANGLE | 48.00 |
| CANTILEVER | 792.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 4.00 |
| MODULE AREA | 888.44 |
| ARRAY WIDTH | 66.72 |
| ARRAY HEIGHT | 13.32 |
| RAIL LENGTH | 159.80 |
| MODULE LENGTH | 79.06 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 66.00 |
| GROUND TO TOP | 12.83 |
| PROJECTED PANEL HEIGHT | 9.77 |
| PROJECT ID | OLSEN, RESIDENTIAL, 410 |
| SITE ADDRESS | 1066, STANDBY, CREEK, RD, BUTTE, MT, 59701, USA |
| MODULE WIDTH | 39.45 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 35.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 15561.18 |
| TOTAL WEIGHT | 2760.20 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/47fb1d52-4ccf-4eb7-abd5-62dae0ca5a3d.pdf |
|
| ID | 3689.00 |
| 3D Solar link |
