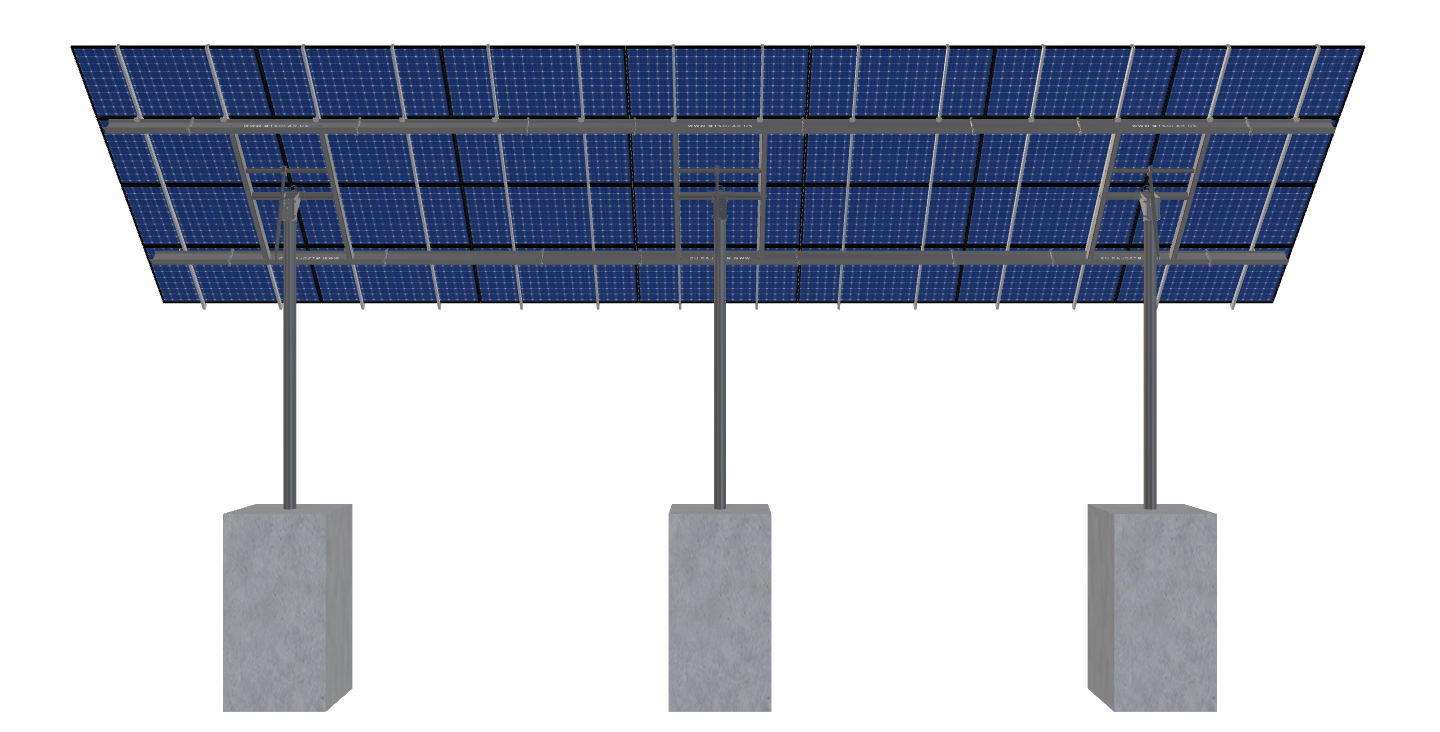

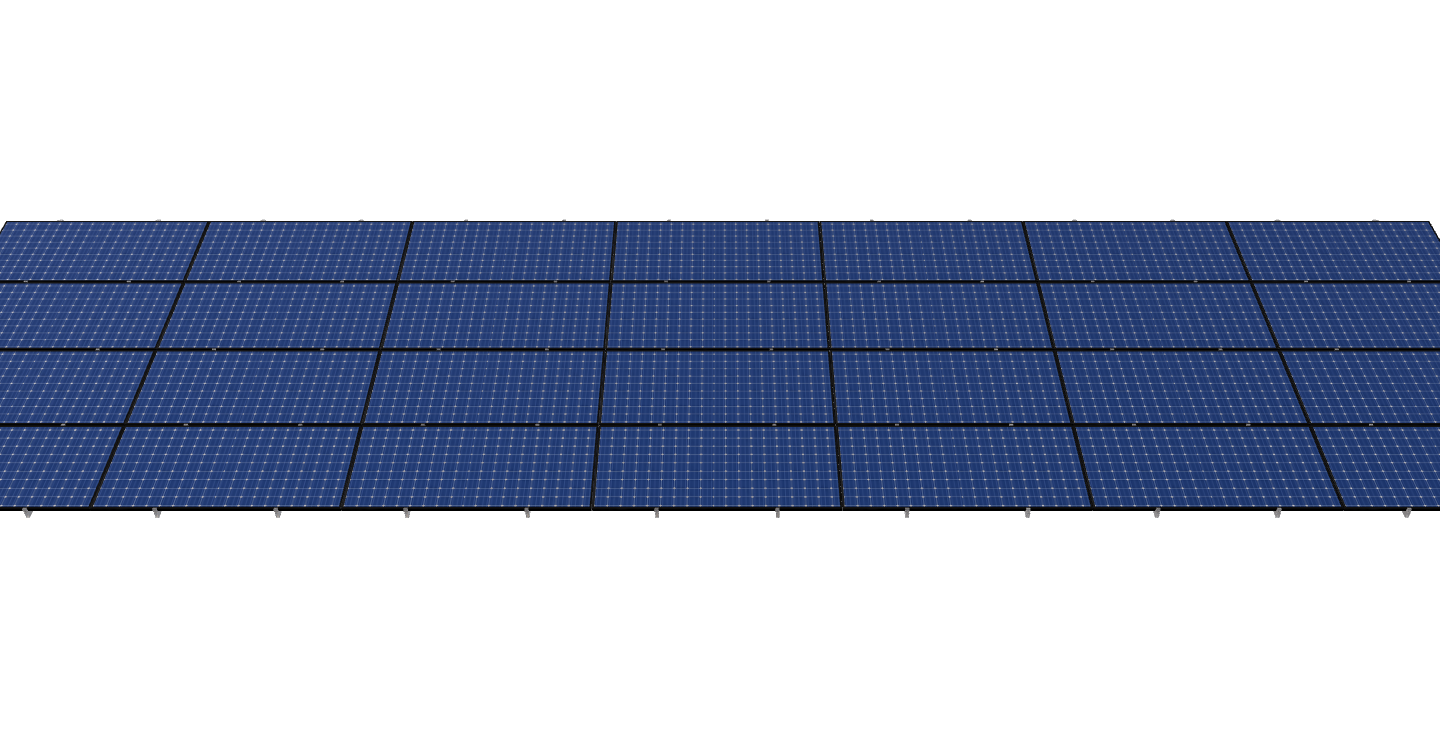

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 95.1 inches by 44.7 inches and an array layout of 7 wide by 4 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
OrlandoProject-JB-RevA
$13,919.41
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 95.1 inches by 44.7 inches and an array layout of 7 wide by 4 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2601.23 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-10TOP-HD-45-L-4HX7W-38IJ |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 14.42 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 8.75 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 654.00 |
| GROUND CLEARANCE | 9.00 |
| NO POLES | 3.00 |
| MODULE AREA | 844.61 |
| ARRAY WIDTH | 56.06 |
| ARRAY HEIGHT | 15.07 |
| RAIL LENGTH | 180.80 |
| MODULE LENGTH | 95.10 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 54.50 |
| GROUND TO TOP | 19.78 |
| PROJECTED PANEL HEIGHT | 10.72 |
| WIND SPEED OVERRIDE | 135.00 |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | ORLANDOPROJECT-JB-REVA |
| SITE ADDRESS | 8633, VISTA, SHORES, CT, ORLANDO, FL, 32836, USA |
| MODULE WIDTH | 44.70 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 7.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | HD |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 13919.41 |
| TOTAL WEIGHT | 2601.23 |
| TOTAL PALLETS | 3.00 |
