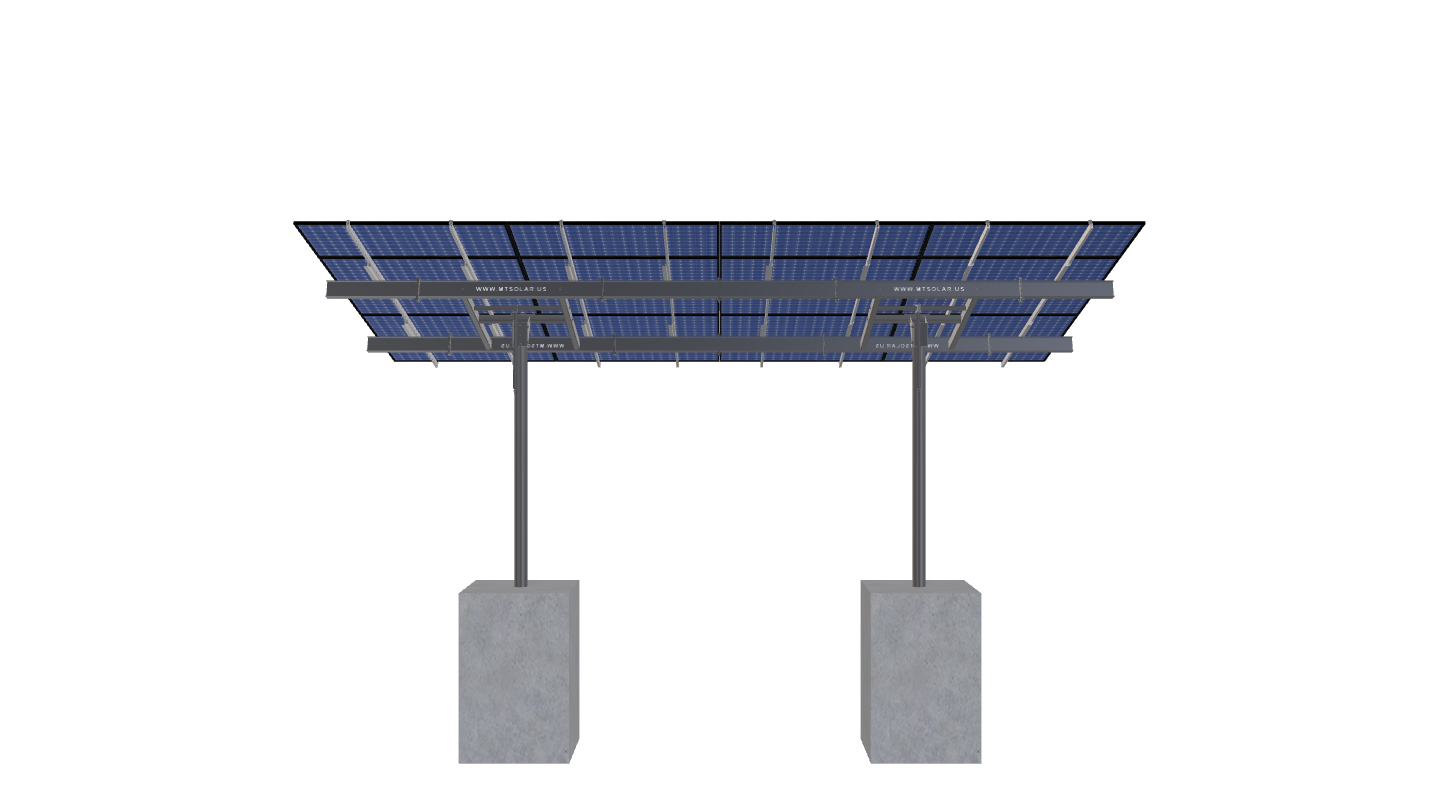

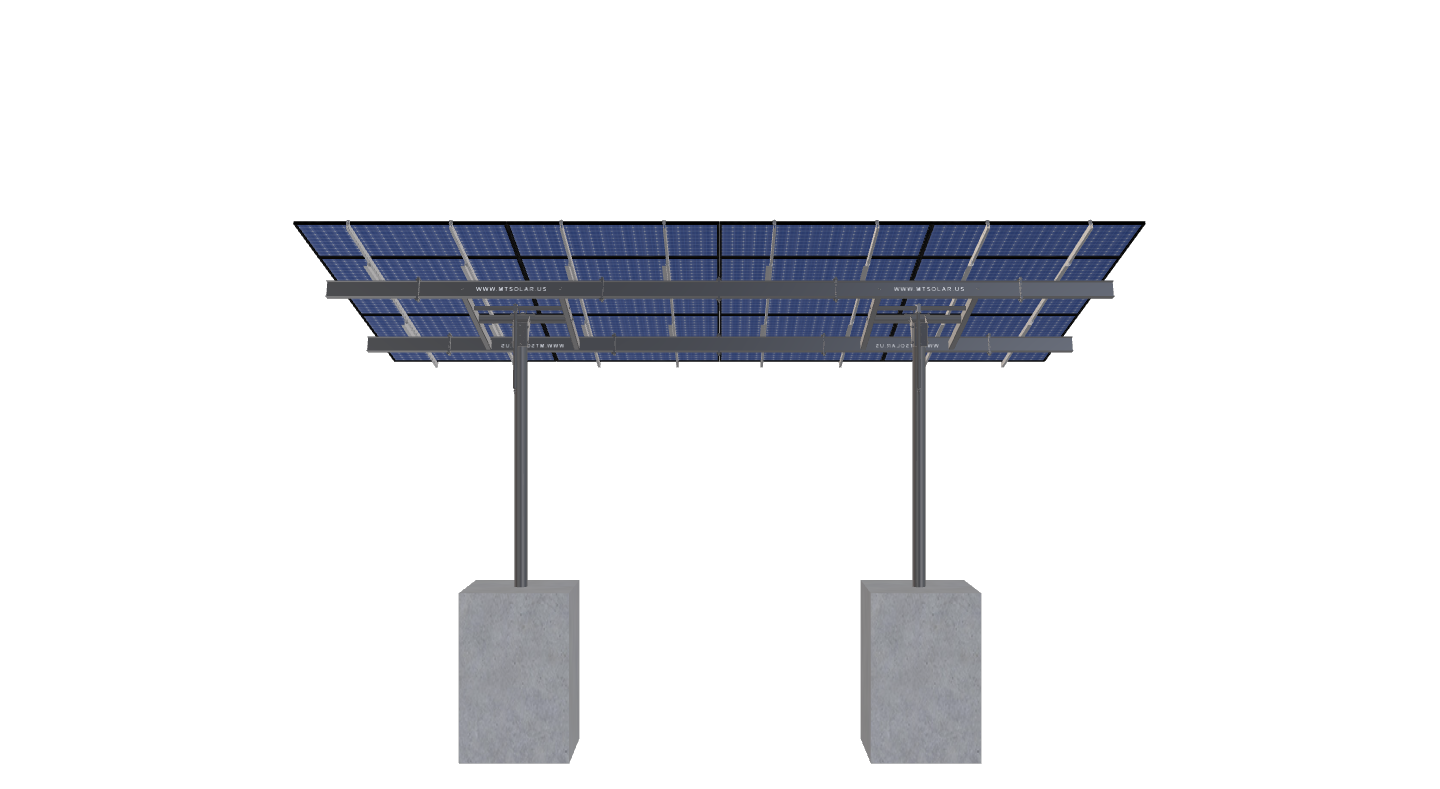

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 95.1 inches by 44.7 inches and an array layout of 4 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
OrlandoProject-JB-RevC
$10,454.91
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 95.1 inches by 44.7 inches and an array layout of 4 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2080.46 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-10TOP-XD-45-L-5HX4W-11BK |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 11.44 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 7.00 |
| TILT ANGLE | 15.00 |
| CANTILEVER | 384.00 |
| GROUND CLEARANCE | 9.00 |
| NO POLES | 2.00 |
| MODULE AREA | 603.29 |
| ARRAY WIDTH | 32.03 |
| ARRAY HEIGHT | 18.83 |
| RAIL LENGTH | 226.00 |
| MODULE LENGTH | 95.10 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 32.00 |
| GROUND TO TOP | 13.85 |
| PROJECTED PANEL HEIGHT | 4.82 |
| WIND SPEED OVERRIDE | 135.00 |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | ORLANDOPROJECT-JB-REVC |
| SITE ADDRESS | 8633, VISTA, SHORES, CT, ORLANDO, FL, 32836, USA |
| MODULE WIDTH | 44.70 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 10454.91 |
| TOTAL WEIGHT | 2080.46 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/a4acd008-8a99-4eeb-9e51-404064cc10b2.pdf |
|
| ID | 1949.00 |
| CAD URL | |
| 3D Solar link |
