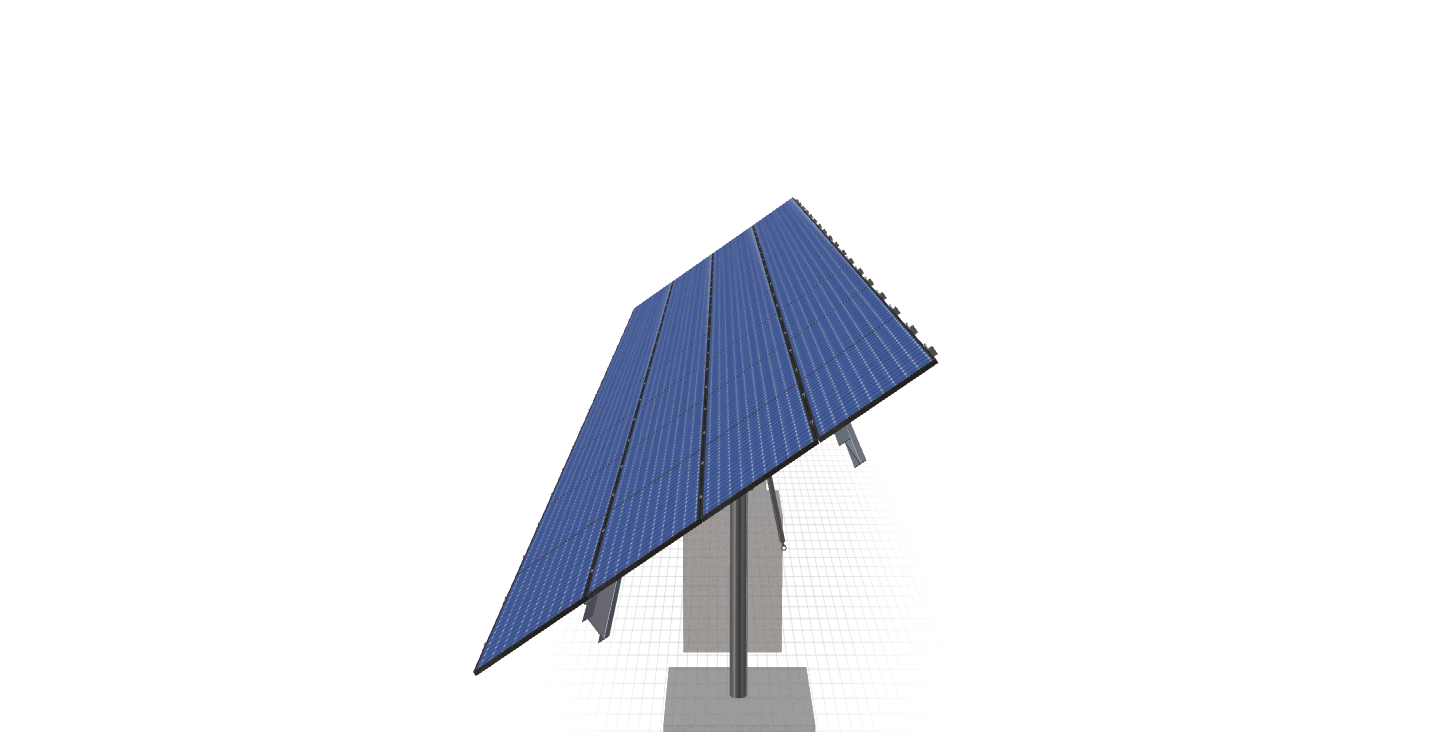

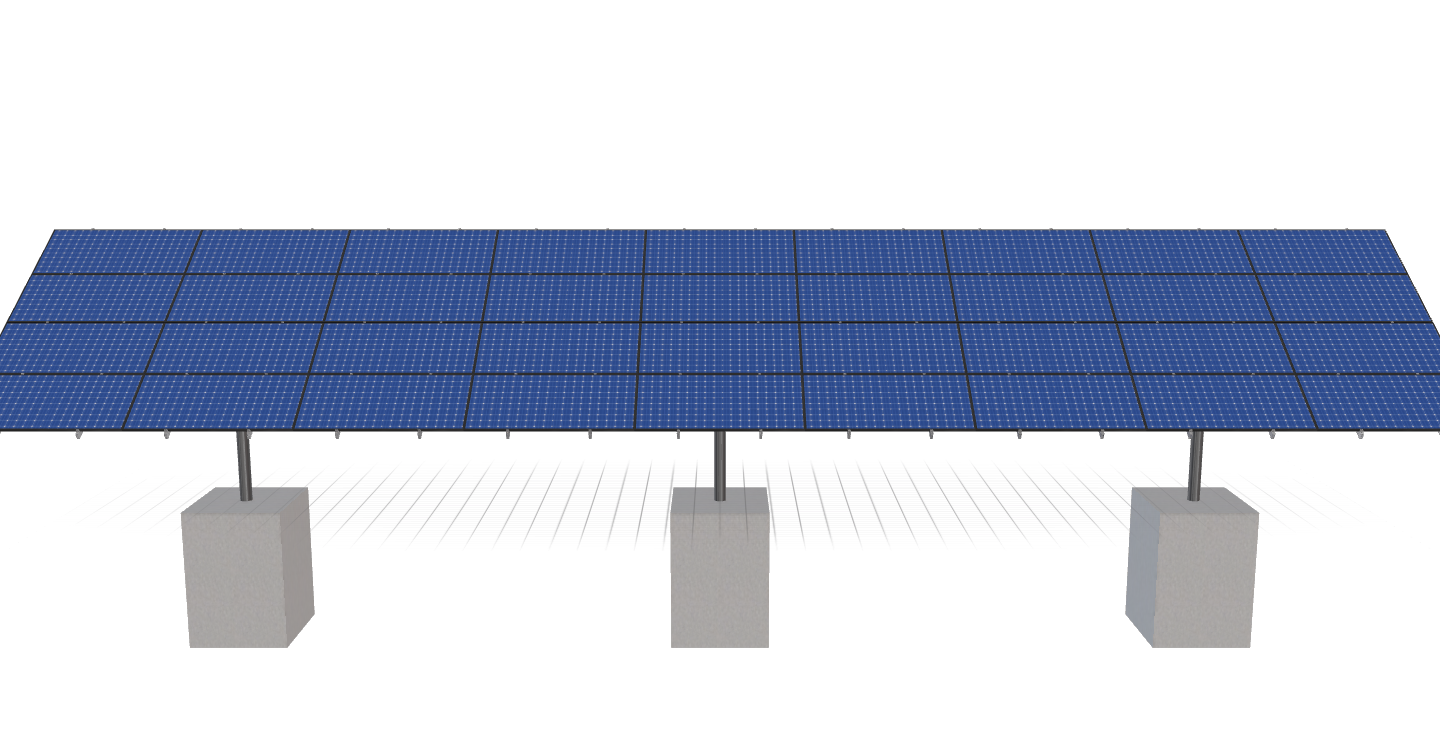

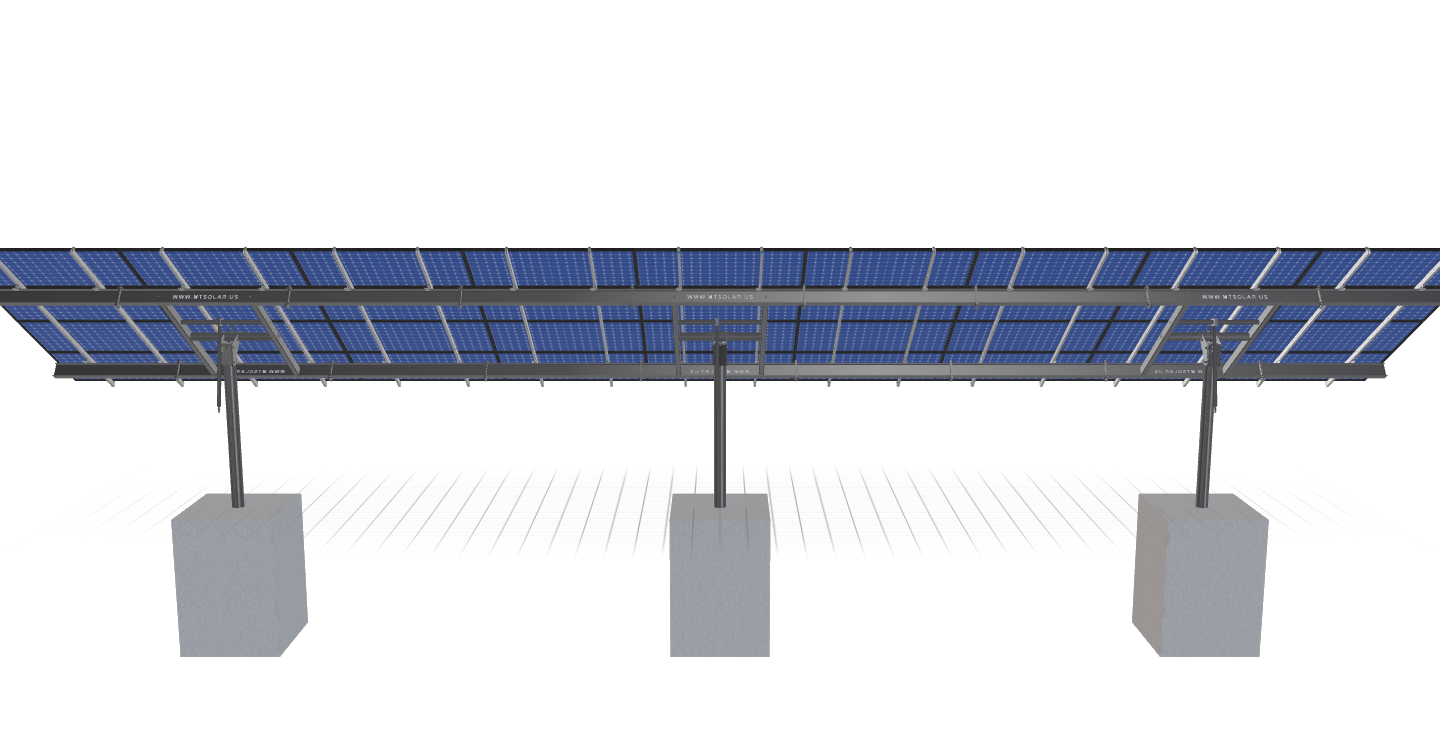

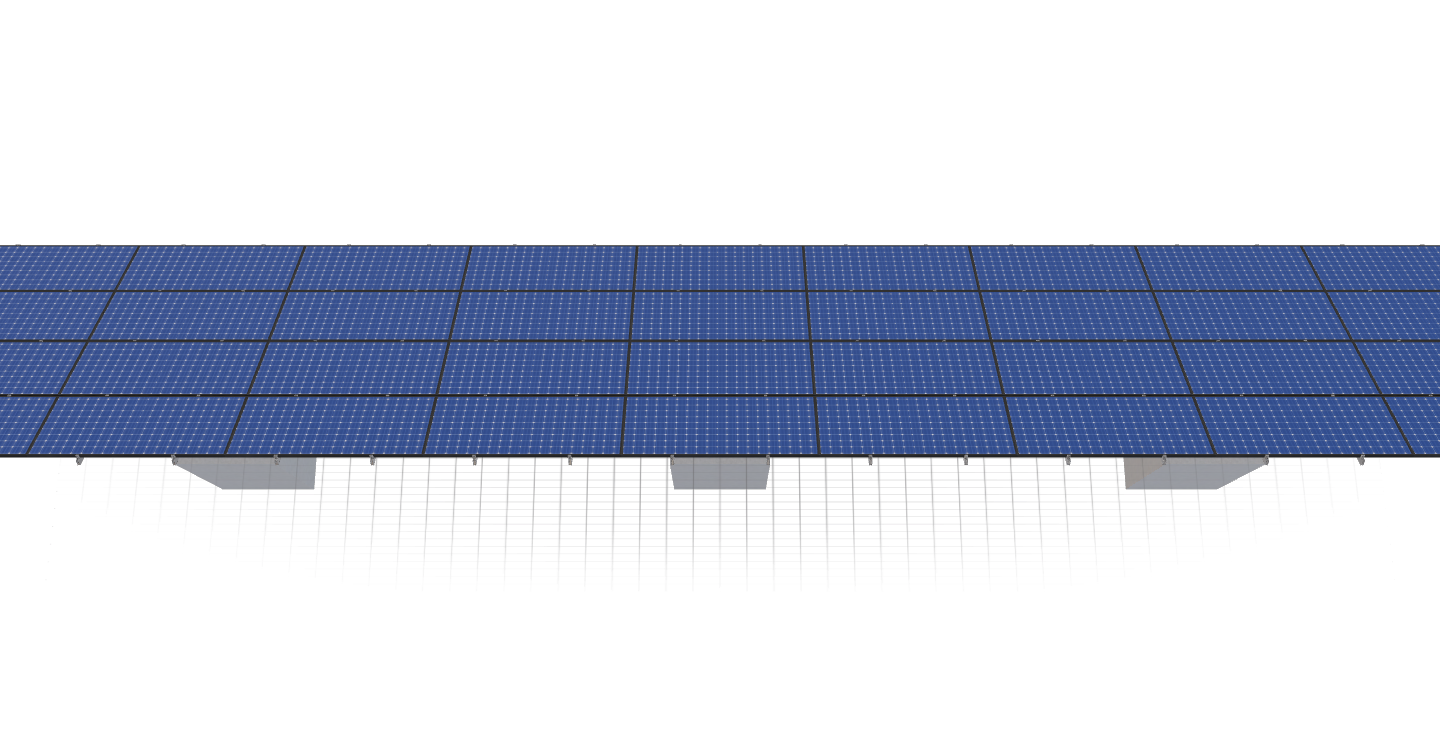

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 86.81 inches by 40.63 inches and an array layout of 9 wide by 4 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
OtterTailSolar-RevA
$17,974.55
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 86.81 inches by 40.63 inches and an array layout of 9 wide by 4 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3259.83 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-10TOP-XD-72-L-4HX9W-HB1L |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 7.93 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 6.50 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 774.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 3.00 |
| MODULE AREA | 902.91 |
| ARRAY WIDTH | 65.86 |
| ARRAY HEIGHT | 13.71 |
| RAIL LENGTH | 164.52 |
| MODULE LENGTH | 86.81 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 64.50 |
| GROUND TO TOP | 11.82 |
| PROJECTED PANEL HEIGHT | 7.77 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | OTTERTAILSOLAR-REVA |
| SITE ADDRESS | 2701, MAIN, ST, FERGUS, FALLS, MN, 56537, USA |
| MODULE WIDTH | 40.63 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 9.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 17118.62 |
| TOTAL WEIGHT | 3259.83 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/0a9e8330-6bd9-428b-964f-65a3be775a68.pdf |
|
| ID | 1210.00 |
| 3D Solar link |
