This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 39 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

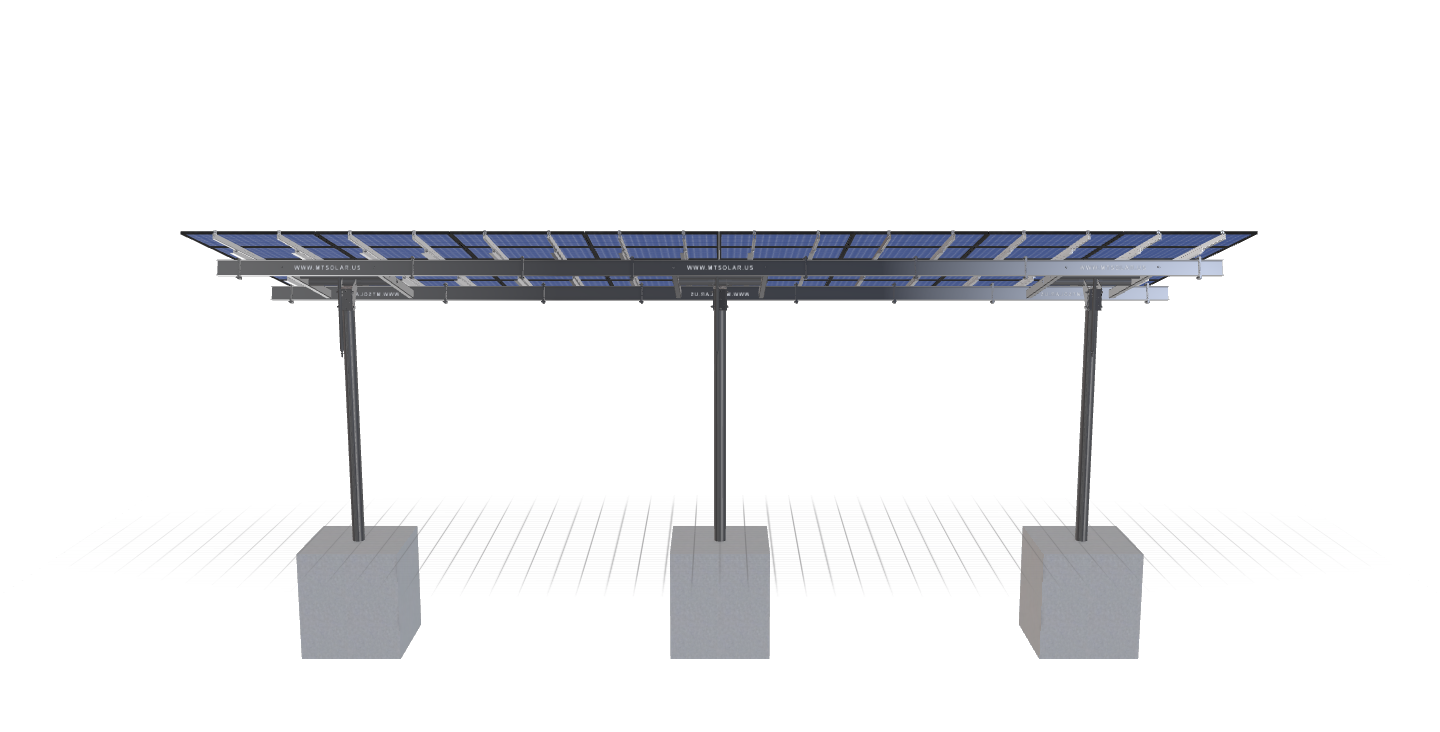

See 3D Model Here
ParkerVillageSolarCarport-RevB
$12,846.03
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 39 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 2488.52 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 3P-17-6TOP-SD-12-L-5HX8W-070G |
DUTY SIZE | SD |
POLE SIZE | 6IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 3.00 |
POLE SPACING | 17.00 |
POLE HEIGHT | 12.13 |
WING SPAN | 12.00 |
MAX FOUNDATION DEPTH | 5.00 |
TILT ANGLE | 15.00 |
CANTILEVER | 522.00 |
GROUND CLEARANCE | 10.00 |
NO POLES | 3.00 |
MODULE AREA | 724.17 |
ARRAY WIDTH | 44.00 |
ARRAY HEIGHT | 16.46 |
RAIL LENGTH | 197.50 |
MODULE LENGTH | 65.00 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 43.50 |
GROUND TO TOP | 14.23 |
PROJECTED PANEL HEIGHT | 4.21 |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
PROJECT ID | PARKERVILLAGESOLARCARPORT-REVB |
SITE ADDRESS | 5, GERALD, ST, HIGHLAND, PARK, MI, 48203, USA |
MODULE WIDTH | 39.00 |
NUMBER ROWS | 5.00 |
NUMBER COLUMNS | 8.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | B |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 12846.03 |
TOTAL WEIGHT | 2488.52 |
TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/18a9e630-f2f6-49f2-bbe2-9c4a0f0a9e45.pdf |
|
ID | 1062.00 |
3D Solar link |
