Pinehurst School

$4,000.30

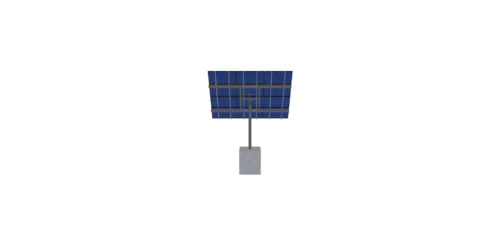

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-6TOP-SD-57-L-4Hx3W-L98A Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 699.66 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-6TOP-SD-57-L-4HX3W-L98A

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

10.76

WING SPAN

57.00

MAX FOUNDATION DEPTH

5.00

TILT ANGLE

50.00

CANTILEVER

204.00

GROUND CLEARANCE

5.00

NO POLES

1.00

MODULE AREA

258.57

ARRAY WIDTH

17.20

ARRAY HEIGHT

15.03

RAIL LENGTH

180.40

MODULE LENGTH

67.80

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

17.00

GROUND TO TOP

16.45

PROJECTED PANEL HEIGHT

11.39

PROJECT ID

PINEHURST, SCHOOL

SITE ADDRESS

15337, OR-66, ASHLAND, OR, 97520, USA

MODULE WIDTH

44.60

NUMBER ROWS

4.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

88.00

SNOW LOAD OVERRIDE

96.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

4000.30

TOTAL WEIGHT

699.66

TOTAL PALLETS

1.00
