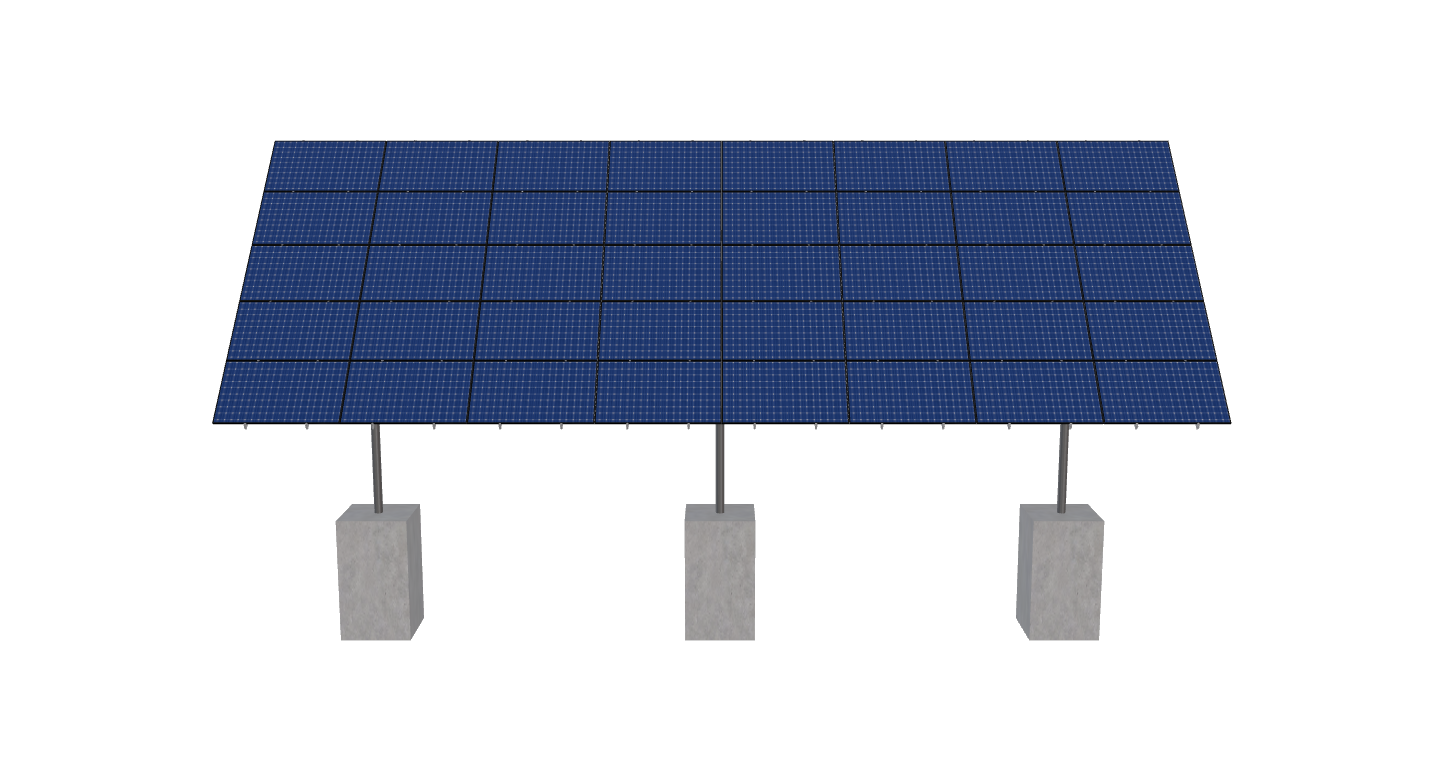

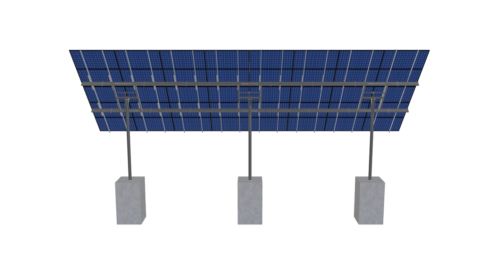

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 90 inches by 55 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
PlanetSolarity-Sample-RevA-JB
$15,899.27
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 90 inches by 55 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3217.17 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-8TOP-HD-45-L-5HX8W-STRUTS-F8HJ |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 15.32 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 8.00 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 720.00 |
| GROUND CLEARANCE | 7.00 |
| NO POLES | 3.00 |
| MODULE AREA | 1402.92 |
| ARRAY WIDTH | 60.67 |
| ARRAY HEIGHT | 23.13 |
| RAIL LENGTH | 277.50 |
| MODULE LENGTH | 90.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 60.00 |
| GROUND TO TOP | 23.56 |
| PROJECTED PANEL HEIGHT | 16.48 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| PROJECT ID | PLANETSOLARITY-SAMPLE-REVA-JB |
| SITE ADDRESS | 941, HILLWIND, RD, NE, MINNEAPOLIS, MN, 55432, USA |
| MODULE WIDTH | 55.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 15899.27 |
| TOTAL WEIGHT | 3217.17 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/94152760-0fce-43b3-9f0a-c4e0c467376a.pdf |
|
| ID | 3537.00 |
| 3D Solar link |
